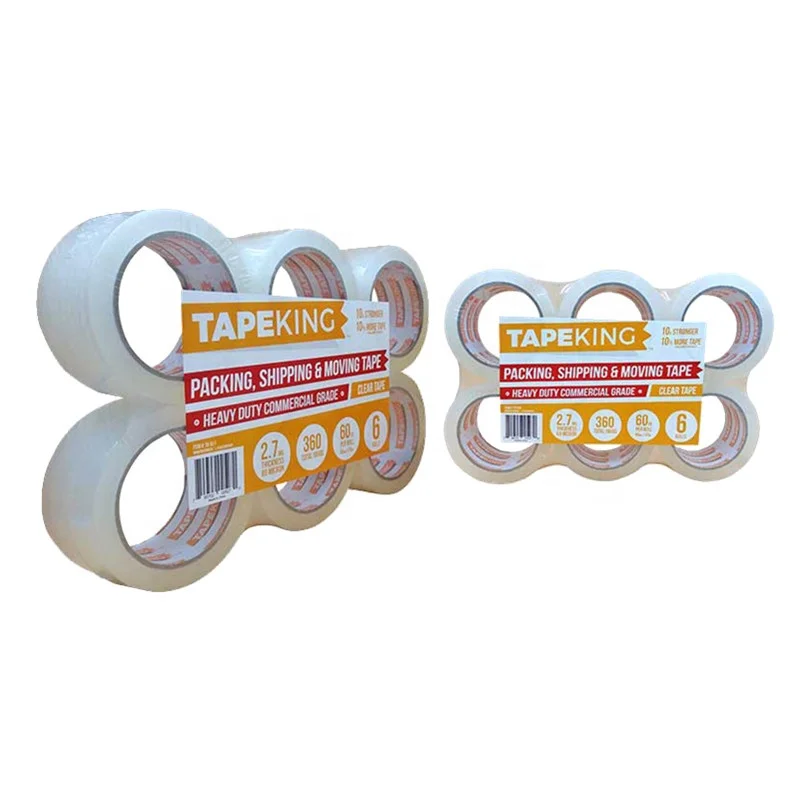

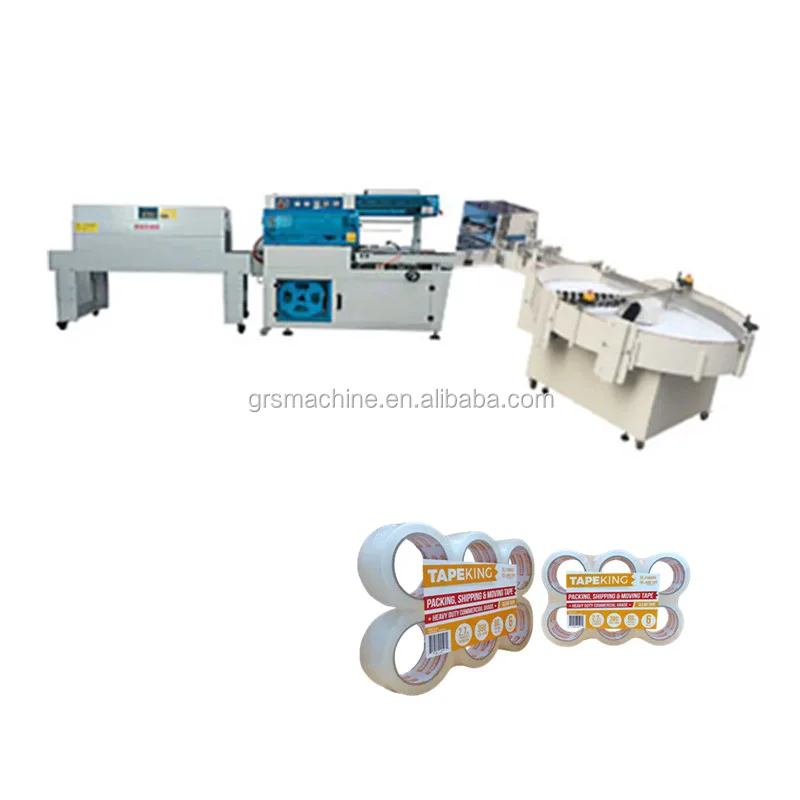

Automatic Flat Type Adhesive Tape Packing Machine

Product Overview

Description

Flat Type Adhesive Tape Packing Machine



Disc feeding machine

Application:

This machine is used for storing and automatic permutation of cylindrical products(tape).Work with high automatic push material conveyor belt to achieve more than single or double row of the combination of multiple products packaging.Disc workbench adopts telfon board,viscose,wear-resisting.

Specification:

speed	0-30round/min
Total Power	0.1KW
Voltage	220V/1PH
Machine Dimension	1800*1800*1100mm



Pusher type conveyor belt

Application:

This machine is advanced in production group transport,especially in the packing tape industry.Wide range of transport,combine with sealing machine to be a fully automatic assembly line.Suitable for adhesive tape,food,paper and other industries.

Specification:

speed	35bags/min
Total Power	0.1KW
Voltage	220V/1PH
Machine dimension	2200*930*1340mm
Material Dimension	500*450*150mm



Automatic sealing & cutting machine and shrink packing machine

Application:

widely used in packing tapes, cartons, toy, electronic products, electric appliance, stationery, books, record, hardware, floor, aluminum product, daily necessities, drug, drinks, cosmetics, chemical products, label, etc.

Specification:

Machine name	Automatic sealing and cutting machine	Machine name	Shrink packing machine
model	NBR-450A	model	NBR-4020POF
Max. height	125mm	Shrink area	L1200×400×200mm
Sealing line length	L560mm	Machine’s total length	1700mm
Sealing line width	W450mm	Air blower quantity	2
Packing speed	0-25bags/min	Conveying speed	0-10M/min
Rated power	1.35KW	Power current	12KW  18.2A
Working power supply	220V	Working power supply	380V
Compressed air	0.5-0.8Mpa	Heating way	12 pieces of quartz tubes
Packing material	POF	Packing material	POF,PVC
Belt’s width	330mm	Conveying way	Roller (can customize stainless steel wire mesh, teflon wire mesh)
Conveying capacity	20kg Max.	Conveying capacity	10kg
Packing weight	About 350kg	Packing weight	About 180kg
Machine’s size	1640x920x1420mm	Machine’s size	L1700 x W770 × H1270mm
Package size	1840x1020x1620mm	Package size	L1800 × W850 × H930mm

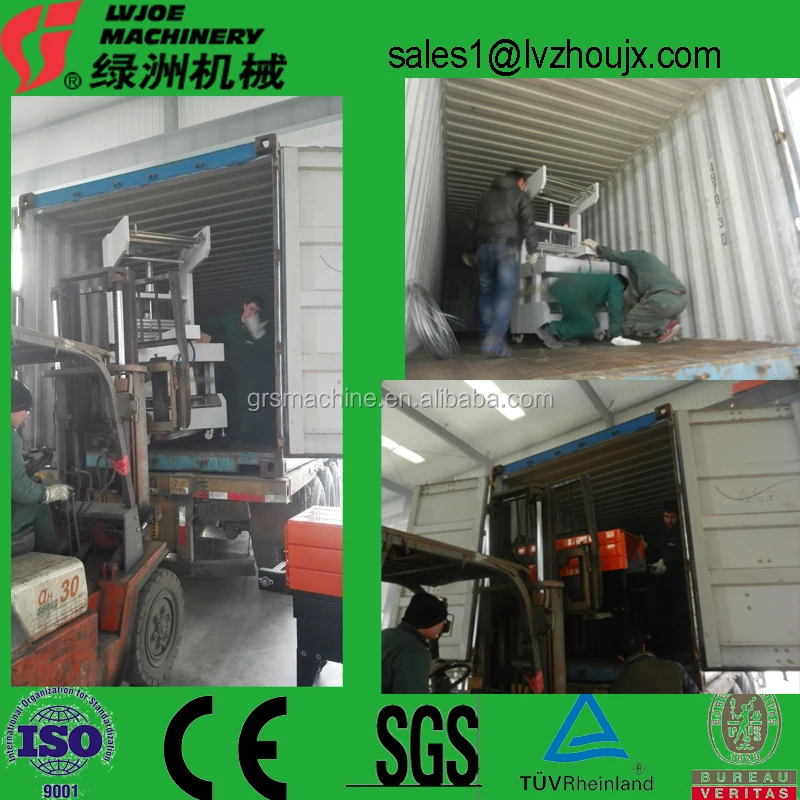

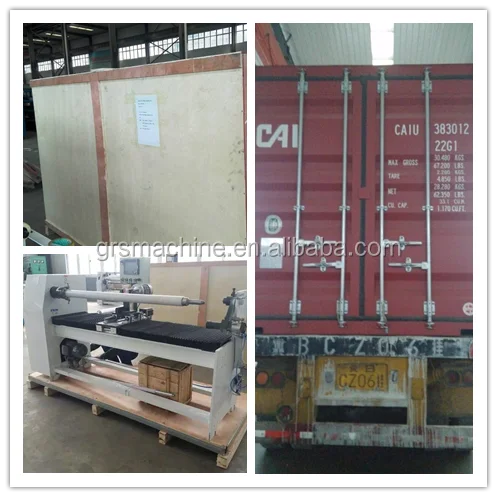

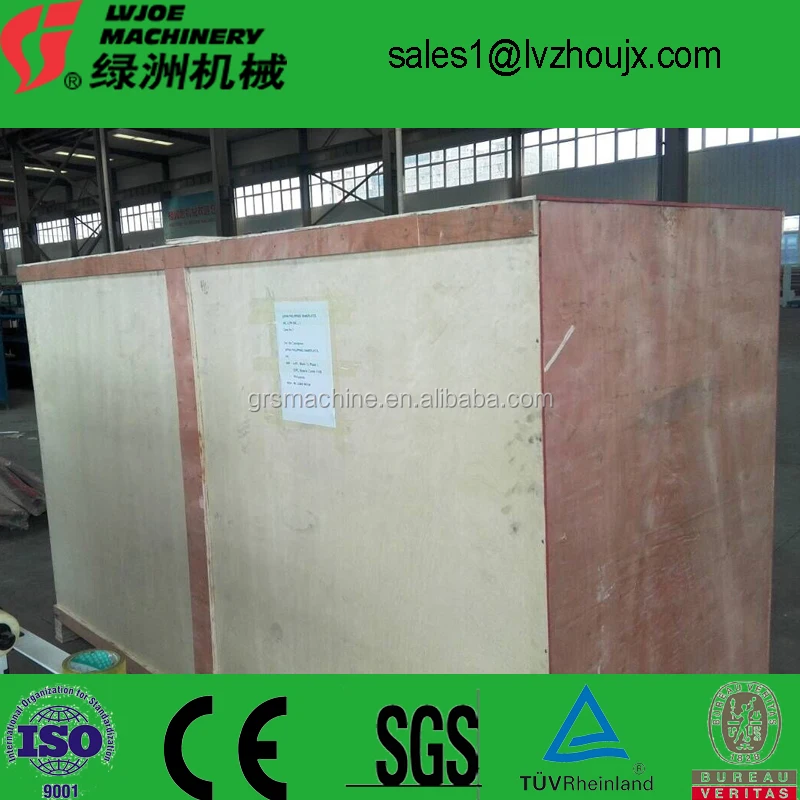

Packing & Delivering:

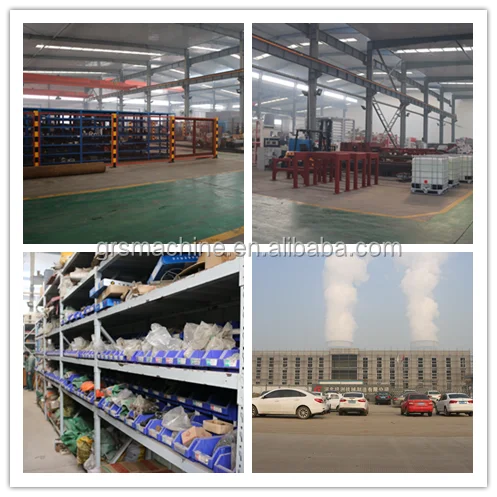

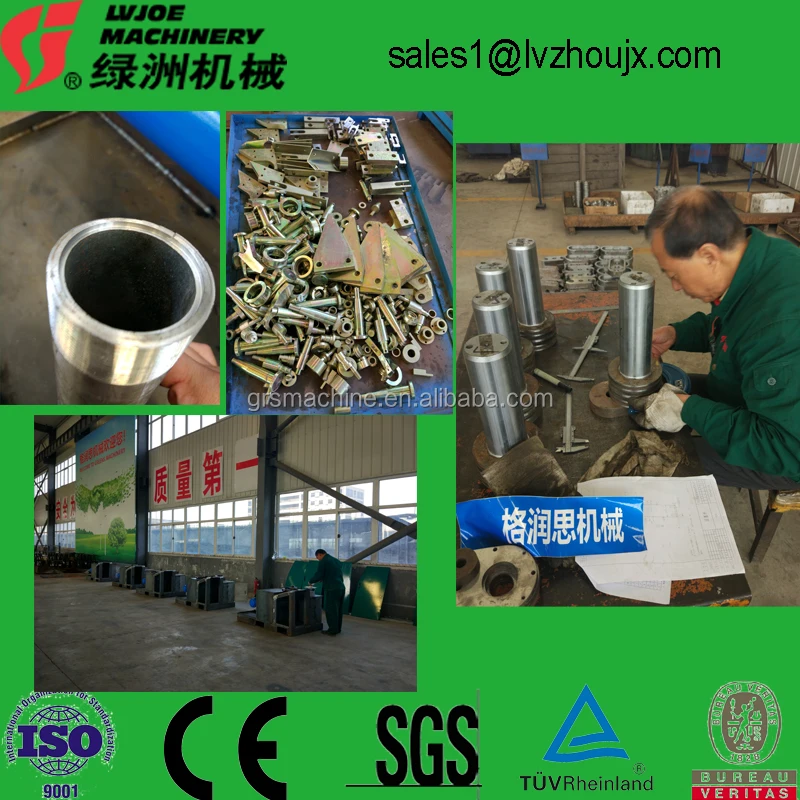

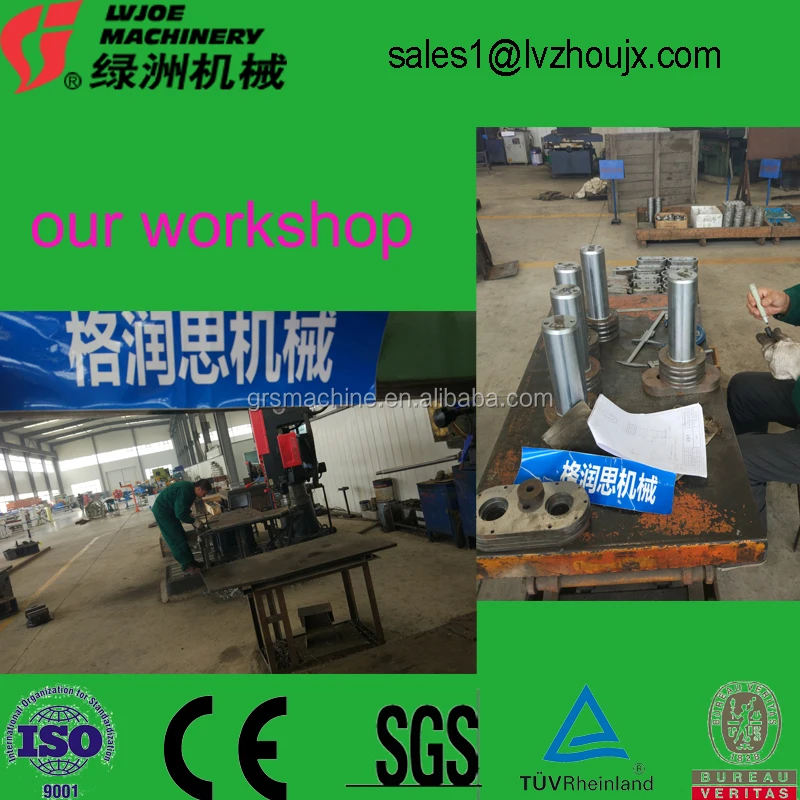

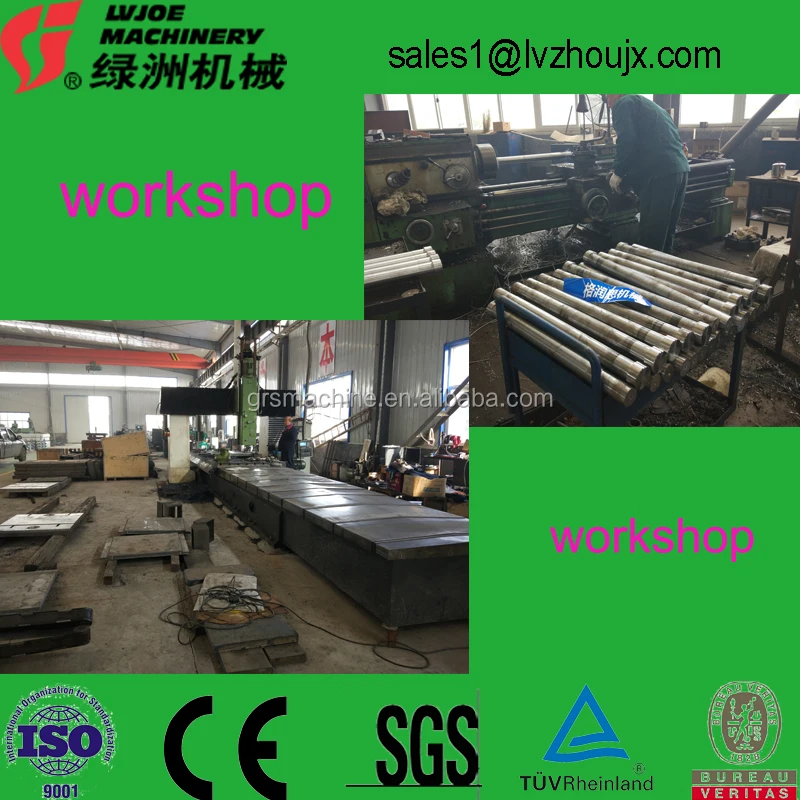

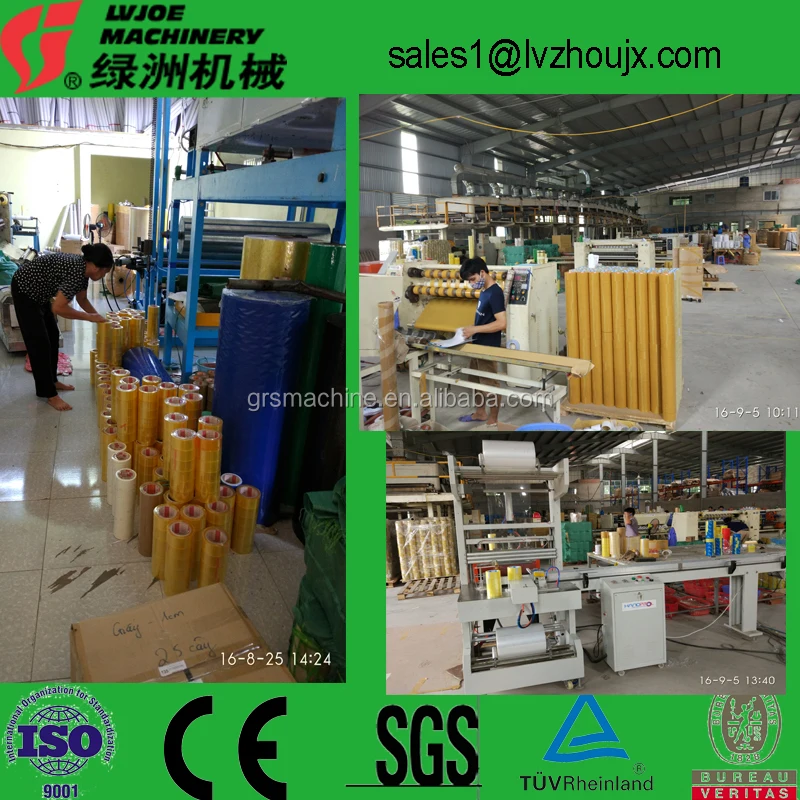

Factory:









Certificate:



Our Customer:





For more details, please directly contact me at any time.
