High Quality Automatic Voltage Regulator AVR SX440 For Brushless Alternator
AVR SX440 is a half-wave phase-controlled thyristor type Automatic Voltage Regulator (AVR) and forms part of the excitation system for a brush-less generator.
In addition to regulating the generator voltage, the Stamford AVR Card SX440 circuitry includes under-speed and sensing loss protection features. Excitation power is derived directly from the generator terminals.
Positive voltage build up from residual levels is ensured by the use of efficient semiconductors in the power circuitry of the AVR.
Technical Data
Reference DATA
AVR
SX440
Sensing voltage
190-264VAC, 1 phase 2 wire
Frequency
50-60Hz
Output voltage
max 90VD at 207VAC input
output current
continuous 4ADC , intermittent 10A for 10 secs
Resistance
15 ohm minimum
Regulation
+/-1% RMS with 4% engine governing
Voltage establish
residual voltage at avr terminal≥ 5AC
External Voltage Adustment
+/-8% with 1k ohm 1 watt trimmer

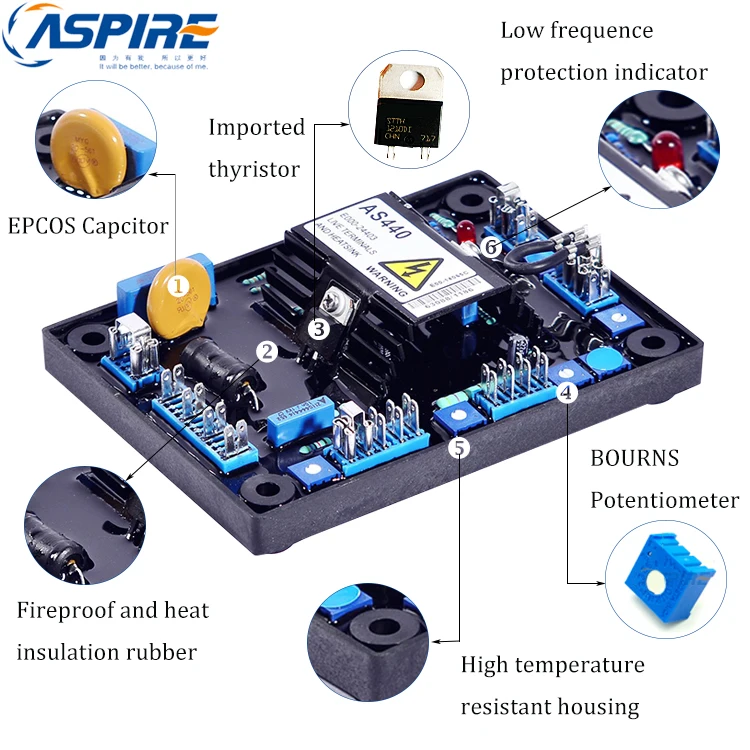

Detailed Images
Why Choose Automatic Voltage Regulator From Asprie?

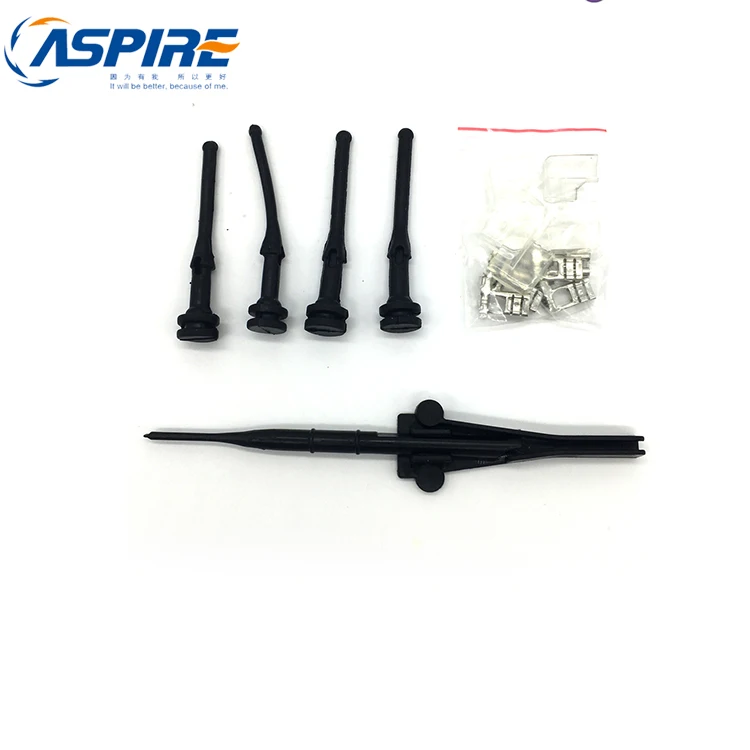

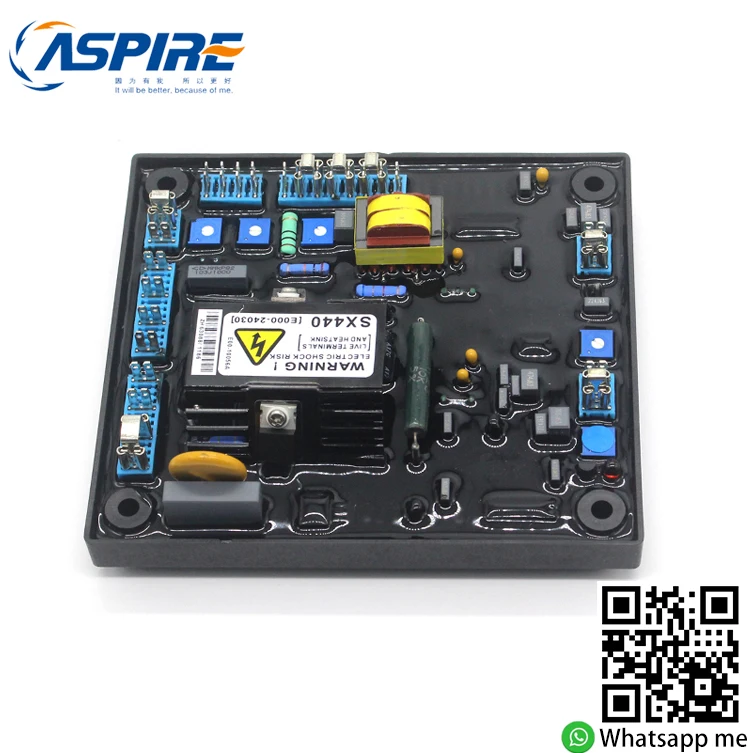

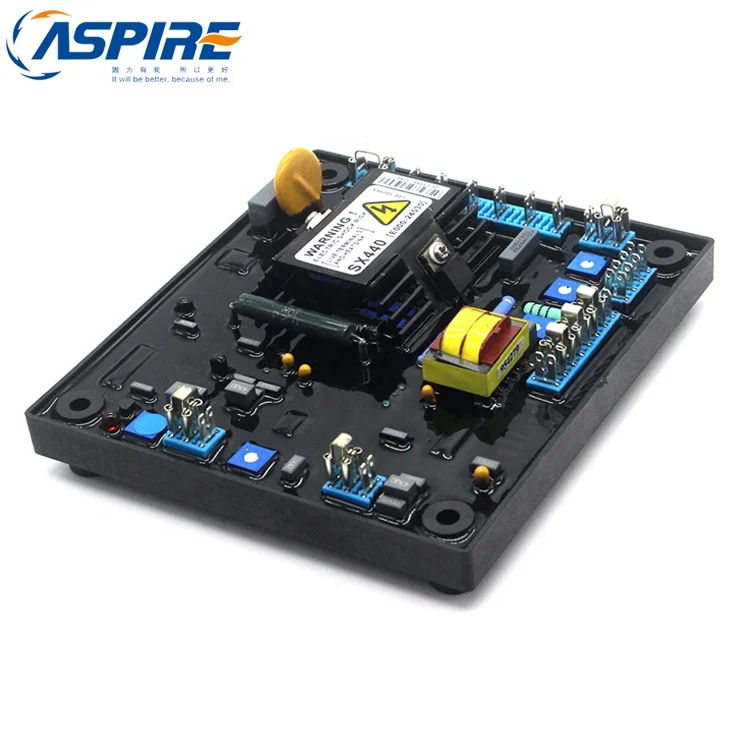

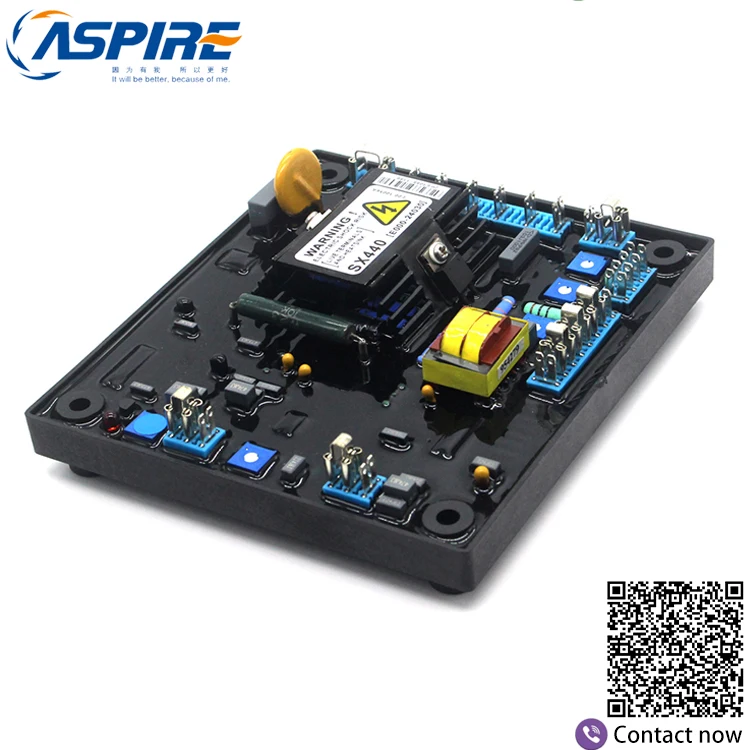

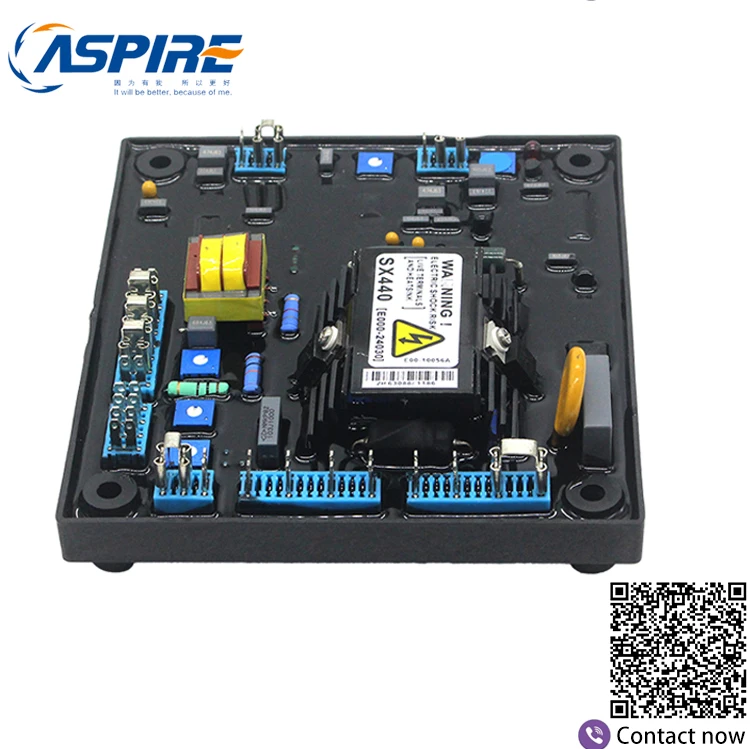

AVR SX440 Pictures
Certificate
Contact Us
FAQ
Q1: Are you trading company or manufacturer ?
A: We are factory more than 12 years since 2006.We have a professional team to develop and manufacture the generator spare parts and supply technical support, with factory price and timely delivery.
Q2: How long is your delivery time?
A: Most parts are in stock.Generally it is 2-3 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it based on the quantity.
Q3: What is your guarantee ?
A: Our warranty is one year for neutral products and two years for Aspire logo products .We can replace a new one in your next order if the product is broken during this period.However, even your products are beyond the warranty,we are still glad to supply technical support for you.
Q4:Can your products be used in severe condition place?
A: Don't worry. We test our products both in high temperatuer and low temperature testing equipment, from -40°C to 80°C.
