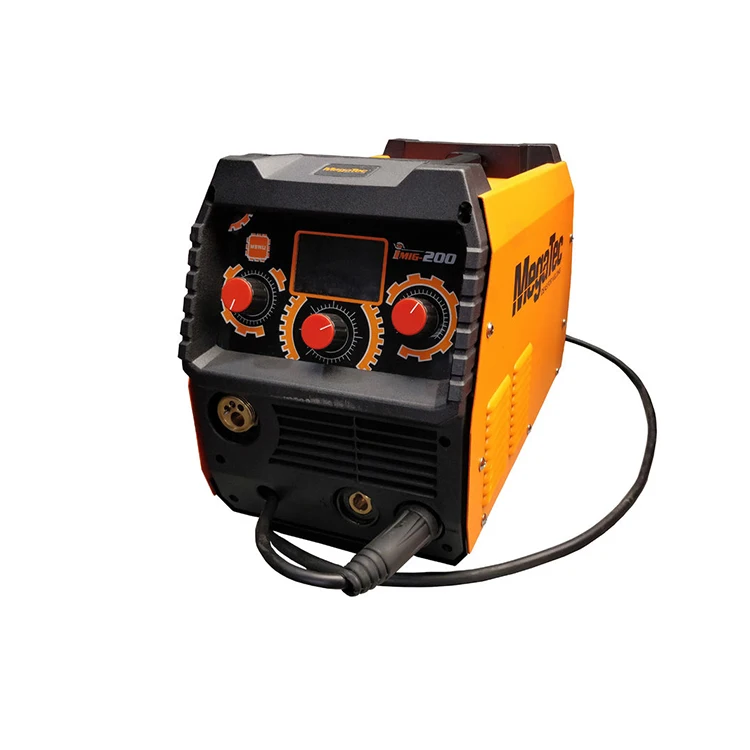

Smart MIG 200 welding machine
- Category: MIG Welders >>>
- Supplier: Wenzhou Chiefstone C&T Co. Ltd.
Share on (62040694011):
Product Overview
Description
Product description
Metal inert-gas welding or using shielded gas welding, as is often called, is a welding method that uses the heat of the arc to establish between the wire and the workpiece.
During this process, the wire will be melted and the material will be transferred to the workpiece.
This method is economically attractive, because of the high speed and long welding time, do not change the electrodes frequently.
TECHINICAL DATA | |||||
Parameters Models | Model | MIG 150 | MIG 180 | MIG 220 | MIG255 |
Rated voltage | V | single phase 220V5050 | |||
Frequency | HZ | 50 | 50 | 50 | 50 |
Rated input power | KW | 5.5 | 6.2 | 7.9 | 9.2 |
Rated input current | A | 25 | 28 | 36 | 42 |
Duty cycle | % | 35% | 60% | 60% | 60% |
No-load voltage | V | 28 | 68 | 68 | 68 |
MIG welding current | A | 30-130 | 30-180 | 30-200 | 35-230 |
MMA welding current | A | 30-120 | 30-160 | 30-180 | 35-200 |
Efficiency | % | 85% | 85% | 85% | 85% |
Insulation class |
| H | H | H | H |
Protection class |
| IP21S | IP21S | IP21S | IP21S |
Cooling |
| FAN | FAN | FAN | FAN |
Net weight | KG | 7.9 | 12 | 12 | 31.8 |
Machine dimension | mm | 350x170x270 | 455x245x305 | 455x245x305 | 650x325x450 |
