DC 12V to DC 3.3V 3A Step Down Voltage Buck Converter Regulator 12 Volt to 3.3 Volt Car CCTV Camera Power Supply Module
- Category: >>>
- Supplier: Shenzhen Fulree Electronics Co. Ltd.
Share on (62040708775):
Product Overview
Description
DC 12V to DC 3.3V 3A Step Down Voltage Buck Converter Regulator 12 Volt to 3.3 Volt Car CCTV Camera Power Supply Module
Product Description
Product Name | Fulree DC DC Converter 12V to 3.3V 3A 9.9W Max | |
Brand | Fulree | |
Model No. | F23J3.3V3A1S / F23J3.3V3A1L / F23J3.3V3A4S (Old:C1203303) | |
Module Properties | non-isolated buck module | |
Rectification | synchronous rectification | |
Input (13-14cm) | ||
Input Voltage | DC 12V | |
Input Voltage Range | DC 6.3-22V | |
Output (13-14cm) | ||
Output Voltage | DC 3.3V | |
Output Current | 3A Max | |
Output Power | 9.9W Max | |
Conversion Efficiency | >95% | |
Voltage regulation | ±1% | |
Load regulation | ± 2% | |
Ripple (Full load test) | < 150mV | |
No-load current | <100mA | |
Working Temperature | -40~80℃ | |
Waterproof Rating | IP68 | |
Protection | Over-current protection | |
Overheat protection | ||
Output Short-circuit protection | ||
Input Reverse Polarity protection | ||
Application | Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts | |
Certification | CE/RoHS | |
Case Material | ABS Plastic / Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on | |
Product Size (L x W x H) | ABS:46*27*14mm / 37*26*22mm / AL:35*24.5*20mm | |
Product Weight | ABS: 35g / AL:40g | |
Warranty | 12 months, lifetime up to 100,000 hours | |
Cooling Way | Free air convection | |
OEM&ODM Service | Accept | |
Product Picture

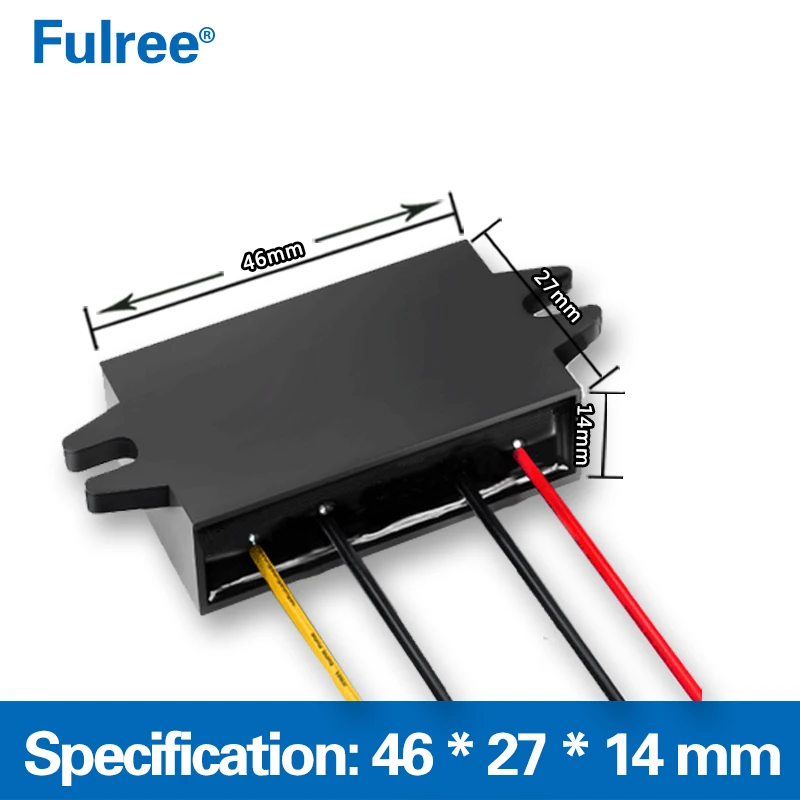

ABS Plastic Case 1S - 46*27*14mm

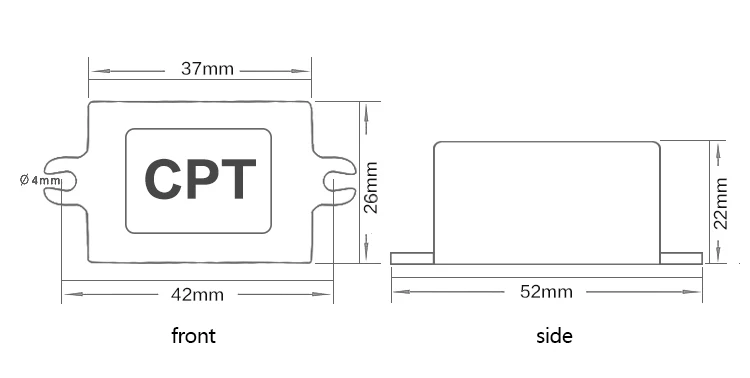

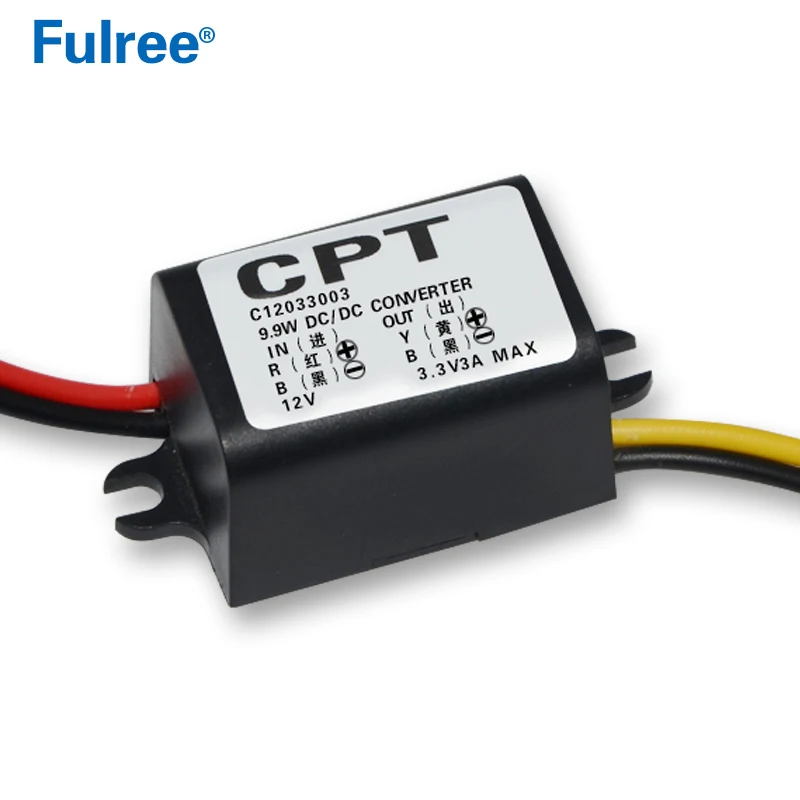

ABS Plastic Case 4S - 37*26*22mm

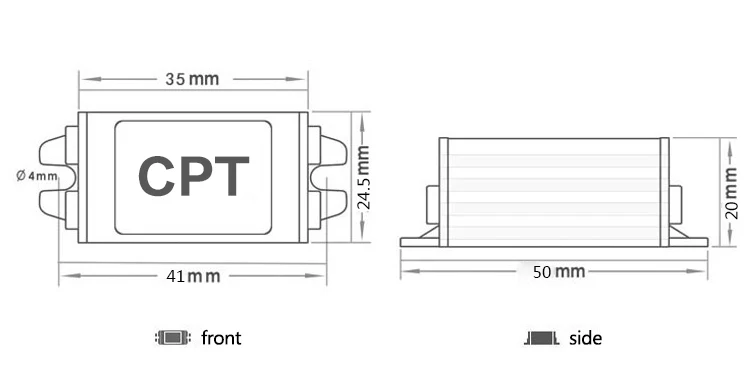

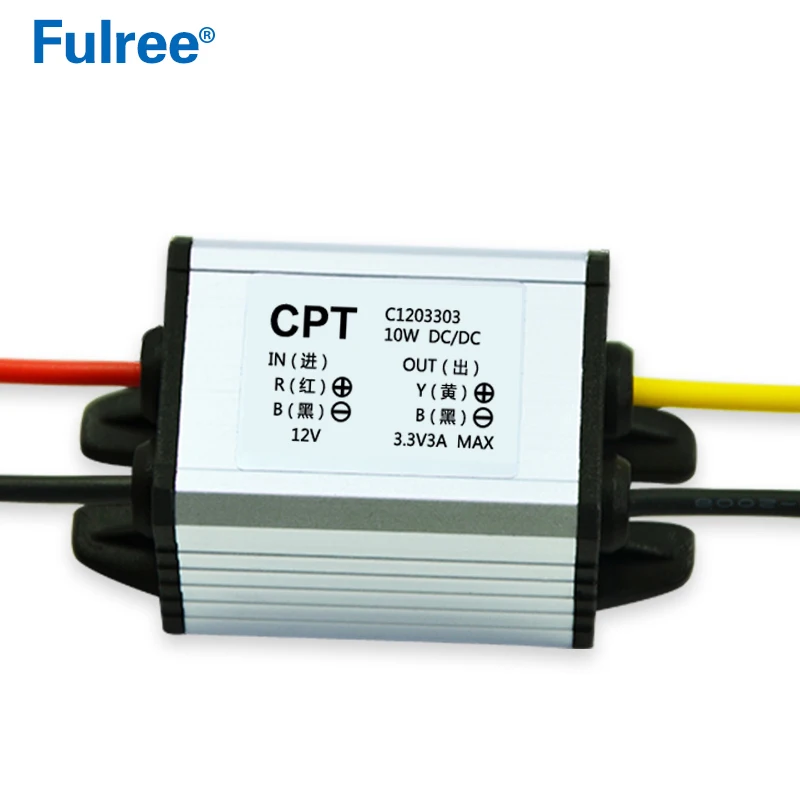

Aluminum Case 1L - 35*24.5*20mm
