Self Adhes Butyl Rubber Sealant Tape For Vacuum Bagging
- Category: Adhesives & Sealants >>>
- Supplier: Qingdao Regal New Material Co. Ltd.
Share on (62040715855):
Product Overview
Description

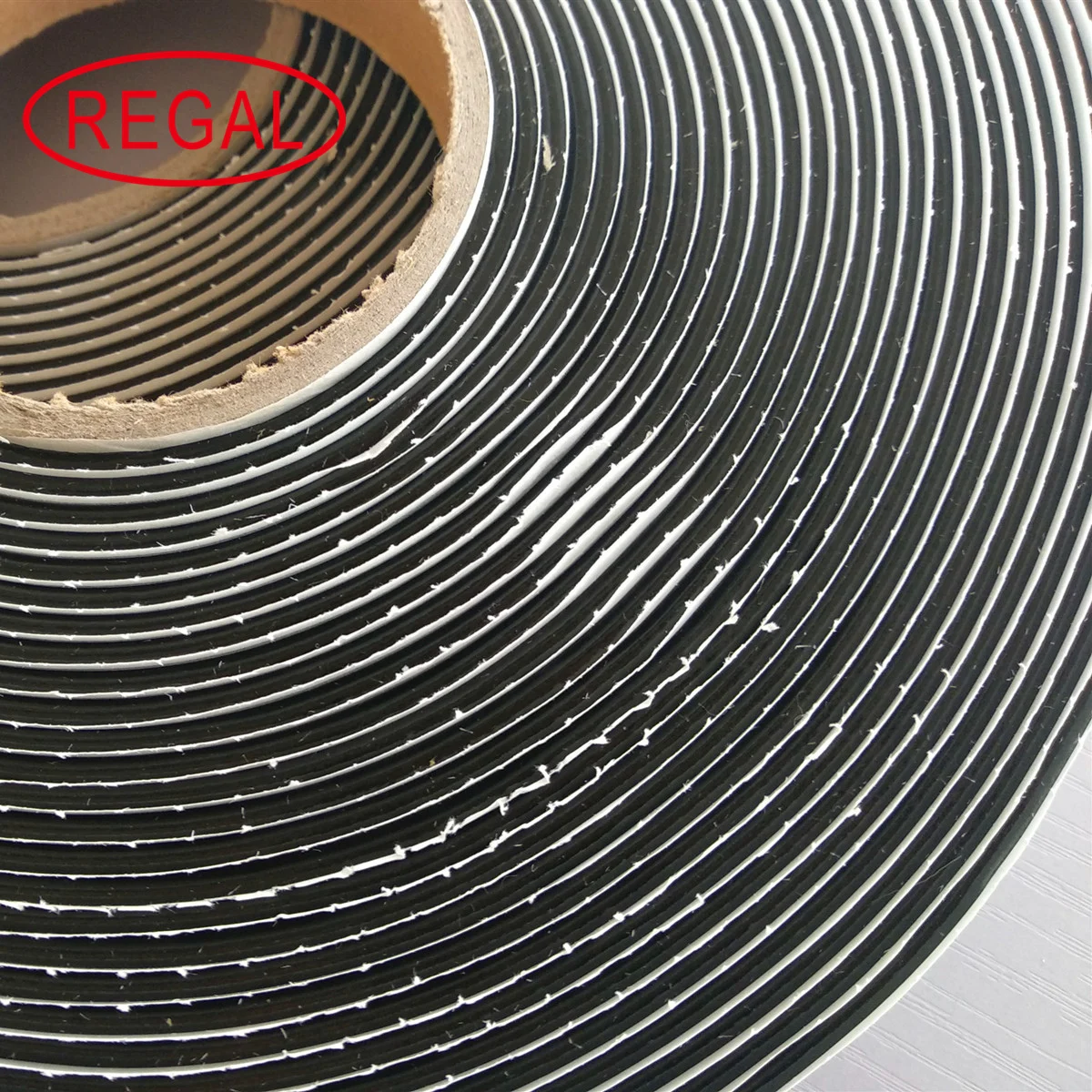

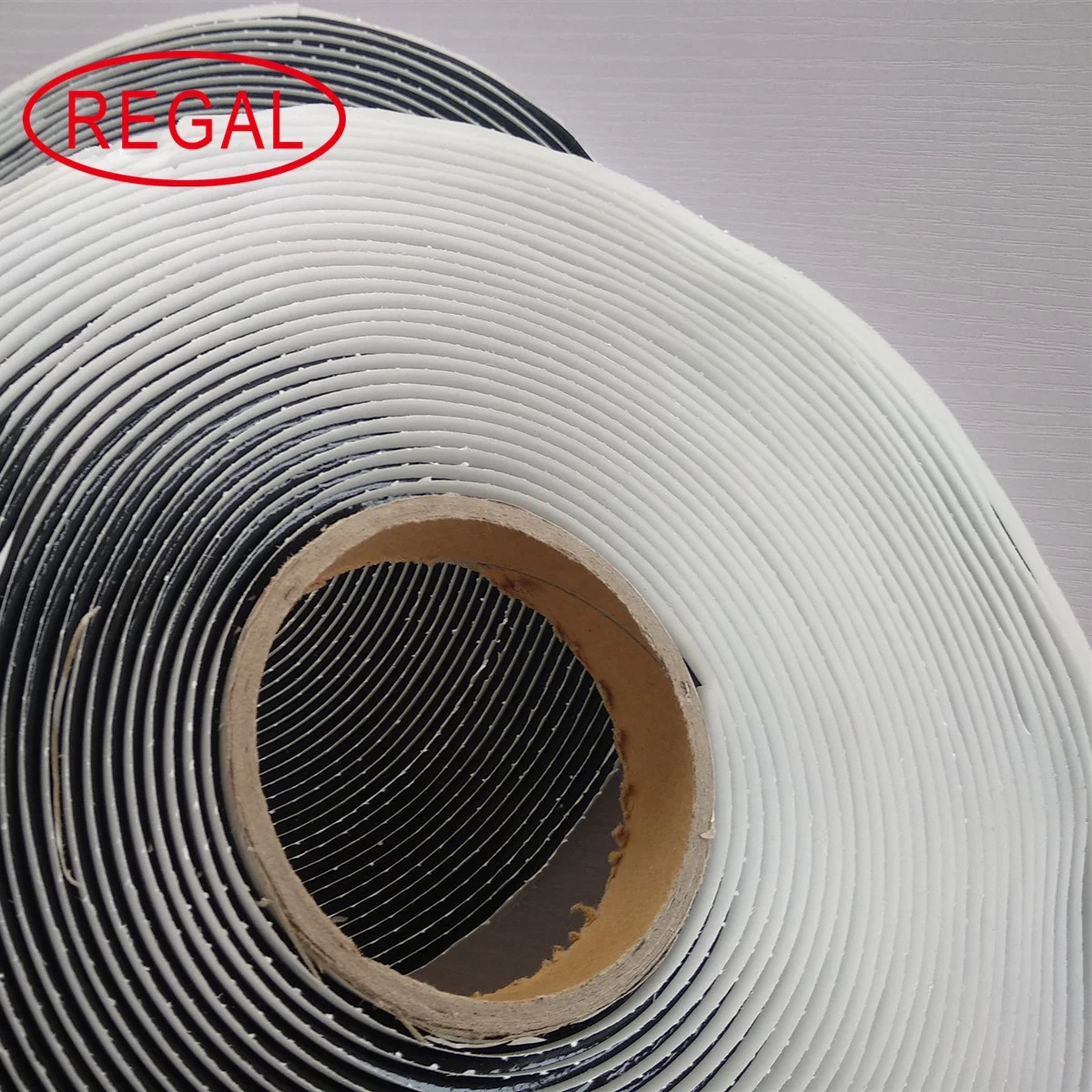

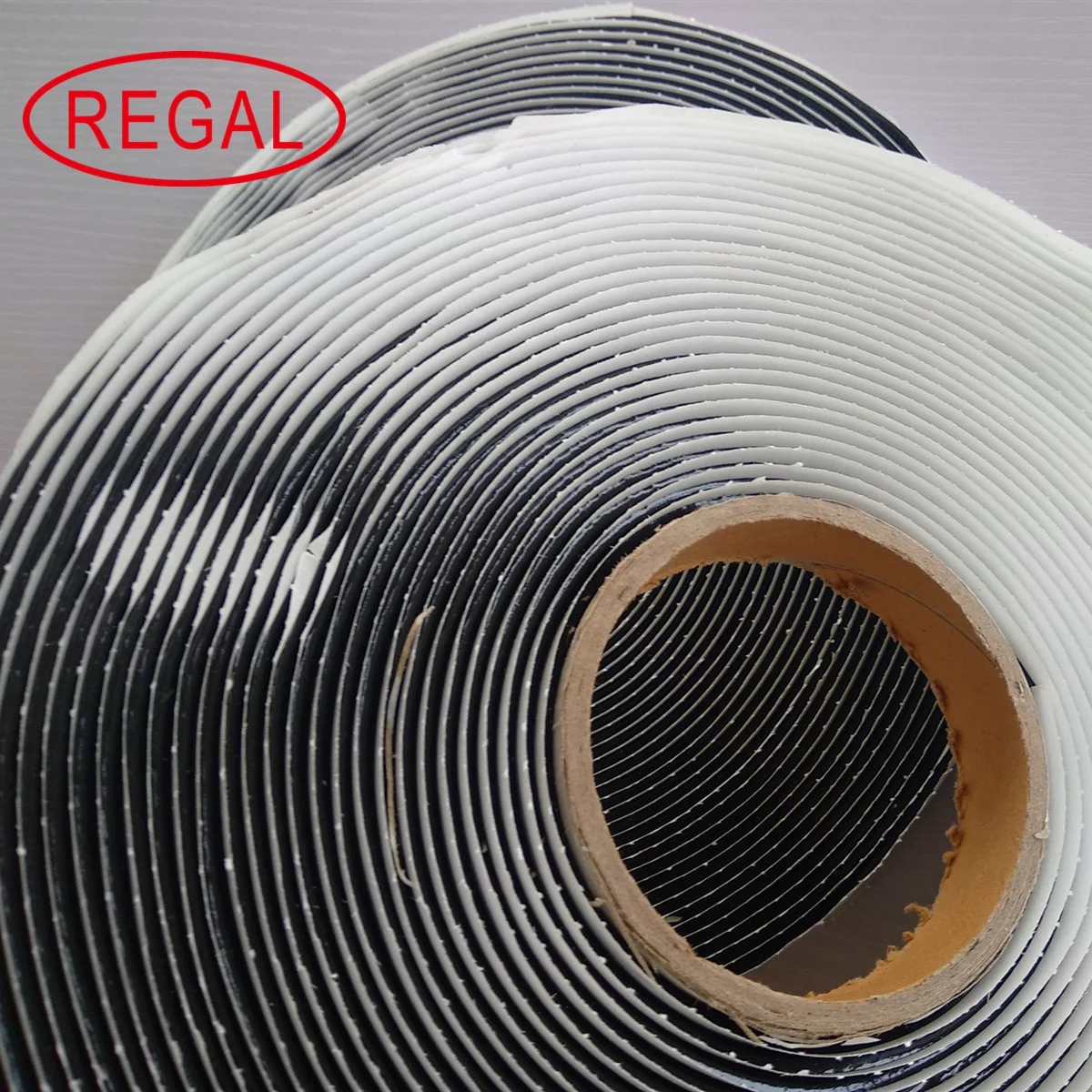

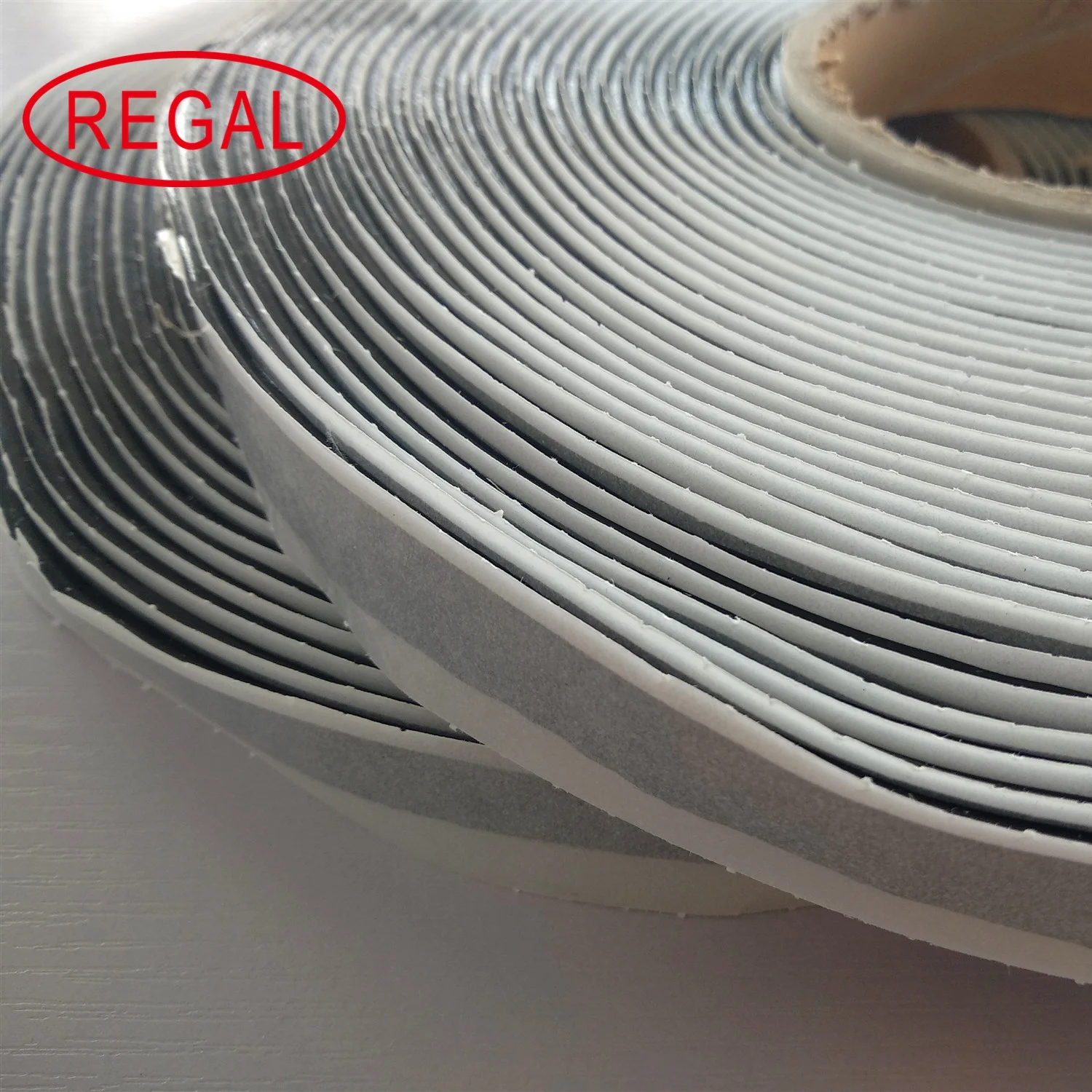

Self Adhes Butyl Rubber Sealant Tape For Vacuum Bagging
Product Description
Product Name | Butyl rubber sealing tape |
Material | Butyl rubber |
Color | Black/Yellow/Green |
Density | 1.45g/cm3 |
Size | 3mm*12mm*15m/roll |
Working Temperature | 120℃/180℃/204℃ |
Resin Systems | Epoxy, polyester & vinyl ester |
Used | Seal the bagging film and mold in Vacuum infusion process |
Butyl rubber sealing tape is use for seal the bagging film and mold in Vacuum infusion process . It with good adhesive but easy to remove when demolding ,good elongation, and good heat resistance which can meet the resin exothermic peak.
Product Show
Related Products
Let’s dive deeper into what materials are used in vacuum bagging and how to use those materials to achieve a great composite part.The materials and how to use them will be described in the order they should be put down on the mold or laminate.

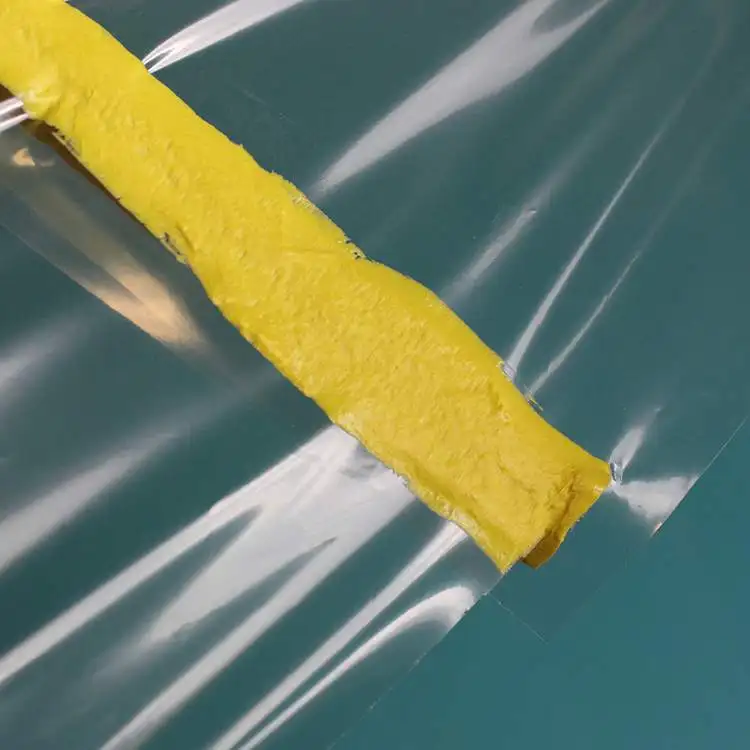

Sealant tapeLay down a layer of sealant tape around the perimeter of the part, leaving some space between it and the laminate. The area where the tape is put down should be clean and free of epoxy residue and stray fibers. Sealant tape is also commonly referred to as tacky tape or mastic sealant.
Release fabric
Release fabric should be laid directly on top of the wet laminate. Release fabric leaves a textured finish when it is removed, reducing the need for surface prep before secondary bonding. Release fabric is commonly referred to as peel ply. The most common types of peel ply are made out of nylon or polyester fibers. Some peel ply is coated with release agents.
Release film
Perforated release film is a thin plastic with small holes that control how the excess epoxy moves from the part to the breather fabric. This is an optional layer in the vacuum bagging process.
Breather fabric
The function of the breather fabric is really two-fold. As vacuum pressure consolidates the laminate, the squeezed-out epoxy goes through the peel ply (and the release film if you are using it) and is absorbed by the breather fabric. Because of its open structure, air flows easily through breather fabric allowing the air to be evacuated from the consolidated laminate. Breather fabric is also referred to as “baby blanket.”
Our Company
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is3 ~ 10days. For big qty, we will try our best to meet your schedule.
Q: Do you provide samples ?
A: Yes, we could offer the paid sample as your designed drawings.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% in advance ,balance before shipment.
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is3 ~ 10days. For big qty, we will try our best to meet your schedule.
Q: Do you provide samples ?
A: Yes, we could offer the paid sample as your designed drawings.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% in advance ,balance before shipment.
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
