25 to 10C degrees Celsius low temperature 25hp Lechang Air Cooled Industrial Water Chiller

Product Overview

Description

30HP Air cooled chiller

Lechang series of low-temperature water chiller can be divided into three series: H(high  temperature), M(medium temperature), L(low temperature) which evaporating temperature is -10℃/-20℃/-50℃. Different compressors and other parts make up different series of chillers. The same compressor in different conditions is not the same, so choose the proper chillers according to the detailed requirements. In order to prevent the frozen of water , ethylene glycol needs to be added to the cooling system. The concentration of ethylene glycol can not be less than 20%(H), 30%(M), 40%(L) in order to ensure the normal operation of chillers. According to customer’s specific requirements, chillers with evaporating temperature less than -60℃ can be made.





Model         Item		LC-30A	Band
Power supply		380V/3PH/50HZ
Nominal cooling capacity	Kcal/h	77130
	kw	90
Refrigerant	Name	R22(or R407C/R404A)	Import of high quality refrigerant
	Control method	Thermostatic expansion valve

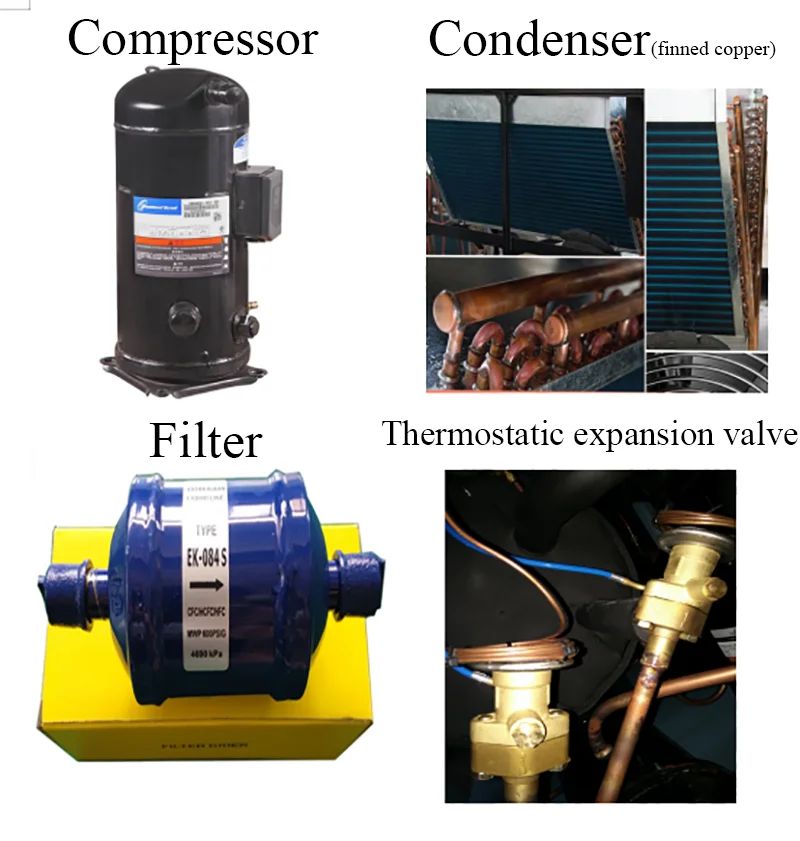

Compressor	Type	Scroll compressor	Copeland(America)
	Power(HP)	10*3
Condenser	Type	Finned copper tube+low noise outer rotor fan	High efficiency Finned copper tube heat exchanger
	Cooling air flow(m3/h)	35400
	Power(kw)	0.7*3
	Environment Temp(dissipate heat	≤45℃
Evaporator	Type	Shell tube	Shell tube
	Chilled water flow (L/min)	650
	Inlet/out pipe caliber	21/2″
Water pump	Power(HP)	3	Muchuan
	Lift(m)	16
Safety protection	Control pane	Compressor overheating  protection,over-current  protection,high and low  pressure protection,over temperature protection,  flow switch protection,phase sequence or missing phase  protection, exhaust overheating protection,antifreezing  protection.	Punp
	High/low pressure gauge		JAVE(Taiwan)
	Filter		ALCO(America)
	Relay		Schneider(France)
	Contactor		Schneider(France)
	Power switch		Chint
Dimension	weight(kg)	980	Wooden case
	LxWxH(mm)	2650*850*1750
	Surface treatment	Mainboard :2mm,  closingboard: 1.5mm	Baking varnish







 Remark:

           1.The cooling capacity is based on: chilled water inlet and outlet water temperature 12 ° C / 7 ° C, cooling inlet and outlet water temperature 30 ° C / 35 ° C



2.range of work:Chilled water(Temp range):5℃-35℃;inlet and outlet water(temp range)  :3℃-8℃.working environment: ≤35℃(condensation Temp)



3.Conversion of units:1kw cooling capacity=860kcal/hr

             1RT=3024kcal/hr   1kcal/hr=3.969BTU/hr        1HP=0.735KW

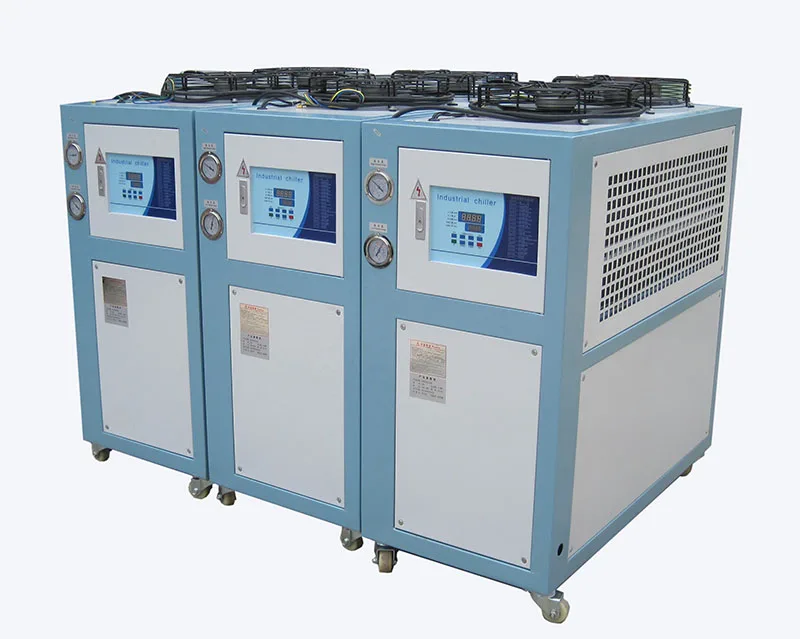

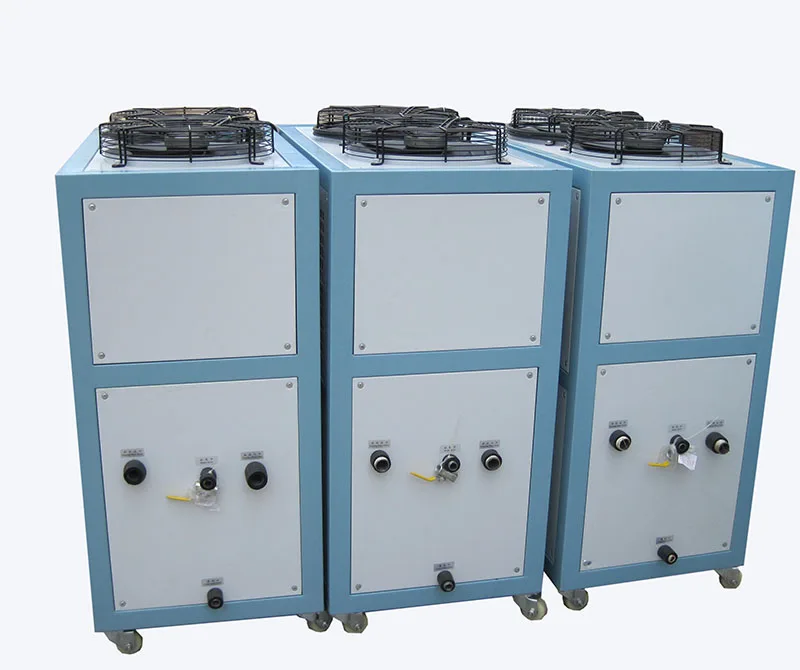

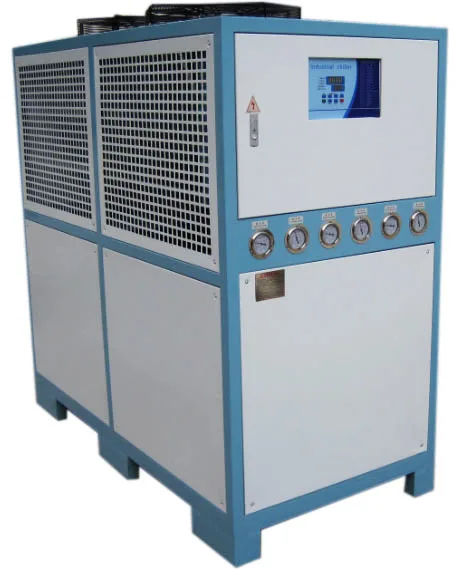

PRODUCT PICTURES
