3 Core Heat Shrinkable Breakouts Cross Linked Polyolefin Cable Breakout Boots

Share on (62040751540):


Price:

Quantity:


Product Overview

Description


Product Description

3-Core Heat Shrinkable Breakouts Cross Linked Polyolefin Cable Breakout Boots

Description:

Heat Shrink Cable Breakout, made with the hot melt material and the cross-linked polyolefin layer, and has excellent sealing performance, protection is mainly used in insulation and sealing at a low voltage power cable branch.

Features:


*Suitable for low-voltage power cables

*Seal, good adhesion properties

*Good UV and weather resistance

*Operating temperature: -55 ~ 110 degrees C

*Shrink temperature: 110 ~ 130 degrees C

*Standard colors: Black

Technical Data:

\t
Test Properties
\t
Typical Data
\t
Test Method
\t
Tensile Strength
\t
≥13 MPa
\t
ASTM D 2671
\t
Ultimate elongation
\t
≥300%
\t
ASTM D 2671
\t
Tensile strength after thermal aging
\t
≥10 MPa
\t
ASTM D 2671/120degrees C, 168 hrs
\t
Ultimate elongation after thermal aging
\t
≥250%
\t
ASTM D 2671/120degrees C , 168 hrs
\t
Dielectric Strength
\t
≥15kV/mm
\t
IEC 243
\t
Volume Resistivity
\t
≥10 13 Ω .cm
\t
IEC 93

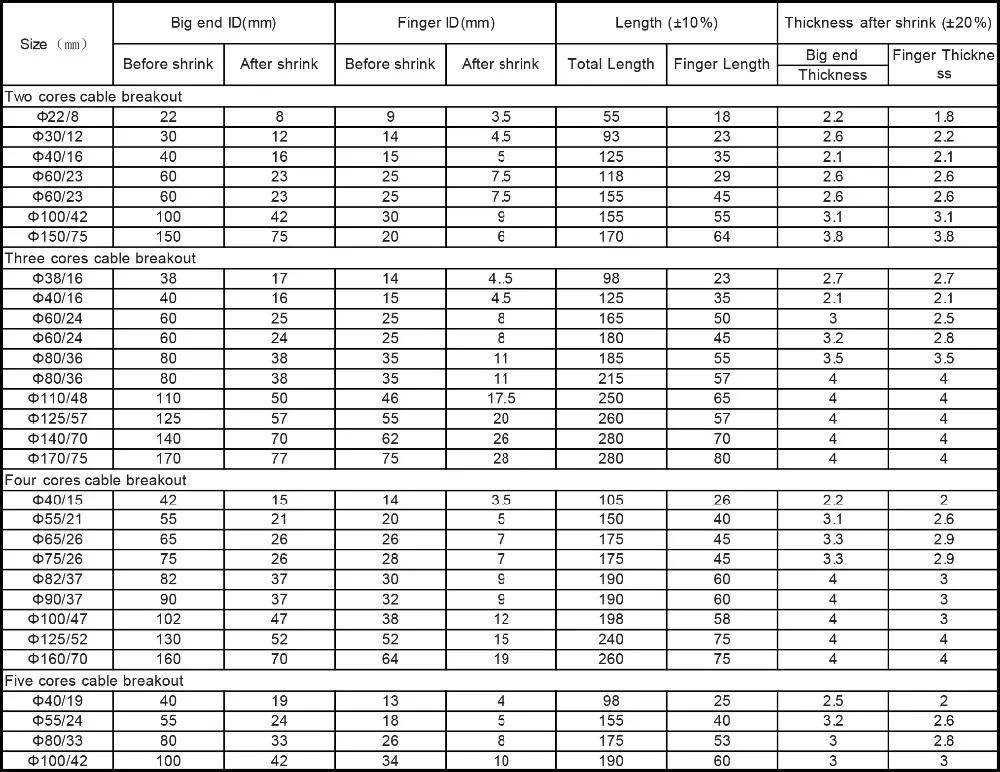

Specification Sheet:


Detailed Images
Packing & Delivery
Our Company
Certifications
