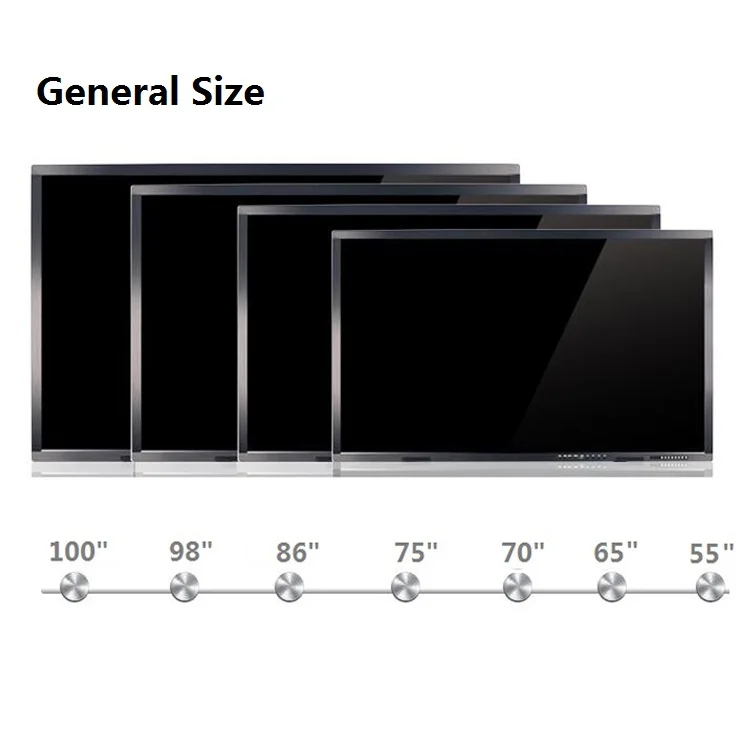

65" 75" 86" interactive screen panel for collabration conference and education

LCD parameters

Model

F65

Display type:

TFT-LCD,LED     backlight

Native   Resolution:

3840 × 2160

Pixel Response  Time(Typ.) :

8 ~16 ms

Colors:

16.7 million

Contrast Ratio   (Typ.) :

4000:1

Brightness   (Typ.):

400 cd/m2

Viewing Angle :

Image formats :

Sound system:

Horizontal   178° /  Vertical 178°

PAL,NTSC/SECAM(Option)

BG,DK,I,(M/N,L,L Option)

TV system

Channel :

200

RGB :

DOS/VGA/SVGA/XGA/SXGA/WUXGA

Audio and video :

S-Video :                  TV turner :

Audio & VGA :

Speaker :

Sound channel:

USB master  :

LAN   :

COMPONENT(YPbPr+R+L) 480i,480p,576i,576p,720p,1080i,1080p

1x S-VIDEO   /S-DIN

1x RF IEC

2 x  VGA IN+ Stereo audio input

1 Mic Input

AV,SVIDEO,YPBPR

4 x USB

2 x LAN

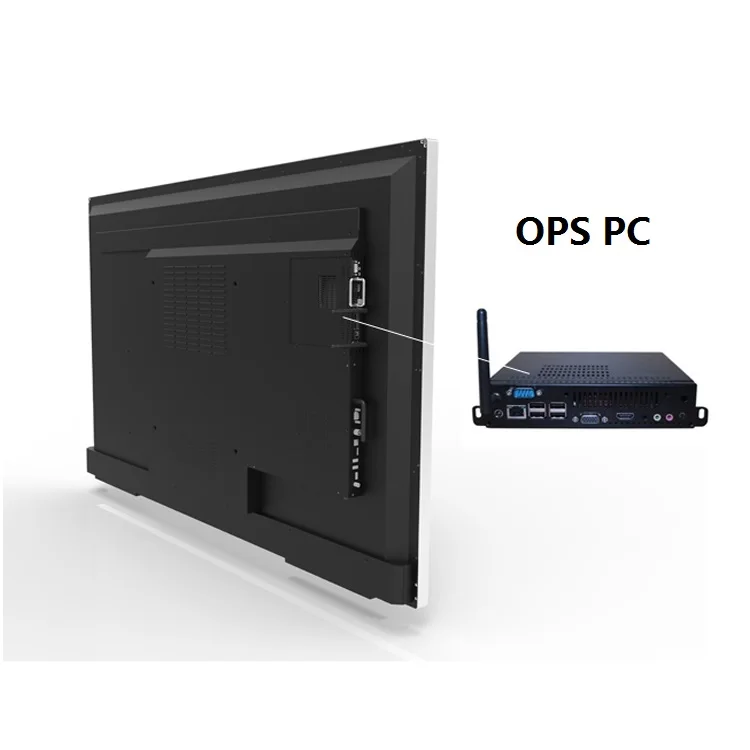

PC (option)

PC Hardware :

CPU:Intel Core i3-3240 3.3GHz DC/HT

Memory:DDR3  4G

Disk:500G SATA

Techinial

Power supply :

AC 100-240V  60/50 Hz

OSD  :

English/ Chinese

Consumption   Power:

300W

Stand by :

<1W

Touch

Touch Technology:

10- point  IR   touch screen

Touch Response Time :

<10ms

Surface Hardness :

Resolution:

Touch object :

Interface :

≥7H

4096 X 4096

Finger ,styles

USB

 Environment

Working temperature:

0℃  ~ 45℃

Storage temperature:

-20℃ ~60℃

Working humidity :

Storage humidity :

10%RH ~ 90%RH

10%RH ~ 90%RH
