Triple function MIG/MMA/TIG WELDING MACHINE MIG 175 INVERTER welder MIG MMA TIG welder welding machine inverter
- Category: MIG Welders >>>
- Supplier: Wenzhou Chiefstone C&T Co. Ltd.
Share on (62040919561):
Product Overview
Description
Product description
Features:
Triple function covering MIG, gasless-FCAW & MMA welding
Suitable for work material with a thickness of more than 0.8mm.
Suitable for welding stainless steel sheet and alloy steel.
Advantages:
High duty cycle ensures
high welding performance over longer durations
Advanced control circuitry increases the MIG welding function
Stable welding arc, minimal spatter and good shaping.
As a suggestion, you can now get industrial-quality features in a hard-working, affordable MIG welder!

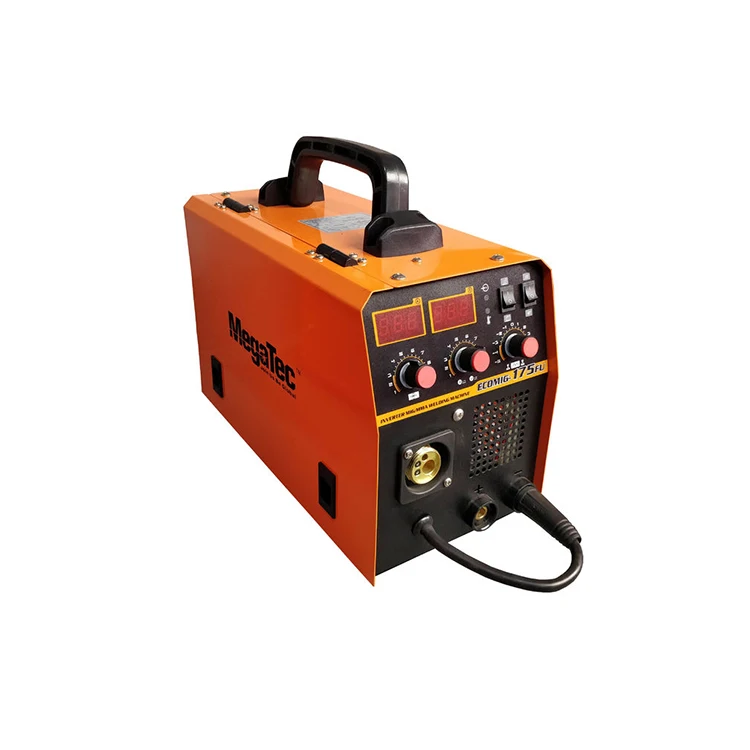

The MIG 175FU is a versatile solution for both new and experienced welders..
TECHINICAL DATA | ||
| Technical specification | Unit | ECOMIG-175FU |
| Input power/Frequency | V/HZ | 220/5-60 |
| Related Input Current | A | 26 |
| Related Input Power | KVA | 5.8 |
| No Load Voltage | V | 60 |
| Related Working Voltage | V | 25.6(MMA)/22(MIG) |
| Welding Current Range | A | 30-140(MMA)/30-160(MIG) |
| Duty Cycle | % | 60 |
| Welding Current | 10min100% | 108(MMA)/124(MIG) |
| Insulation Class | H | |
| Power Factor cos | Cos | 0.7 |
| Efficiency | n | 85% |
Machine Dimension (L*W*H) | cm | 35*17*27 |
External Dimension (L*W*H) | cm | 40.5*30.5*31 |
| Net Weight | kg | 9.3 |
| Gross Weight | kg | 13.3 |
| Protection Class | IP21S | |
| Cooling | fan | |
