DC 12V 24V to DC 3.3V 3.7V 4.2V 5V 6V 7.5V 9V 10A 20A 30A Step Down Voltage Buck Power Converter Regulator 12 24 Volt to 5 6 9 V
- Category: Power Supplies >>>
- Supplier: Shenzhen Fulree Electronics Co. Ltd.
Share on (62040926427):
Product Overview
Description
DC 12V 24V to DC 3.3V 3.7V 4.2V 5V 6V 7.5V 9V 10A 20A 30A Step Down Voltage Buck Power Converter Regulator 12 24 Volt to 5 6 9 V
Product Description
Product Name | DC DC Converter 12V 24V to 3.3V 3.7V 4.2V 5V 6V 7.5V 9V 8A~30A | |
Brand | Fulree | |
Model No. | F40J**V**A5L(First ** for voltage, Second ** for current) | |
Module Properties | non-isolated buck module | |
Rectification | synchronous rectification | |
Input (13-14cm) | ||
Input Voltage | DC 12V 24V | |
Input Voltage Range | DC 10-40V (minimum input must be 3V higher than output) | |
Output (13-14cm) | ||
Output Voltage | DC 3.3V 3.7V 4.2V 5V 6V 7.5V 9V | |
Output Current | 8A / 10A / 15A / 20A / 25A / 30A Max | |
Output Power | 3.3V Example 26.4W / 33W / 49.5W / 66W / 82.5W / 99W Max | |
Conversion Efficiency | >90% | |
Voltage regulation | ±3% | |
Load regulation | ± 2% | |
Ripple (Full load test) | < 150mV | |
No-load current | <100mA | |
Working Temperature | -40~80℃ | |
Waterproof Rating | IP68 | |
Protection | Over-current protection | |
Overheat protection | ||
Output Short-circuit protection | ||
Application | Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts | |
Certification | CE/RoHS | |
Case Material | Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on | |

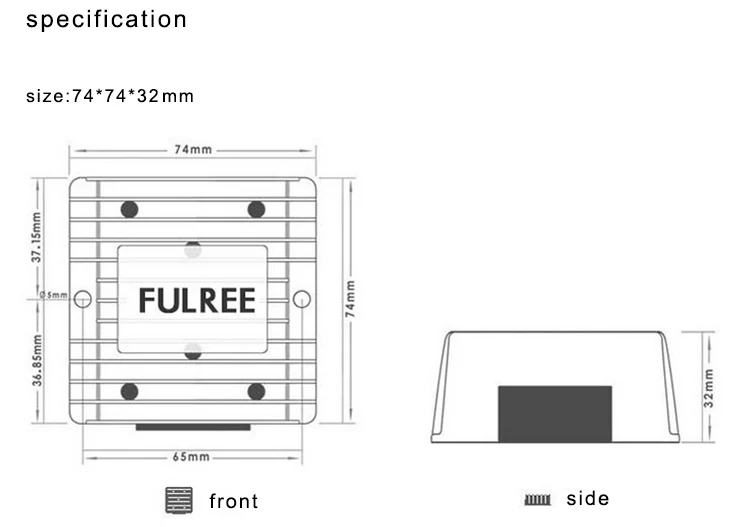

Product Size (L x W x H) | 74*74*32mm | |
Product Weight | 280g | |
Warranty | 12 months, lifetime up to 100,000 hours | |
Cooling Way | Free air convection | |
OEM&ODM Service | Accept | |

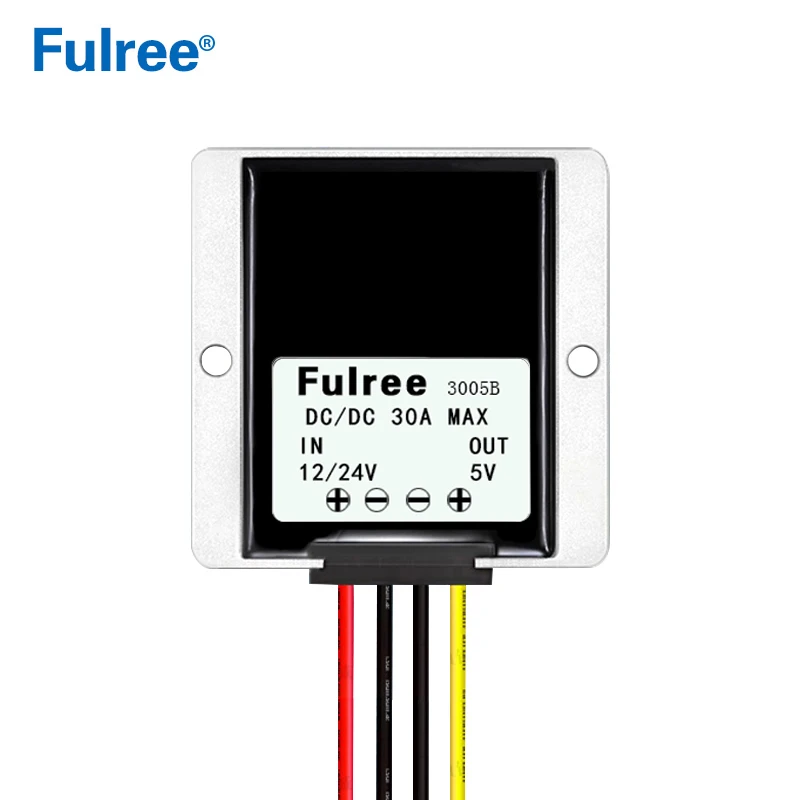

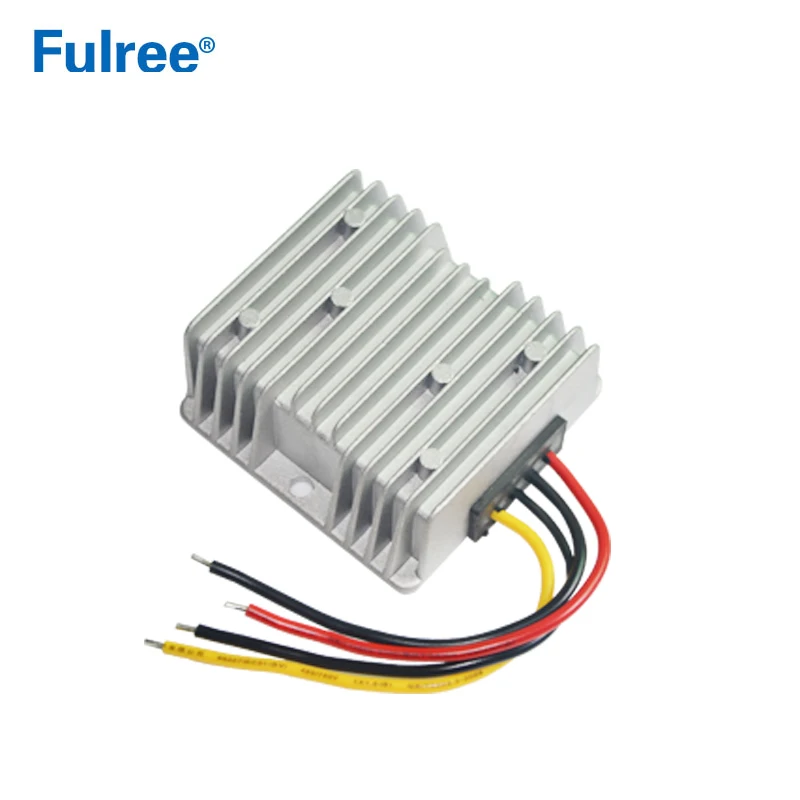

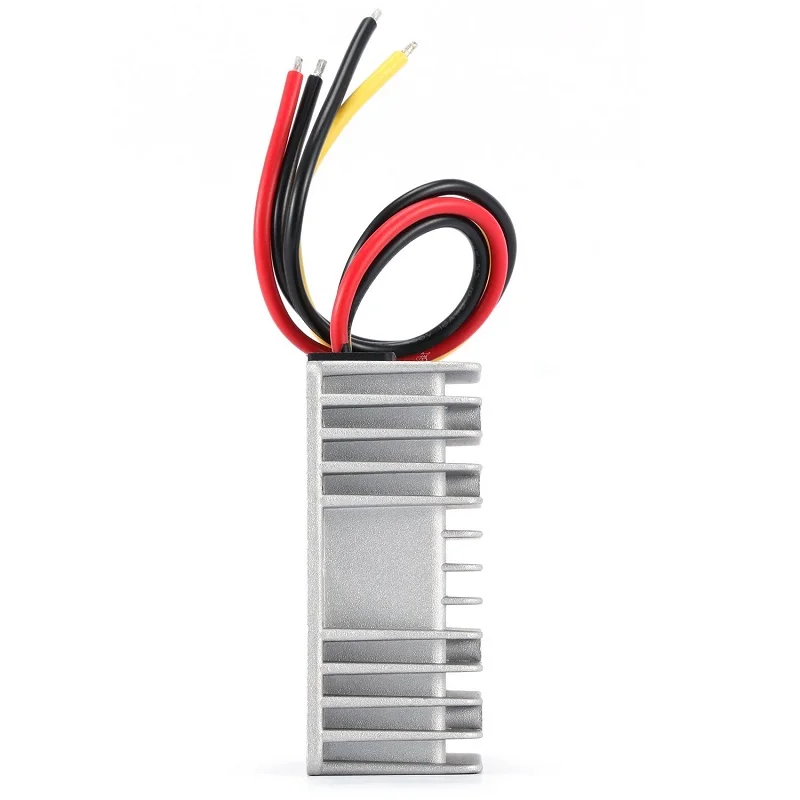

Product Picture
