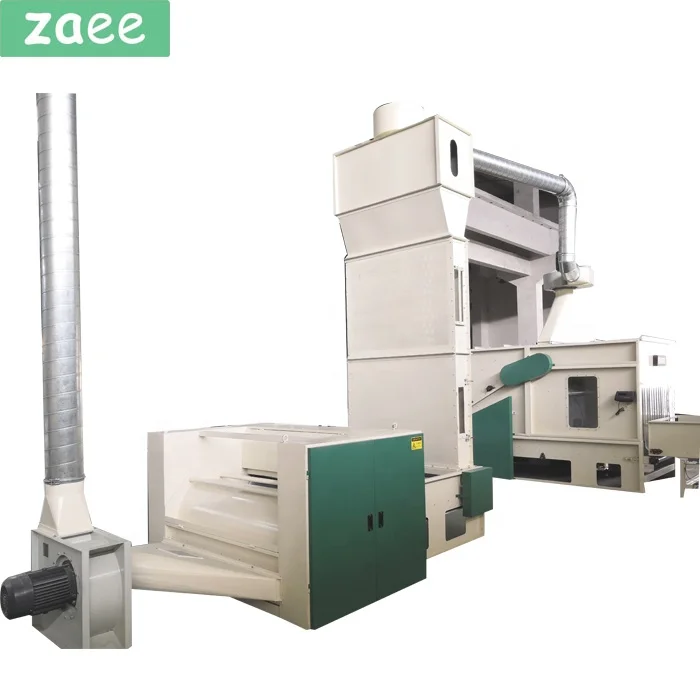

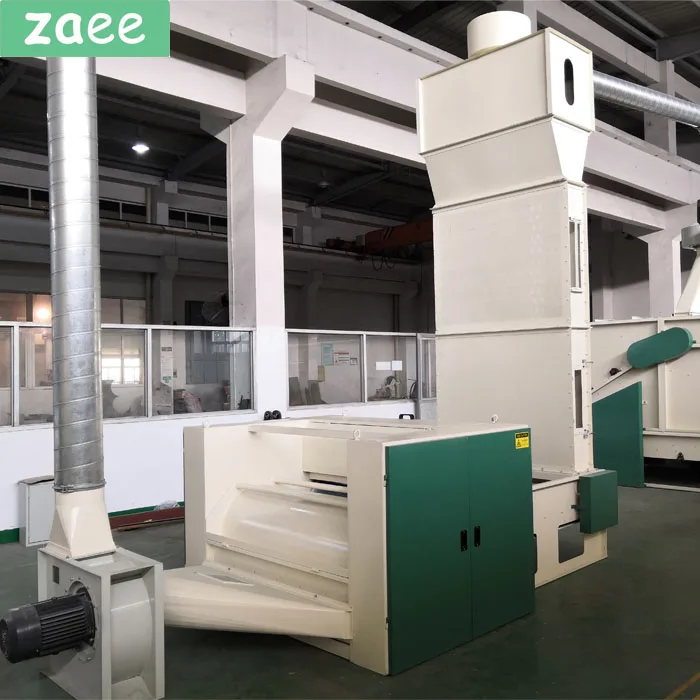

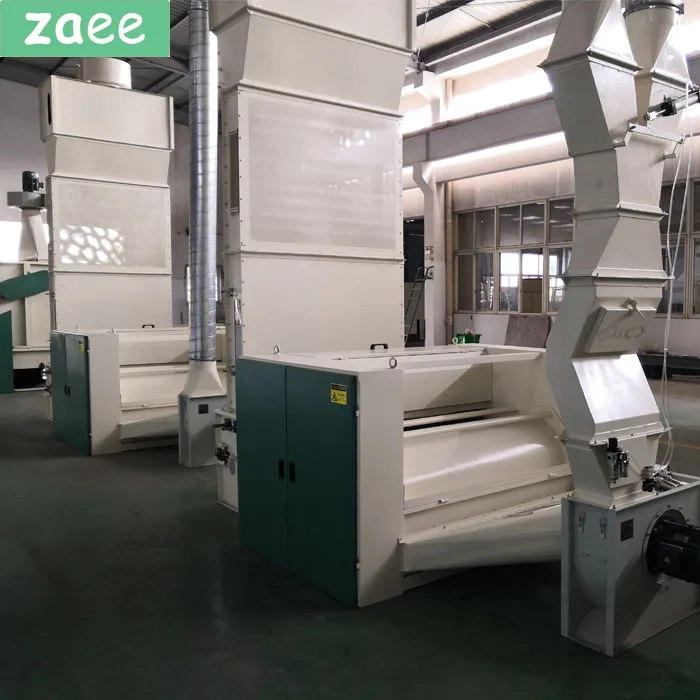

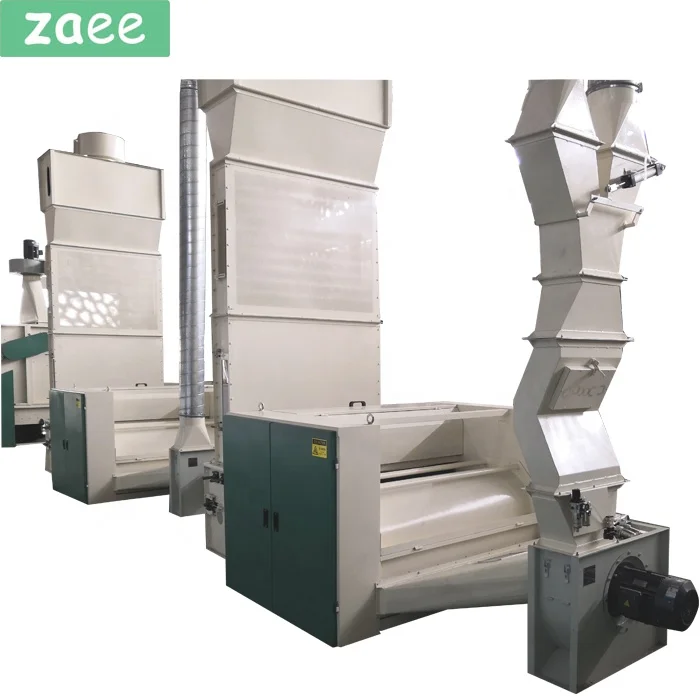

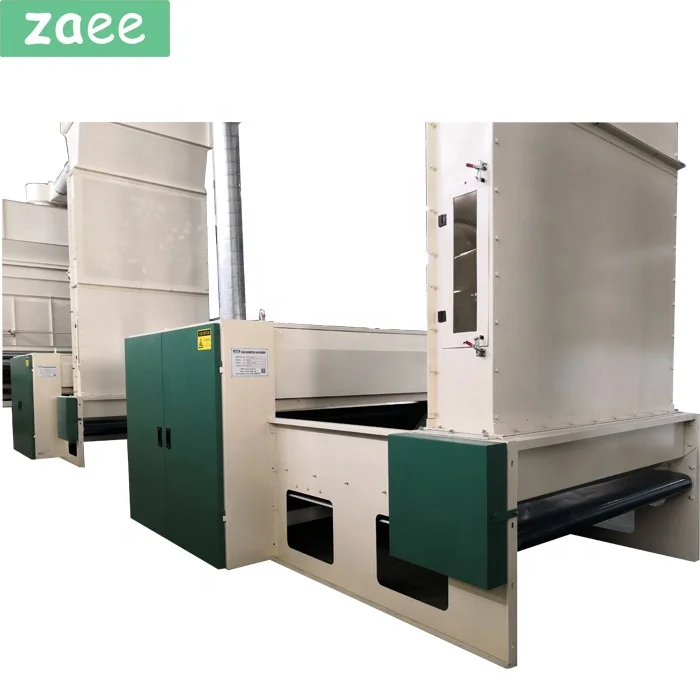

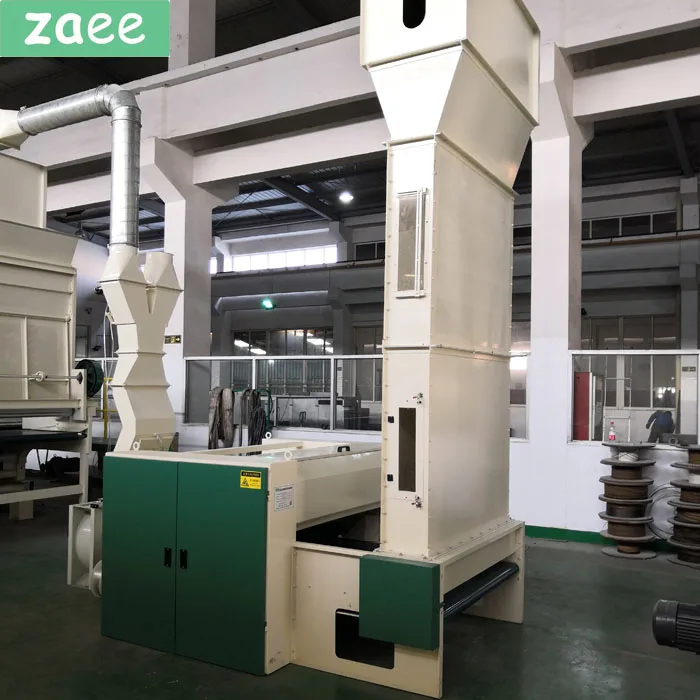

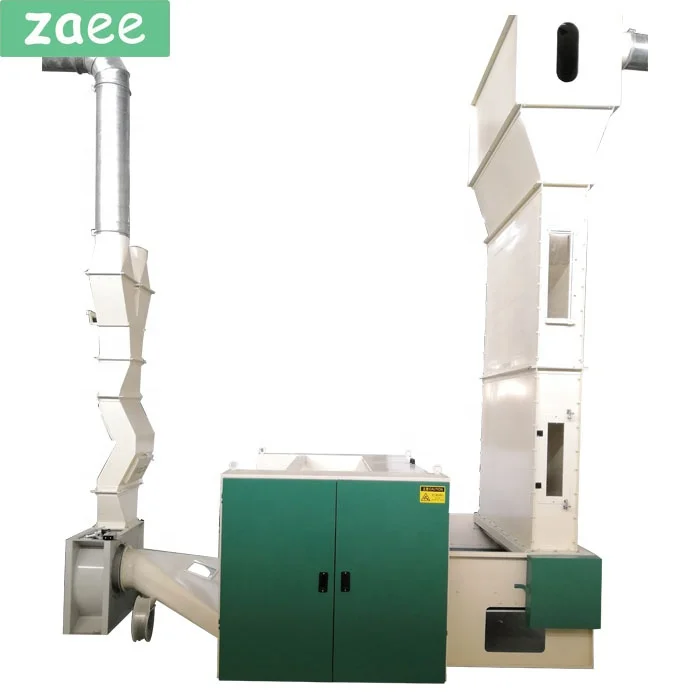

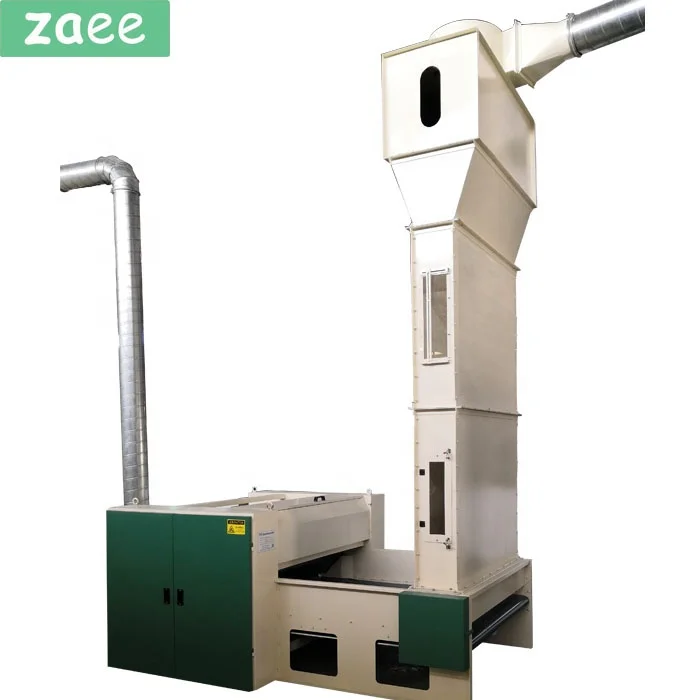

Changshu Factory Highly Export Quality Nonwoven Fiber Opener Machine

Pre opener and main opener
--- Pre opener is nail on notch type opening way
---Main opener is nail on aluminium strips opening way.
---Working width: 1500mm (pre opener diameter 470mm)
1500mm (main opener diameter 420mm)
---Circum length of the pre opener's lattice is 6 meters.
---Circum length of the main opener's lattice is 4 meters. Top is equipped with the feeding system.
---Both openers are installed the high-magnetic attractors to catch the metal impurities.
---Feeding roller : top and bottom, one pair, diameter 70mm, surface is groove, top roller is spring pressed.
---Feeding roller and the input lattice are controlled by 1.5 KW
---Cylinder's motor 5.5 KW
---Input roller is linkage controlled by the photo electric sensors.
---High speed blower, independent motor controls.
Blower motor: 2.2 KW x 4 grade, steel pipe diameter 200mm.
---The control panel is equipped on the side frame of the feeding lattice. The feeding lattice and the roller are linkage controlled with the hopper machine by photo electric sensor, with forward and reverse switches.
---Installation power: 9.2KW, 10.45KW
