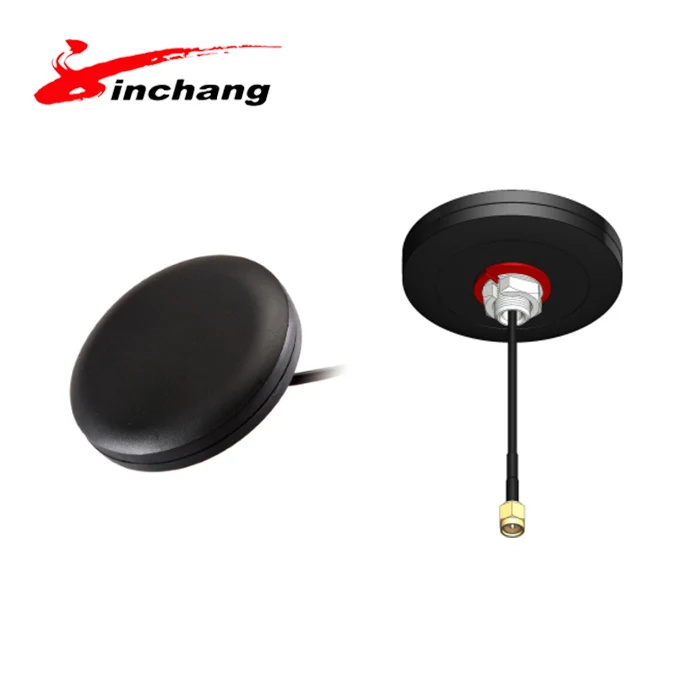

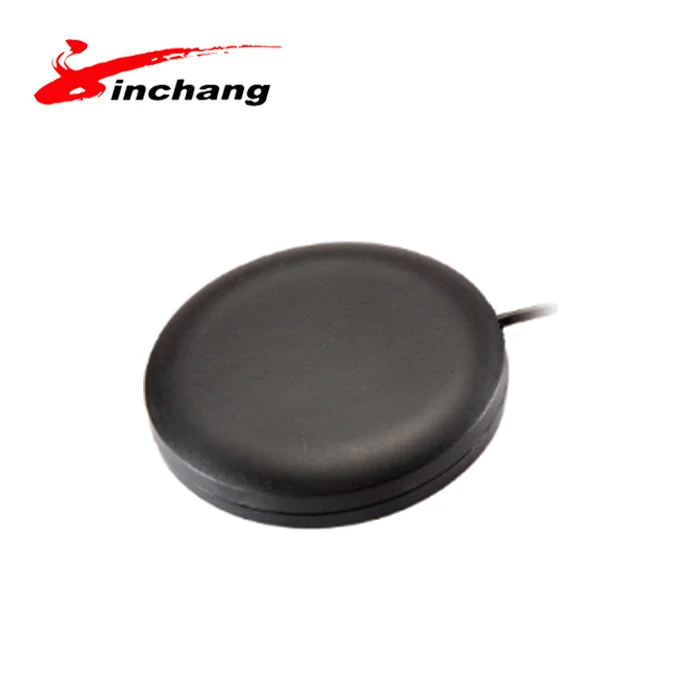

1568 MHz High Gain GNSS external Antenna with RG174 GPS/GLONASS/BEIDOU Antenna




JCA011



















Casing also support following function  GPS/GLONASS/BEIDOU/Galileo
CentreFrequency (MHz)  1568±3
Gain (dBic)   33











































































































ItemSpecifications
AntennaCenter Frequency1568±3MHz
Band WidthCF±10MHz
PolarizationRHCP
Gain5dBic
V.S.W.R<1.5
Impendance50Ω
Axial Ratio3dB(max)

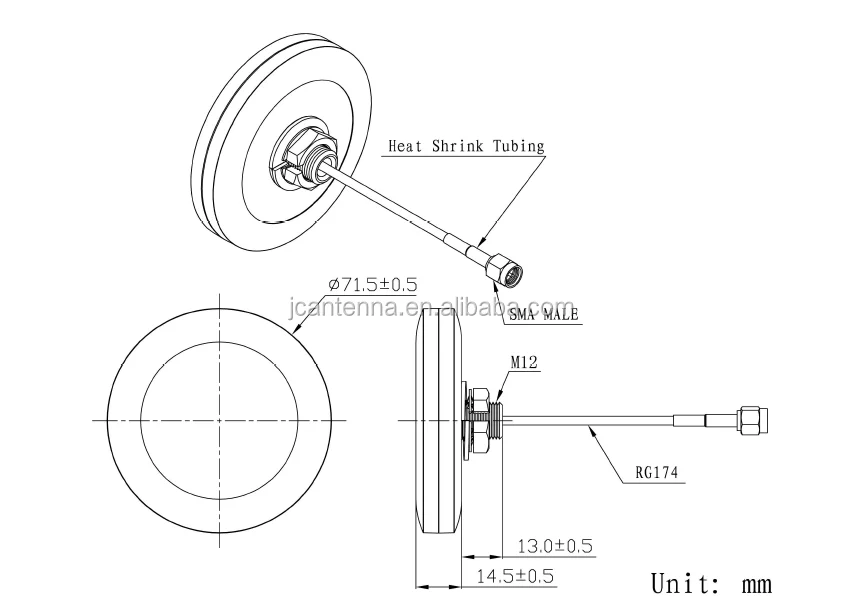

DimensionD71.5*14.5mm
LNAGain28±2dB
Noise Figure<1.5
Supply Voltage3~5V DC
Current Consumption12~26mA
V.S.W.R<2.0
MechanicalCableRG174
ConnectorSMA/MCX/FAKRA or others
Radome MaterialABS
Mounting MethodScrew
EnvironmentalOperating Temperature-40℃~+85℃
Relative HumidityUp to 95%
Ingress ProtectionIP65~IP67
Vibration10 to 55Hz with 1.5mm amplitude 2hours
Environmentally FriendlyROHS Compliant











If you need a personalized product, we offer professional customization!







Q: Are you a manufacturer or a trading company?


A: We have been professional antenna manufacturer for 20 years.





Q: Can I get one sample?


A: Yes, sample is for free.





Q: Have Glonass / GPS antenna 100% assembles well in stock?


A: No, all Glonass / GPS antenna will be newly assembled according to your orders including the samples.





Q: What's the delivery time?


A: 1-4 days for the sample, 5-10 days for quantity below 5K, 10-30 days for the quantity below 20K.





Q: Could I use my own LOGO or design on goods?


A: Yes, customized logo and design on mass production are available.





Q: What's the payment term?


A: T/T, Paypal, western union etc.





Q: Where is your factory located? Can I visit your factory?


A: Factory address: #398 Zhenye Road, Jiaxing Economic Development Zone, Nanhu District, China. Just call us, we will pick you up with no delay.





Q: How long of the warraty?


A: One year and can repair for the whole life.





If you have any questions please send message to us , we will reply in time. Thanks for you time!
