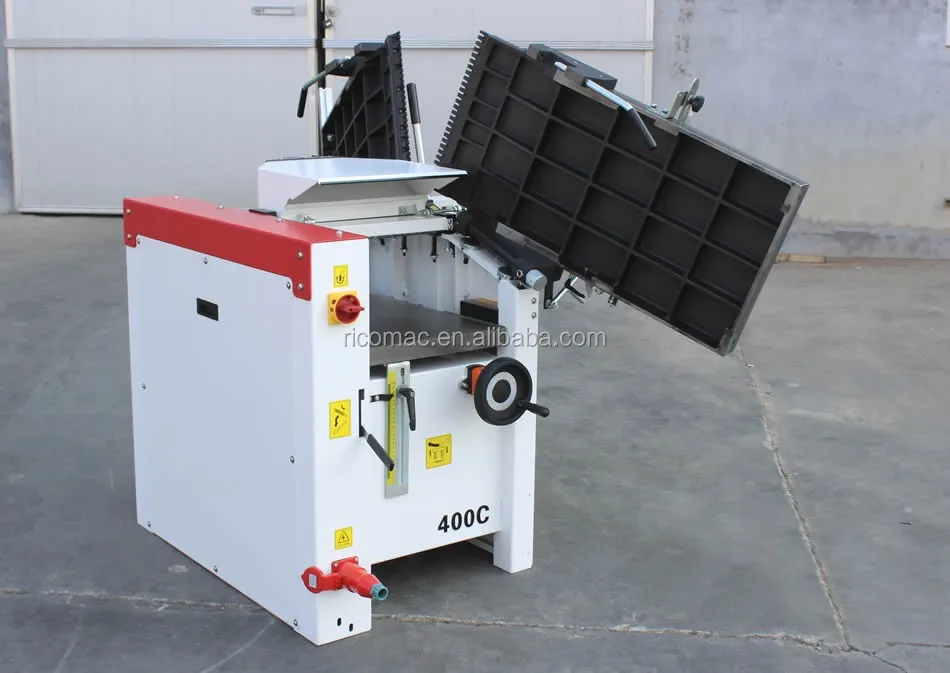

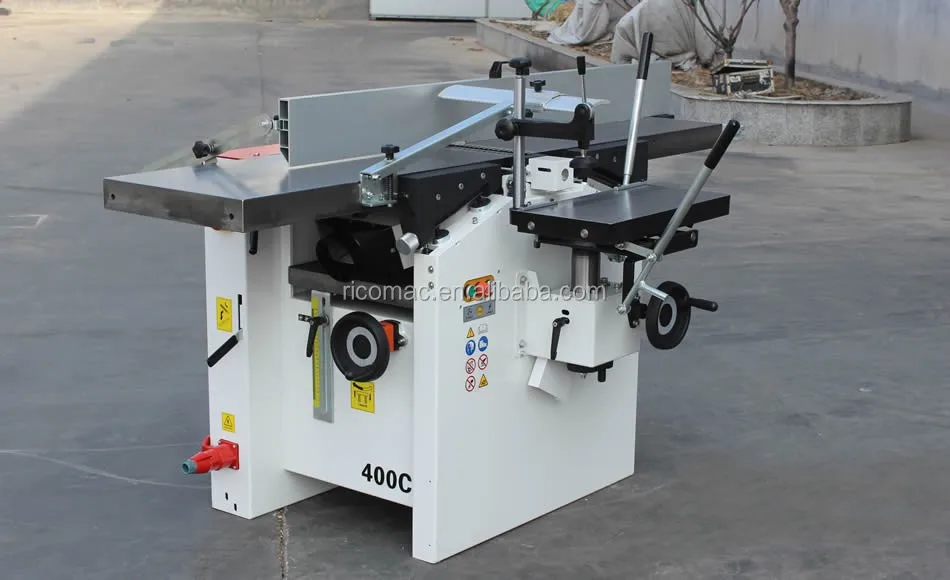

woodworking combined planer 400C with 3 functions

Share on (62041111287):


Price:$2,650.00 - $2,750.00

Quantity:


Product Overview

Description


Product Description

Product Application

The 400C Combined Machine has been specifically designed be an industrial standard machine, but at a size intended for the factory and small professional workshop. This industrially rated machine features a planer, thicknesser and mottiser unit. The cast iron construction, accurate cross cut fence and superb build quality put this machine in a class of its own.

\t
SPECIFICATIONS FOR WOODWORKING COMBINED PLANER 400C
\t
Surface planer
\t
\t
\t
Working table
\t
mm
\t
400*1800
\t
Cutter block diameter
\t
mm
\t
70
\t
Spindle speed
\t
rpm
\t
5700
\t
Knife dimensions
\t
mm
\t
400*20*3
\t
Number of blades
\t
pc
\t
3
\t
Max table adjustment
\t
mm
\t
4
\t
Thickness planer
\t
\t
\t
Working table
\t
mm
\t
400*760
\t
Feeding speed
\t
m/s
\t
7
\t
Working height
\t
mm
\t
4-220
\t
Mortiser
\t
\t
\t
Working table
\t
mm
\t
250*500
\t
Longitudinal stroke
\t
mm
\t
205
\t
Transveral stroke
\t
mm
\t
95
\t
Vertical stroke
\t
mm
\t
90
\t
Churk(M18*1.5-s)
\t
mm
\t
0-16
\t
Standard accessories
\t
\t
\t
3 phase motor
\t
HP-KW
\t
4.0-3.0
\t
Machine size
\t
mm
\t
1800*1060*875
\t
Weight
\t
kg
\t
390
\t

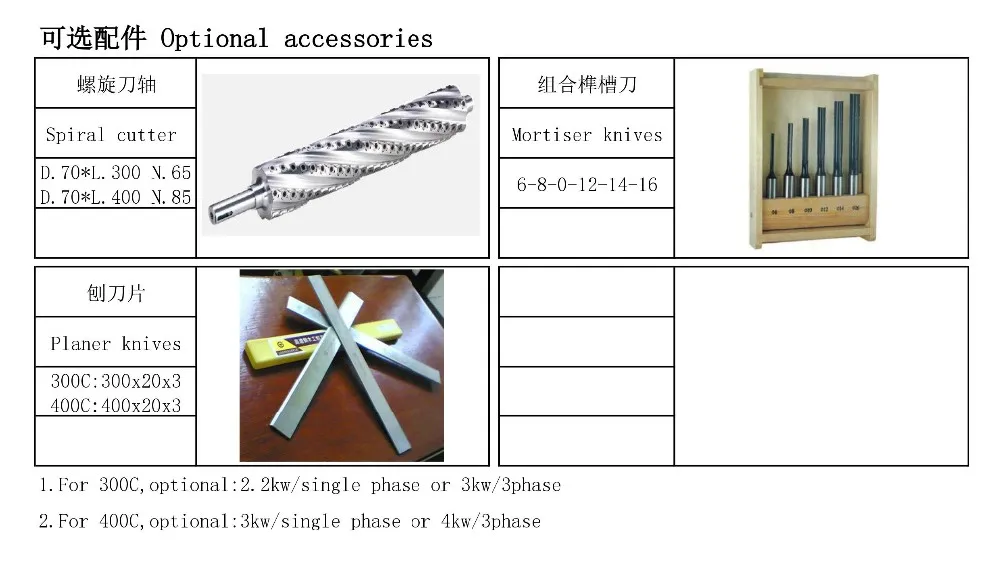

Optional accessories
\t
\t
\t
Single phase motor
\t
HP-KW
\t
4.0-3.0
\t
Increased 3phase motor
\t
HP-KW
\t
5.5-4.0

Main Features

1)The planer thicknessing function, again is of the highest quality, extremely powerful, accurate and the end result is simply sublime. The inward swing of the thicknessing unit keeps this machine compact in every function,whilst the cast iron construction means even heavy pieces can be handled confidently.
2)Several further options are also available, each machine can therefore be tailored to the users specific needs.

Detailed Images

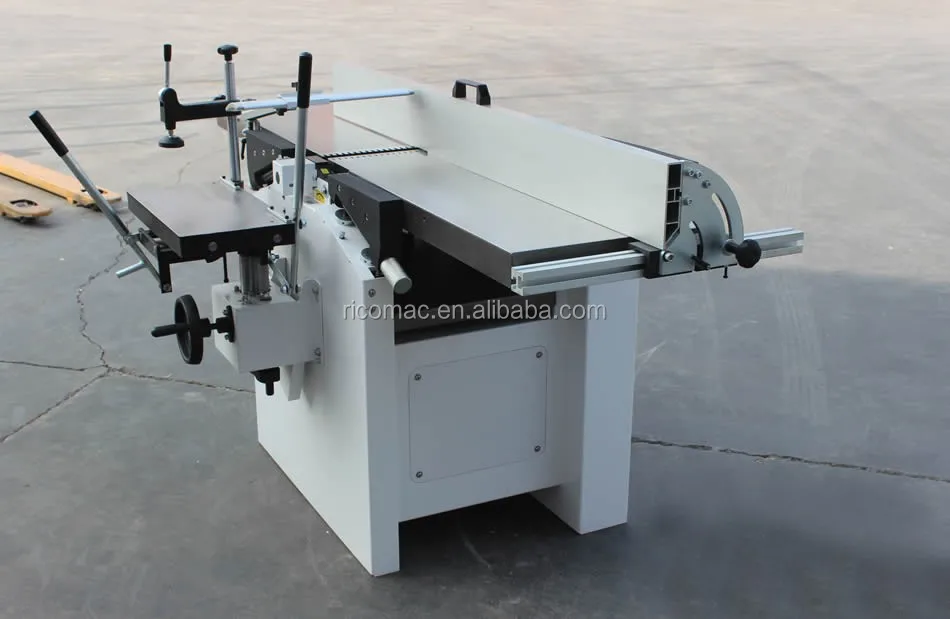

Surface planer
Max working width is 400mm

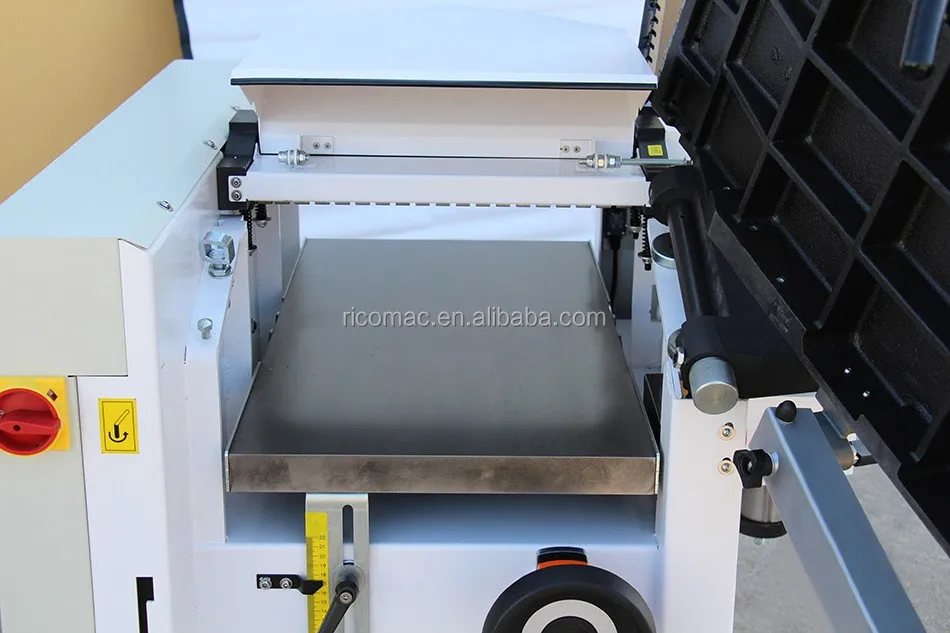

Thickness planer

Working thickness 4-220mm

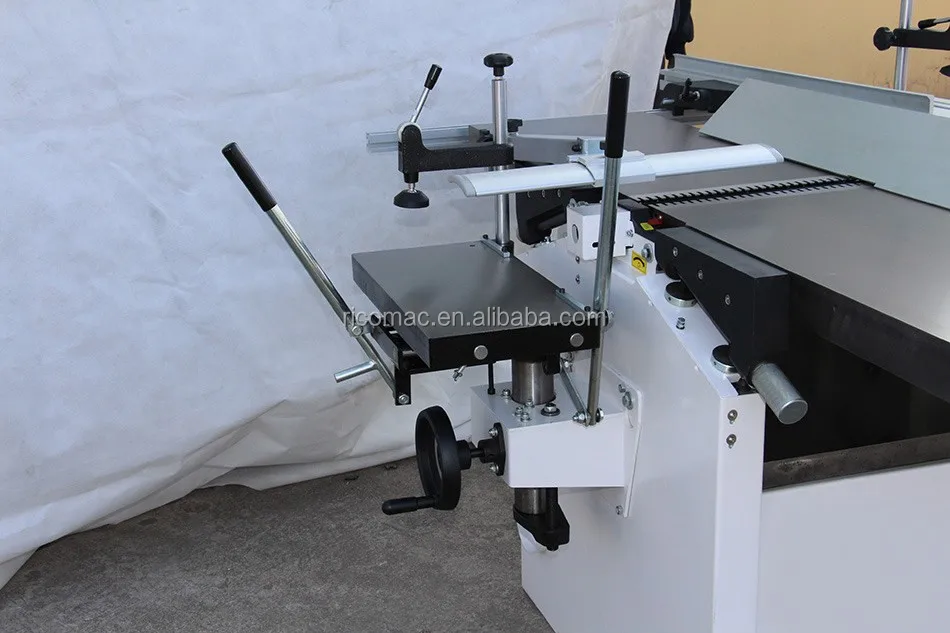

Mortiser

Work table size 250*500mm

Packing & Delivery
\t
Packaging
\t
Size
\t
1900 (L) * 766 (W) * 1065 (H)mm
\t
Weight
\t
450kg
\t



Packaging Details
\t
The normal package is plywood case .
If container is too tigher,we will use pe film for packing or pack it according to customers special request.
