45mm elevator encoder Hollow Shaft Roraty Encoder

Product Overview

Description

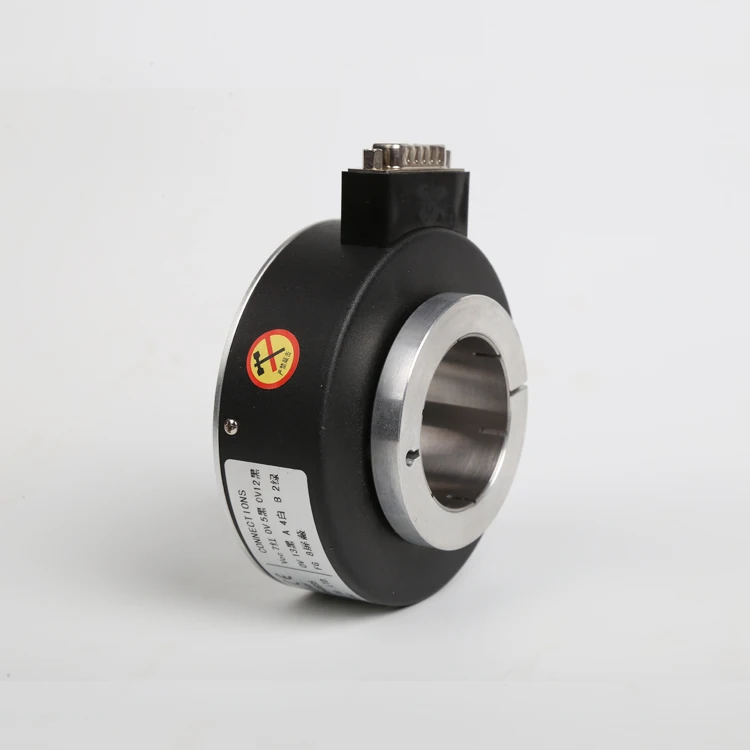

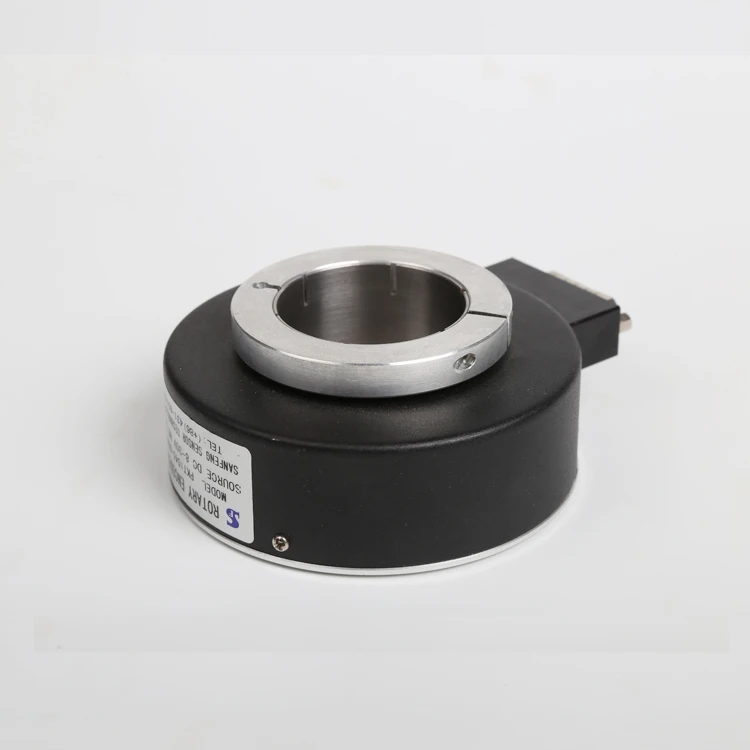

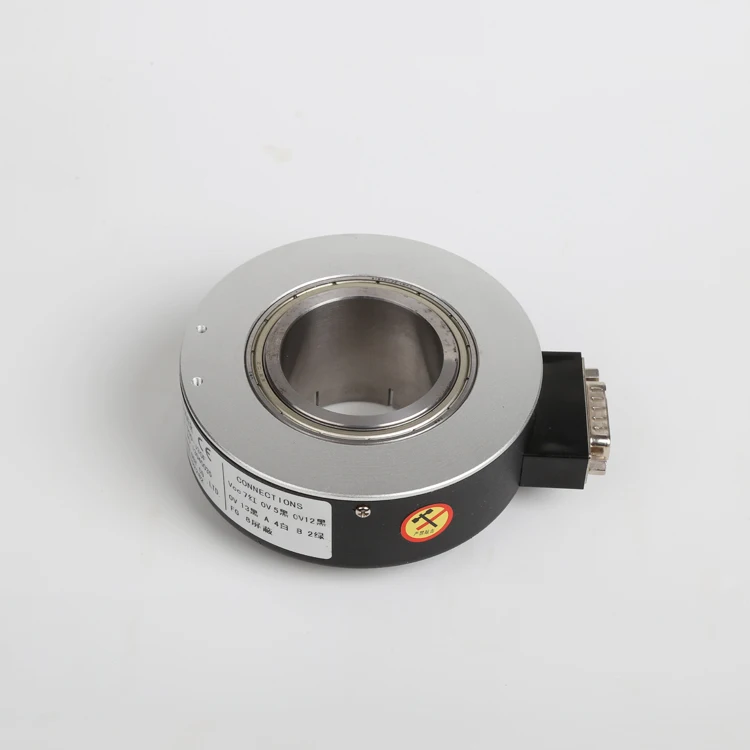

45mm elevator encoder  Hollow Shaft Roraty Encoder



* Good quality, long life, anti-jamming performance.

* Stainless steel shaft has a higher stability and protection.

* Metal shell is more solid and anti-impact.

* Bearing load heavy, anti-oil and water.

* Applicability to a wide variety of mechanical and industrial control.

1. Certification: CE ,RoHS& ISO9001.

2.Feature: sturdy and durable, easy to install, optional various output mode, etc.

3.Manufacturer: quality control, better delivery control and better cost control.

External Diameter	100mm
Hollow Shaft Diameter	45mm
Max Rotating Speed	6000r/min
Operating Temperature	-20 °C(-40 °C)- +85°C
Protection Class	IP65
Termination	Side Entry Cable
Supply Voltage	DC5V/8V-26V/10V-30V/12V
Output Model	Voltage/Push-pull/Open collector/Line driver
Frequency Response	0-100kHz
Current Requirement	≤50mA
Resolution	512 P/R
Output Phase	A,B,Z-A-B-Z
