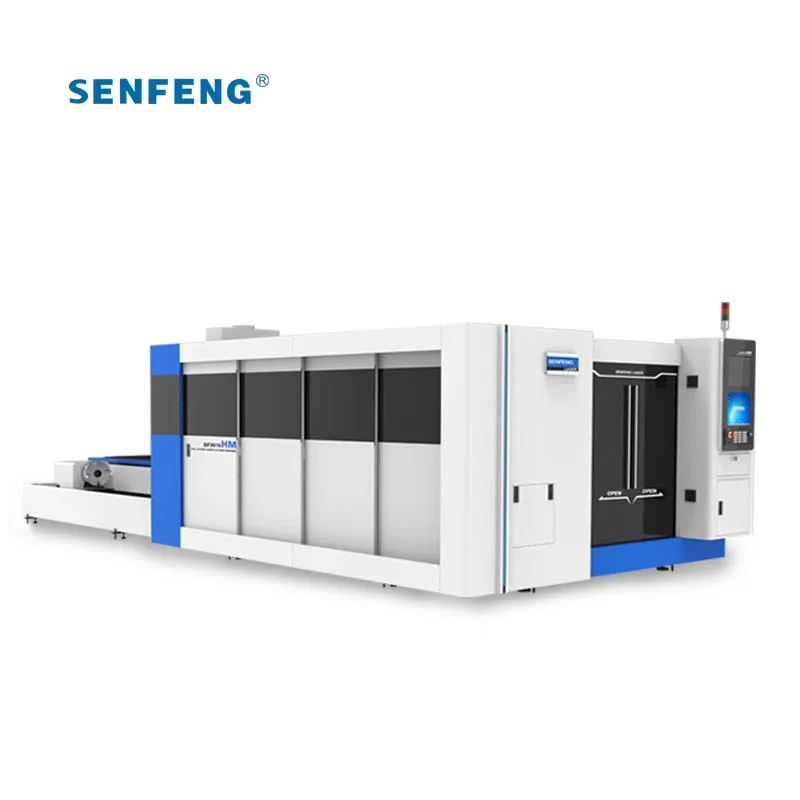

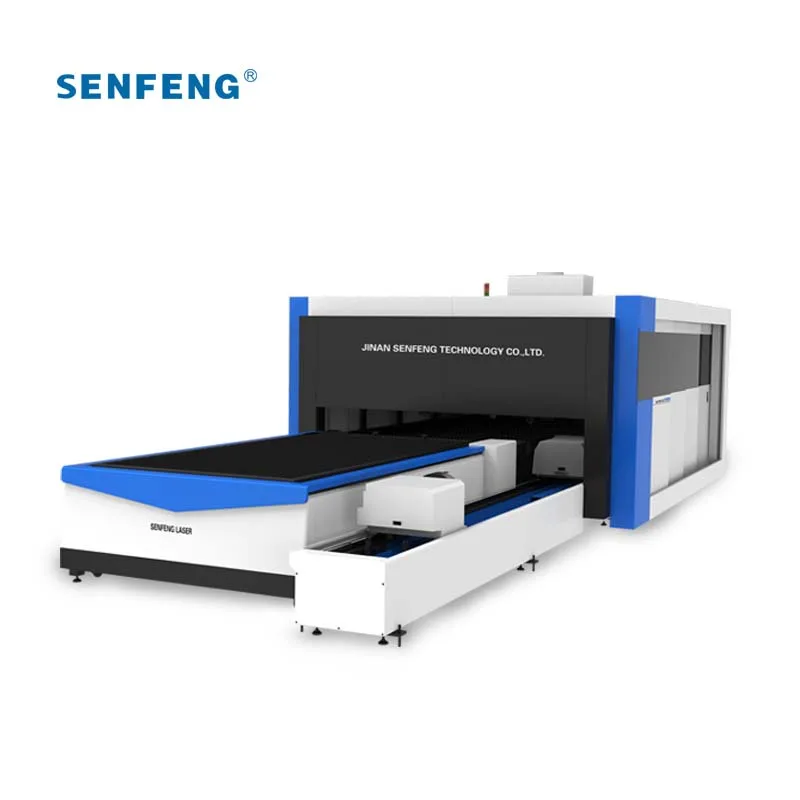

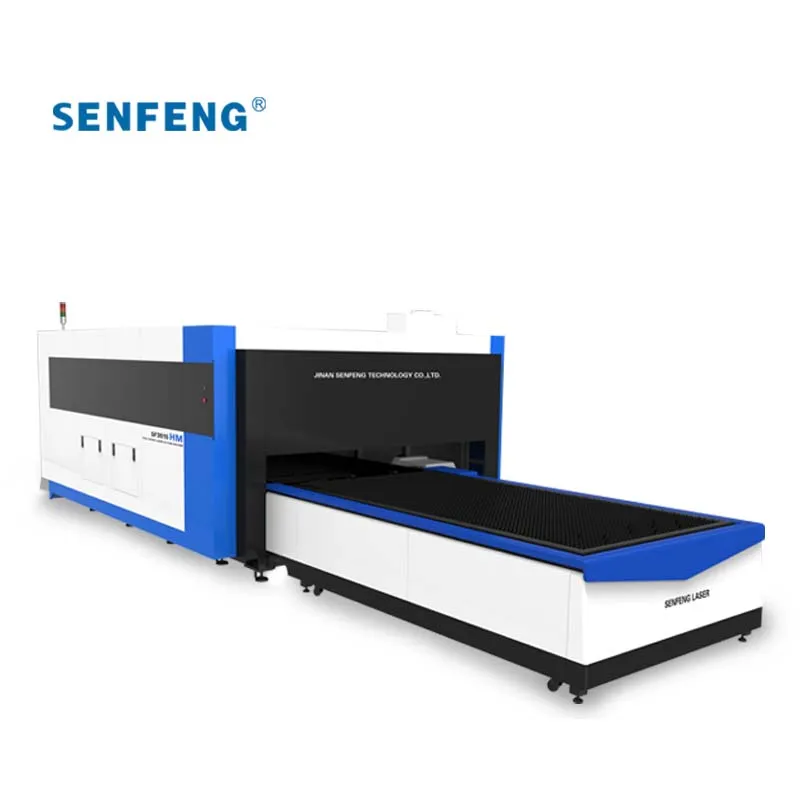

Senfeng fiber laser cutting machine SF3015HM with full cover for cutting tubes and plates

Product Overview

Description



Senfeng fiber laser cutting machine SF3015HM with full cover for cutting tubes and plates



Product Features:



1.Stable and reliable light path system and control system.

2.Imported original fiber laser generator with great and stable performance to ensure the lifespan over 100,000 hours.

3.High cutting quality and efficiency with smooth cutting edge.The cutting speed up to 60m/min.Dual and exchange work table to save uploading time.

4.Full protection cover to ensure the operator safety and reduce the factory air pollution.

5.New design for the whole machine with left and right funnels for waste collection space-saving.

6.The dual gear and driver system to ensure high work precision.Imported guide rail and ball screw to guarantee machine stable work process.



Technical Parameters:



Model	SF 3015HM
Working area	3000*1500mm
Plate cutting:X axis stroke	3000mm
Plate cutting:Y axis stroke	1500mm
Plate cutting:Z axis stroke	220mm
Laser power	1500W/2000W/3000W/4000W/6000W
Length range of pipe cutting	0~3000mm/0~6000mm
Positioning accuracy	±0.05mm/m
Machine Size	8500*3550*2500mm
Weight	8100KG

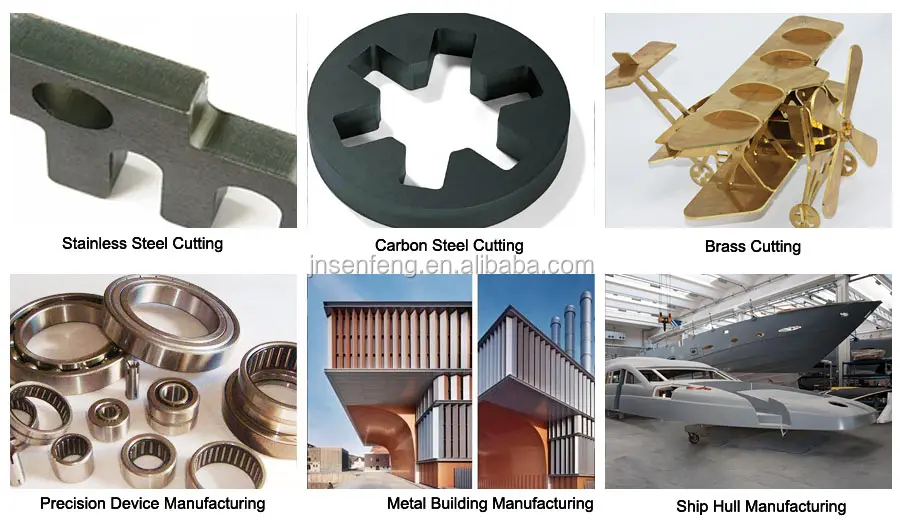

Full-cover metal tube lazer cutting machine is specially for cutting 0.4-25mm carbon steel plates(pipes),0.4-14mm stainless steel(pipes),galvanized steel plates and pipes ,electrolytic zinc-coated steel(pipes),0.4-12mm aluminum sheet(pipes) and 0.4-6mm brass(pipes) and other thin metal materials.
