Pvc Coated Gabion Wire Mesh Automatic Gabion Box Machine

Product Overview

Description

Pvc Coated Gabion Wire Mesh Automatic Gabion Box Machine

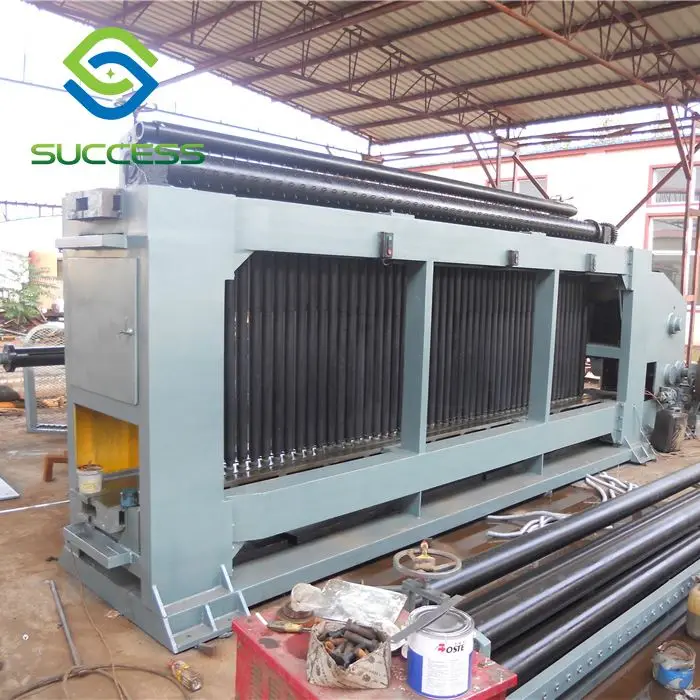

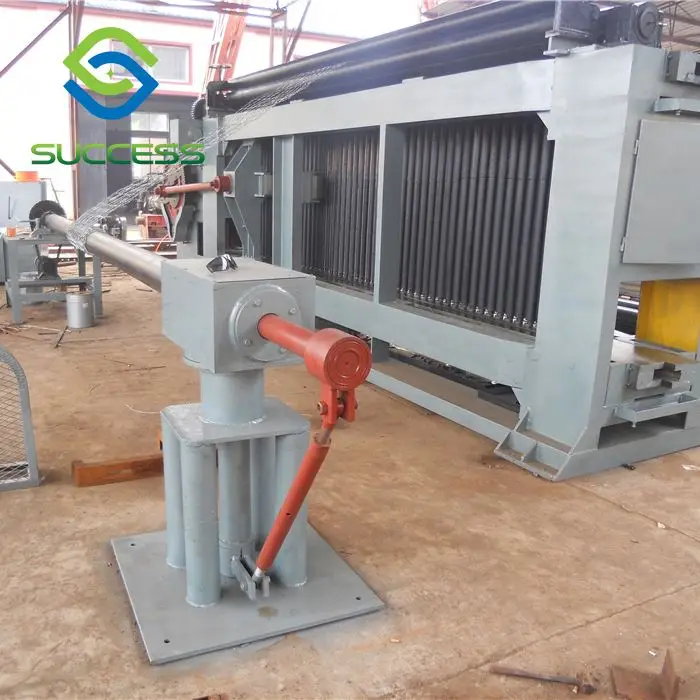

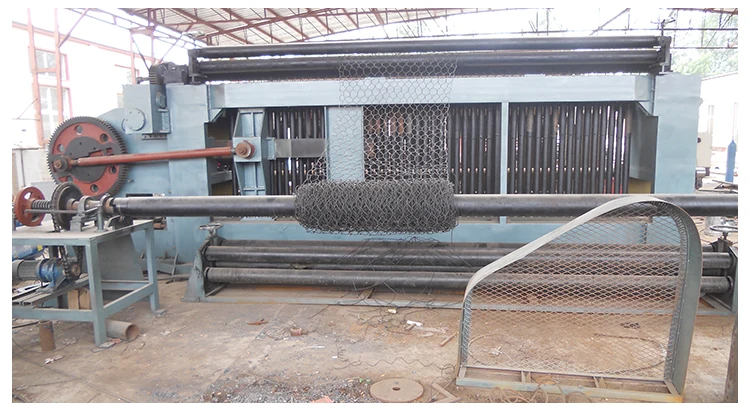

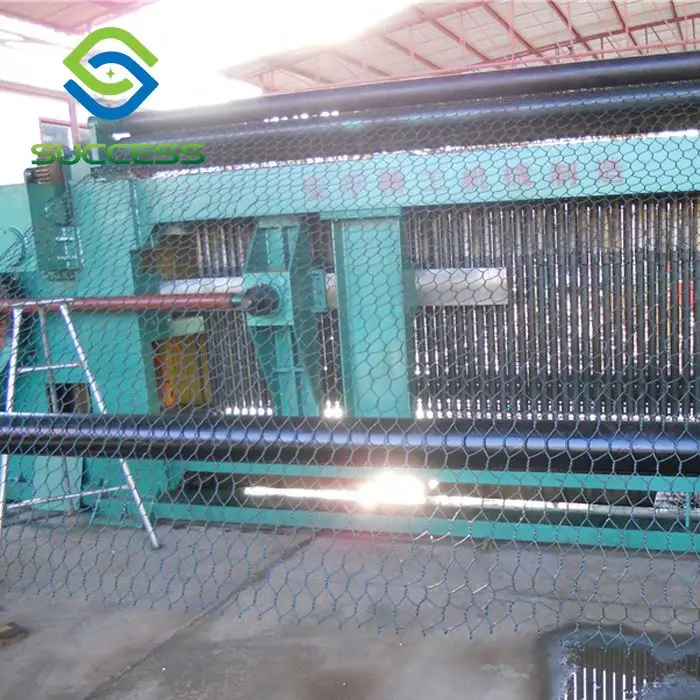

1.Gabion mesh machine is the professional machine to produce gabion mesh box, which is wildly used in protecting and sustaining bank, hillside, road and bridge, reservoir and other construction project, and it is the good material to prevent or control flood.

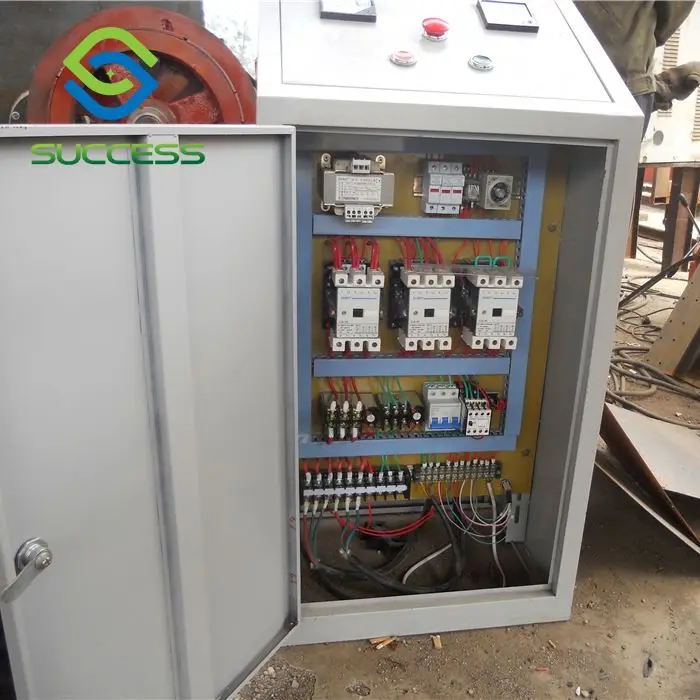

2.Gabion mesh machine adopt PLC automatic control, it has the characteristics of moving steadily, low noise, high potency, it is ideal machine for weaving gabion mesh with big specifications, big width, and big diameter.

3.YNW series hydraulic heavy hexagonal wire mesh weaving machine adopts PLC automatic control and hydraulic drive, has stable operation, low noise and high efficiency, and is an ideal machine for weaving large specification, broad width and thick wire diameter hexagonal wire mesh.



Model	Nominal Size of Mesh	Maximum Wire Diameter	Maximum Width	Weaving Speed	Motor Power
YNW60X80-24	60X80-24mm	φ2.2-2.8mm	2.4m	≥1.5m/min	18.5kw
YNW80X100-24	80X100-24mm	φ2.2-3.5mm	2.4m	≥2m/min	22kw
YNW60X80-46	60X80-46mm	φ2.2-2.8mm	4.6m	≥1.5m/min	30kw
YNW80X100-42	80X100-42mm	φ2.2X3.5mm	4.2m	≥2m/min	30kw

Mechanical Drive

Product Specification (mm)	Maximum Breadth (mm)	Maximum Wire Diameter (mm)	Twist Ridge Count	Spindle Speed	Motor Power (kw)	Theoretical Production Speed
						Twist Mesh Hole Number/min	m /h	Overall Dimensions (LXWXH) mm	Quality (T)
60X80	2300	3	3	25	11	25	165	5200X1400X2400	14
	3300	3	3	25	15	25	165	6200X1400X2400	15
	4300	3	3	25	22	25	165	7200X1400X2400	16
80X100	2300	3	3	25	11	25	195	5200X1400X2400	14
	3300	3	3	25	15	25	195	6200X1400X2400	15
	4300	3	3	25	22	25	195	7200X1400X2400	16
100X120	2300	3	3	25	11	25	225	5200X1400X2400	14
	3300	3	3	25	15	25	255	6200X1400X2400	15
	4300	3	3	25	22	25	225	7200X1400X2400	16



Advantages:

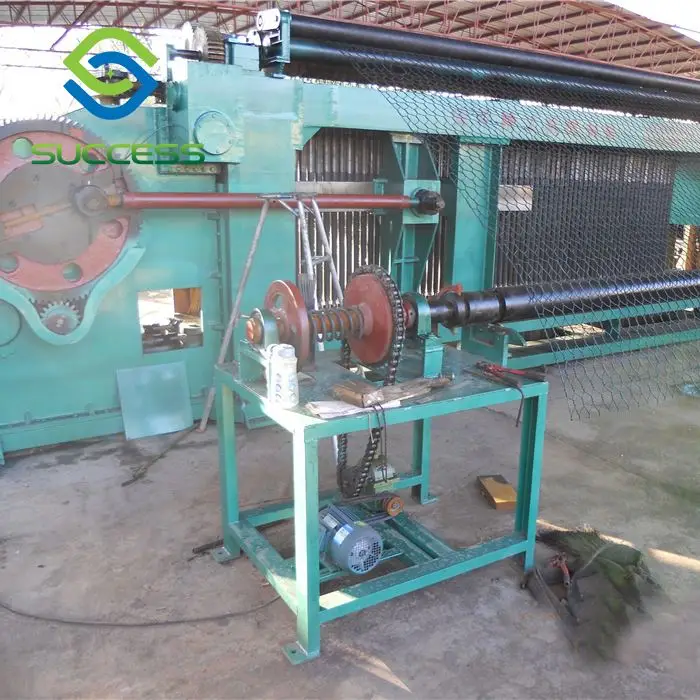

1. New type double rack drive gabion knitting machine

2. High efficiency: theoretic output=4.25m/min

3. PLC control system touch screen(Option)

4. Infrared ray safety(Option)

5. Automatic stop system (Option)

6. Automatic oil system

7. The knitting machine is satisfied with normal wire netting machine's requipment, and also can meet weaving large diameter hexagonal mesh's demand.

8. The design is innovation in China, it can weave the wire 4.0mm easily and speed as normal wire diameter.
