CK51 Series Single Column CNC Vertical Metal Turning Lathe for sale

Product Overview

Description

CK51 Series Single Column CNC Vertical Metal Turning Lathe for sale

A. Product application and features:

1. It is mostly used to process middle-diameter tire mould and flanges, various valves and pipelines, pressure vessels, screw propeller, steamer machine accessories , plastic mould, shafts and other work-piece .
2. It is suitable for processing the internal/external cylindrical surface, conical surface, end face etc
3. Spindle bearings use domestic famous-brand company products.
4. Headstock takes symmetrical structure to make thermal deformation be even, avoiding the spindle center generates offsets.
5. Gears in headstock and guide way are processed by quenching to ensure accurate transmission and high rigidity.
6. Vertical lathe table inlaids with zinc alloy wear-resistant guide guard and can access pressure oil (0.2-0.4MPA) between the rails for improving load-carrying ability of workbench.
7. Vertical lathe casting has passed through strict artificially aged and vibration aging in order to make sure the rigidity and stability of lathe.



B. Main technical data (cnc vertical metal turning lathe for sale):

Model	CK518	CK5112Q	CK5112A	CK5116Q	CK5116A	CK5120A	CK5126A
Max. turning diameter of vertical tool rest (mm)	800	1200	1200	1600	1600	2000	2600
Working table diameter (mm)	700	1000	1000	1400	1400	1800	2200
Max. height of work-piece (mm)	800	1000	1000	1200	1200	1250	1400
Max. weight of work-piece (kg)	1500	1500	3200	3200	5000	8000	8000
Range of worktable rotation speed (rpm)	30-260	20-180	6.3-200	15-160	5-160	3.2-100	2.2-70
Feeding series	Stepless	Stepless	Stepless	Stepless	Stepless	Stepless	Stepless
Range of tool rest feed (mm/min)	0.25-90	0.25-90	0.8-86	0.25-90	0.8-86	0.8-86	0.8-86
Cross beam travel (mm)	500	1000	650	1200	650	890	1090
Horizontal travel of tool rest (mm)	500	700	700	900	916	1115	1400
Vertical travel of tool rest (mm)	450	500	650	750	800	800	800
Size of section of cutter bar (mm)	30*40	30*40	30*40	30*40	30*40	30*40	30*40
Main motor power (kw)	11	15	22	15	30	30	30

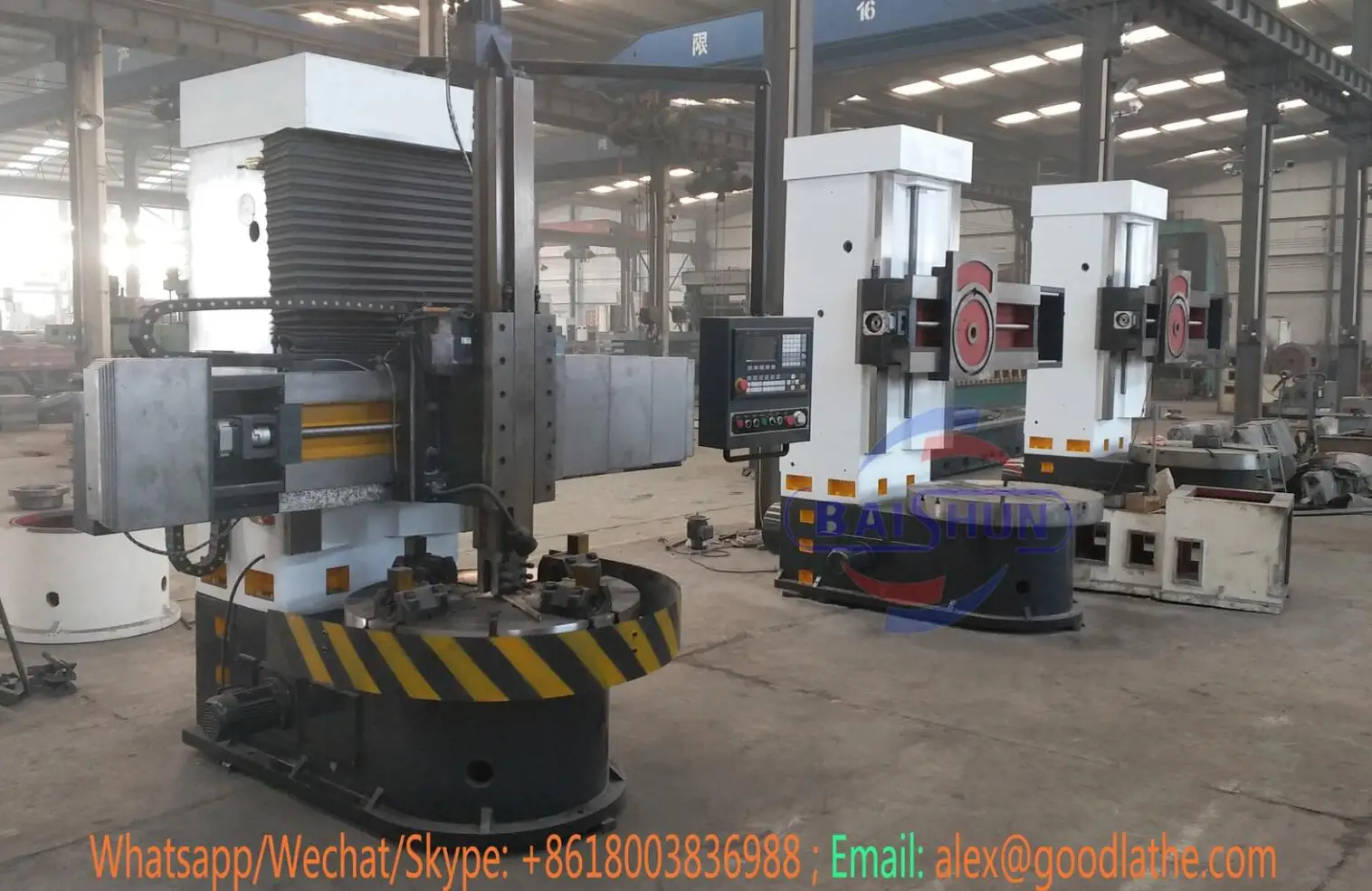

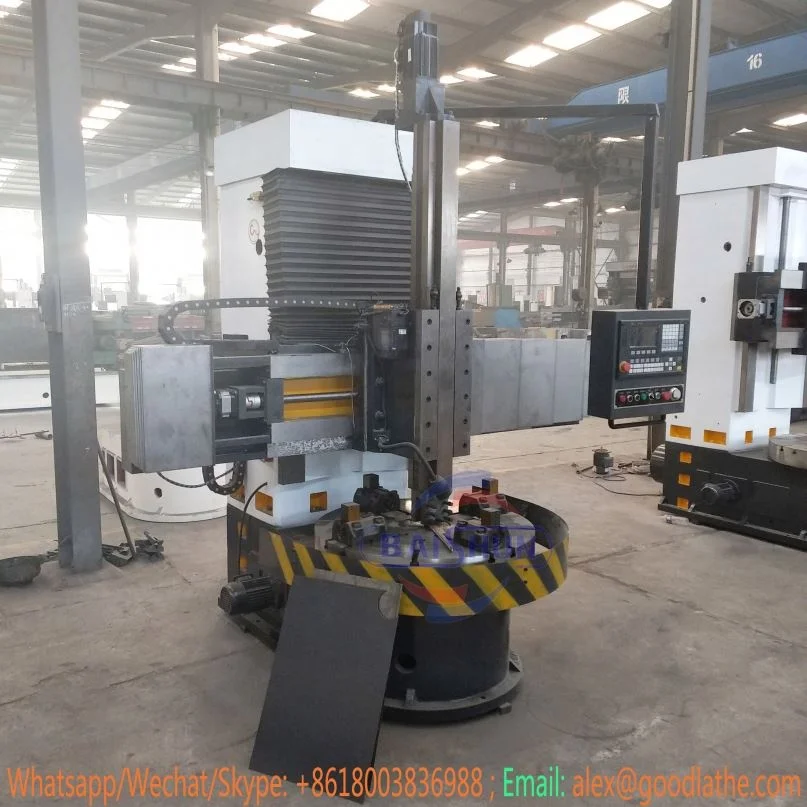

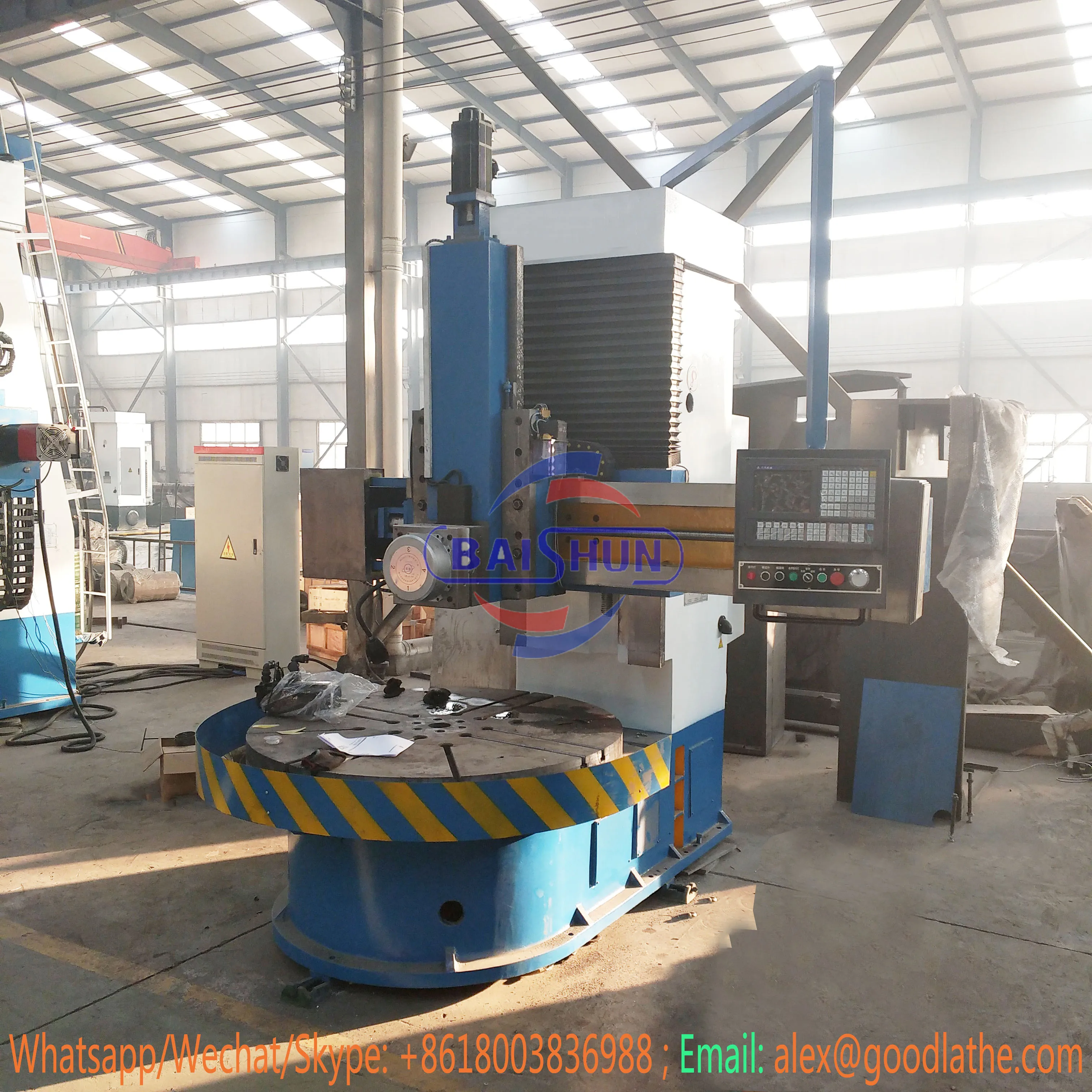

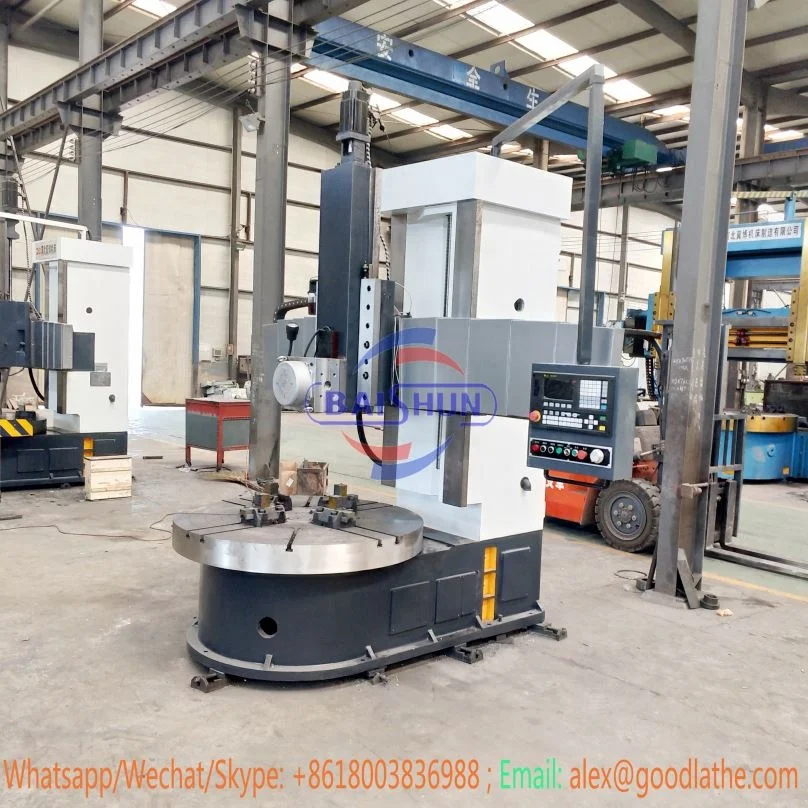

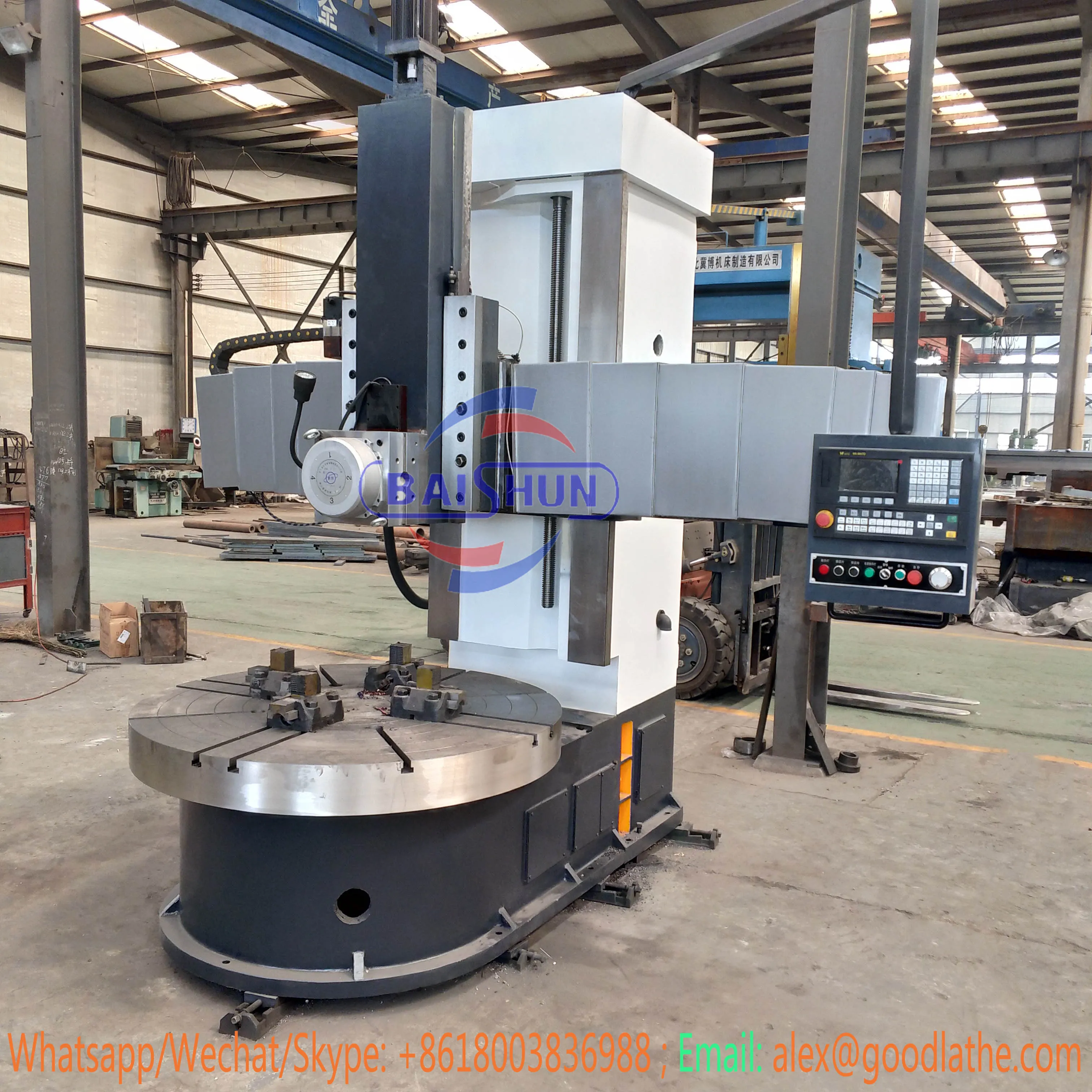

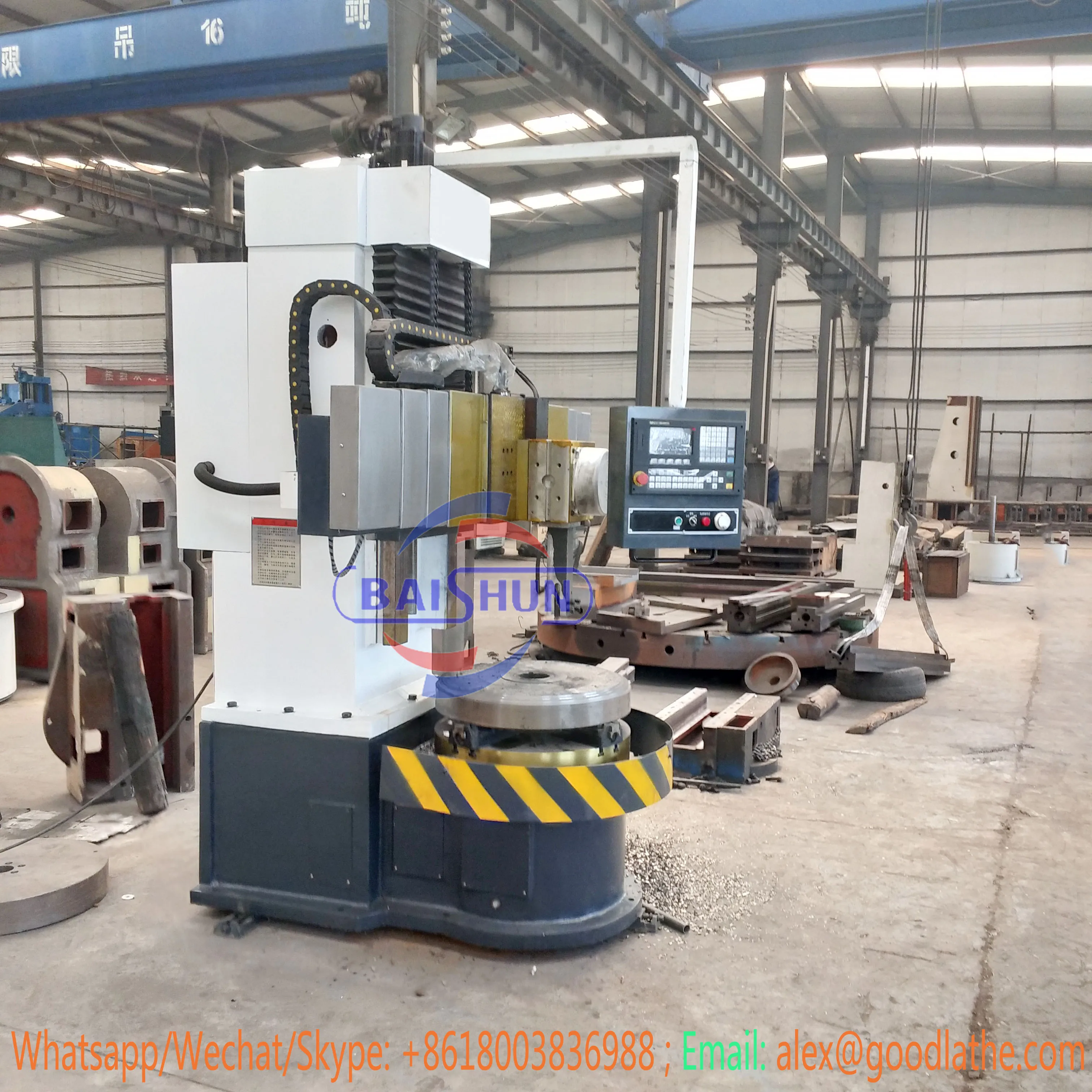

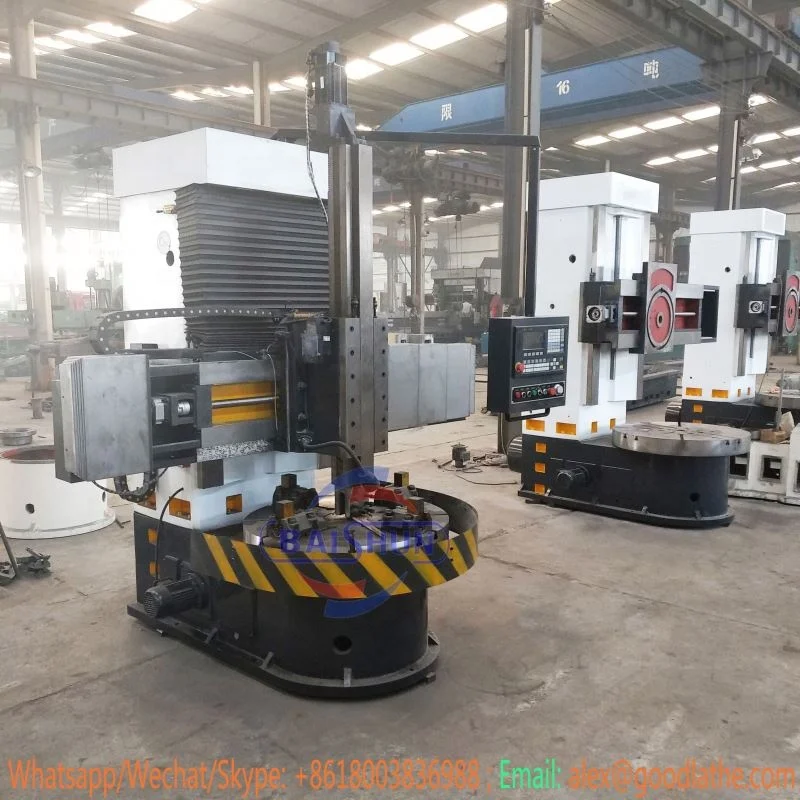

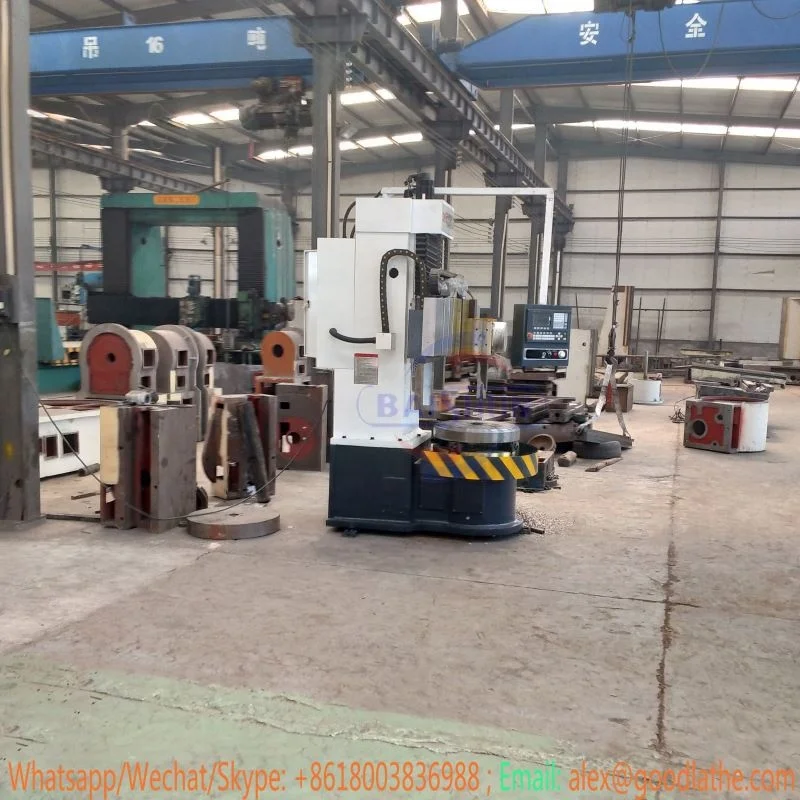

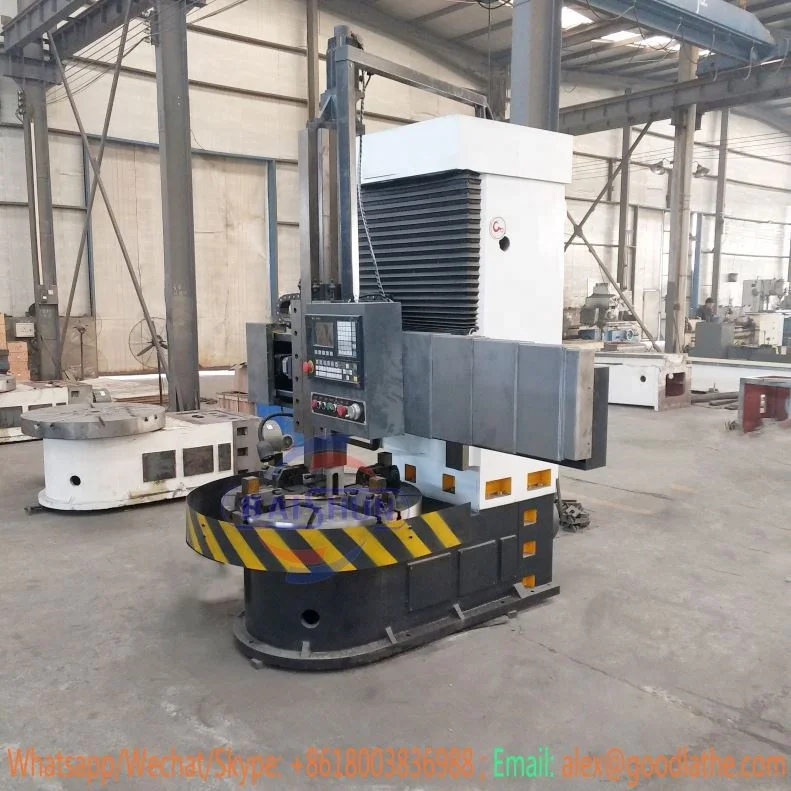

C. Machine pictures for your reference:

CK51 Series Single Column CNC Vertical Metal Turning Lathe for sale

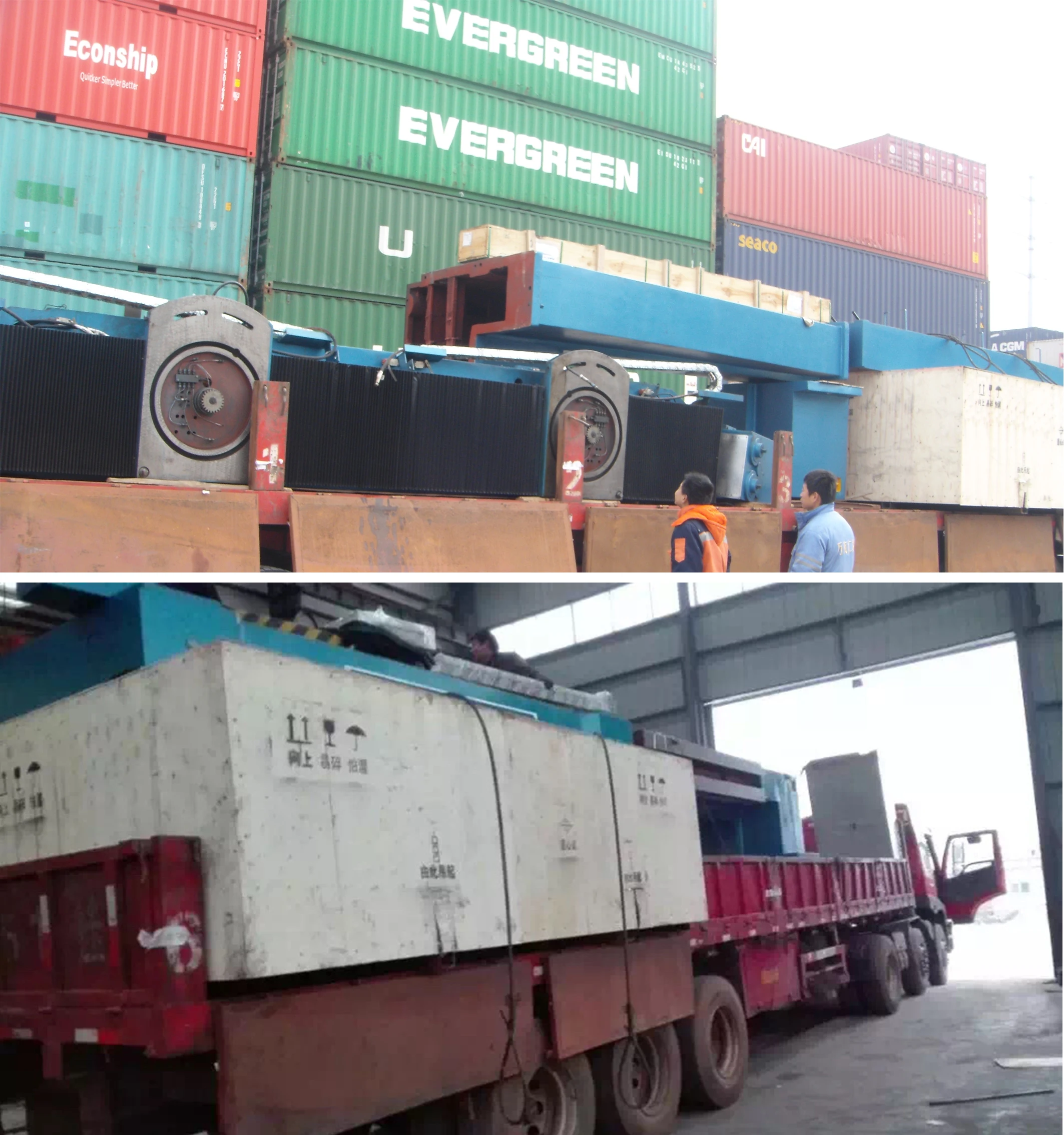

D. Packing and shipping:

CK51 Series Single Column CNC Vertical Metal Turning Lathe for sale

Packing: In plastic wrap, wooden case and container or as required;
Shipping: Within 45 days after receving the deposit
Container: Usually 1 piece 20GP container will be okay.



E. Our services:

Pre-Sales Service
Inquiry and consulting support; Sample testing support.; View our Factory.

After-Sales Service
Training how to instal the machine, training how to use the machine ;Engineers available to service machinery overseas.

About warranty period:
During warranty period (one year), if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact us, we will supply our best service to you as usual.
1. Technical support online service provided .
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5. Spare parts replacement and repair service provided.
6. All of the questions will be replied within 24 hours
