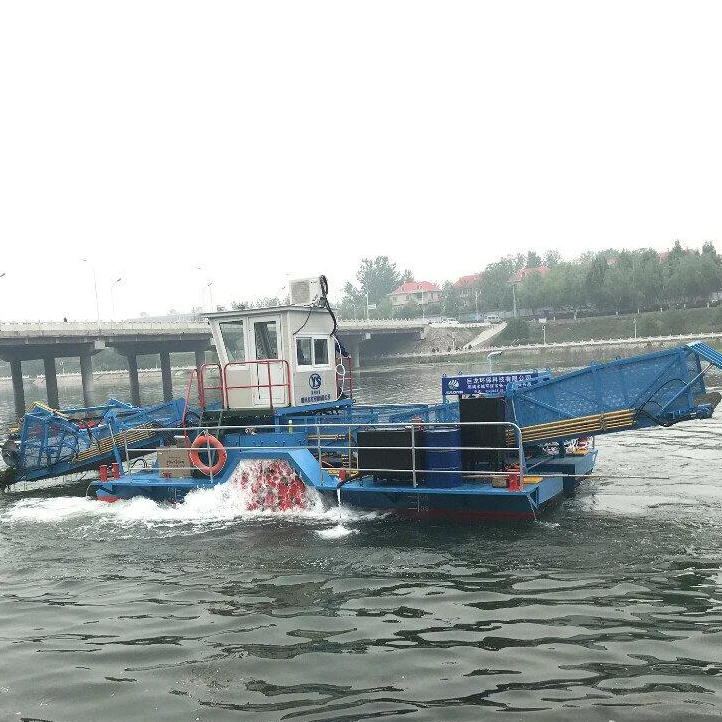

Речная мусорная мойка, лодка, мойка, лодка, мусорный скиммер

Description

Required Specification

Manufacturer

Qingzhou Dragon(ISO Certified Enterprise)

Brand

DHHY

Model

JLBJC122

1.   Principle Dimensions

(1)   Length overall

15m

(2)   Breadth

5.2m

(3)   Height

4.5 m

(4)   Draft Empty / Fully Laden

0.55m / 0.8m

(5)   Collection Width

2.5 m

(6)   Collection Depth

1.2m

(7)   Carrying Capacity

20m3

(8)   Working Speed

3 km/hr

(9)   Total Installed Power

122KW

2.    Hull

(1)   Length

9 m

(2)   Width

1.5m

(3)   Height

1.0 m

(4)   Amount

2

3.    Paddle Wheel

(1)   Amount

2 pieces

(2)   Dia & Width

1.4m & 0.6m

(3)   Driven

Hydraulic Motor

4.    Main Engine

(1)   Manufacturer

WEICHAI

(2)   Model

WP6C

(3)   Rated Power with RPM

122KW @ 1800RPM

(4)   Amount

1 set

5.    Hydraulic System

a.    Hydraulic Tank

(1)   Capacity

400L

(2)   Accessories

temperature & level gauge are provided

b.  Hydraulic System Protection

Relief valves, low oil & clogged filter sensors shall be provided for better working of the hydraulic system.

c.    Location

located at convenient and easy to maintain place in the system.

d.   Instrumentation & Controls

Levers, gauges, warning lights & alarms are provided.

6.    Pilot House

(1)   Type

360 degree view stable cabin

(2)   Captain Chair

It can have various features like height adjustment, front- back positioning etc.

7.     Lighting System

(1)   Lights Style

Spot lights and floodlights

(2)   Signal Mast

Signal lamps required for navigation is to be provided.

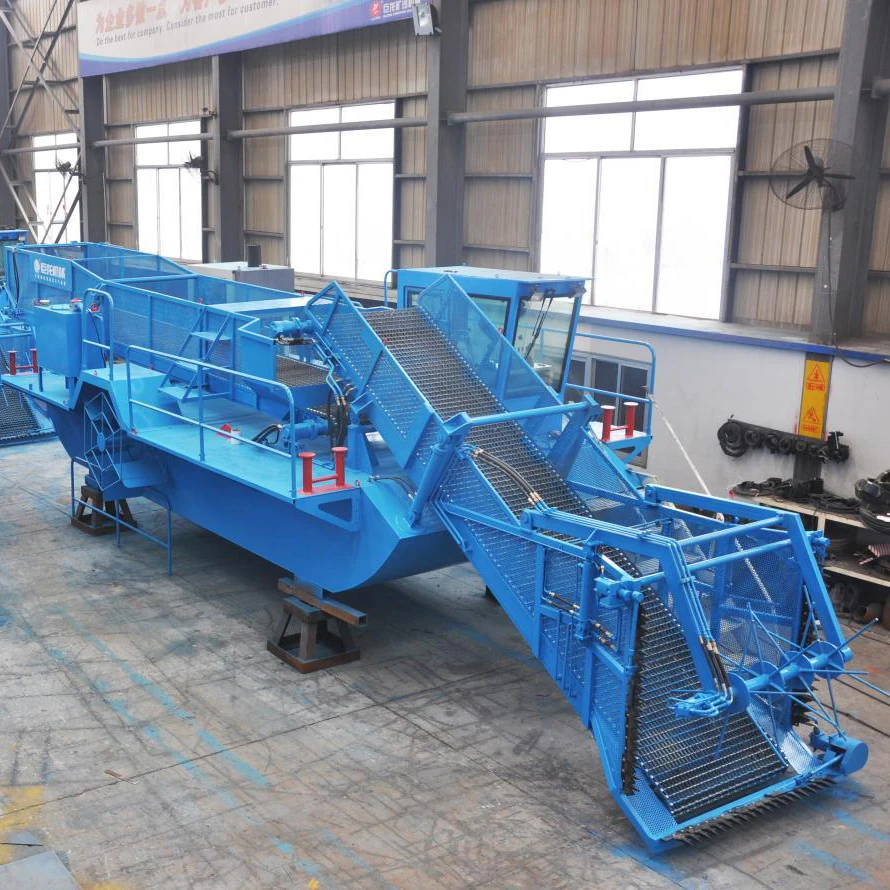

8.     Conveyor Belting

(1)   Manufacture

The Great Wall Type

(2)   Material

Stainless Steel

(3)   Driven

Hydraulic Motor

9.    Frame

(1)   Material

CCSB Marine Steel

(2)   Anti corrosion

3layers marine epoxy paint; Zinc anode protection.
