50A bldc motor drive 48v 1000w brushless dc motor 48v 800w controller CAN RS232 communicate control for Digital Radiography

1.Product overiew:

KYDBL4850-1E is an intelligent brushless DC controller.  It adopts 32-bit high-performance MCU,Advanced motion control algorithm is suitable to the outside of the quadrature encoder input to complete the open loop and closed loop speed, under the closed loop torque of motor sport.Controller with multiple analog input port, the pulse input port and digital I/O port, can through the special software to redefine its functions.Universal RS232 serial port communication, CAN bus, CAN be widely used in automation.

                             Maximum            Maximum               Direct voltage

                            Output current    Output voltage     Working range

Model                  DC : (A)               DC: (V)                 DC: (V)

 KYDBL4850-1E      50                       48                   10-50 (95%)

2.Product Features:

3.Performance Index:

a. Power voltage: 10-55VDC.

b. At the ambient temperature 25℃, continuous working current 30A, transient current up to 75A 30S.

c. Out+5VDC power (It can power up the encoder): 5V DC  20mA

d. Analog input range: 0-- 5VDC

e. Impulse input range: 500Hz—5000Hz (corresponding maximum speed)

f. [Note] The minimum impulse frequency may change along with the setting of maximum speed.

g. Input range of duty ratio 0%-- 100% (input frequency range f ≤1KHz, recommend to use the frequency of 250Hz).

h. the digital output interface: 2 road, open drain, maximum load capacity of 40 V 1 A

i. Temperature protection status: When the temperature is 70℃, the controller will reduce output by overheating protection and will stop output when the temperature is 80℃.

j. Working temperature: -30℃-- +60℃.

k. Ambient humidity: Relative humidity≤80RH.

l. Boundary dimension: L * W * H = 148mm * 117mm * 40mm

m. Weight: 800g

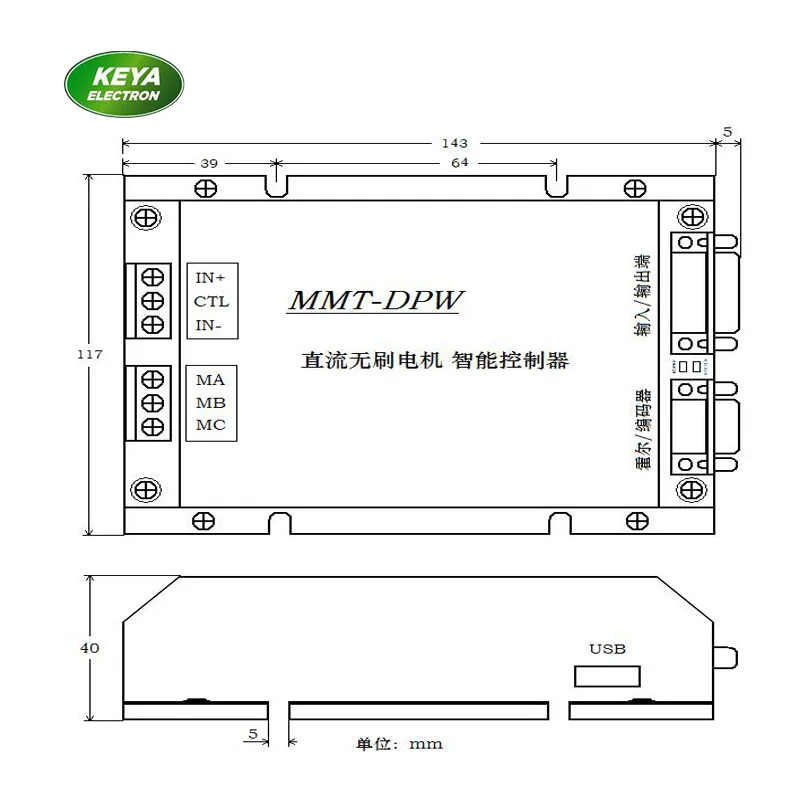

4.Dimension:

Boundary dimension: L * W * H = 148mm * 117mm * 40mm

48v 1000w dc motor controller

brushless dc motor 48v 800w controller

50A bldc motor drive 48v 1000w brushless dc motor 48v 800w controller CAN RS232 communicate control for Digital Radiography

We have strong cooperation with DHL,TNT,EMS,China Post.You also can choose your own shipping forwarder.

bldc motor drive

1) Many kinds of motor with different powers to meet difference requirements.
2) Many designs and Matched controller for your choice.
3) Samples will be offered to attest to the quality and our services.
4) No design limited. you design it by yourself.

Thank you for your visit. If you need brushless dc motor, servo motor and controller, please contact us as soon as possible!
