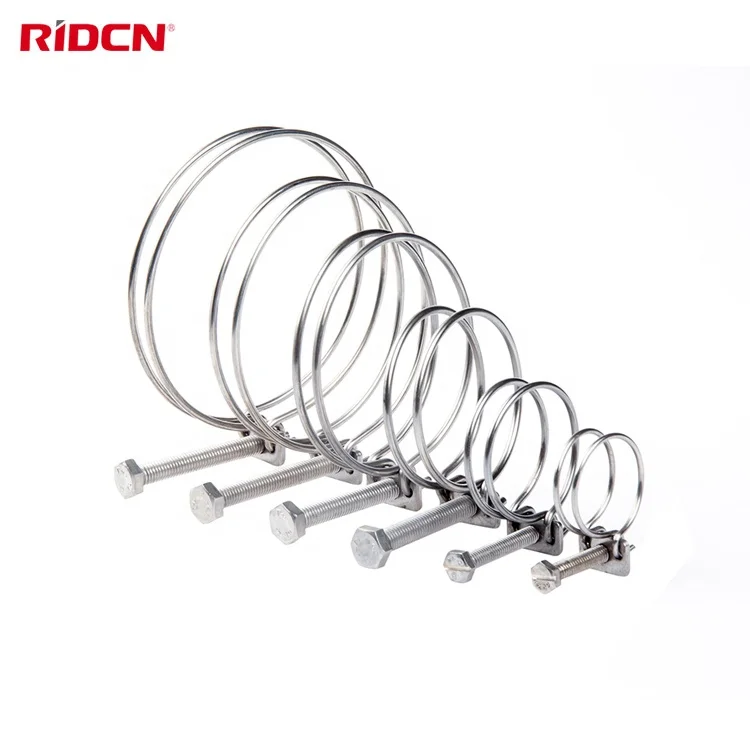

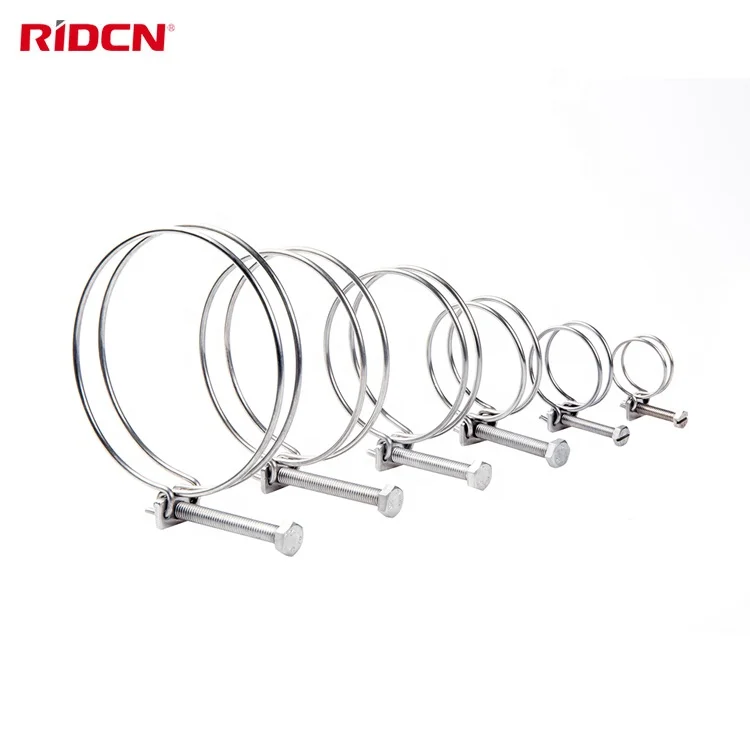

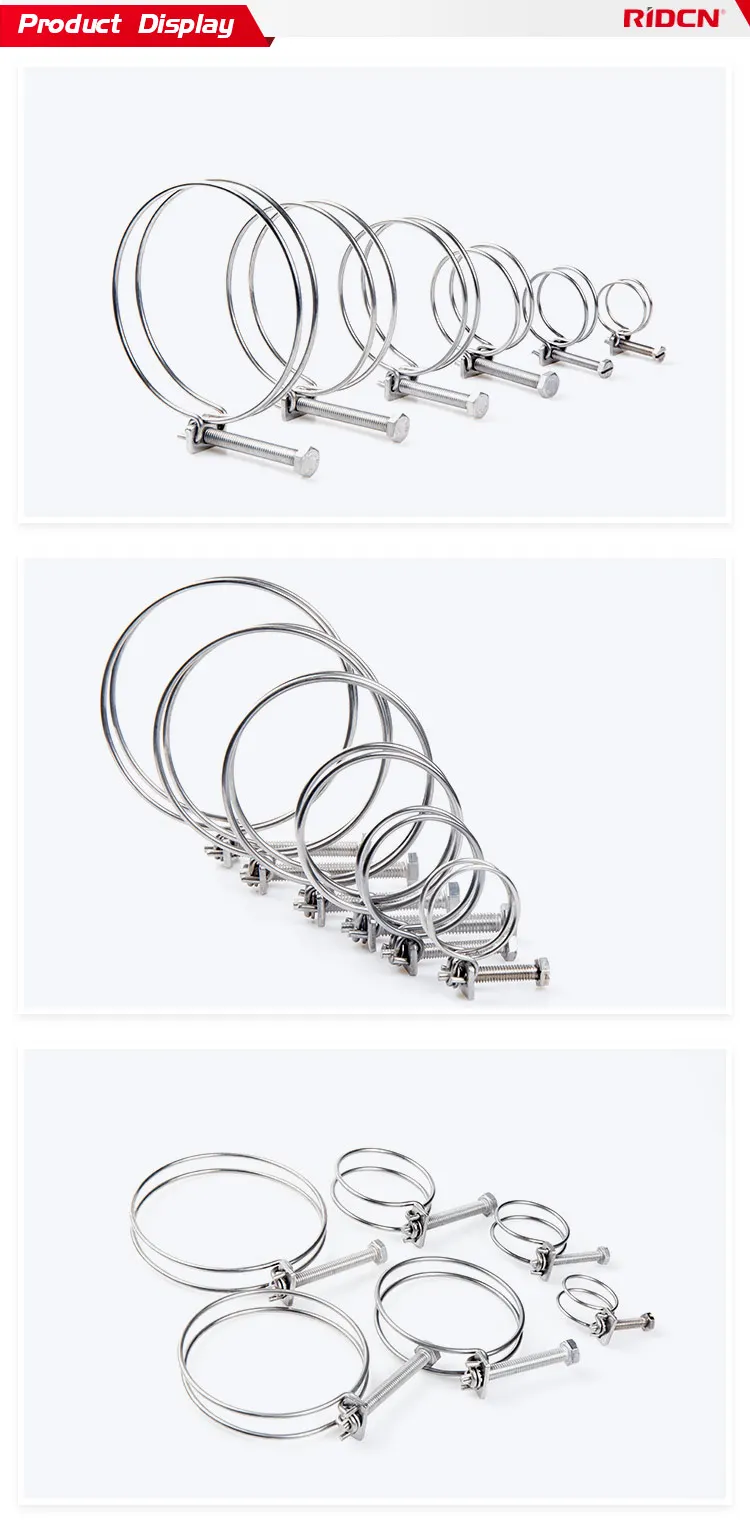

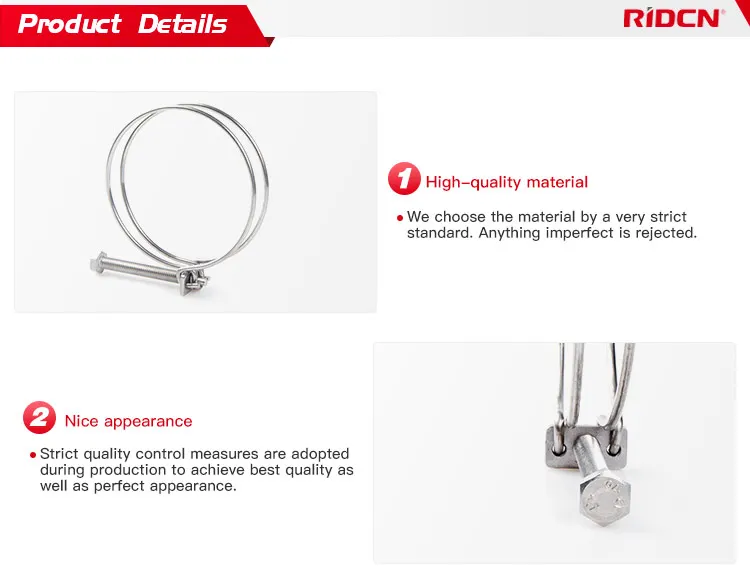

Stainless Steel Double Wire Clamp

Product Overview

Description



Stainless Steel Double Wire Clamp

Material:

201,304,316 stainless steel

Application:

Water-heating system, pipeline installation,sewage disposal system,fire fighting,chemical industry and etc.



Stainless Steel Double Wire Clamp

Material:

201,304,316 stainless steel

Application:

Water-heating system, pipeline installation,sewage disposal system,fire fighting,chemical industry and etc.



Diameter Range	Wire  Diameter	Screw
(mm)	(mm)	(mm)
9-12	1.5	5*35
11-14	1.5	5*35
13-16	2	6*35
15-18	2	6*35
16-19	2	6*35
19-22	2	6*35
22-25	2	6*35
	2.5	6*35
24-27	2	6*35
	2.5	6*35
25-29	2	6*35
	2.5	6*35
	3	8*50
28-32	2	6*35
	2.5	6*35
	3	8*50
30-34	2	6*35
	2.5	6*35
	3	8*50
34-38	2	6*40
	2.5	6*40
	3	8*50
36-40	2	6*40
	2.5	6*40
	3	8*50
38-42	2	6*40
	2.5	6*40
	3	8*50
41-45	2	6*40
	2.5	6*40
	3	8*50
44-48	2.5	6*40
	3	8*50
46-50	2.5	6*50
	3	8*50
50-55	3	8*50
52-57	3	8*50
55-60	3	8*60
60-65	3	8*60
62-67	3	8*60
65-70	3	8*60
67-72	3	8*60
70-75	3	8*60
75-80	3	8*70
80-85	3	8*70
85-90	3	8*70
90-95	3	8*70
95-100	3	8*70
100-105	3	8*70
105-110	3	8*70
110-115	3	8*70
115-120	3	8*70
120-125	3	8*70
125-130	3	8*70
130-135	3	8*70
135-140	3	8*70
