ESW SW200i Five Person Viewing Microscope(three/five/ten people viewing device is optional)

Product Overview

Description

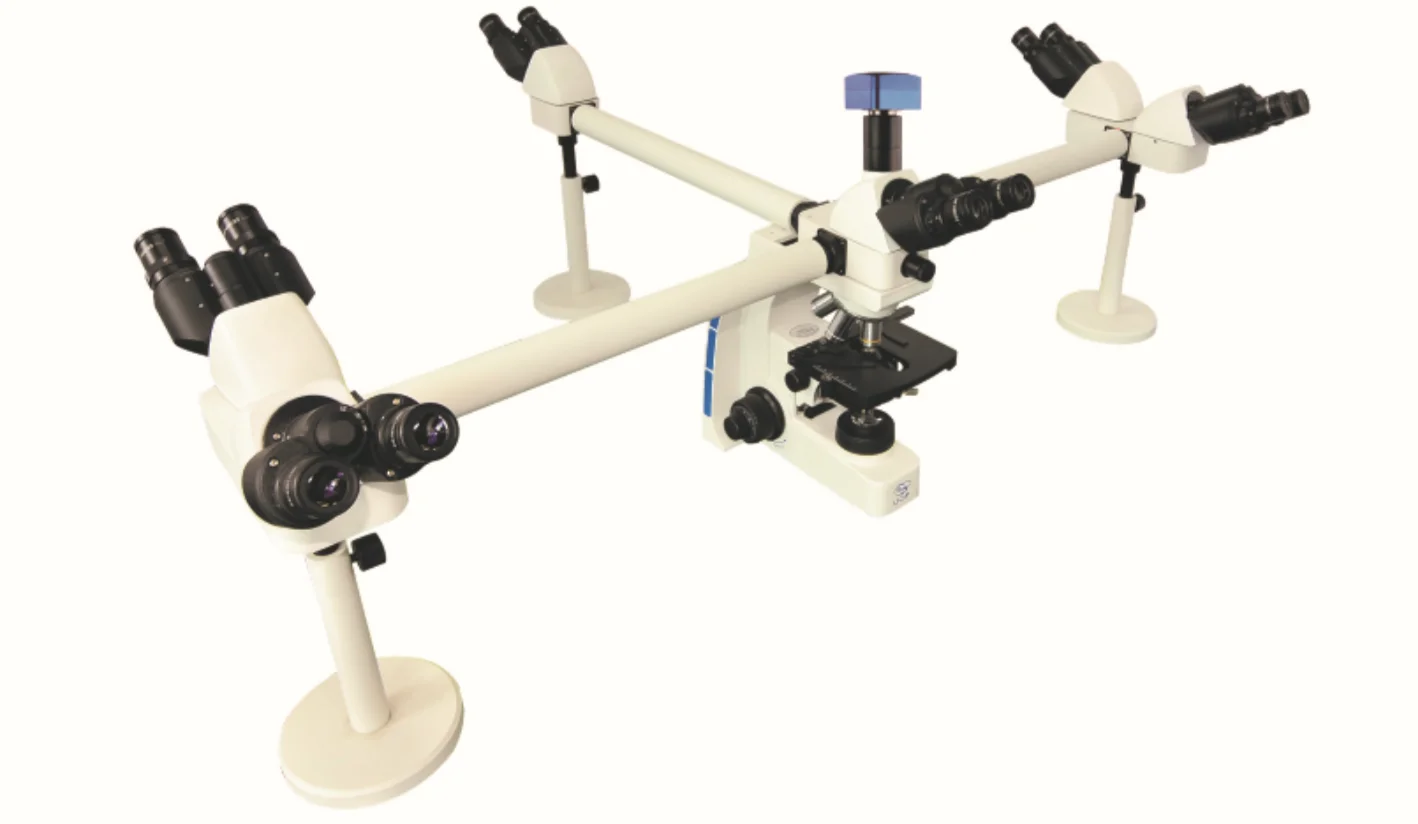

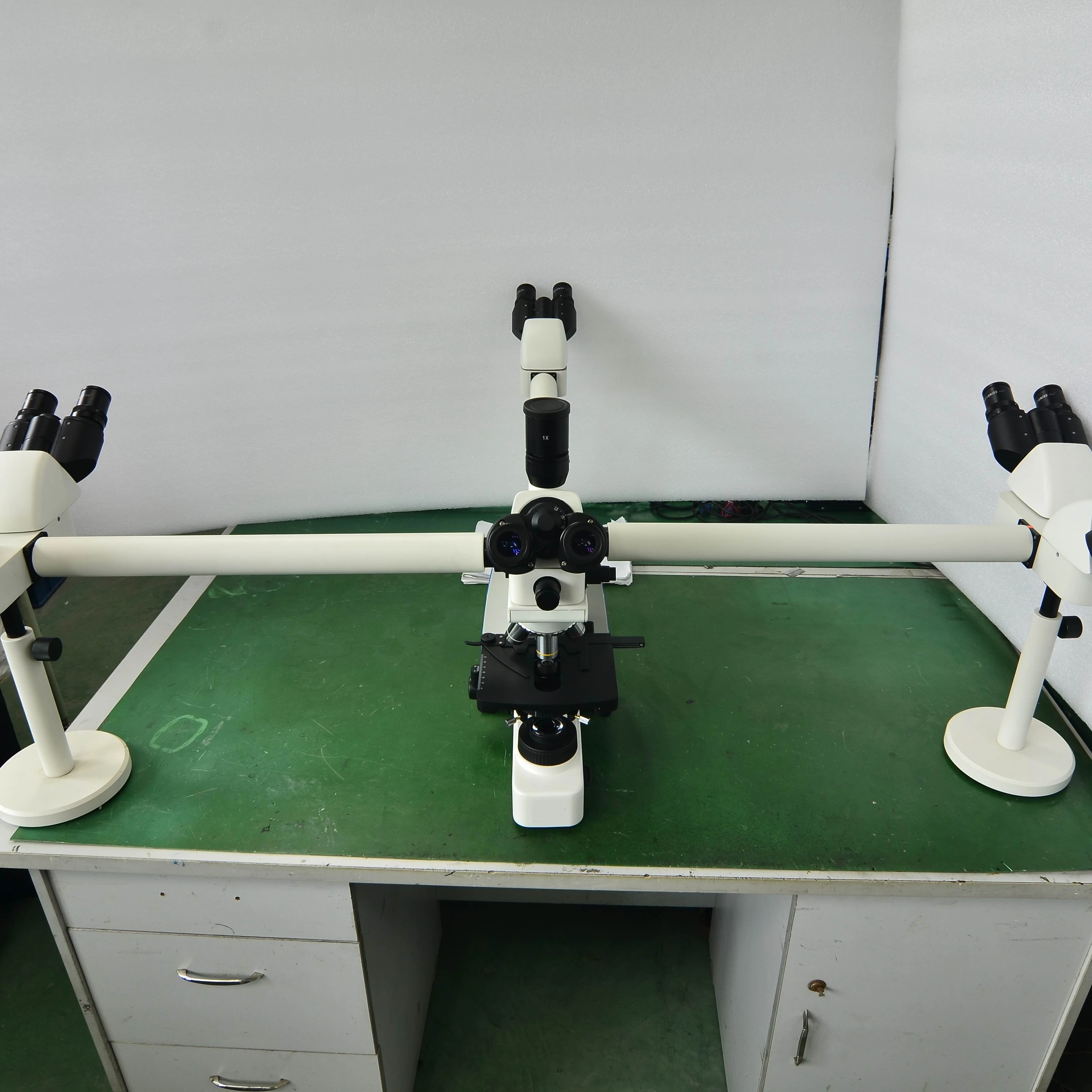

ESW SW200i Five-Person Viewing Microscope(three/five/ten people viewing device is optional)

ESW SW200i Five-Person Viewing Microscope(three/five/ten people viewing device is optional) is particularly designed for medical examination, chemical examination, prefessional research and teaching demonstration in health setups, labs, tech field, research organizations, schools and so on. Its perfect attachments make the instrument a wide-scope applications on phase contrast observation, photograph, camera, depiction, television display and computer image handing, which also can be used for daily work and research in bacteriology and pharmacology.

Specification:

ESW SW200i Five-Person Viewing Microscope; Magnification: 40-1600X
ESW SW202i (three/five people viewing device is optional)	ESW SW203i (three/five people viewing device is optional)
Binocular Seidentopf (52-75mm Interpupillary Distance Settings ±5 Diopter Adjustment)	Trinocular Seidentopf (52-75mm Interpupillary Distance Settings ±5 Diopter Adjustment)
Quadruple Nosepiece Inward Facing with Positive Click Stops
Quintuple Nosepiece Inward Facing with Positive Click Stops (Optional)
WF10x Plan Eyepiece, 18mm Field of View, High Eye Point up to 21mm
Light Distribution: Binocular 100% or Binocular/Trinocular 20%/80%
Infinity Achromatic 4x, 10x, 40x(S) and 100x(S/Oil) Objectives
N.A. 1.25 Abbe Condenser With Iris Diaphragm, With Phase-Contrast Socket
Coaxial Coarse and Fine Focus Mechanism with Markings on Fine Focus Knobs. Fine Focus Sensitivity 0.001mm
Optional Attachment:
Polarization System; Phase-Contrast Slide or Phase-Contrast Condenser; Dark Field Observation Field System
Analysing Software (Only for Trinocular)

Five People Viewing Microscope Configuration & Parts Number

Order Number	Item	ESW SW202i	ESW SW203i
SW200	Body (Choose the power cord please)	y	y
MS2	Binocular,Interpupillary distance 52-75mm	y
MS2A	Binocular, Interpupillary distance 48-75mm	o
MT2B	Trinocular, Interpupillary distance 52-75mm(100:0)		o
MT2	Trinocular, Interpupillary distance 48-75mm(20:80)		y
MT2A	Trinocular, Interpupillary distance 48-75mm(20:80)		o
MT2C	Trinocular, Interpupillary distance 52-75mm(50:50)		o
E1020PA	High eye-point plan eyepiece WF10X/20	oo	oo
E1022PC	High eye-point plan eyepiece WF10X/22	yy	yy
E1613PB	Plan eyepiece WF16X/13	oo	oo
E1020GA	High eye-point plan eyepiece WF10X/20(pointer)	o	o
E1022GC	High eye-point plan eyepiece WF10X/22(pointer)	o	o
E1020RA	Reticule Eyepiece Cross WF10X/20	o	o
WB-X4C-P	Infinity Economical Plan Achromatic Objective 4X	o	o
WB-X10C-P	Infinity Economical Plan Achromatic Objective 10X	o	o
WB-X40C-P	Infinity Economical Plan Achromatic Objective 40X(S)	o	o
WB-X100C-P	Infinity Economical Plan Achromatic Objective 100X(S)(Oil)	o	o
WB-P2A	Infinity Plan Achromatic Objective 2X	o	o
WB-P4C	Infinity Plan Achromatic Objective 4X	y	y
WB-P10C	Infinity Plan Achromatic Objective 10X	y	y
WB-P20C	Infinity Plan Achromatic Objective 20X	y	y
WB-P40C	Infinity Plan Achromatic Objective 40X(S)	y	y
WB-P60C	Infinity Plan Achromatic Objective 60X(S)	o	o
WB-P100C	Infinity Plan Achromatic Objective 100X(S)	y	y

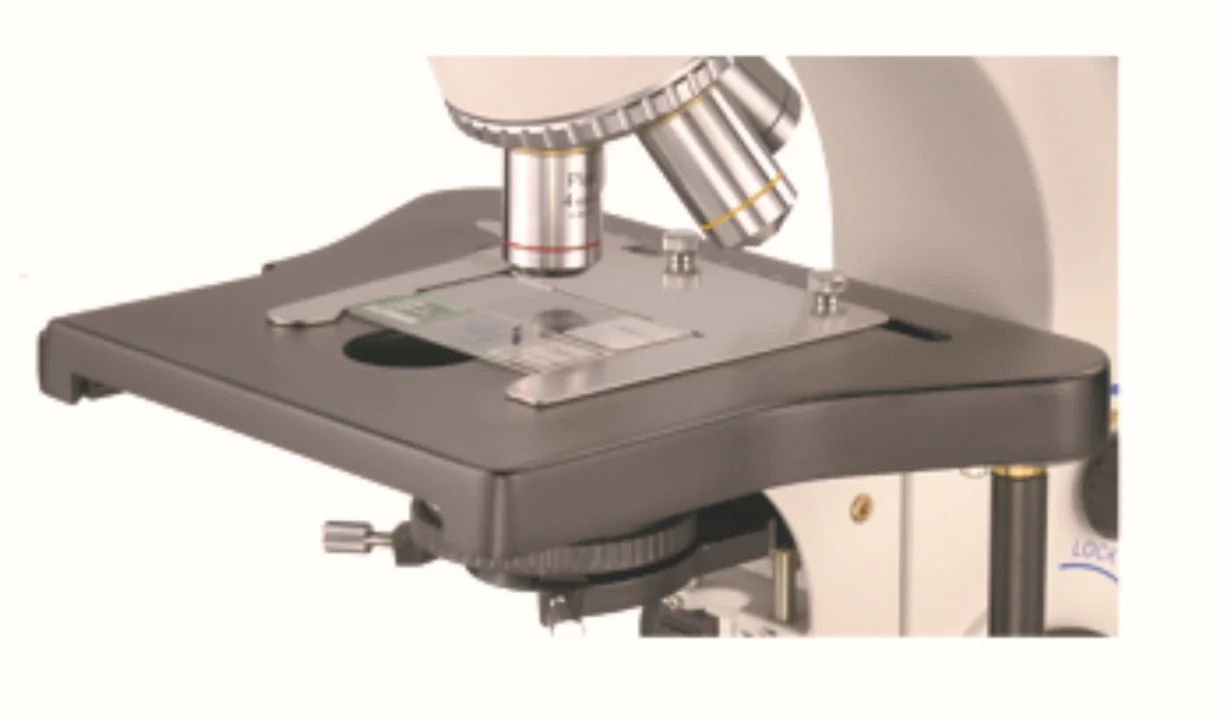

ZT2	Mechanical Stage, Right handed 156X138mm, movement range 76*54mm	y	y
ZT2B	Mechanical Stage, Right handed 185X177mm, movement range 75*50mm	o	o
ZQ480	Quadruple Nosepiece, inward facing	o	o
ZQ580	Quintuple Nosepiece, inward facing	y	y
JG2C	Abbe Condenser	y	y
KL2B	Kohler Illuminator(No field diaphragm)	o	o
KL3A	Kohler Illuminator(with field diaphragm)	y	y
DQ2	6V 20W Halogen Lamps	o	o
DQ2A	6V 30W Halogen Lamps	y	y
DQL2C2C	3W LED Electric Device(with Rechargeable Batteries)	o	o
DQL2C	3W LED Electric Device	o	o
SX2A	0.5X C-Mount		o
SX3	1X C-Mount		y
SX4	0.25X C-Mount		o
SX8	C-Mount		o
SX10	2.5X Digital Camera		o
LA5-0011	Blue Filter(φ38)(LED Lamp without Filter)	y	y



y means yes.yy means two pieces.

o means optional.oo means two pieces.



Design change: To keep pace with technological advances, we have reserved the right to make design modification and changes without notice.



Other Products:

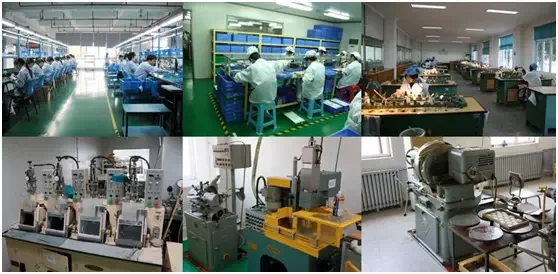

Our Factory:
