H.265/H.264 HD SDI Encoder for IPTV Support RTSP/ RTMP /UDP IPTV HD SDI Video Encoder
- Category: Radio & TV Broadcasting Equipment >>>
- Supplier: Nantong,Zydz,Electronic,Co.,Ltd.
Share on:
Product Overview
Description
Overview
H.265 HD 1080P SDI Video ENCODER
The SDI video encoder can deliver H.264/H.265 encoding SDI video streams of independent IP output to various servers for live application, such as Wowza media server, windows media server, social media platform, and some other servers based on SRT/RTSP/RTMP/RMPTS/ HLS/ TS/ Onvi f protocols. orivision video encoder is widely applied in hotel TV systems, school teaching, live broadcasting.Support POE power supply.
Ⅰ.

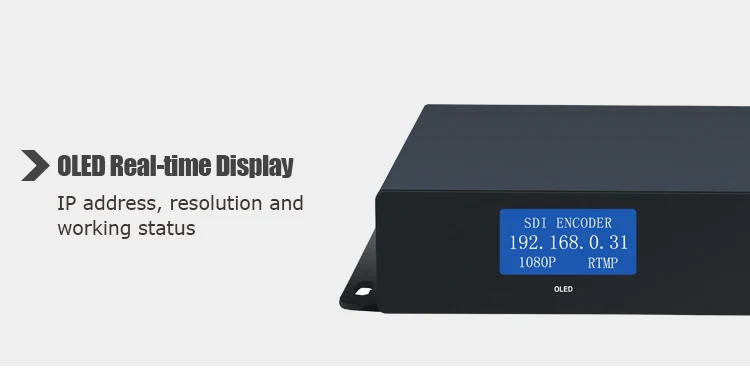

OLED real-time display IP address, resolution and working status to ensure uninterrupted video streaming.
Ⅱ.

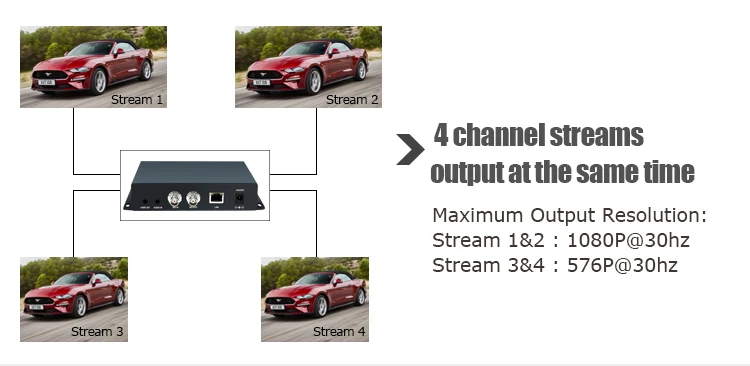

Support 4 streams output at the same time.
Ⅲ.

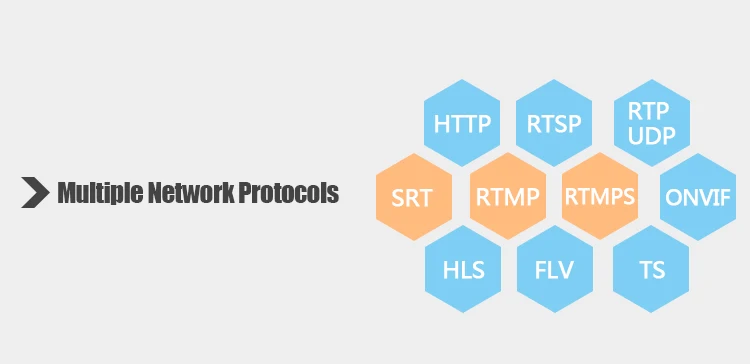

Support HDCP protocol and Blu-ray.Support HTTP, UTP, RTSP, RTMP, RTMPS, SRT, RTP, ONVI F protocol.
Ⅳ.

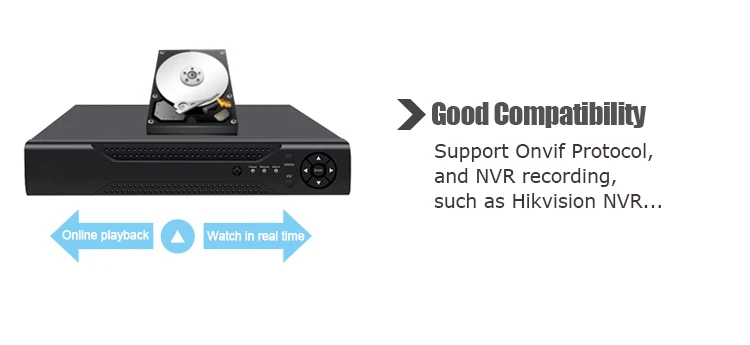

Support Onvif Protocol,and NVR recording.
Ⅴ.

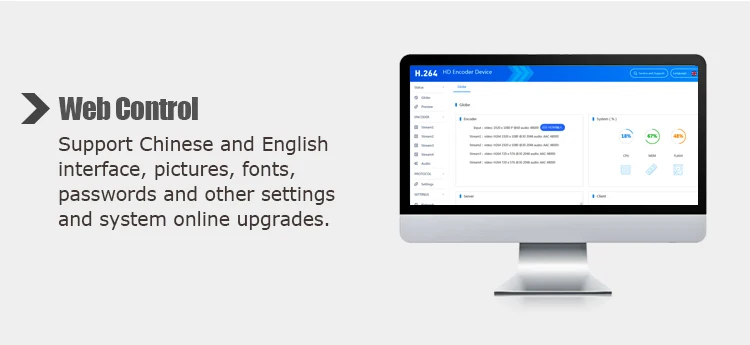

WEB interface, English, and Chinese is optional for configuration interface.
Ⅵ.

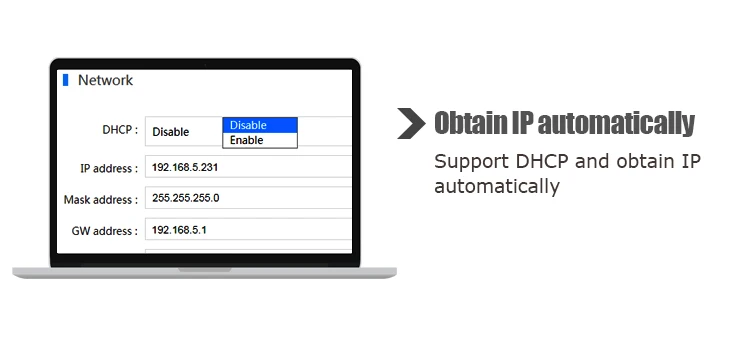

Support DHCP , Blu-ray and obtain IP automatically.
Ⅶ.
Support AAC / G.711 Advanced Audio Coding format quality.
Support Digital audio/Analog audio loop out.
Audio can be coded separately.
Support Digital audio/Analog audio loop out.
Audio can be coded separately.
Ⅷ.

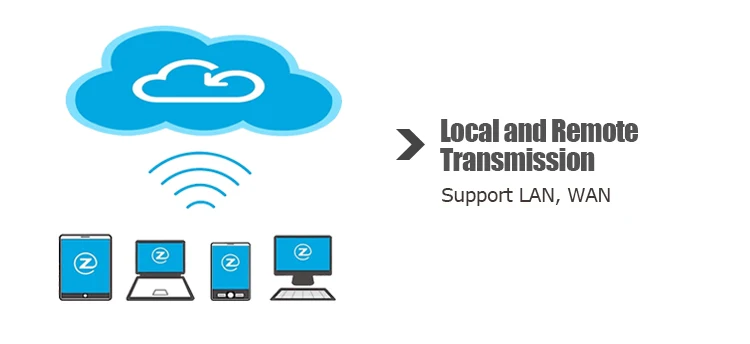

Support remote management in WAN(WEB).LAN.
Ⅸ.

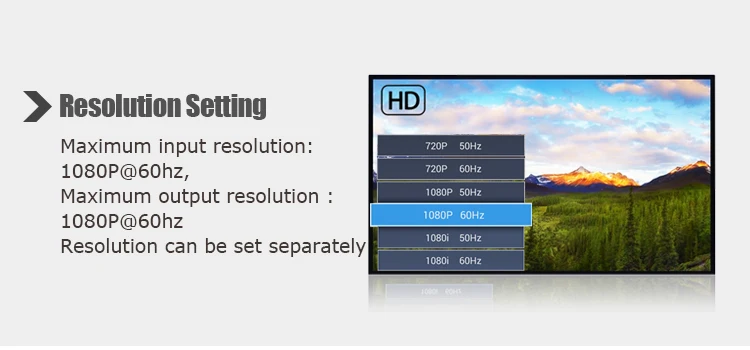

Supports up to 720P, 1080P @ 30/60HZ HD video input/output
Ⅹ.
Support HDMI , VGA , SDI , HD-SDI , 3G-SDI , CVBS.......
Recommend Products
Specification
Model | ZY-ES901 | |
Video | ||
Input interface | 1×SDI | |
Support resolution | 1080P\\1080i\\720P 、1600x1200\\1400x1050\\1440x900\\1280x1024\\ 1280x960\\1280x800\\1024x768\\800x600 etc. | |
Frame rate | 30/60 frame | |
Output interface | 1×Ethernet port (RJ45), 1×SDI | |
Video encoding | H.265/H.264 | |
Code Rate control | 16kbps- 12Mbps | |
Code Rate | CBR/VBR | |
Audio | ||
Input interface | 1×External audio, SDI built-in Audio | |
Output interface | 1×External audio | |
Audio encoding | ACC, G711 | |
Sampling rate | Auto | |
Bit-rate Option | 32k,44.1K,48K,64K,96K,128K,160K,192K,384K | |
Sampling Accuracy | 24 Bit | |
Audio Data-rate | 64Kb/s to 384Kb/s | |
Network | ||
RJ45 | 1000M Ethernet port | |
Program streaming | HTTP, RTSP, RTMP, RTMPS, SRT, HLS, FLV, ONVI F(UDP/RTP) | |
Control Panel | Web panel (Language is English), remote upgrade | |
Firmware Update | Enable by uploading files to the dashboard | |
General | ||
Dimension(W*L*H) | 6.4*4.4*1.3in(163*111*32mm) | |
Gross Weight | 0.35kg | |
Temperature | 0 ~ 45℃（for working）,-20~60℃（for storing) | |
Humidity | <90%, non-condensing | |
Input Voltage | DC 12V/1A | |
Power Consumption | 5W | |
Application Diagram
For Live Streaming Online Connection
For Multi-purpose Connection
For IPTV Project Connection
