Product Overview

Description

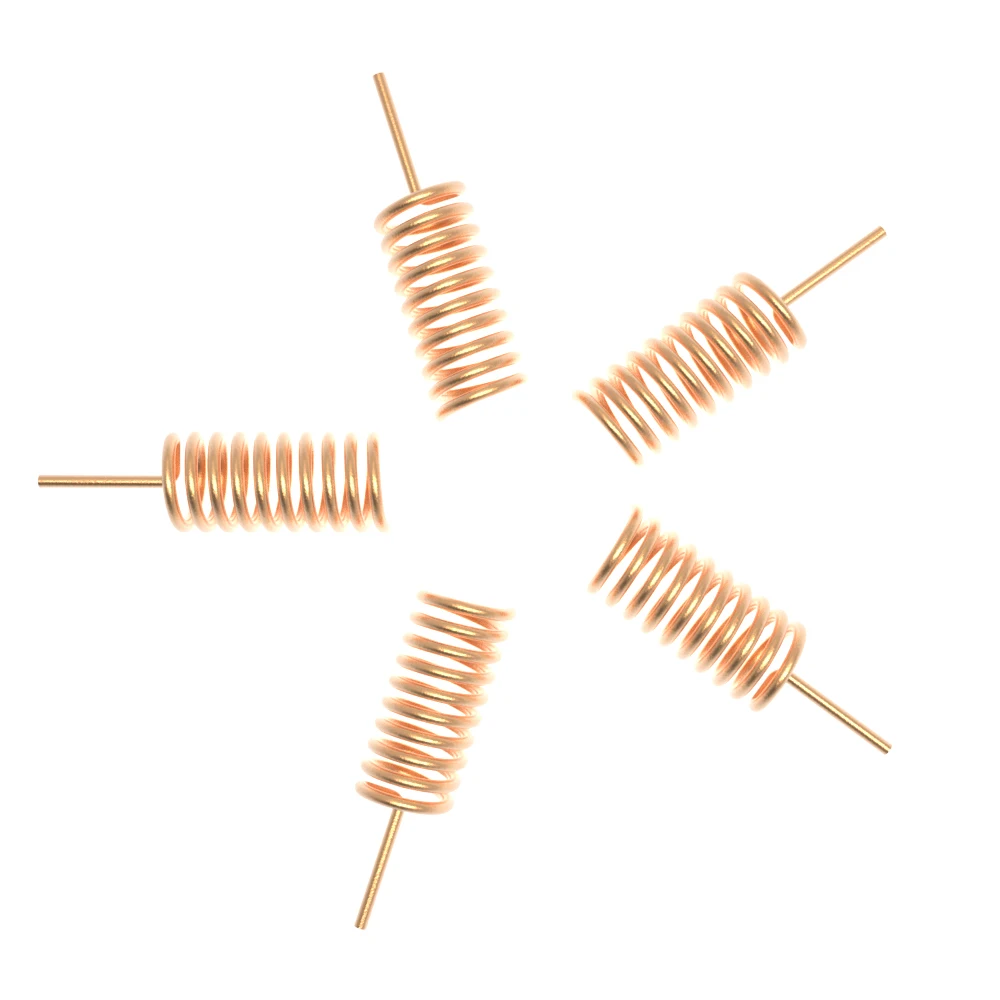

G-NiceRF SW868-TH13A Antenna 2.15dBi height 13mm Copper Spring RF Antenna 868MHz










Product Description







 SW868-TH13A, a copper spring antenna, designed specially for 868MHz wireless communication, it has good VSWR, Compact dimensions, easy installation, stable performance, with good anti-vibration and anti-aging ability.














































Features
Frequency range868 MHz (+ / -5)
VSWR<= 1.5
Input impedance50 Ω
 Wire diameter0.8mm
Max power5 W
Gain2.15 dBi
Weight1g
Height13 + / -1 mm
Antenna materialCopper
Interface formwelding directly

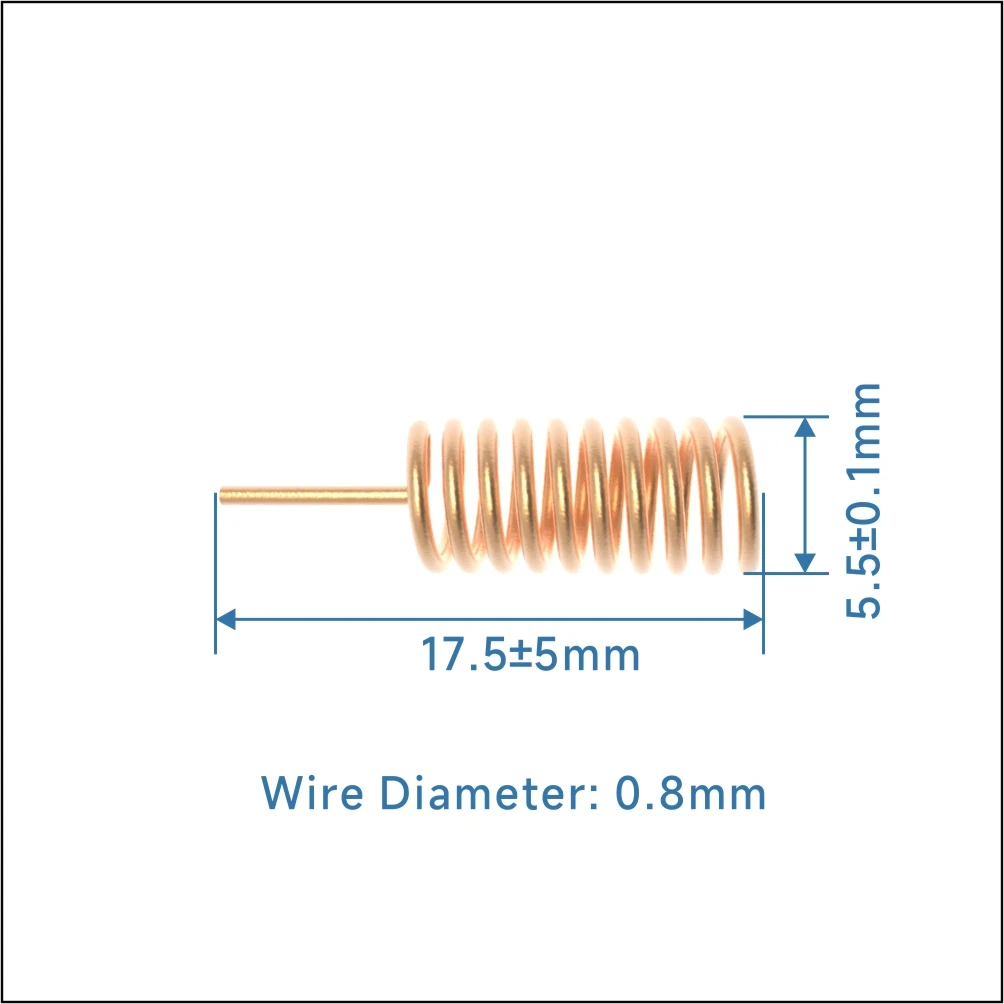

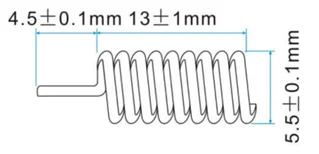

Size (Unit:mm):


RF Antenna 868MHz.png

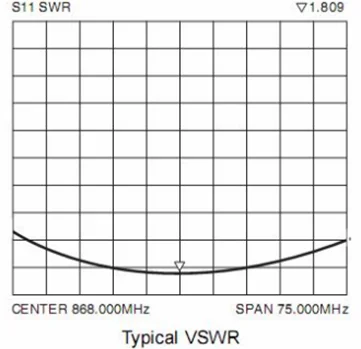

VSWR Chart:


Antennas have been tested under wireless simulated environment by Network Analyer.
RF Antenna 868MHz1.png




Company Profile


16880705_01.jpgNiceRF is a technical company which engaged in researching, developing, producing and selling IOT(internet of things) products.We devoted ourselves on providing good RF modules, walkie talkie modules and integrated digital sensor modules. Meanwhile, ODM and OEM projects are welcomed.With more than 10 years experience of product design in RF and sensors, we have earned a good reputation among our customers.







Our Advantage







Packaging & Shipping







FAQ


Q: Are you a manufacturer or a trading company?
A: We are a manufacturer with our own R&D team, and all of our products are developed in-house.

Q: Do you offer technology support?
A: Yes, we provide technology support and ODM & OEM services.

Q: Do you provide samples?
A: Yes, we offer paid samples and can send out the package promptly.






Please leave positive feedback and a 5-star rating if you are happy with our products and services.





If you encounter any issues, please reach out to us before leaving negative feedback.


We will strive to resolve any problems and provide excellent customer service.





If you need further assistance, feel free to contact us.





a) Why module can not communicate properly?
1) The power supply is connected incorrectly and the module is not working properly;
2) 2) Check whether the frequency band of each module and other RF parameters are consistent;
3) 3) Is the module d1) Power supply ripple is 2) The antenna types do not match, or not properly ins3) The surrounding environment is harsh, strong interference s4) Surrounding co-channel interferenc
