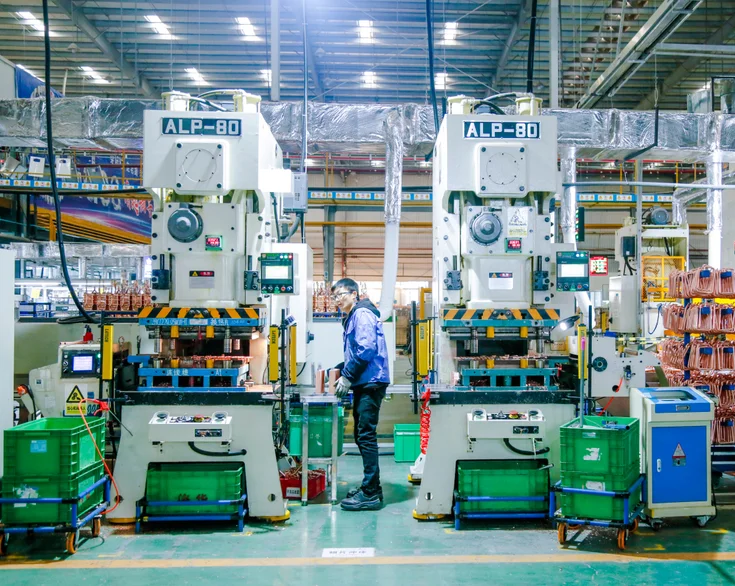

Punch press CNC single crank power press 80T
- Category: >>>
- Supplier: Zhejiang Jinaolan Machine Tool Co. Ltd.
Share on (62042059938):
Product Overview
Description

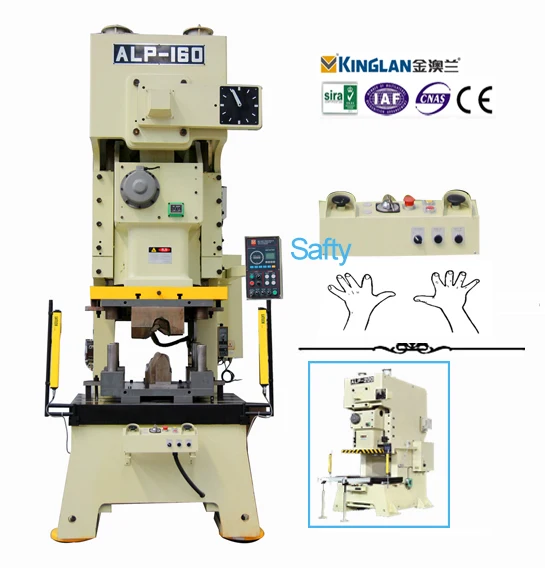

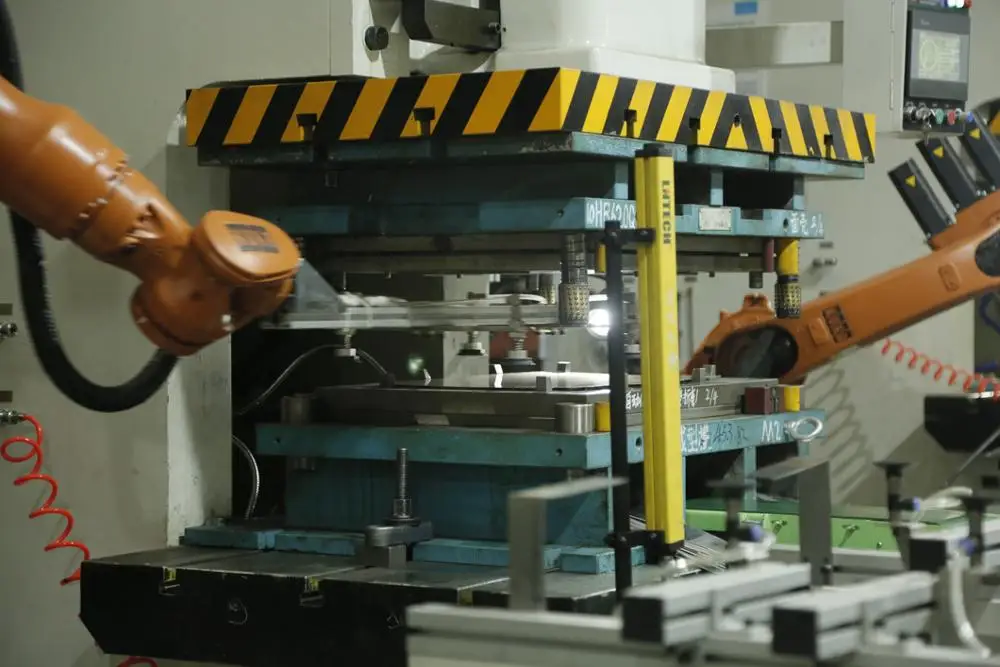

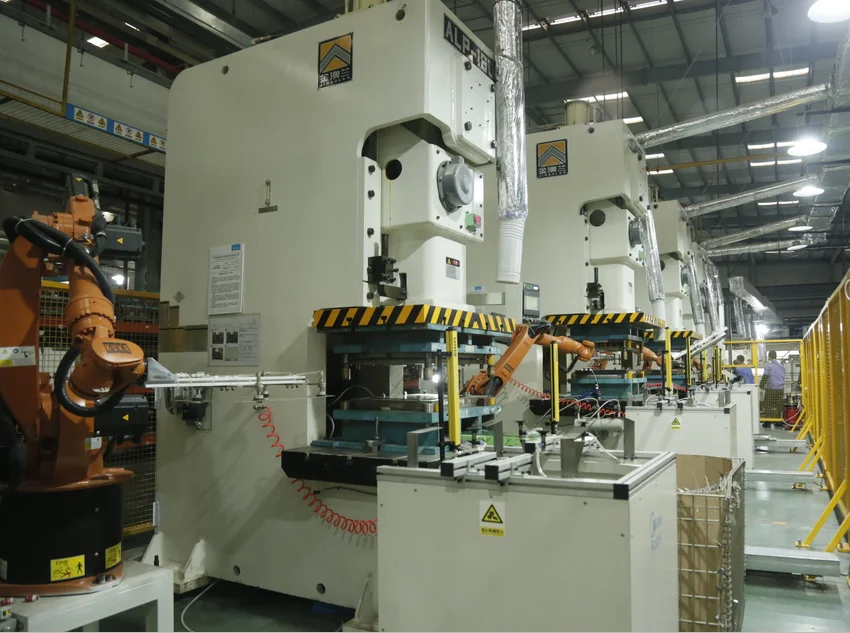

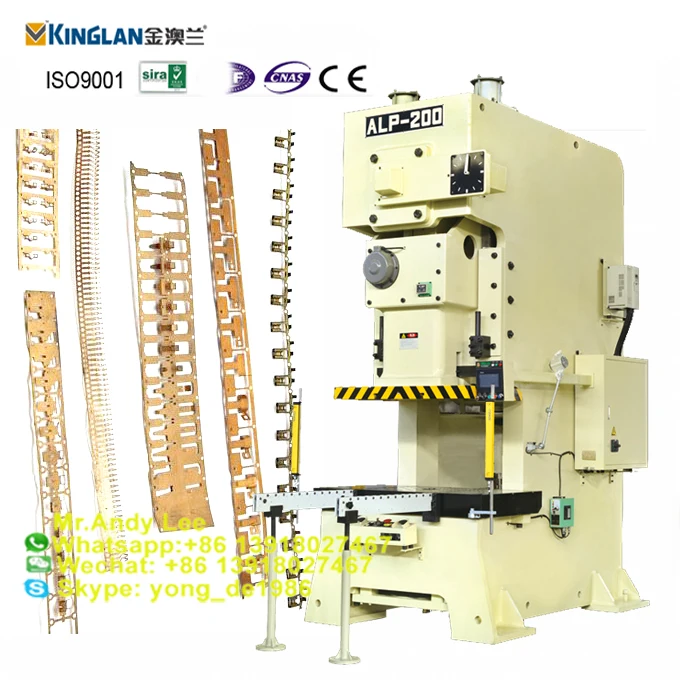

Punch press CNC single crank power press 80T, controled by both PLC and hands operation.

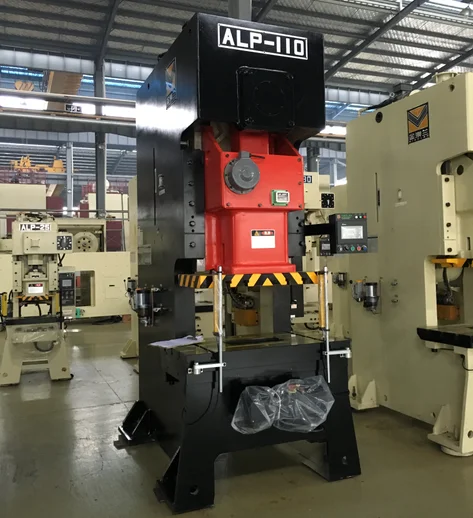

Advanced technology CNC punch machine / C Frame Punching machine

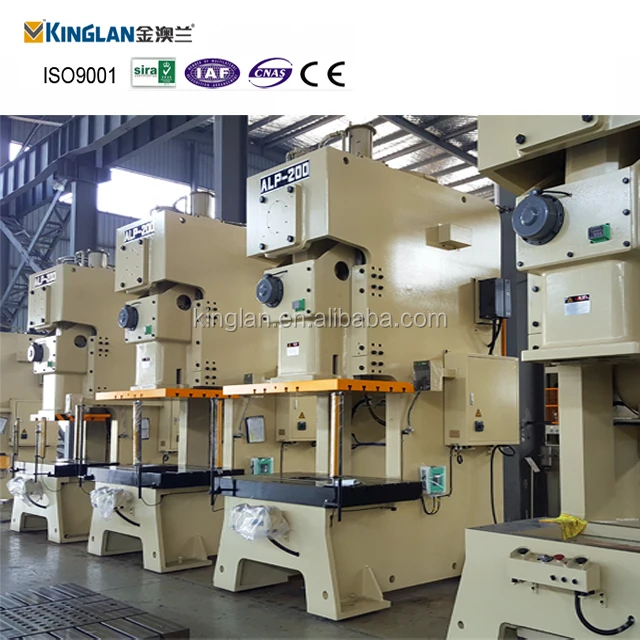

Our brand is KINGLAN, this type pneumatic press machine /punching machine we producing mainy about 25T, 35T, 45T, 60T, 80T, 110T, 160T, 200T, 260T, 315T, 400T,etc.
| ALP Feature |
1.One-Piece Steel welded body, tempering treatment, accuracy and stability; |

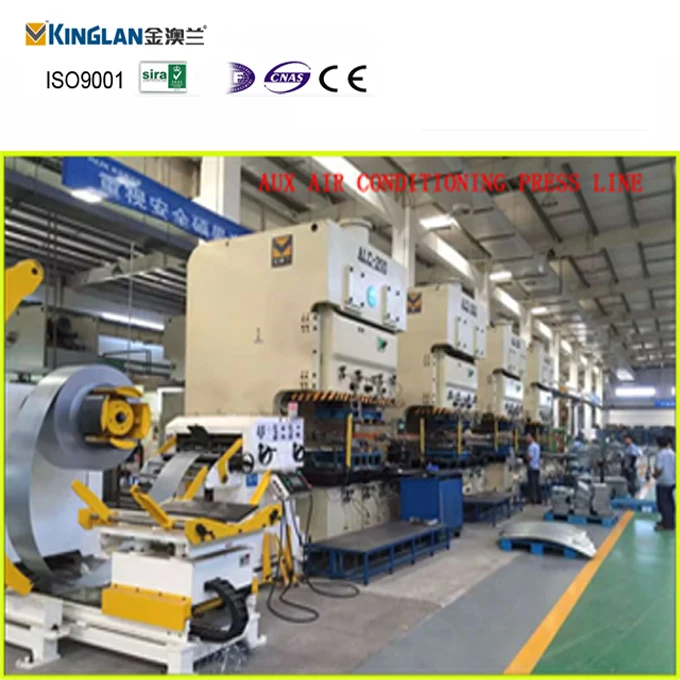

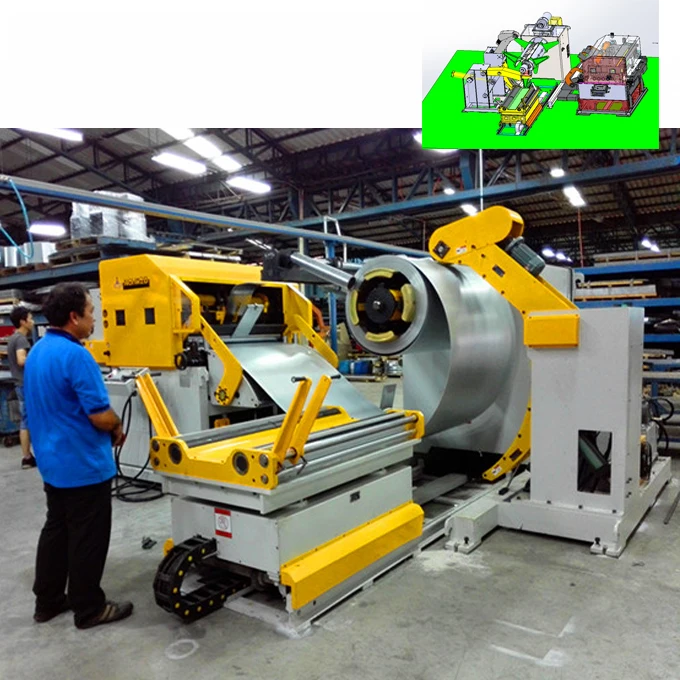

| Model | ALP-25 | ALP-35 | ALP-45 | ALP-60 | ALP-80 | |||||||
| Type | V | H | V | H | V | H | V | H | V | H | ||
| Capacity | Ton | 25 | 35 | 45 | 60 | 80 | ||||||
| Pated Tonnage Point | mm | 3.2 | 1.6 | 3.2 | 1.6 | 3.2 | 1.6 | 4 | 2 | 4 | 2 | |
| Speed Changing | s.p.m | 60-140 | 130-200 | 40-120 | 110-180 | 40-100 | 100-150 | 30-90 | 80-120 | 35-80 | 80-120 | |
| Stable Speed | s.p.m | 110 | 85 | 75 | 65 | 65 | ||||||
| Stroke | mm | 60 | 30 | 70 | 40 | 80 | 50 | 120 | 60 | 150 | 70 | |
| Die Height | mm | 200 | 215 | 220 | 235 | 250 | 265 | 310 | 340 | 340 | 380 | |
| Slide Adjustment | mm | 50 | 55 | 60 | 75 | 80 | ||||||
| Slide Area | mm | 300*220*50 | 360*250*50 | 400*300*60 | 500*360*70 | 560*420*70 | ||||||
| Bolster Area | mm | 680*300*70 | 800*400*70 | 850*440*80 | 900*500*80 | 1000*550*90 | ||||||
| Shank Hole- | mm | 38 | 38 | 38 | 50 | 50 | ||||||
| Main Motor | kw.p | 2.2*4 | 2.2*4 | 37.*4 | 5.5*4 | 5.5*4 | ||||||
| Slide Adjust Device | HP | Electric Driving | ||||||||||
| Air Pressure | kg/cm2 | 6 | 6 | 6 | 6 | 6 | ||||||
| Presses Precision | CNS(JIS)1Class | CNS(JIS)1Class | CNS(JIS)1Class | CNS(JIS)1Class | CNS(JIS)1Class | |||||||
| Presses Dimension | mm | 1280*850*2200 | 1380*900*2400 | 1600*950*2500 | 1600*1000*2800 | 1800*1180*2800 | ||||||
| Presses Weight | ton | 2.1 | 3 | 3.8 | 5.6 | 6.5 | ||||||
| Die Cushion Capacity | ton | - | 2.3 | 2.5 | 3.6 | 3.6 | ||||||
| Stroke | mm | - | 50 | 50 | 70 | 70 | ||||||
| Die Cushion Effective Area | mm2 | - | 300*230 | 300*230 | 350*300 | 450*310 | ||||||
| Model | ALP-80 | ALP-110 | ALP-160 | ALP-200 | ALP-260 | |||||||
| Type | V | H | V | H | V | H | V | H | V | H | ||
| Capacity | Ton | 80 | 110 | 160 | 200 | 260 | ||||||
| Pated Tonnage Point | mm | 4 | 2 | 6 | 3 | 6 | 3 | 6 | 3 | 7 | 3.5 | |
| Speed Changing | s.p.m | 35-80 | 80-120 | 30-60 | 60-90 | 20-50 | 40-70 | 20-50 | 50-70 | 20-40 | 40-50 | |
| Stable Speed | s.p.m | 65 | 50 | 35 | 35 | 30 | ||||||
| Stroke | mm | 150 | 70 | 180 | 80 | 200 | 90 | 200 | 100 | 250 | 150 | |
| Die Height | mm | 340 | 380 | 360 | 410 | 460 | 510 | 460 | 510 | 500 | 550 | |
| Slide Adjustment | mm | 80 | 80 | 100 | 110 | 120 | ||||||
| Slide Area | mm | 560*420*70 | 650*470*80 | 700*550*90 | 850*630*90 | 950*700*100 | ||||||
| Bolster Area | mm | 1000*550*90 | 1150*600*110 | 1250*800*140 | 1400*820*160 | 1500*840*180 | ||||||
| Shank Hole | mm | 50 | 50 | 65 | 65 | 65 | ||||||
| Main Motor | kw.p | 5.5*4 | 7.5*4 | 11*4 | 15*4 | 18.5*4 | ||||||
| Slide Adjust Device | HP | Electric Driving | ||||||||||
| Air Pressure | kg/cm2 | 6 | 6 | 6 | 6 | 6 | ||||||
| Presses Precision | CNS(JIS)1Class | CNS(JIS)1Class | CNS(JIS)1Class | CNS(JIS)1Class | CNS(JIS)1Class | |||||||
| Presses Dimension | mm | 1800*1180*2800 | 1900*1300*3200 | 2300*1400*3800 | 2615*1690*4075 | 2780*1850*4470 | ||||||
| Presses Weight | ton | 6.5 | 9.6 | 16 | 23 | 32 | ||||||
| Die Cushion Capacity | ton | 3.6 | 6.3 | 10 | 14 | 14 | ||||||
| Stroke | mm | 70 | 80 | 80 | 100 | 100 | ||||||
| Die Cushion Effective Area | mm2 | 450*310 | 500*350 | 650*420 | 710*480 | 810*480 | ||||||
| STANDARD ACCESSORIES"•" | OPTIONAL ACCESSORIES"°" |
| • Hydraulic Overload Protector | ° Electrical Automatic Lubrication System |
| • Manual Drive Lubrication System | ° Pneumatic Die Cusion Device |
| • Inverter | ° Preset Counter |
| • Electrical Slide Adjust Device | ° Preset Counter |
| • Electrical Die Height Indicator | ° Foot Switch |
| • Balance Device | ° Quick Die Change Device (Die lifter, Clamp And Die Arm shift mode) |
| • Rotary Cam Switch | ° Slide Knock-Out Device |
| • Crank Angle Indicator | ° Misfeed Detect Consent |
| • Electric Stroke Counter | ° Power Supply |
| • Air Source Receptacle | ° Anti Vibration Press Mount |
| • Against Over-Run Safety Device | ° Photo-Electronic Safety Device |
| • Maintenance Tool Box | ° Feeder |
| • Operation Manual | ° Uncoiler |
| ° Leveler | |
| ° Mechanism Hand | |
| ° Die Room Light |
