Excavator Repaired Boring Machine TDG60 Made By JOYSUNG
- Category: >>>
- Supplier: Shenzhen DTH Machines Co. Ltd.
Share on (62042165174):
Product Overview
Description
JOYSUNG Portable Line Boring Machines provides boring diameters from 35 to 2000mm(1.25 to 80 inches) ,and can give machine shop accuracy tolerances ,lightweight and modular design makes it easy to set-up so you can get your job done fast. Many configurations are possible by choosing, different bar length, mounting brackets and facing head, and drive power unit(including electric, servo,hydraulic or pneumatic motor) .These machines also can share the same mounting system with Auto Bore Welding Systems for single setup machining and welding on site.Extremely compact for ease of use in cramped, tight work spaces.Drive & Feed can be mounted between bearings for use in even more confined spaces.
Detailed Images

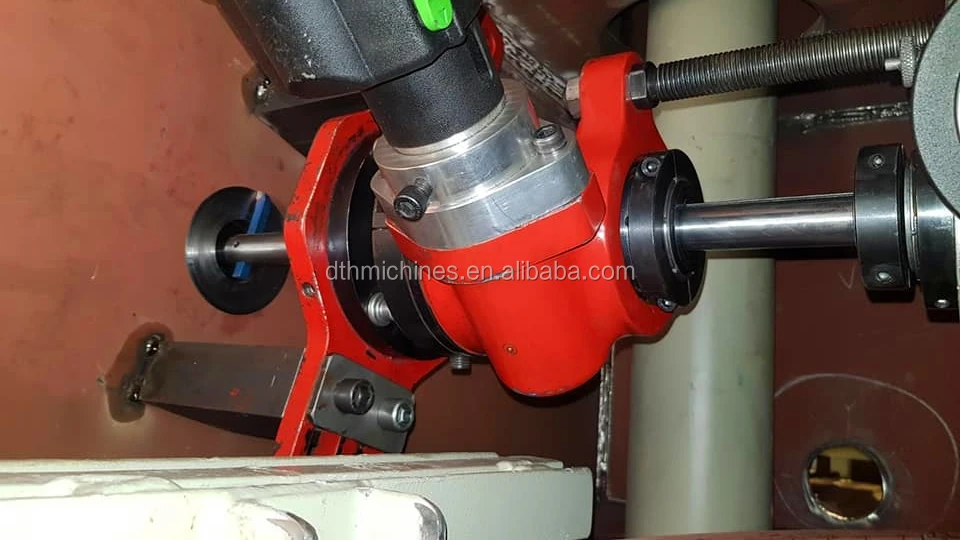

Electric Motor ( Made by Germany)
Electric motor : 2300 W , 110V / 230V, 50 / 60HZ (Made in Germany,Eibenstock).We are Germany's brand Eibenstock agent in China, single agent. If you want more information please confirm JOYSUNG.
Hydraulic Power Unit
Single output, 15HP(11KW), 380V, 38L/min,BG100 Hydraulic motor , 10m *2 hydraulic tube.
Single output, 25HP(18KW), 380V, 60L/min,BG100 Hydraulic motor , 10m *2 hydraulic tube.

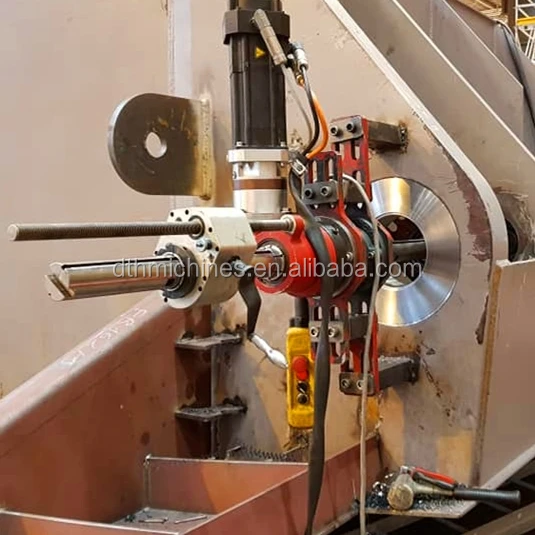

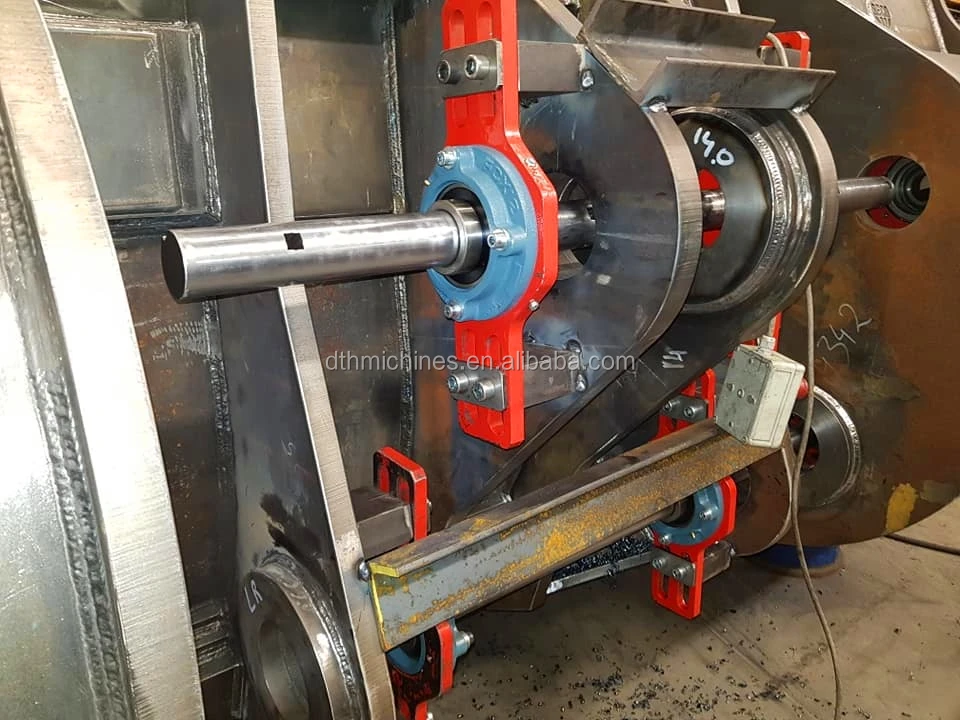

Boring hole
Specially designed mounting brackets, spherical bearings, self-centering setup cones, and movable rotational drive and feed units simplify setup and allow the tools to work in spaces too tight for most line boring machines.
Connect with auto bore welder
Every type of portable line boring machines also can share the same mounting system with auto bore welding systems for single setup machining and welding on site.
Machining of end flanges
Extend the versatility of your portable boring machine by adding our combination Facing Head.This popular accessory is designed for easy set-up and operation, and a high level of accuracy and precision.
JOYSUNG the best portable line boring machine, is widely used in these industries: Construction, Mining, Power Generation, Ship building, Transportation, Petrochemical, Pulp and paper, Steel and aluminum. Multiple functions can suit for every situation: Heavy equipment repair, Stern tube boring, Wicket gate repair on dams, Bridge building/re-building, Turbine coupling boring, Engine block repair, Bearing seat repair, Press repair, Valve body boring, Pump body boring, Large fab bore alignment.
Manufacturer | JOYSUNG&DTHMACHINES |
Boring Diameter | 65-600mm (Standard) / 35-600mm(Optional) |
Facing Diameter | 80-380mm/150-650mm |
Welding Stroke | 280mm/400mm |
Model | TDG60 |
Power Unit | Electric Power: 2300W Hydraulic Power: 18.5KW, BG100,380V, 60L/MIN 11KW, BW100, 380V, 38L/MIN |
Feed Rate | 0-0.5mm/rev |
Related Products
Auto bore welder machine BW350,BW360
Our Auto Bore Welder Series are the easiest to set up, the simplest to use in its class.It can perform ID, OD and face welding in the vertical or horizontal position.
Flange facing machine
JOYSUNG Portable Flange Facer provides facing diameters from 0 to 3000 mm (0 to 120 inches) and larger upon request, for ID, OD or Surface Mounting.
Line milling machine
JOYSUNG offers a range of rugged and innovative portable milling machines, including 2 axis, 3 axis, lightweight and modular design allow the user to set up and align quickly.
Gantry milling machine
This is JOYSUNG’s most powerful portable milling machine. A revolutionary, heavy-duty mill that can be configured for linear or gantry milling in nearly any position!
Portable lathe
Whether cutting O-ring grooves, repairing turbine spindles, or fixing an out-of-round gear seat area on the shaft of a high-speed production machine, a JOYSUNG portable lathe can pay for itself on its first job.
Drilling machine
A magnetic drill is a specialized portable power tool used for drilling holes in steel and similar metals. They are used on the job site or in the shop. Also referred to as a mag drill, portable base drills, portable drill press.
CNC gantry milling machine
If JOYSUNG's the most powerful portable milling machine, connect with CNC program, what would happen?Higher precision, more perfect control.
CNC thread milling machine
CNC thread milling machine is a versatile, dependable and high-precision 3-axis milling machine capable of close tolerance machining for milling, drilling, boring, and many other on-site milling operations.
Packing&Shipping
Machine body
The package is packed in wooden case, which is convenient to move, light in weight and durable.
Boring bar
The boring bar and the main body of the machine are packed separately for convenient transportation
