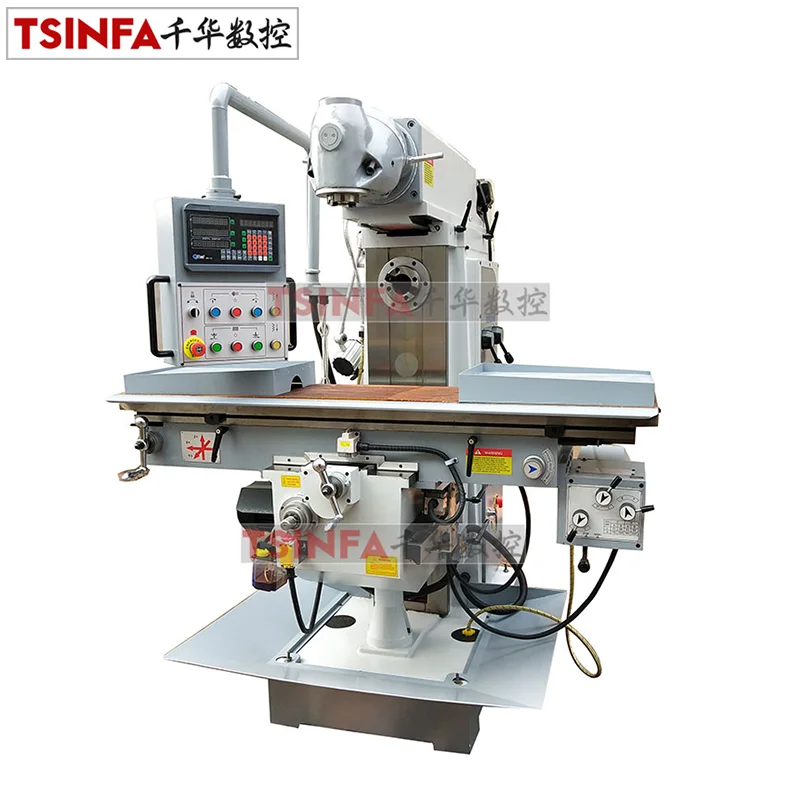

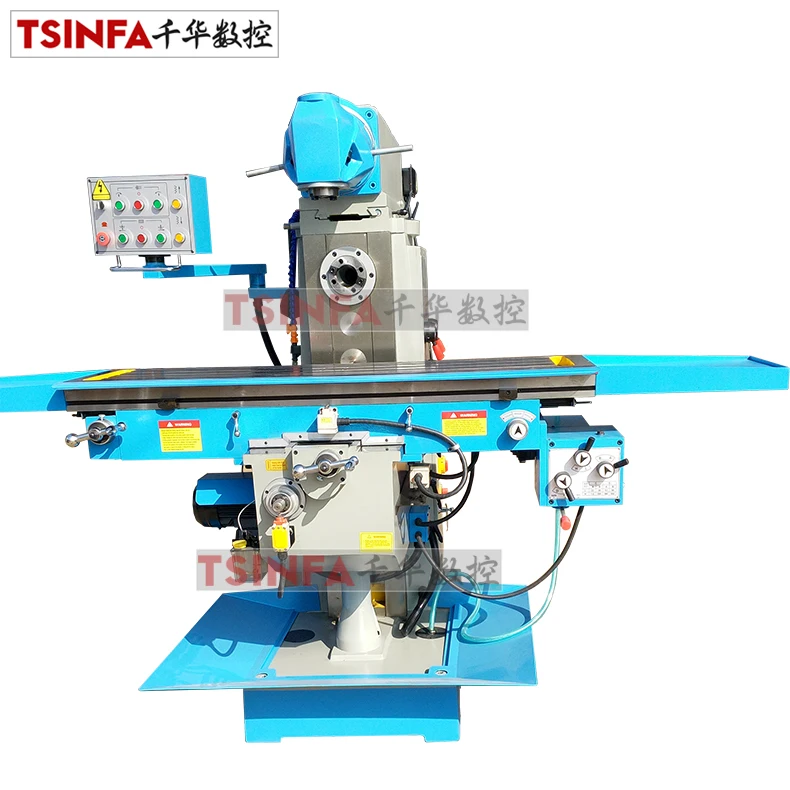

universal milling machine WN736 horizontal vertical milling equipment high quality Shandong Tengzhou factory table size 1500x360
- Category: >>>
- Supplier: Shandong Tsinfa CNC Equipment Co. Ltd.
Share on (62042208402):
Product Overview
Description
Related Products
Product Description
The machine can be used both for vertical milling and horizontal milling, with corresponding attachments. Cylinder mill, round piece mill, shape mill and end mill can be installed on the conical hole of main pivot of the machine, which is suitable for processing plane surface, oblique plane, groove, hole, gear of all kinds of small , medium parts. User can select universal dividing head to process groove of thread It is the ideal machining equipment for the industries of mechanic manufacture, mould, automobiles and motorcycles.
Wide Rigid, hardened guide ways ensure maximum stability and constant accuracy
All gears and shafts are hardened and ground
All electric components are made by leading manufacturers
The control panel is mounted on a swivel boom for optimum positioning
Central lubrication for low-maintenance operation
Head swivel 360 degrees
Product Paramenters
SPECIFICATION | UNIT | WN736C | WN736A | WN736 |
Table size | mm | 1600X320 | 1630X360 | 1500*360 |
Numbers,width distance between T – slot | mm | 3X18X70 | 3X18X80 | 3*18*80 |
Max. longitudinal travel | mm | 800 (manual1000） | 900 | 1000 |
Max. cross travel | mm | 310 | 300 | 320 |
Max. vertical travel | mm | 420 | 390 | 450 |
Travel of Arm | mm | 730 | 600 | 450 |
Vertical spindle to worktable | mm | 150-570 | / | 60-450 |
Horizontal spindle to worktable | mm | 0-420 | 0-390 | 0-450 |
Swivel angle of the | degree | ±360° | ±360° | ±360° |
vertical milling head | ||||
Max. rotary angle of table | degree | ±45° | ±45° | / |
Distance from vertical | mm | 270 | 360 | 200 |
spindle to column surface (Min) | ||||
Distance from horizontal | mm | 200 | 210 | 250 |
spindle to ram bottom | ||||
Level spindle taper | taper | 7:24 50 | ISO50 | ISO50 |
Milling head spindle taper | taper | 7:24 50 | ISO50 | ISO40 |
Level spindle speed grade | steps | 18 | 12 | 12 |
Level spindle speed range | rpm | 30-1500(50HZ) | 60-1800 | 60-1800 |
Milling Head spindle speed grade | steps | 12 | 12 | 12 |
Milling head spindle speed range | rpm | 60-1700 | 60-1800 | 35-1600 |
Grade of the work-table feeds | steps | 18 | 6 | 8 |
Range of feed speeds | mm/min | 23.5-1180 | 30-630 | 22-555 |
Longitudinal,cross, vertical | ||||
Speed of rapid travels | mm/min | 2300/ 770 | 2000 | 555 |
Longitudinal, cross, vertical | ||||
Milling head spindle drive motor | kw | 4 | 4 | 4 |
Level spindle drive motor | kw | 7.5 | 4 | 4 |
Feed motor | kw | 1.5 | 1.5 | 0.75 |
Coolant pump | w | 125 | 40 | 40 |
Net weight /Gross weight | kg | 3500/3700 | 2388 | 2300/2500 |
Overall dimensions(L W H) | mm | 2120X1980X2000 | 1770X1830X1980 | 1570x1800x2150 |
Packing Size | mm | 2230X2100X2250 | 1960X2080X2250 | 1670x1900x2350 |

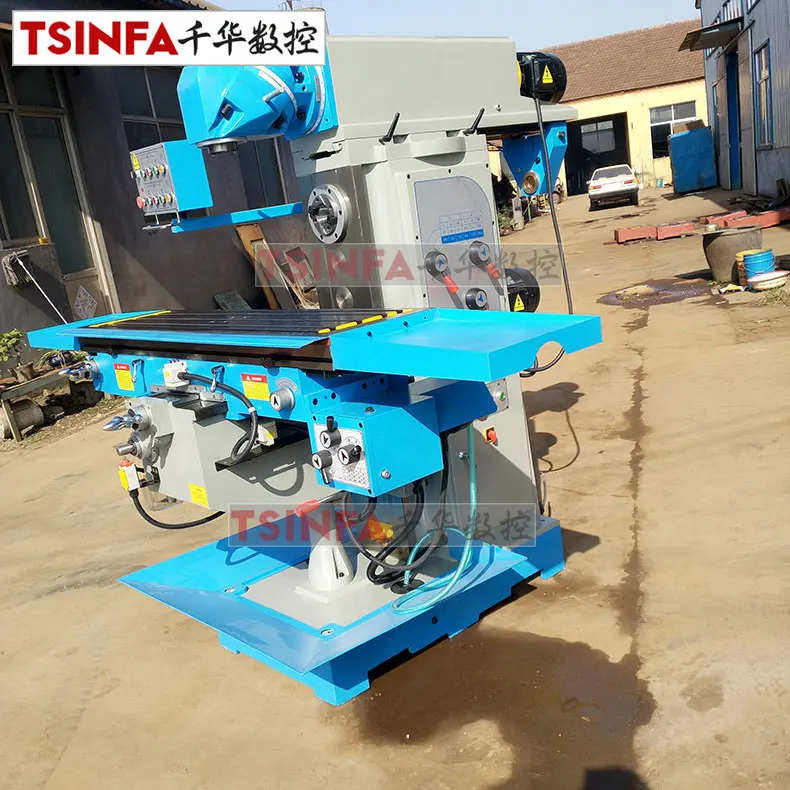

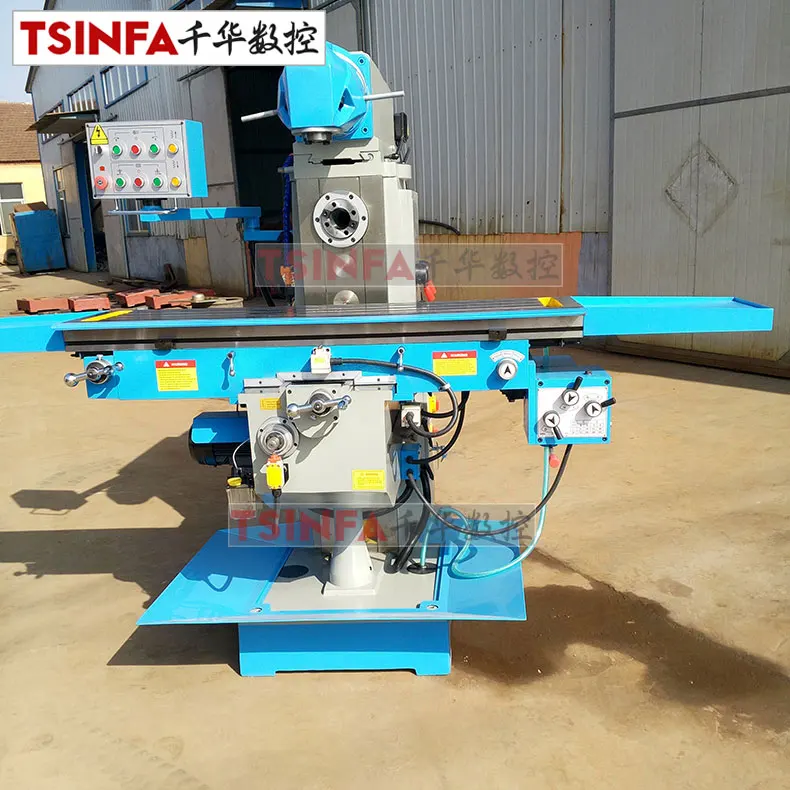

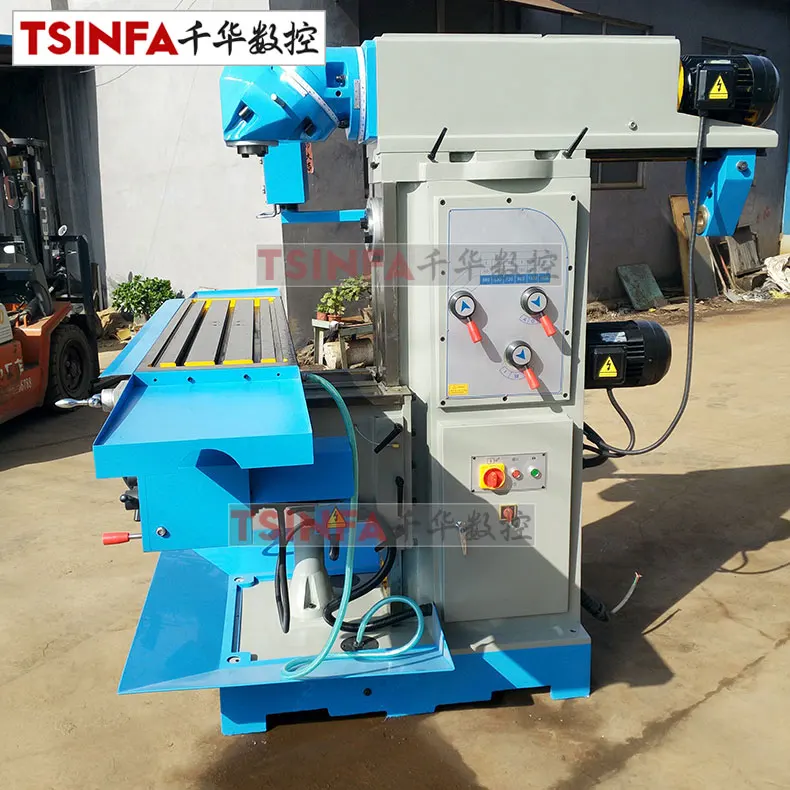

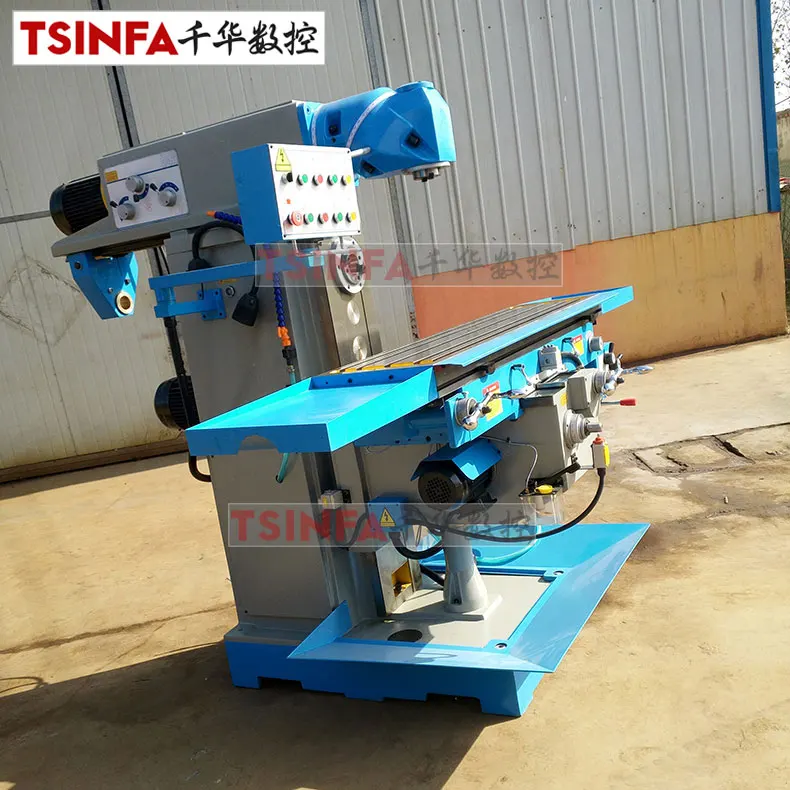

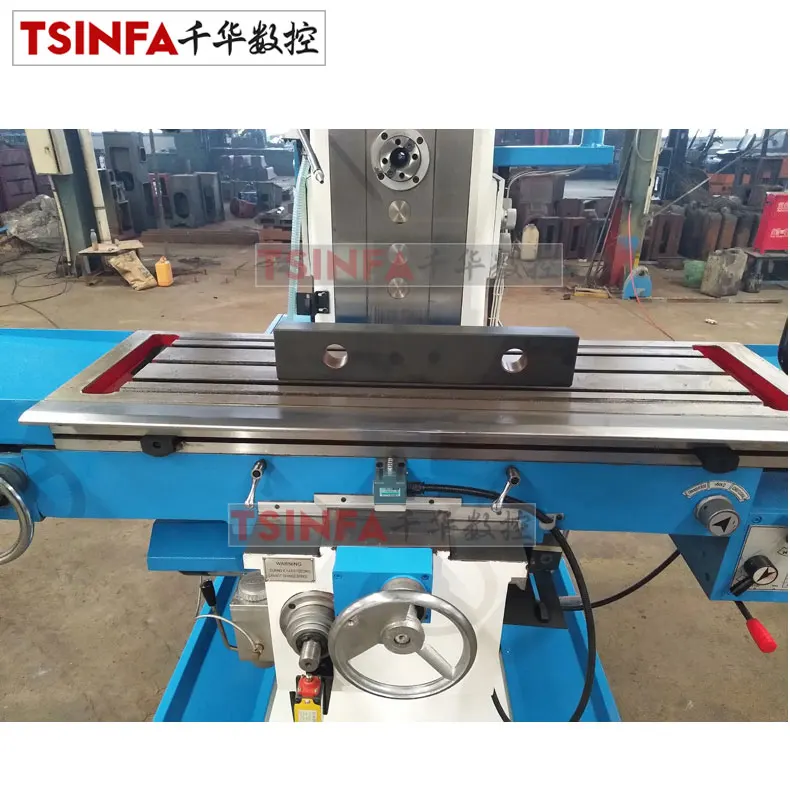

Detailed Images
Packing&Shipping
Company Introduction
Shandong Tsinfa CNC Equipment Co., Ltd specializes in high-end manufacturing and sales of CNC machine tools, machinery and agricultural machinery equipment design and research and development. the company under the jurisdiction of Industrial Park D Area, Tengzhou Shandong province.Our products cover precision CNC cylindrical grinding machines, face cylindrical grinders, CNC lathes, three-axis CNC machining centers, four-axis CNC machining centers, five-axis CNC machining centers, CNC Slotting machines, radial drilling machines, CNC cutting machines, boring machines, and ordinary lathes. Universal milling machine, agricultural mechanization equipment and so on. .
Our mission is to lead in innovation as a machine tool supplier. Supply machine tools with the features of energy-saving,
high-efficient and appropriate. To satisfy requirement for customer and to provide convenience for user, to create value for
society and to seek happiness for employees are our pursuits. Driving customer success and value creation is the key of TSINFA, we stick to giving top priority to the interest of customers by innovation of product’s design and processing technology.
