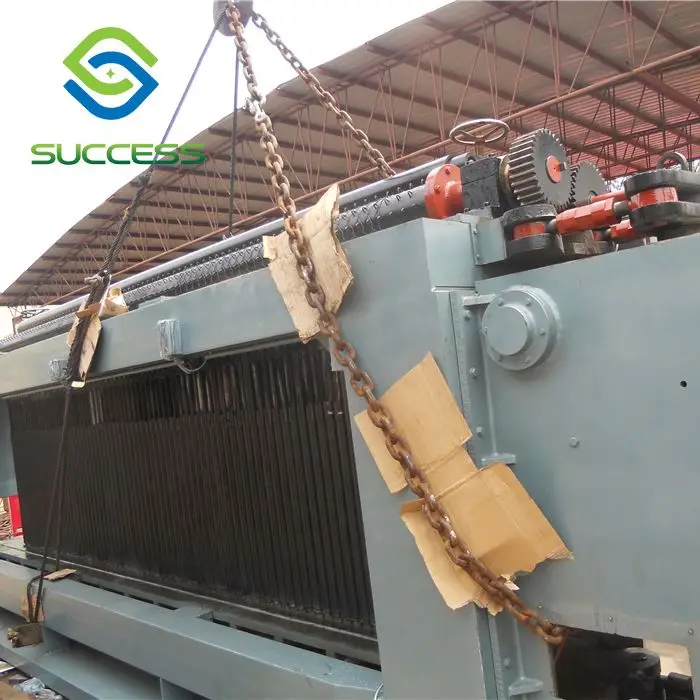

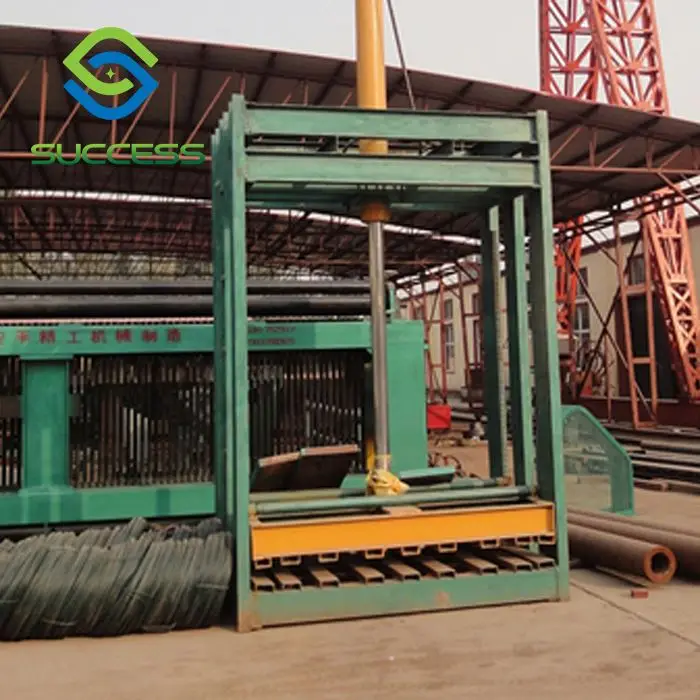

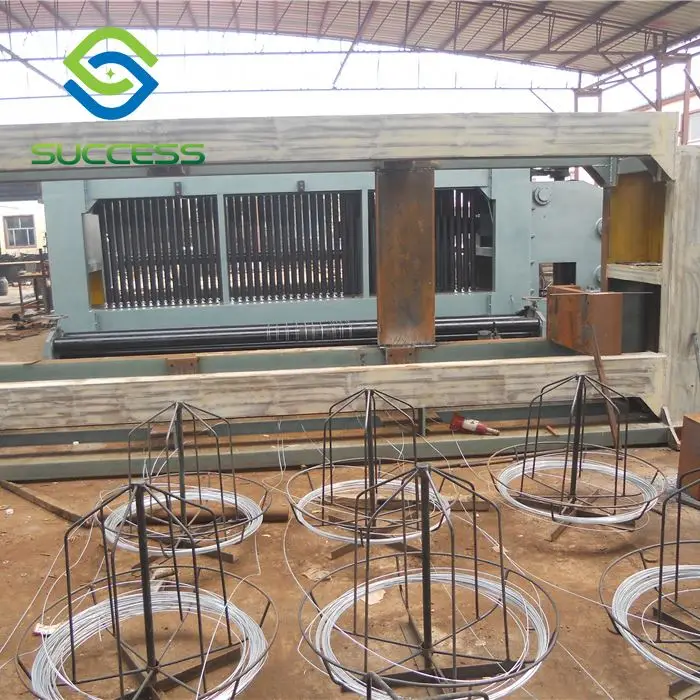

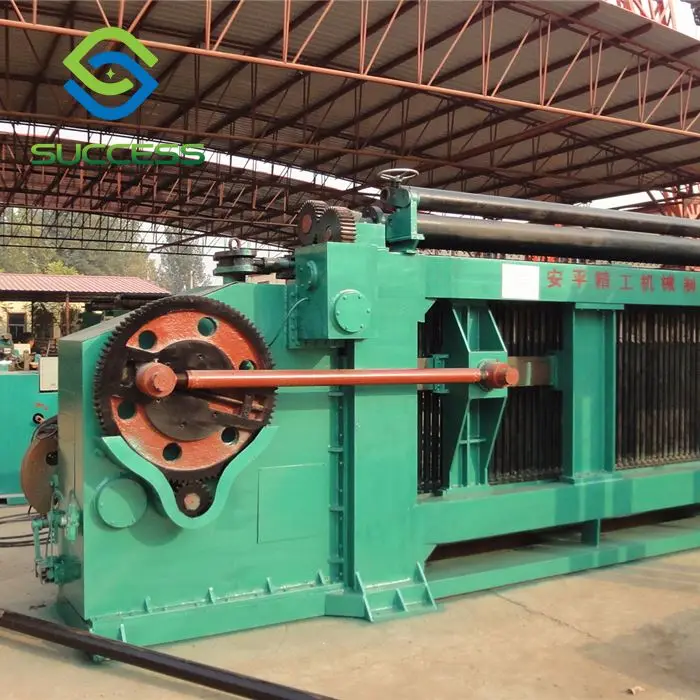

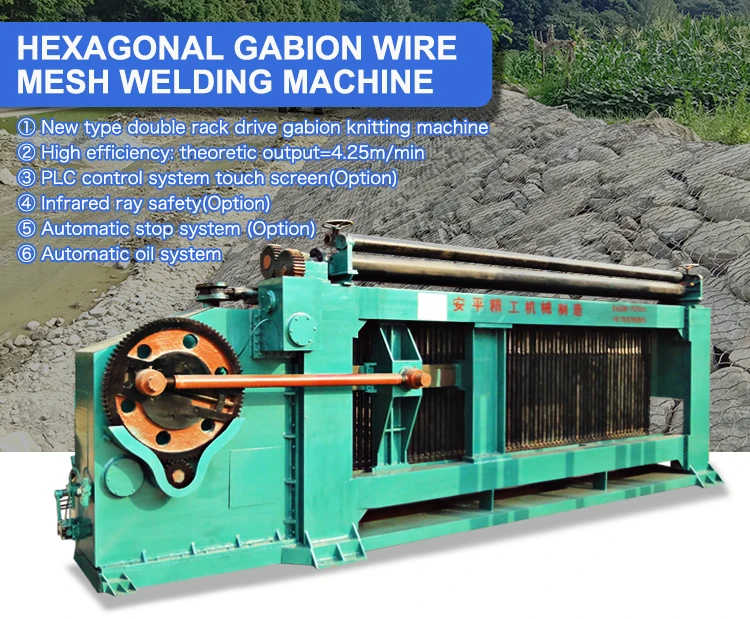

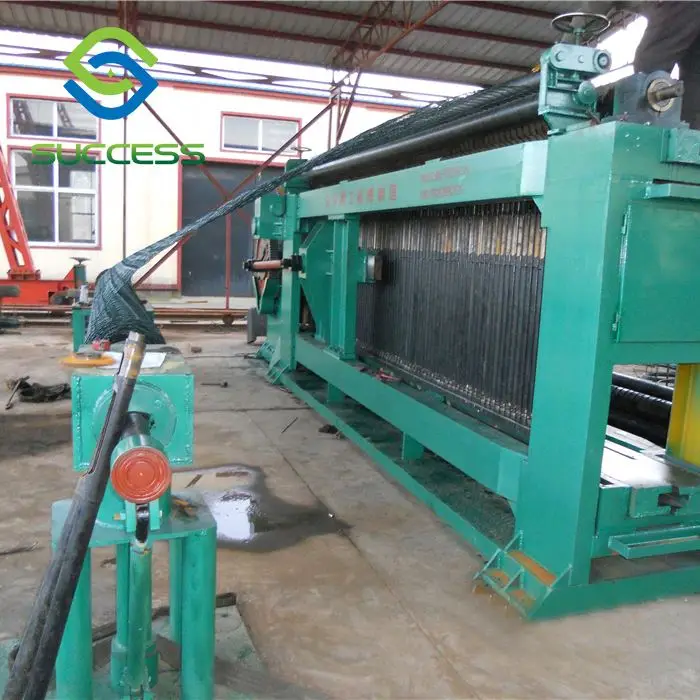

Gabion Mesh Box Gabion Basket Weaving Machine
- Category: >>>
- Supplier: Anping Success Wire Mesh Equipment Co. Ltd.
Share on (62042527770):
Product Overview

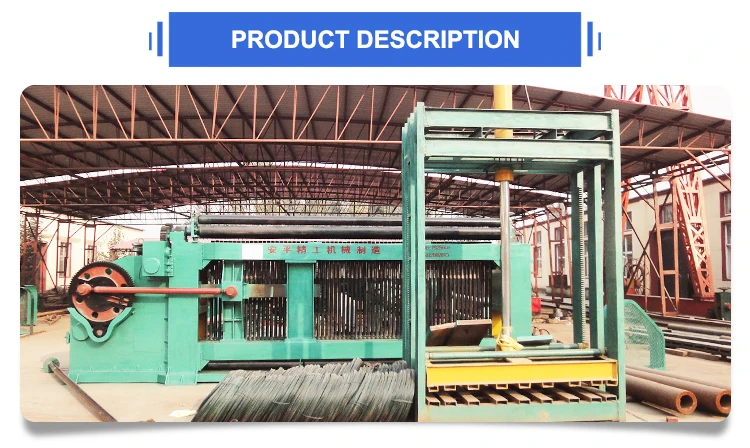

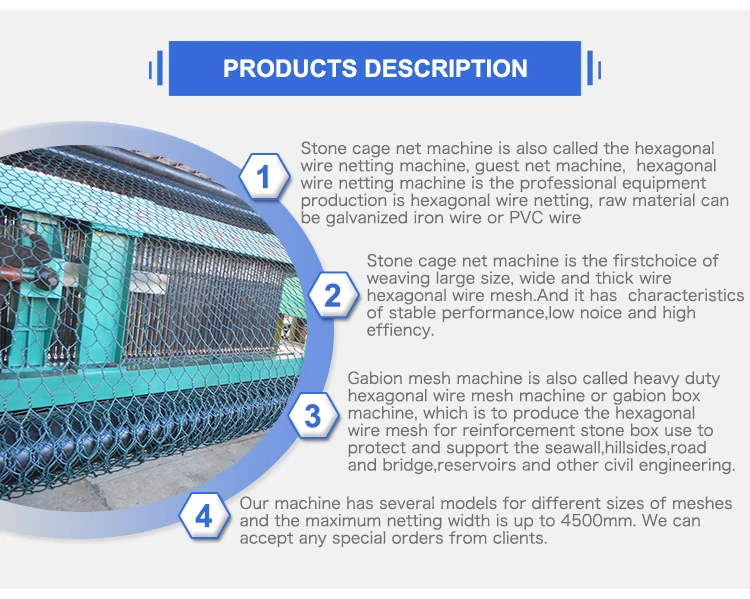

Description
Technical parameter
Model | Nominal Size of Mesh | Maximum Wire Diameter | Maximum Width | Weaving Speed | Motor Power |
YNW60X80-24 | 60X80-24mm | φ2.2-2.8mm | 2.4m | ≥1.5m/min | 18.5kw |
YNW80X100-24 | 80X100-24mm | φ2.2-3.5mm | 2.4m | ≥2m/min | 22kw |
YNW60X80-46 | 60X80-46mm | φ2.2-2.8mm | 4.6m | ≥1.5m/min | 30kw |
YNW80X100-42 | 80X100-42mm | φ2.2X3.5mm | 4.2m | ≥2m/min | 30kw |
Mechanical Drive
Product Specification（mm） | Maximum Breadth（mm） | Maximum Wire Diameter（mm） | Twist Ridge Count | Spindle Speed | Motor Power （kw） | Theoretical Production Speed | ||||
Twist Mesh Hole Number/min | m/h | Overall Dimensions（LXWXH）mm | Quality（T） | |||||||
60X80 | 2300 | 3 | 3 | 25 | 11 | 25 | 165 | 5200X1400X2400 | 14 | |
3300 | 3 | 3 | 25 | 15 | 25 | 165 | 6200X1400X2400 | 15 | ||
4300 | 3 | 3 | 25 | 22 | 25 | 165 | 7200X1400X2400 | 16 | ||
80X100 | 2300 | 3 | 3 | 25 | 11 | 25 | 195 | 5200X1400X2400 | 14 | |
3300 | 3 | 3 | 25 | 15 | 25 | 195 | 6200X1400X2400 | 15 | ||
4300 | 3 | 3 | 25 | 22 | 25 | 195 | 7200X1400X2400 | 16 | ||
100X120 | 2300 | 3 | 3 | 25 | 11 | 25 | 225 | 5200X1400X2400 | 14 | |
3300 | 3 | 3 | 25 | 15 | 25 | 255 | 6200X1400X2400 | 15 | ||
4300 | 3 | 3 | 25 | 22 | 25 | 225 | 7200X1400X2400 | 16 | ||
Standard Supply Scope | |
Host | 1 |
Wire Collecting Machine | 1 |
Silk Guide Roller | 1 |
Standard Random Accessory | 1 Set |
