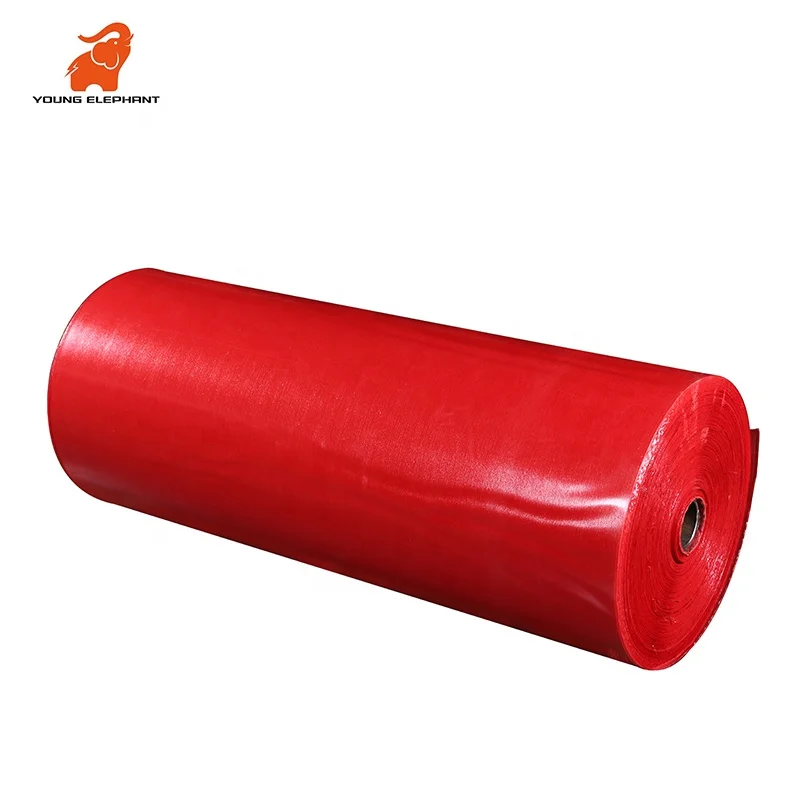

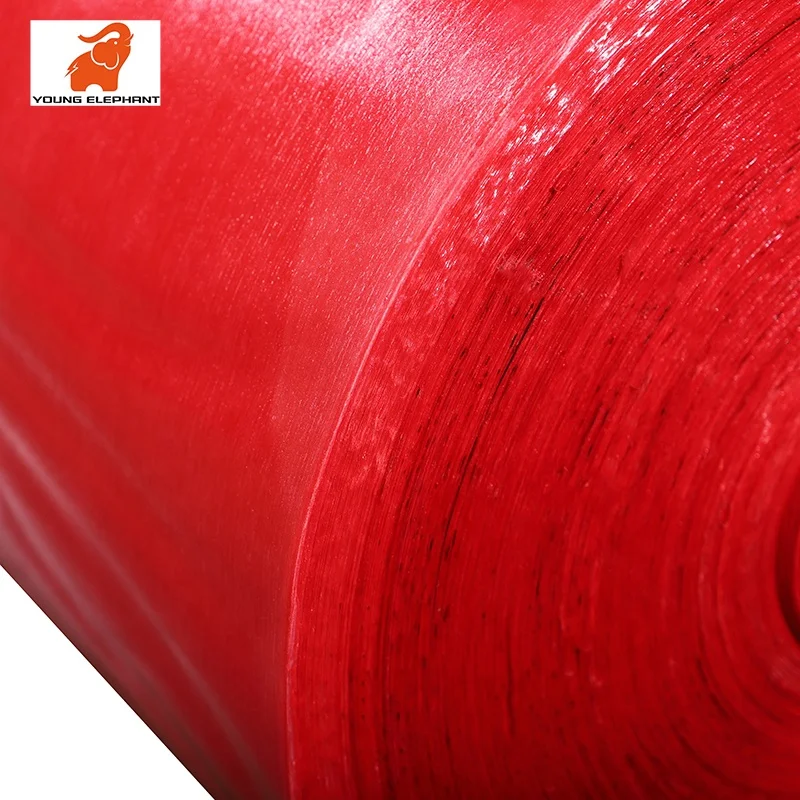

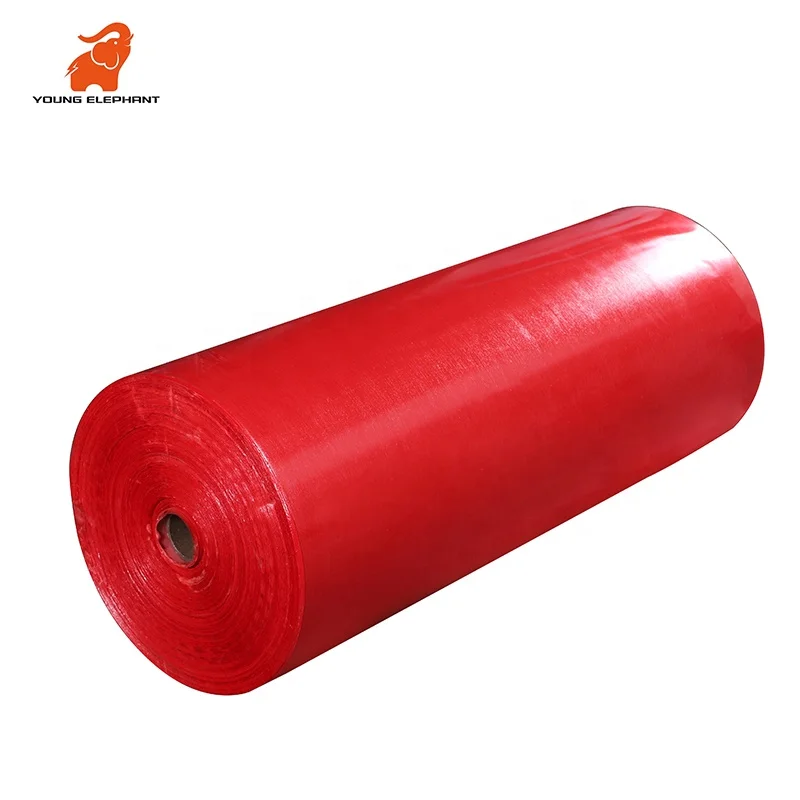

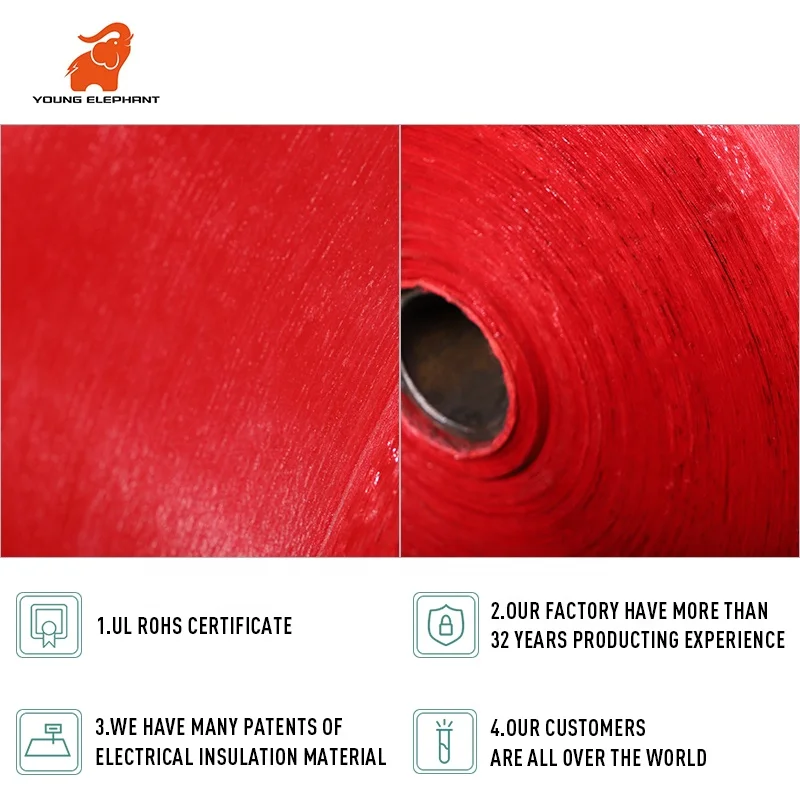

Red color Epoxy resin prepreg flexible laminates dmd insulation paper for motor winding and transformer

Share on (62042664593):


Price:

Quantity:


Product Overview

Description



Product advantage


Red color Epoxy resin prepreg flexible laminates dmd insulation paper for motor winding and transformer





--Made of F grade DMD impregnated modified epoxy resin by baking and rewinding.
--Epoxy resin can be cured quickly, with low molecular volatiles and low shrinkage.
--Curable has excellent bonding, electrical and thermal properties.



Properties
Units
Values
Nominal thickness
mm
0.15
0.18
0.20
0.23
0.25
0.30
0.35
Thickness tolerance
mm
±0.02
±0.03
±0.03
±0.03
±0.03
±0.03
±0.04
Grammage and tolerance
g/m2
140±20
190±28
220±33
260±39
300±45
350±52
425±63
Film Nominal Thickness
mm
0.050
0.075
0.10
0.125
0.15
0.19
0.25


Product details



--For layer to layer insulation of low voltage coil of dry transformer.

--Slot insulation and turn insulation of motor and electric appliance.




DMD Epoxy Prepreg Material 6440 is wrapped by proctective film;
DMD Epoxy Prepreg Material 6440 is packed by standard import & export cartons or.iron pallets.





DMD Epoxy Prepreg Material 6440 mainly applicable to H-class motor and electrical insulation



Related products


You can CLICK the picture to our website and view all the products





CREPE PAPR TUBE

SEMICONDUTOR
CREPE PAPER

DMD



Why choose us




The plant has passed the certificate of ISO 9001 quality system certification
The insulation system has been approved by UL
The products have passed ROHS test



About us




There are 300 workers in our factory, and the annual output of our factory is 50 million tons.





In the recent years, when continued in introducing elitists , the factory has also taken in advanced
production equipment and gradually improved its comprehensive developing force.

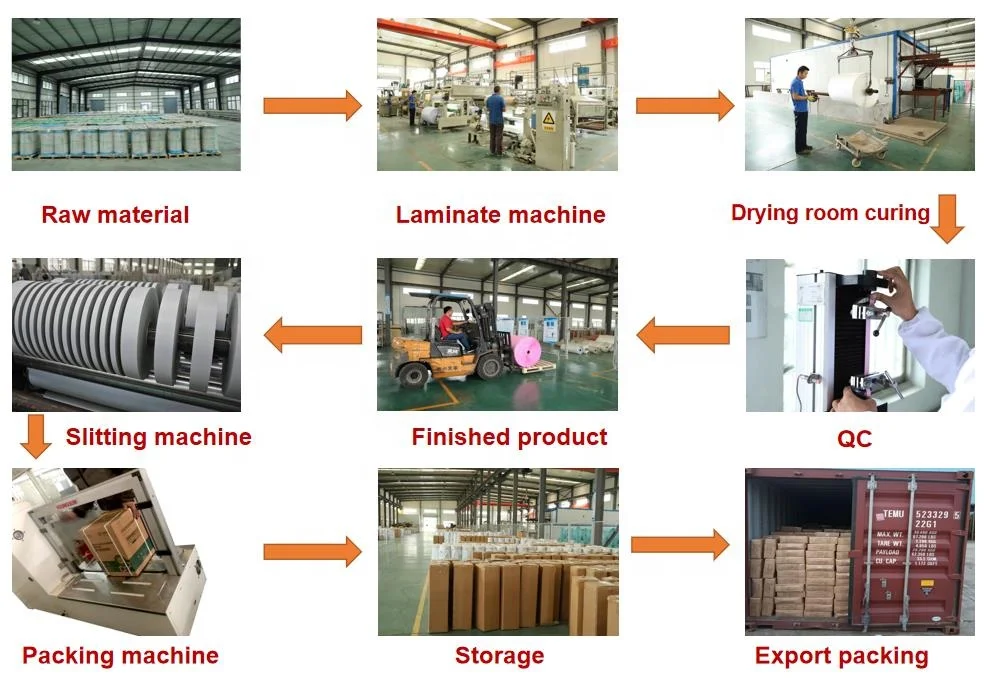

Introduction of foreign advanced production and testing equipment to ensure reliable quality
of the raw material.





This is our raw material with good quality.





All of our finished products are stored in the warehouse.



Certificate and team






Yaan is a young dynamic organized and disciplined and passionate young international team
founded by, is a growth-oriented company and thinking. Simple, stylish, personalized office
environment has always been our style!





Our customer is all over the world,and we have more than 10 years import & export experience
All the finished products are displayed in the exhibition hall.



FAQ


1.Q: Are you trading company or manufacturer ?


A: We are a manufacturer, We have more than 32 years experience in producing electrical insulation material.


2.Q: Where is your factory located? How can I visit there?


A: Our factory is located in Xuchang,Henan provience.


3.Q: Which certification do you have?


A: The plant has passed the certificate of ISO 9001 quality system certification;
The insulation system has been approved by UL;
The products have passed ROHS test.


4.Q: Can i get a samples for free?


A: Of course we can sent you a sample for free, customers just need to pay a litter shipping change.


5.Q: How long is the delivery time?


A: Generally it is 5-15 days if the goods are in stock, or it is 15-30 days.
