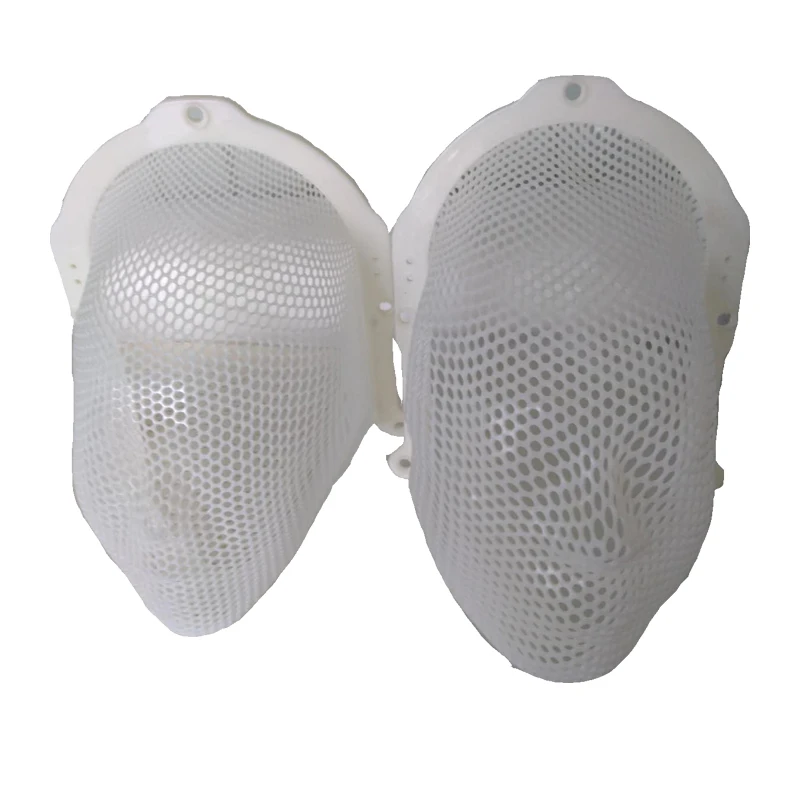

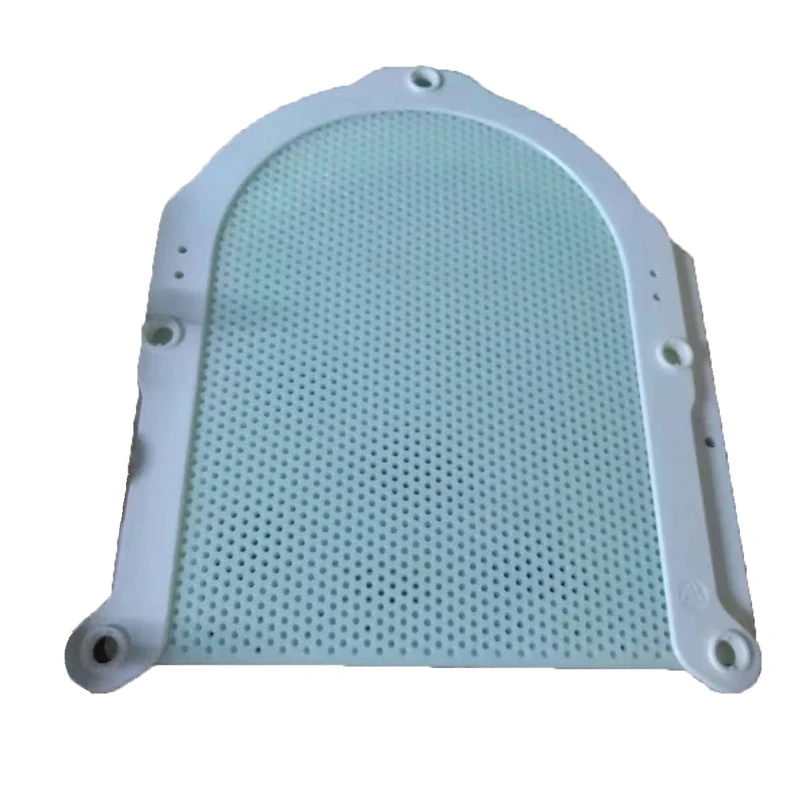

Иммобилизационное устройство термопластичная лучевая маска для онкологического пациента

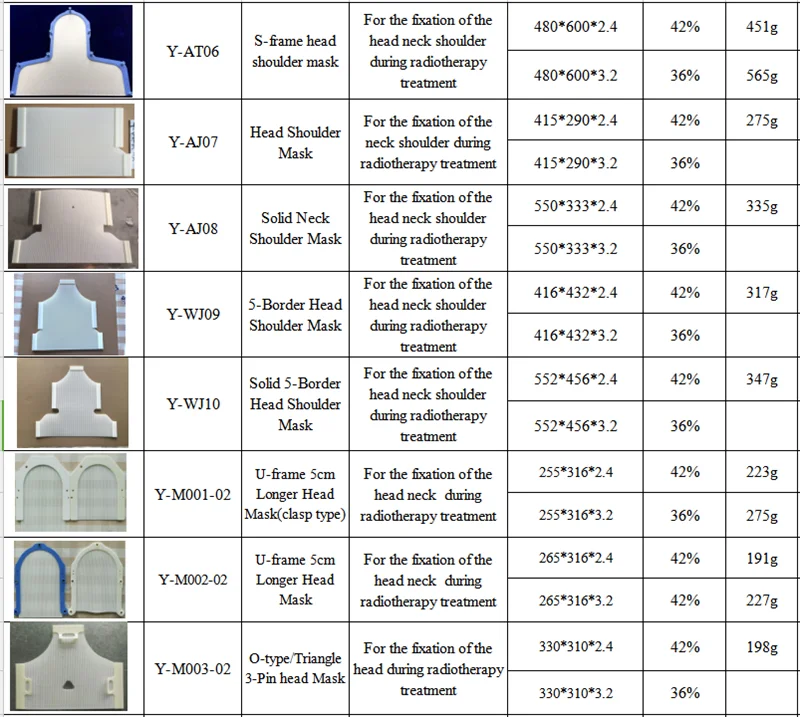

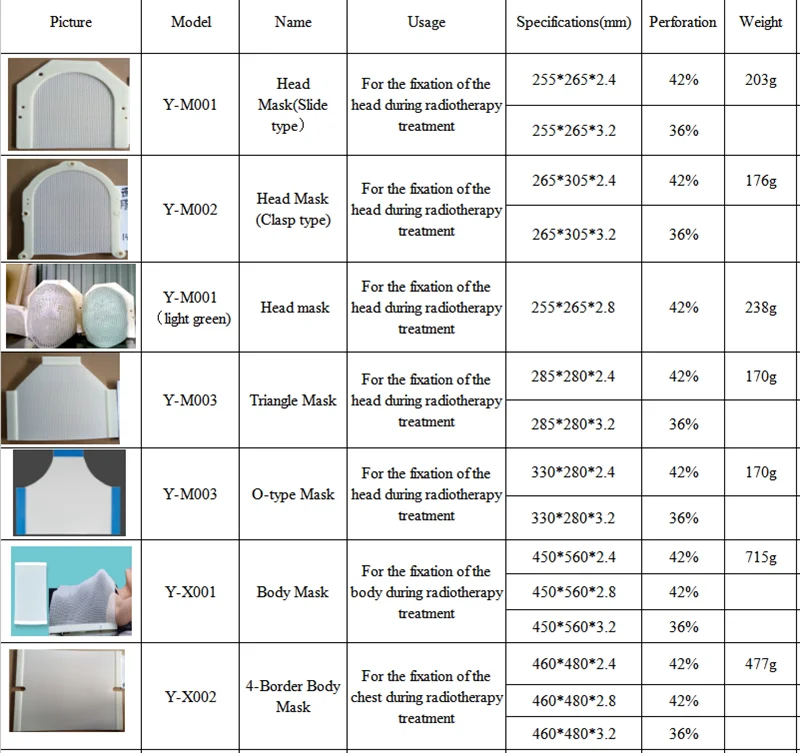

Product Parameters

How to operate the mask?

1. Prepare a towel, terming bed, and the right mask. Adjust the water bath to 65-70℃.

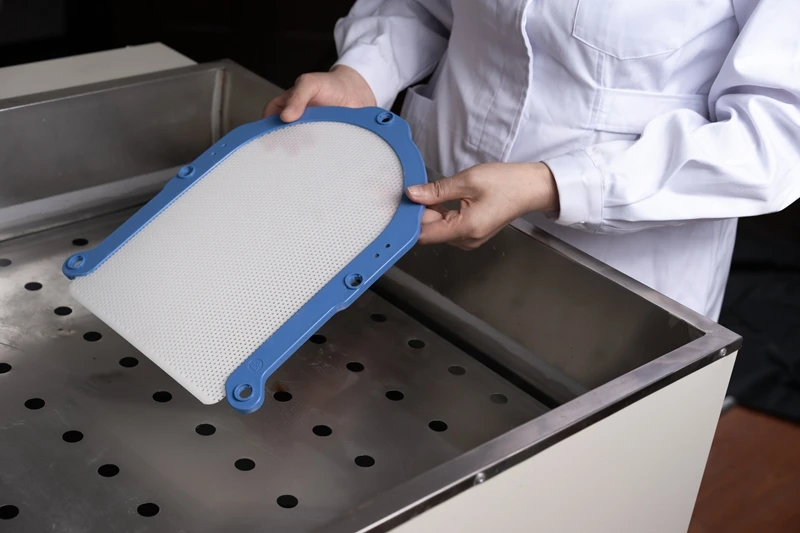

2. Sink the radiotherapy mask into hot water for 2-3 minutes, it could become soft and pliable.

3. Put the mask on the towel, wrap its water.

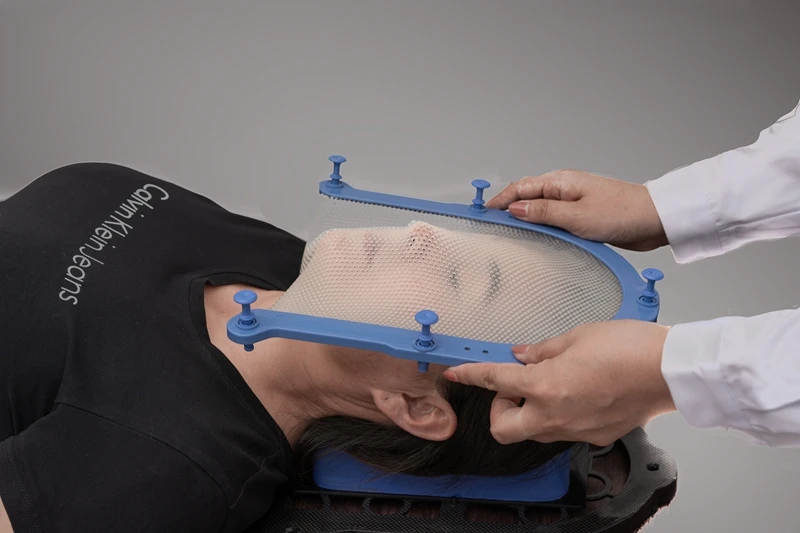

4. Put the thermoplastic mask  on the patient's body part, mould it with fingers to the right position. It offers 2-3minutes to fulfill the task.

5. As the temperature drops, the mask could become harder and harder, and keep the moulding style well.

6. After 24 hours, the mask could reach to an ideal rigidity, thus to play a role of immobilization and positioning during cancer treatment.

Moulding a Radiotherapy Mask 6 things often go wrong but can easily be avoided

1. Adjust the water temperature to 68℃-72 ℃ , more than 80 ℃ will make the mask contraction and deformation.

2. Be sure not to place the mask in hot water for a long time. In general, 2-3 minutes should be enough to make the mask soften and activation.

3. The available time for modeling the mask is 3 ‘30 ‘’(3 minutes and 30 seconds)

4. The maximum tensile strength of orthopedic sheet is 1.5 times of its original size; And the maximum tensile strength of the mask product is 6 times of its own. Excessive pulling could affect its reshaped resilience and damage its memory function.

5. How to restore a molding mask back to its factory settings? Just put it into the 68℃-72℃ water and then it will rebound automatically after 5 minutes.

6. Due to the characteristics of the material itself, in the activation process, it will occasionally occur small area of sticky. Please be sure not to pull randomly. When it leaves the water to solidify, it will automatically relieves adhesion.

1. Good tensil.

    Yabin radiotherapy masks could be stretched into 6-8 times as its original size.

2. Correct working time.

    In regular room temperature, Yabin radiotherapy masks offers 1.5-2min working time after it is activated in hot water. It gives the       radiotherapists enough time to fulfill the work, in the meatime, don't cause the users' unformatible during the time.

3. No sticky! No sticky! No sticky at all!

   It counts on the most concern for radiotherapists and hospitals.

4. Minimum shrinkage.

   After hundreds of quality test, it has been proven that compare with other brands, Yabin radiotherapy masks have the minimum shrinkage.

5. Durable. Yabin radiotherapy masks could be repeat use for more than 5 times.

6. OEM & ODM service. We accept logo printing, new type design and any other customized requirements.

7. Top quality, amazing price & steady delivery time.

   As a reliable manufacturer and supplier, we do our best to guaranttee any benefits for you.

We accept Neutral Packing, Customized Packing, and Standard Packing.

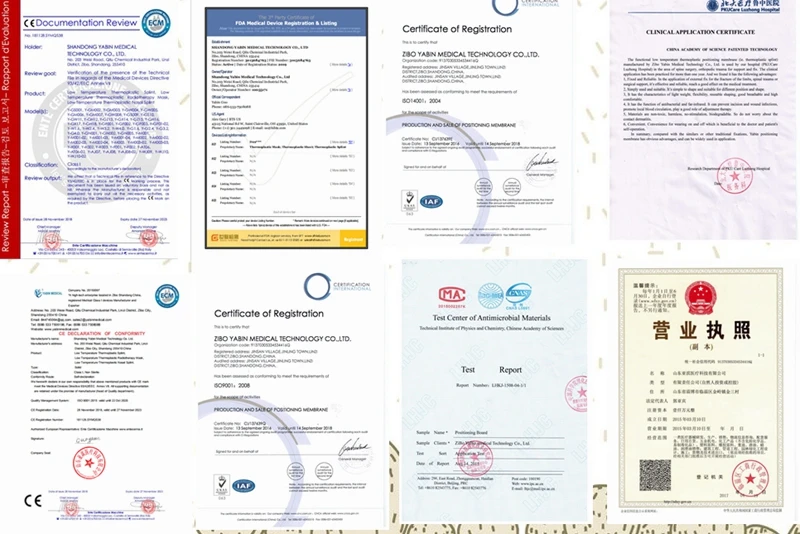

CE, ISO9001, ISO14001, TEST REPORT FROM OUR AUTHORIZATION AGENTICY AND our local GRADE A CLASS THREE HOSPITALS.

 In additional, we approved two National Patented Certification:

1.  Nano-antibacterial function  The Nano-materials can sterilizate the colibacillus, staphylococcus aureus and candida albicans.


2. Nano-far infrared function. Infrared material is able to improve our micro-circulation and expand the capillaries of skin and subcutis which accelerates blood circulation and metabolism, and eases muscular tension and pain.

1 Q: Are you a factory or trading company?

Answer: We are a real factory. It’s easy to be recognized from our website and logo.

2 Q: Can you provide samples for checking before order?

Answer: Yes, we can offer you some free samples for some low-valued sample, you need only to bear the freight cost. For some high-valued sample, we’d like to give you a special discount.

3 Q: How do your guarantee the quality of your products?

Answer: We have professional inspectors to analyze chemical composition of the raw materials, and test the finished products strictly according to standard stipulated in the contract. In this process, two ends appearance, being degree, fixed length etc., will be checked one by one. From production, packaging to transport, we strive to ensure that every link is perfect

4 Q: What’s your MOQ?

Answer: For our low temperature thermoplastic products, one piece should be available.But adding tax, transfer, custom charges, it’s not fair for buyers. So a large quantity will be much suitable for all of us.

5 Q: How about the trade terms?

 Answer: EXW, FOB, CFR, CIF will be accepted.

6 Q: How about your payment term?

 Answer: Paypal, Western Union, L/C is our regular payment terms.

7 Q: What is your delivery time?

  Answer: For stocks, we can send the goods to loading port within 7 days after receiving your deposit. For production period, it usually be about 10days-15days.

8 Q: Where did you export?

 Answer: USA, Canada, Japan, Southeast Asia, Eastern Europe, South Africa, South America, etc.

9 Q: Can you supply OEM products under my brand?

Answer: Yes, It’s Ok.

10 Q: Can I become a exclusive distributor of your products in my area?

Answer: Yes, it is possible.
