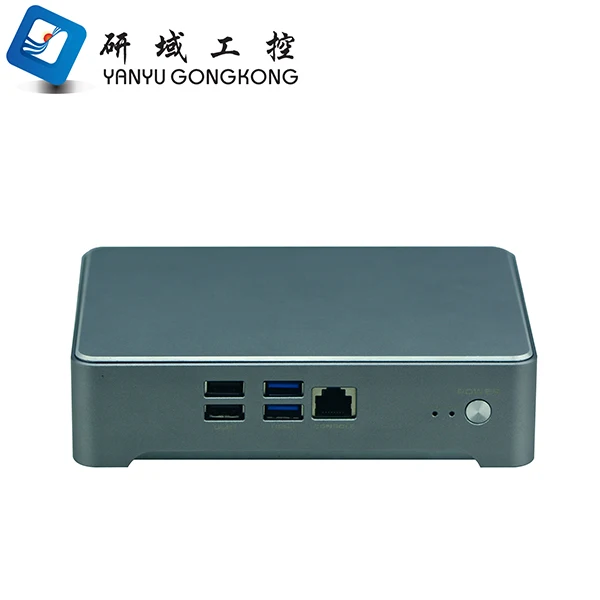

Мини нано ПК intel nuc I3 I5 I7, Intel Celeron 3855U/ i3 6100U, сервер без вентилятора, нано ПК

Share on (62042691003):


Price:124,00 $ - 129,00 $

Quantity:


Product Overview

Description


Small intel nuc I3 I5 I7 MINI NANO PC Intel Celeron 3855U/ i3 6100U fanless server nano PC







Product Description

We are an Intel IoT Solutions Alliance Affiliate Member with professional R&D Team
16 years' manufacturing experience | OEM/ODM services | Exporting to the US and Europe



YANYUGONGKONG - Intel industrial Firewall Industrial Motherboards /Appliance.

YANYUGONGKONG also provide the service of custom design to meet your special requirement.

Chassis / PVC membrane etc can custom.

oem network appliance/ Nano computer etc.

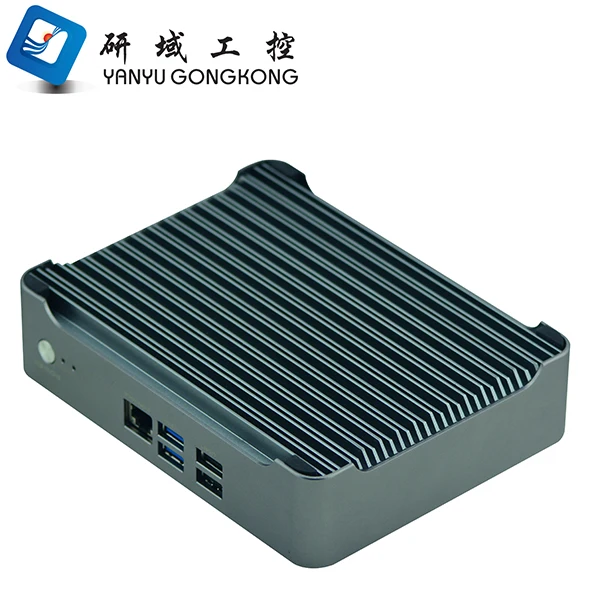

Fanless cooling structure

 Full aluminum alloy, compact structure, flexible installation

 Integrated Intel® Celeron 3855U 1.6GHz dual core processor

 2 Gigabit Ethernet port, support Wake On LAN

 Rich IO: 1*DC_Jack, 1*HDMI, 1*VGA, 1*Audio, 2*LAN, 6*USB

 Size: 165mm*128mm*41mm



N61C3Z Nano PC_12

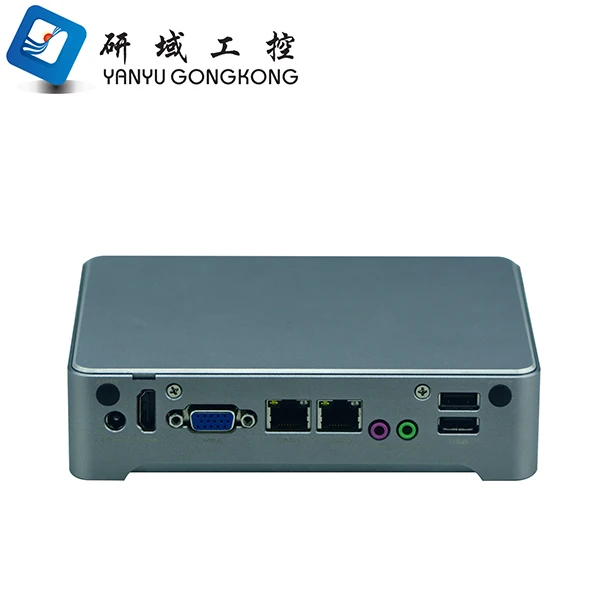

N61 6.jpg







Chassis

Color

Iron gray



Dimension

165mm*128mm*41mm(L*W*H)



Structure

Full aluminum fanless cooling structure



Material

Aluminum alloy



Installation

Desktop type or wall mounted installation

Motherboard

Model

STX-N61_C321E VER:1.1



Processor

Integrated Intel® Celeron 3855U/ i3 6100U 1.6GHz dual core processor



Chipset

SOC

Graphics

HD Graphics

Integrated Intel® HD Graphics 510, support DirectX 12, OpenGL4.4,

support VGA, HDMI synchronous/asynchronous display.



Resolution

VGA: max support 1920 x 1200 @ 60HZ

HDMI: max support 4096 x 2304 @ 24HZ

Storage

Memory

1* DDR4 SODIMM memory slot, support single channel 2133MHz, max 16GB



SATA

Support 1*2.5 inch HDD expansion



CF

N/A



SSD

1*M.2 standard slot, support M.2 2242 standard SSD

Audio

Audio

Onboard ALC662 6 channels HiFi audio controller, support MIC/Line-out

Network

Ethernet

2* Intel I211AT Gigabit Ethernet chip, support Wake On LAN /PXE



WiFi

1*Mini-PCIE interface, support WIFI/3G module

I/O Port

Serial Port

1*CISCO standard serial port



USB

4* USB2.0, 2*USB3.0



System Control

1* Power switch



LED indicator

1*HDD LED, 1*Power LED



LAN

2*RJ45 Gigabit ethernet interface



Display

1*VGA, 1*HDMI



Power

1*12V DC IN Jack



Antenna

2*WiFi/3G SMA antenna (optional)



Audio

1*Line-out, 1*MIC

Power

Power Adaptor

12V/5A adaptor

Reliability

Operating Temp.

0℃~45℃



Storage Temp.

-20℃~70℃



Relative Humidity

5%-95%, no condensing



Vibration

0.5g rms/5-500HZ/random/operating

Operate System

Support Windows7, Windows8, Windows10, Linux OS

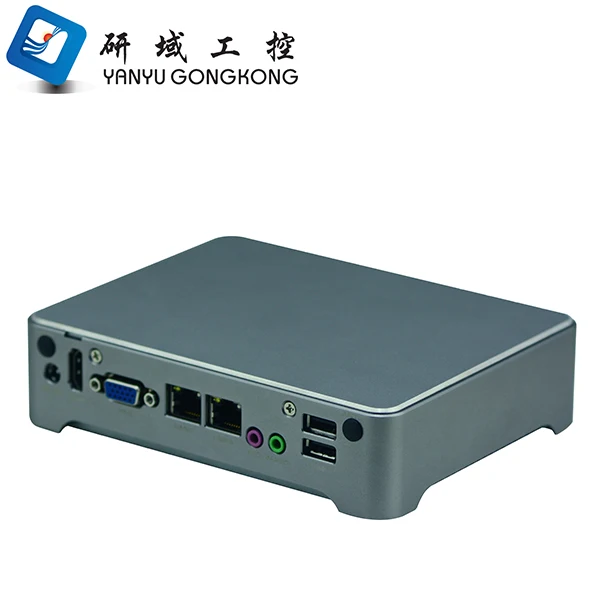

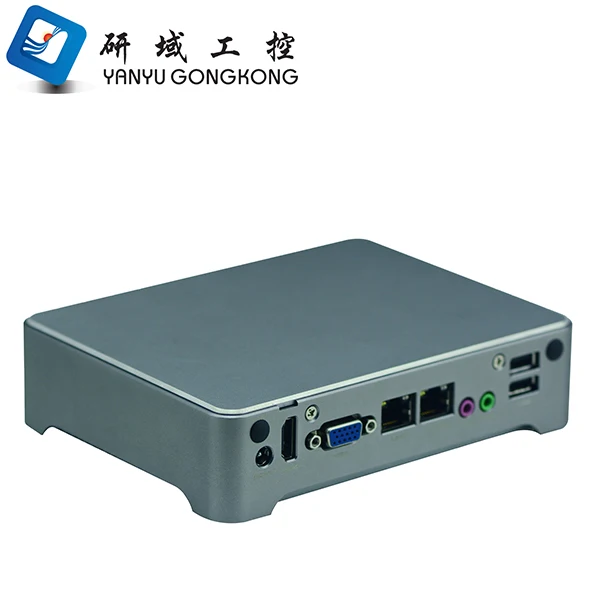

N61 2.jpgN61 3.jpg





Order Information

No.

Model

Processor

Motherboard

Memory

SSD

LAN

USB

WiFi

Adaptor

OS

1

N61C3Z

3855U/1.6G

STX-N61_C321E

/

/

2*WGI211AT

6

N/A

12V/3A

/

2

N9243Z

I3-4005U/1.7G

STX-N92_I3

/

/

2*RTL8111F

6

N/A

12V/3A

/

3

N9245Z

I5-4200U/1.6G

STX-N92_I5

/

/

2*RTL8111F

6

N/A

12V/3A

/

4

N9247Z

I7-4500U/1.8G

STX-N92_I7

/

/

1*RTL8111F

6

N/A

12V/3A

/

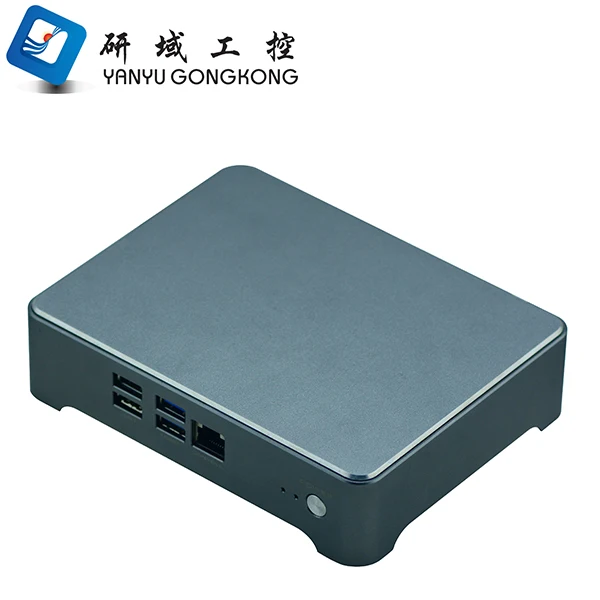

N61 4.jpgN61 7.jpgN61 8.jpg











FAQ

Q1: Can you put my brand name (logo) on these products
A1:  Yes,.We can support OEM/ODM service, the process of customization is following:
         1:provide your specific requirement.    2:our design engineer draw the design draft.
         3:you confirm the design draft.             4.we start produce it.



Q2: What payment method do you accept?
A2: T/T,Western Union,PayPal.



Q3: What is the Minimum Order Quantity(MOQ)?
A3: We can sell one piece sample for your test.



Q4: What is the lead time of your products?
A4: 3 days for one sample, 15 working days for a large quantity.



Q5: Will it be ok to run the device 24 hrs a day 7 days a week, just like a desktop pc? will it be overheated?
A5: There's no problem with running the device 24/7. I've done it for about a month and have had no problems. Just set your monitor to sleep when you're not using the computer.



Q6: How does your factory do related quality control?
A6: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.



Q7: What’s the warranty of motherboard or MINI PC?
A7: Non-artificial damage,1 years warranty,the second year and the third year,
   we can repair it free. but we will charge for the parts that need to change.



Q8: Are you a factory or trading company?
A8: We are the professional consumer electronics manufacturer which located in SHENZHEN, China



Q9: If we come to China, can you arrange the visiting to your factory?
A9: We warmly welcome and look forward to your visiting to our factory at any time.

About us

YANYUGONGKONG(HANZSUNG)

MEMBER OF INTEL® INTELLIGENTSYSTEMS ALLIANCE, is a R&D and manufacturing technology-innovation enterprise specialized in Industrial Motherboards and embedded products.

  Our products include:mini-itx motherboard,all-in-one motherboard, 3.5'' industrial motherboard, firewall motherboard, NVR&industrial motherboard, Mini PC , HTPC,All-in-one PC,Embedded PC ,Vehicle computers,Cloud Terminal,Networking Security,OPS Mini PC Computer,OEM / ODM available.
