Intel Kabylake Core m3 7Y30 4M Cache DDR3L 4G NGFF SSD 64GB 12 inch rugged tablet with iot os

Product Overview

Description

Intel Kabylake Core m3-7Y30 4M Cache DDR3L 4G+NGFF SSD 64GB 12 inch rugged tablet with iot os



(1).Quick Details.--Rugged Tablet

• 1.Support Win10 / Android 5.1;
  2.Support USB2.0 & USB3.0 connector;
  3.Support NXP NFC(13.56M);
  4.Support GPS Navigation;
  5.Support 1D/2D barcode scanner;
  6.Support standard DB9 connector(RS232,RS485);
  7.Rugged IP65 protection level;
  8.Support 13000mAh loadable batteries;
  9.Support High strengthened glass touch panel,gloves and wet hand touch;
  10.Support gigabit network interface;
  11.Support wrist strap and leather keyboard;



If any more question or do customization,kindly please contact me via online message,or add my Skype:Sabrina-ruglinetech

My mobile: 0086 15875551277

(2).Specifications.--Rugged Tablet

Rugged Tablet PC RT-I22H
Display	12.2 inch IPS 16:10,1920*1200
Platform	Cherry Trail Z8350
OS	Win 10
RAM	4G
ROM	128GB
Camera	Front 2.0MP Rear 5.0MP
Network	WIFI 2.4G+5.8G dual frequency, WIFI 802.11(a/b/g/n/ac)   BT4.2 (BLE) class1 transmission distance:10m 3G/4G(Optional) LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B2/B5/B8 GSM: 850/900/1800/1900MHz
I/O Port	Micro USB x 1, USB 2.0 x 2, USB 3.0 x 1, SIM Card x 1, TF Card x 1,   HDMI 1.4a x 1, 12pins Pogo Pin x 1, RS232 x 1, RS485 x 1, RJ45 (10/100M) x 1, Φ3.5mm standard earphone jack x 1, Φ3.5mm DC jack x 1
Battery	3.7V/12600mAh Li_polyment, removeable battery
Dimension	185*93*20.7mm/380g
Certification	IP65,GCE NB;MIL-STD-810G; Battery:UN38.3,MSDS,IEC62133
NFC	13.56MHz NFC RFID reader
Option Functions	1D MOTO SE655E100R,  2D Honeywell N3680,
Optional accessories	Docking Charger,RemovableBattery,strap,Removable Keyboard,Vehicle Mount

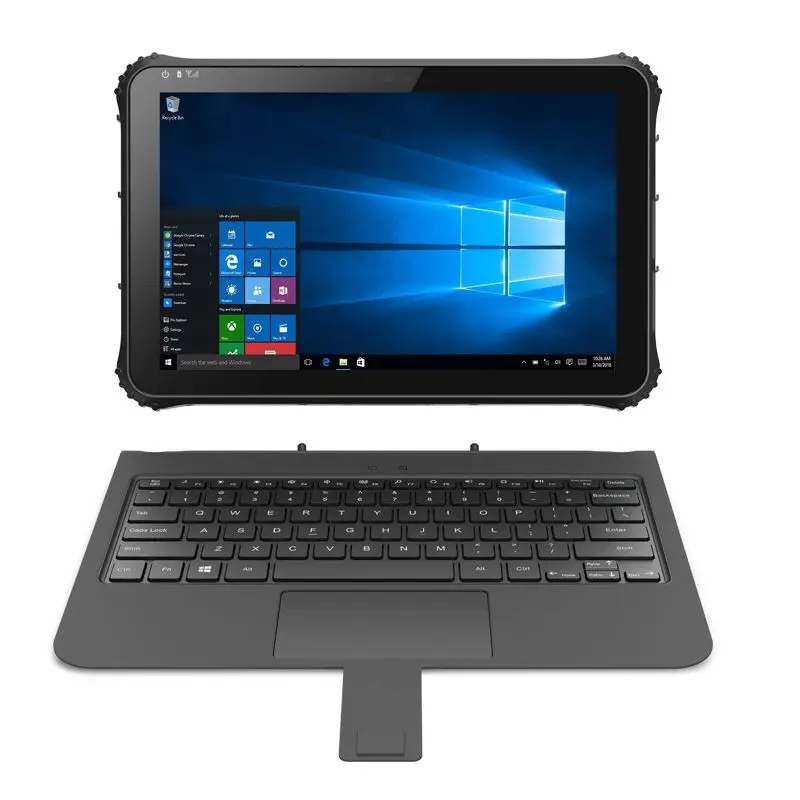

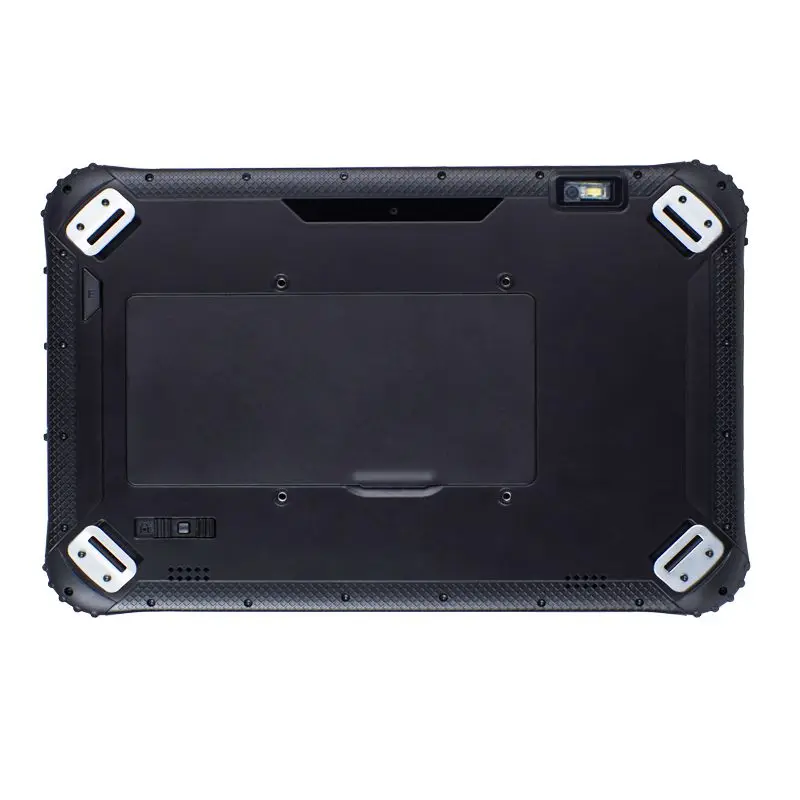

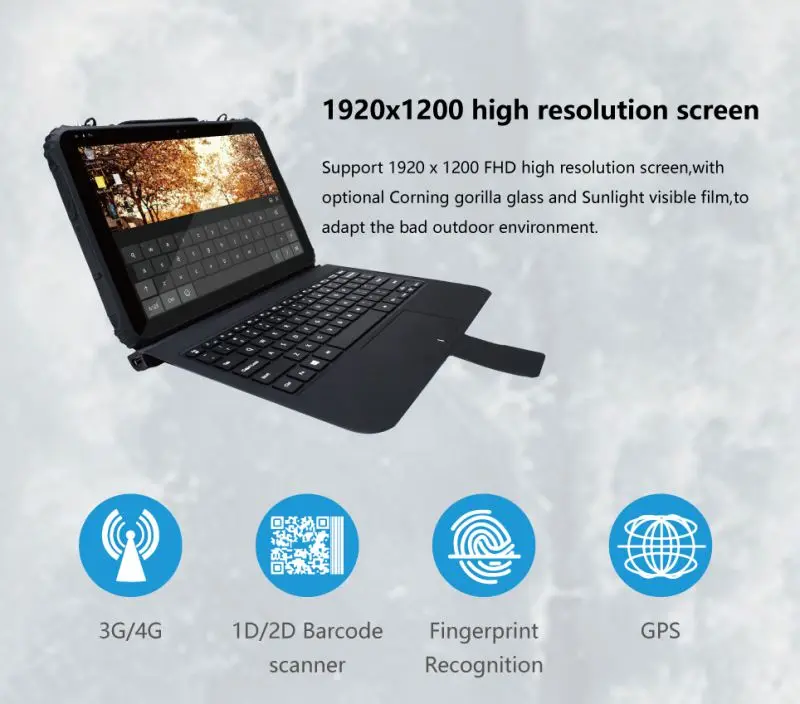

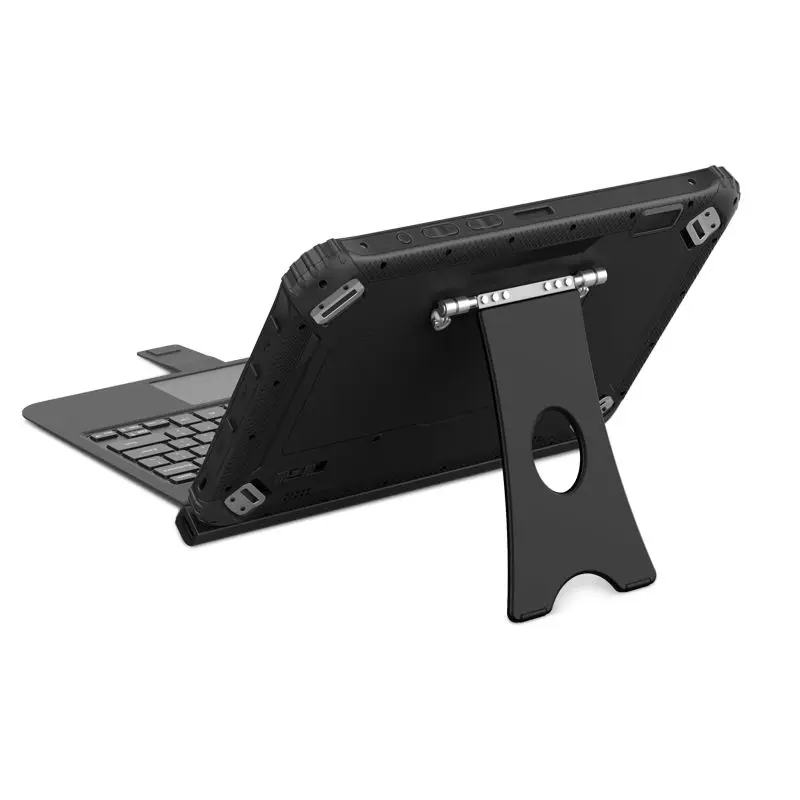

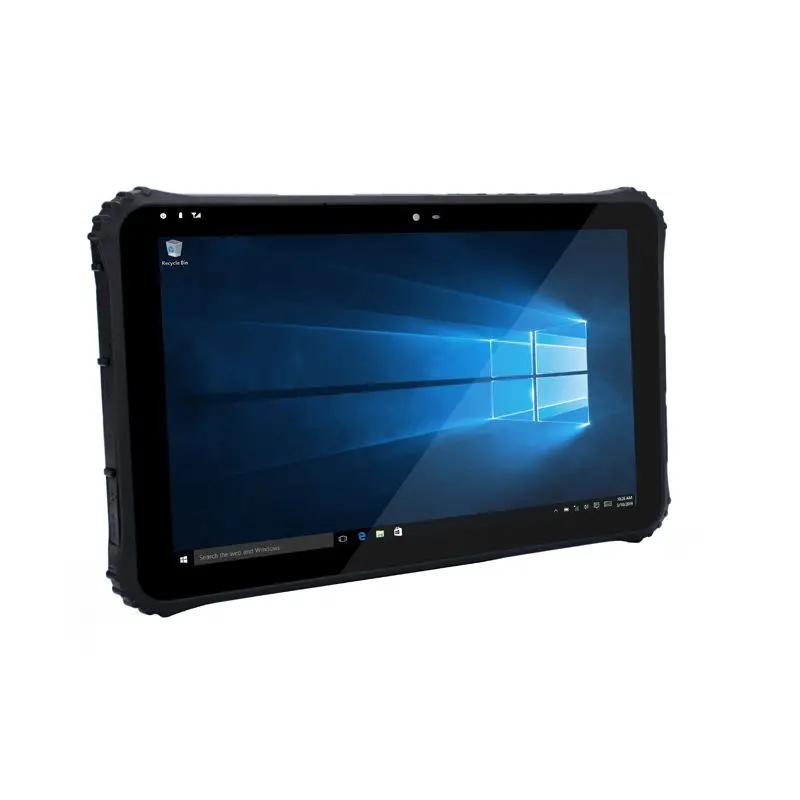

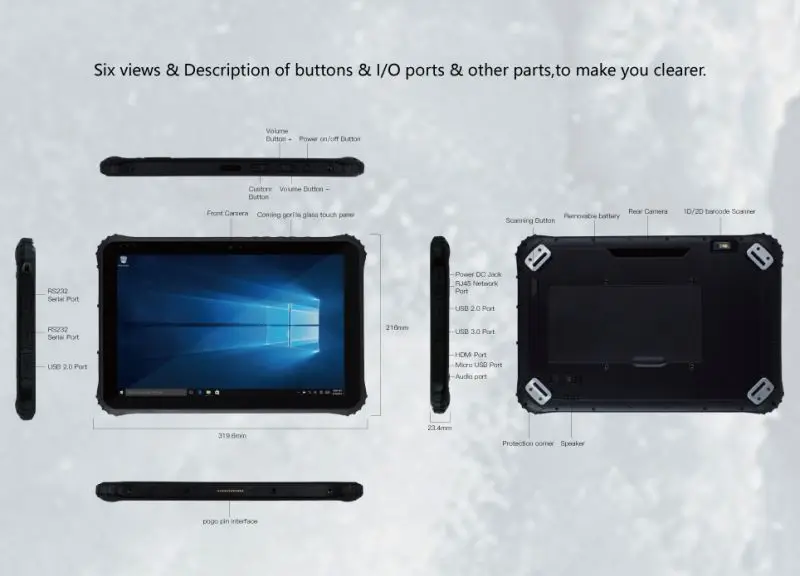

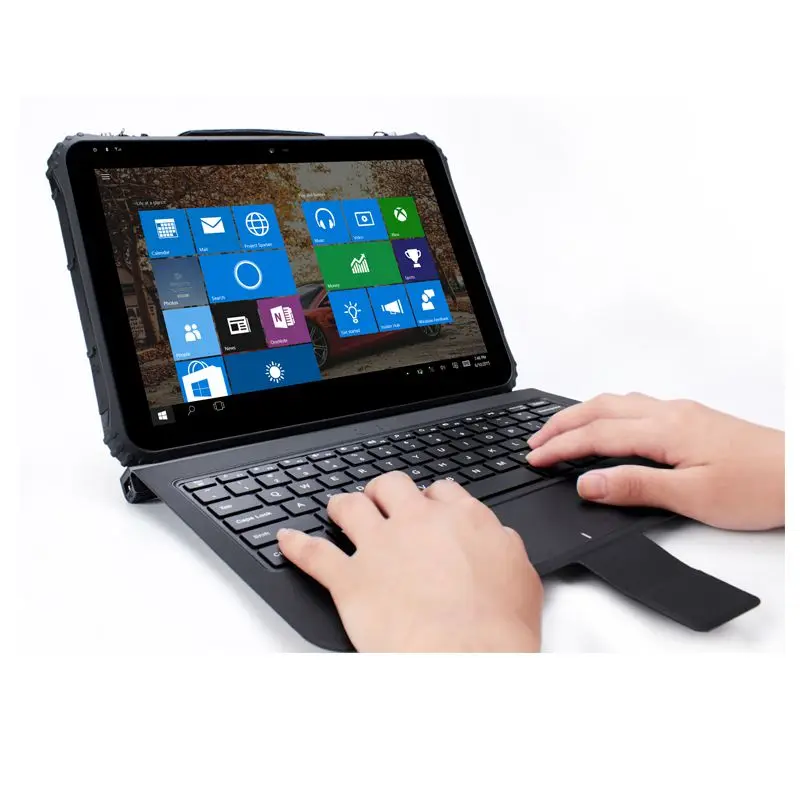

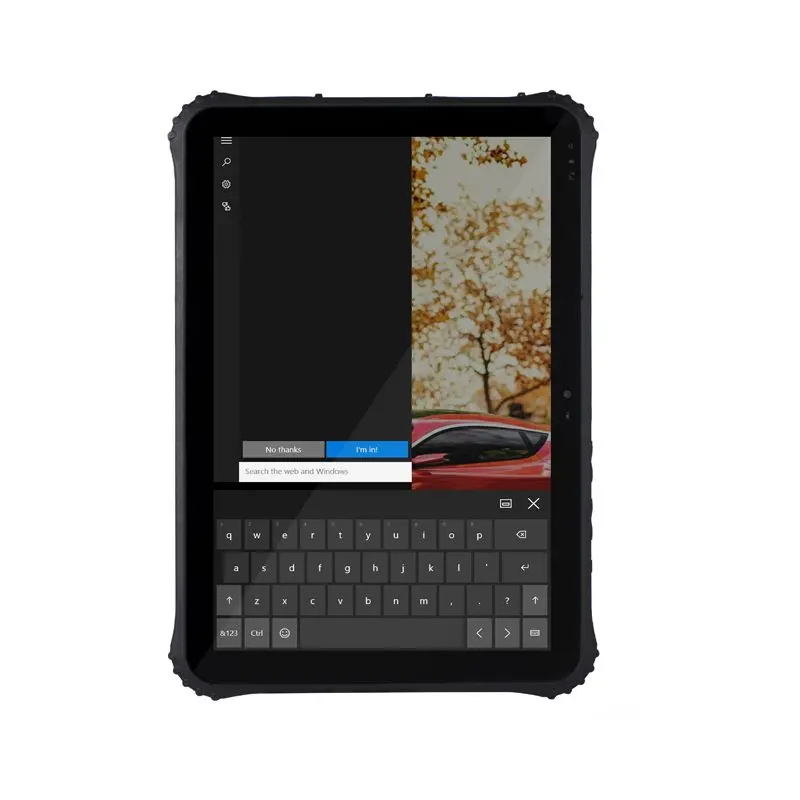

(3).Product Show.--Rugged Tablet





(4).Packing Details.--Rugged Tablet

Product Size:319.57*215.97*24.32mm

Single Packing box:420*258*63mm

Carton:5 units/carton,14.45kg

Carton Size:440*336*293mm
