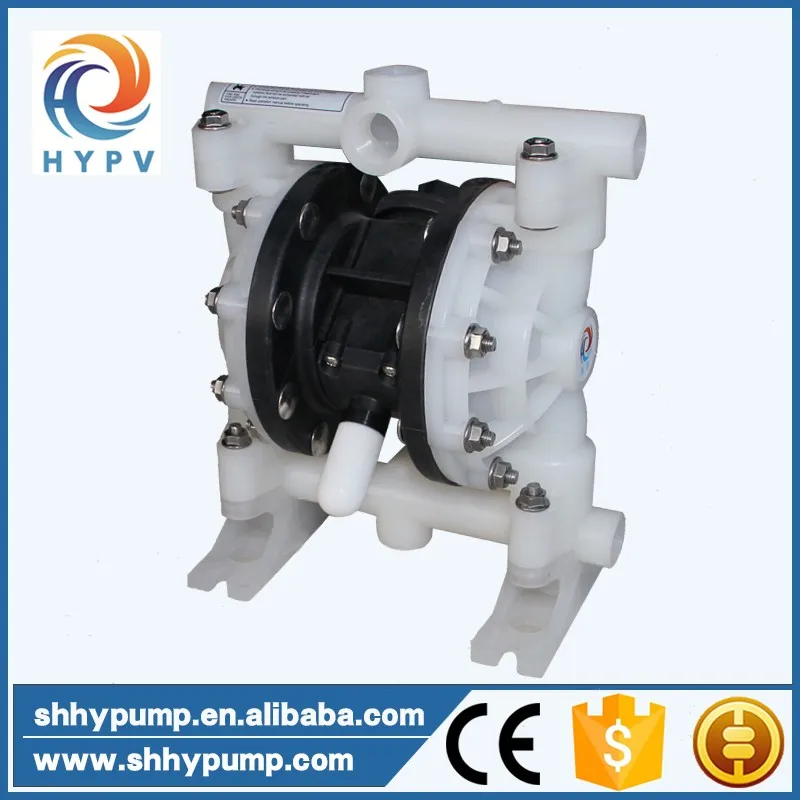

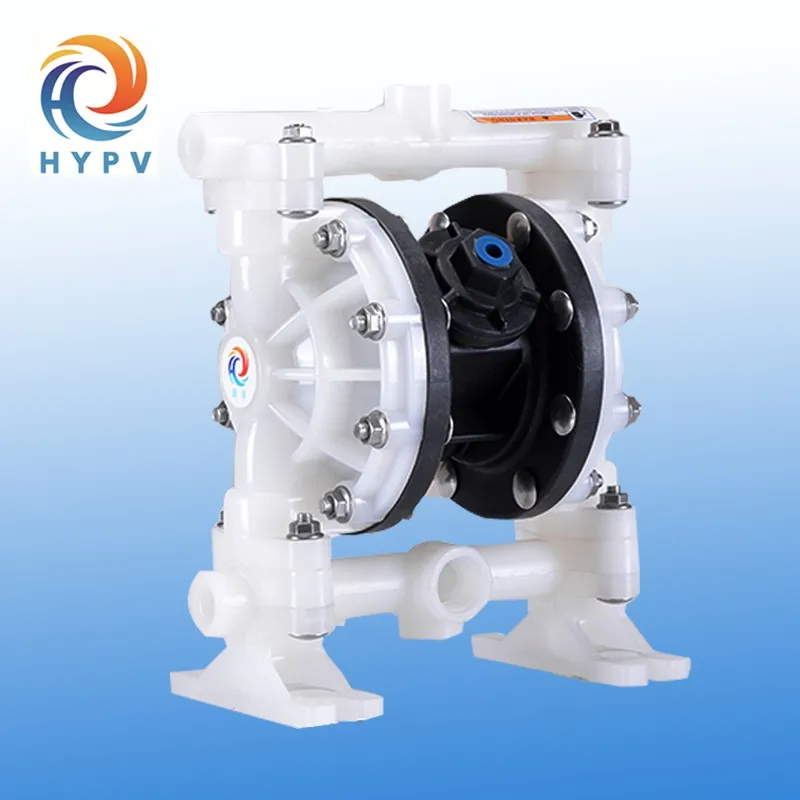

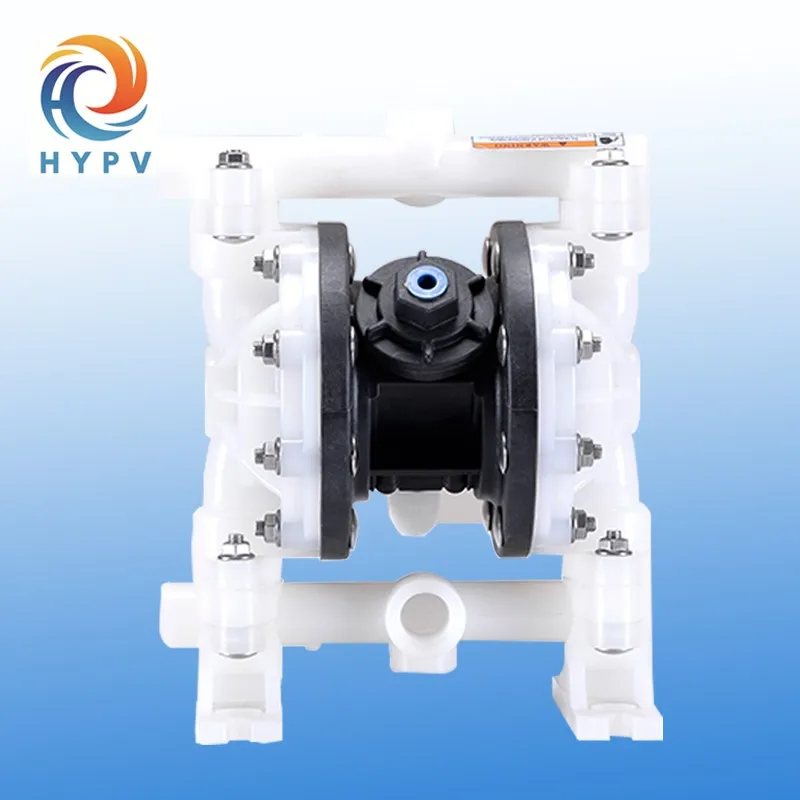

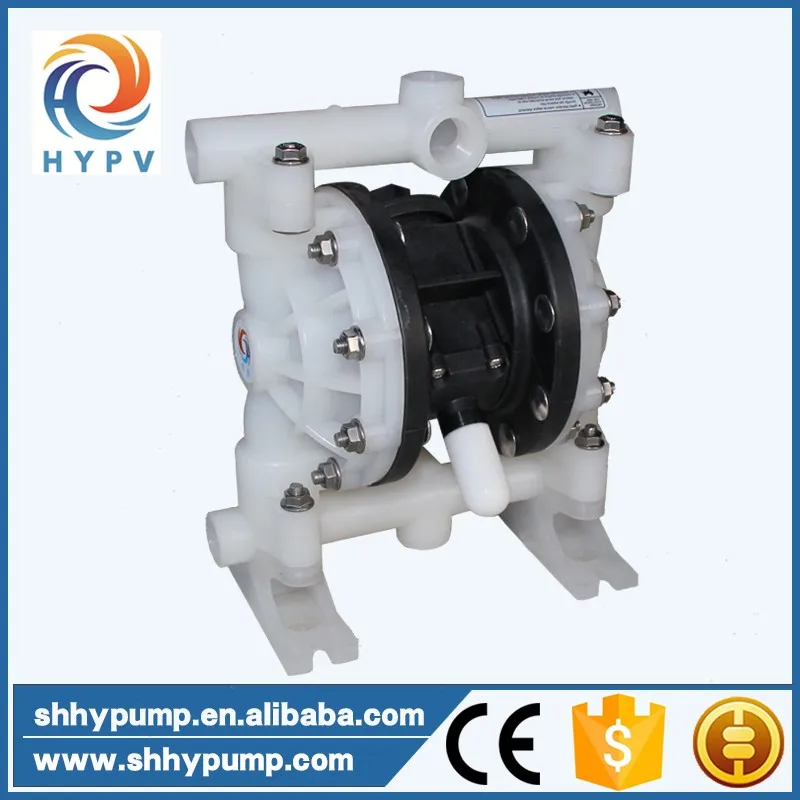

Low Pressure With Kynar Membranes High Suction Pneumatic Diaphragm Pump

Product Overview

Description

 Low Pressure With Kynar Membranes High Suction Pneumatic Diaphragm Pump

MAX. Suction lift	Dry 4m / Wet 7.6m Suction height changes with different combinations of ball, seat and the diaphragm materials.
Max. particle diameter	2.5mm
Suction and discharge size	1/2 3/4in/Npt
Air inlet size	1/4in
Max. flow rate	57L/min
MAX. head	84m
Max. air inlet pressure	8.4bar
Max. air consumption	28scfm(0.672/min)



Pneumatic Diaphragm Pump  advantages:

1. Explosion-proof, zero leak, simple operation.

2. Idling capability,Self suction, No complex control.

3. Diversity of material,no rotating parts,applicable to various erosive situations.

4. Diaphragm, ball and ball seat adopt imported materials with longer service life.

5. Modularization of main valve and air motor. No broken, easy to disassemble and repair.

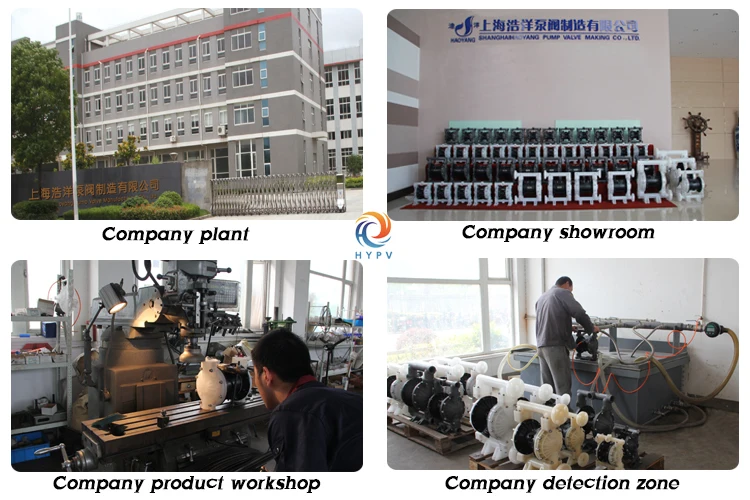

        Shanghai Haoyang Pump Valve Manufacturing Co., Ltd. is located in Baoshan Industrial
Park of Shanghai City, which is specialized in the integration of development, design,
production, sales, trade and services of diaphragm pump.

        The products, using simple and operating convenient, are widely used in various industries,
such as petroleum, metallurgy, chemical engineering, mine, coating materials, ceramics,
food & drinks, pharmacy, printing, paper making, electron, textile, architecture, furnishing,
environmental friendly, water treatment, automotive, shipbuilding and so on.



  1. Q: Are you a factory or trading company?

      A: We are a factory.



  2. Q: What're your payments ?

      A: T/T,Western Union,L/C etc.



  3. Q: What about the package ?

      A: Standard export plywood case or carton.



  4. Q: How long is the warranty ?

      A: According to international standards, products in standard operation is 1 year,except wearable parts.



  5. Q: The use of products have?

      A: The pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.

          The pump can suck the paint, pigment, glue and adhesive etc.

          The pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.

          The pump can suck various toxin and flammable or volatility liquid etc.

          The pump can suck various strong acid, alkali and corrosive liquid etc.



  6. Q: How product quality and service?

      A: Our pump have CE certificate, quality assured, can accept OEM,  provide various personalized needs.
