Explosion proof Fluorescent Lamps single pin end TL X XL 20W/40W Fa6

Product Overview

Description

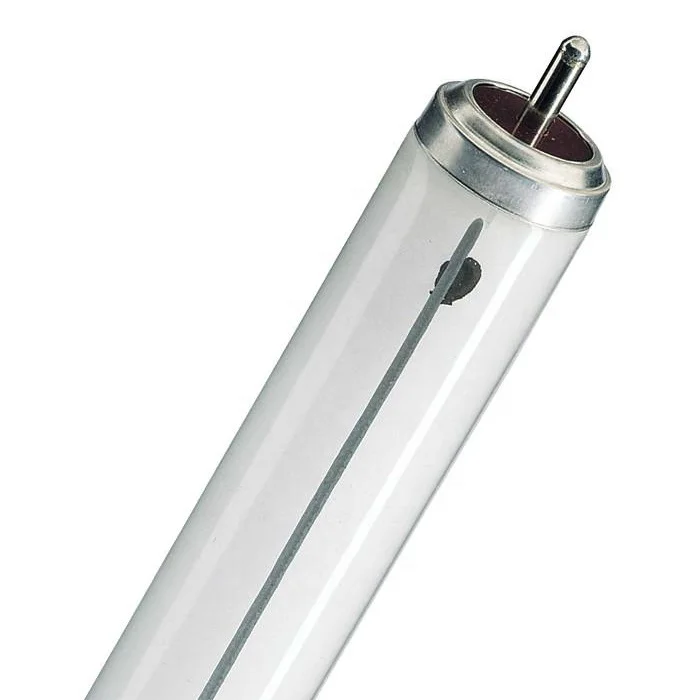

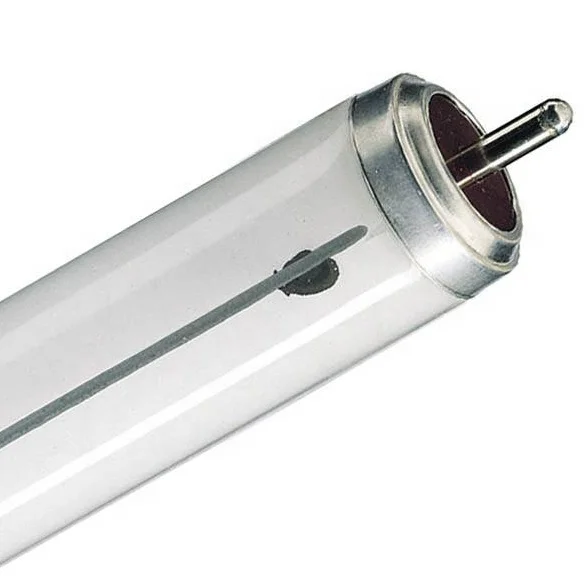

Single Pin End Fluorescent Lamps

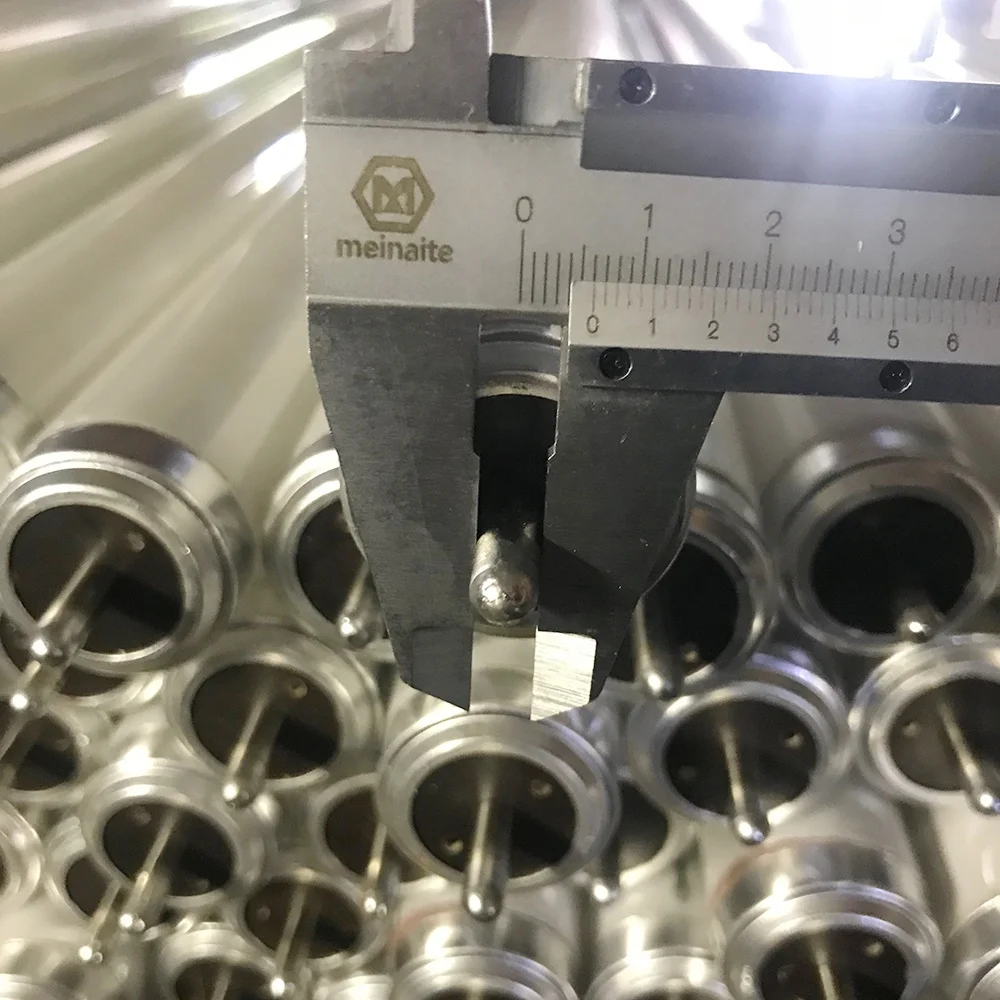

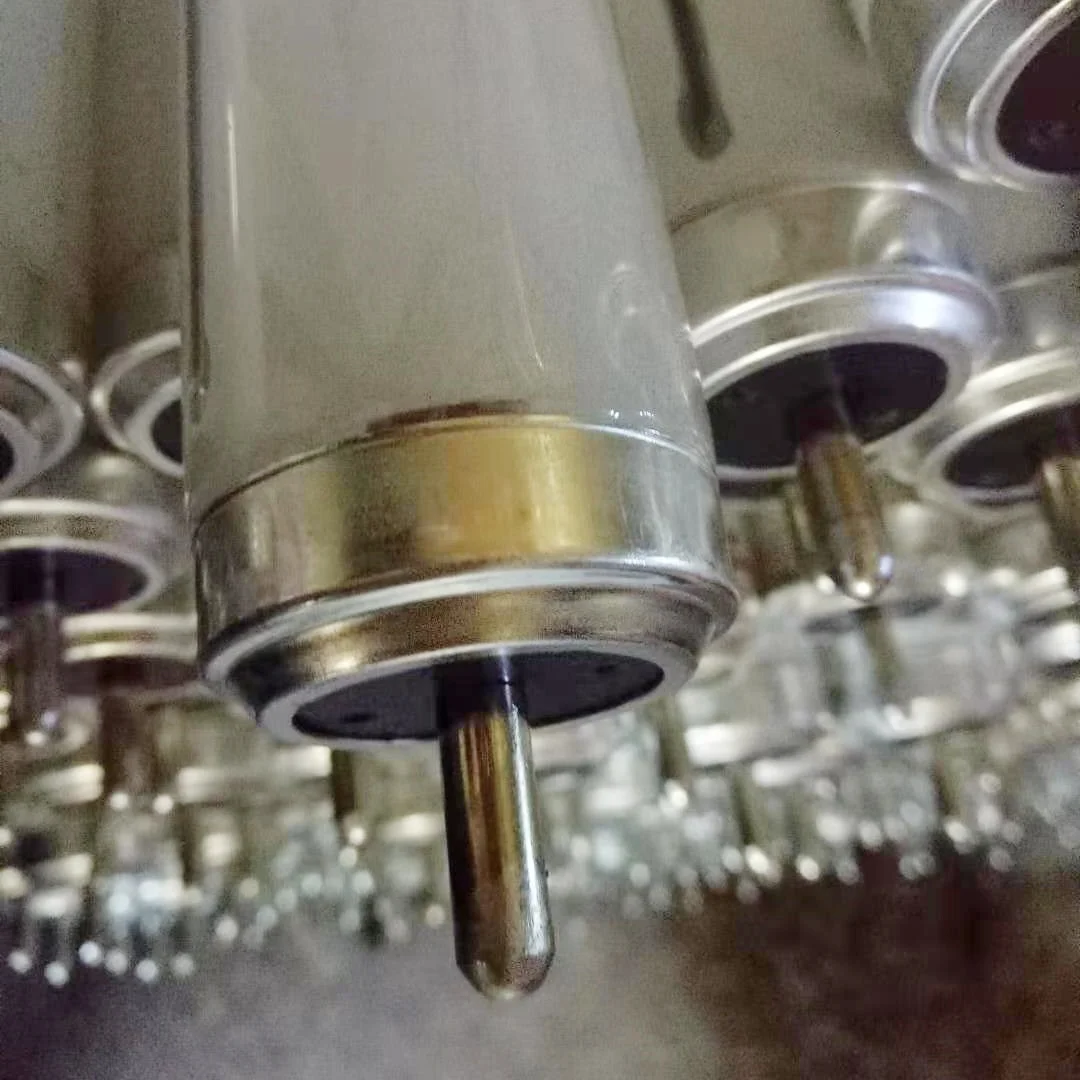

Fluorescent lamps of 40W for starterless ignition,to be operated by means of special explosion-proof ballasts on A.C. mains; the lamps are designed specifically for application in areas where an explocation in areas where an explosion hazard exists."TL"X instant-start lamps,stanilized by special ballasts,are the electrodes.Since the electrodes are not pre-heated,only one electrical contact is required at each lamp-end.TO exclude all possible sparking effects during ignition,the caps and, in particular,the long,thick lamp-pins are constructed so as to ensure maximum contact with the appropriate lamp holders.

Application



 In "flameproof" and "increased safety" luminaries designed in accordance with IEC79/1,79/7,EN 50018 and 50019,VDE 170/171 and similar specifications,both for indoor and outdoor applications.



Dimensions

Type	A (Max)	B (Min)	B (Max)	C (Max)	D (Max)
TL-X XL 20W/33-640	574	589	592.5	611	40.5
TL-X XL 40W/33-640	1183.5	1198.5	1202	1220.5	40.5
Specifications
Type	Wattage	work voltage	color temp	Average life	Chromaticity Coordinate	color	Ra
TL-X XL 20W/33-640	20W	58V	4100K	5000h	33-640	Cool white	63 Ra8
TL-X XL 40W/33-640	40W	103V	4100K	5000h	33-640	Cool white	63 Ra8
