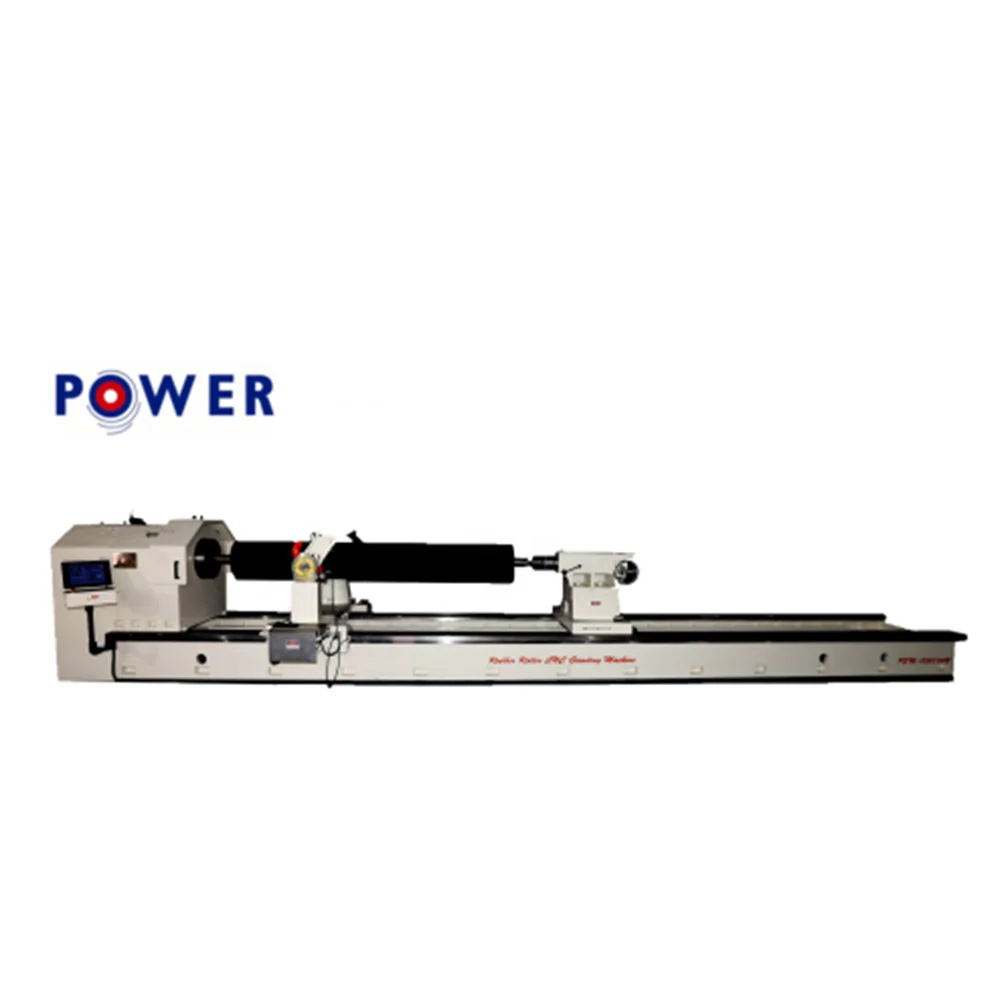

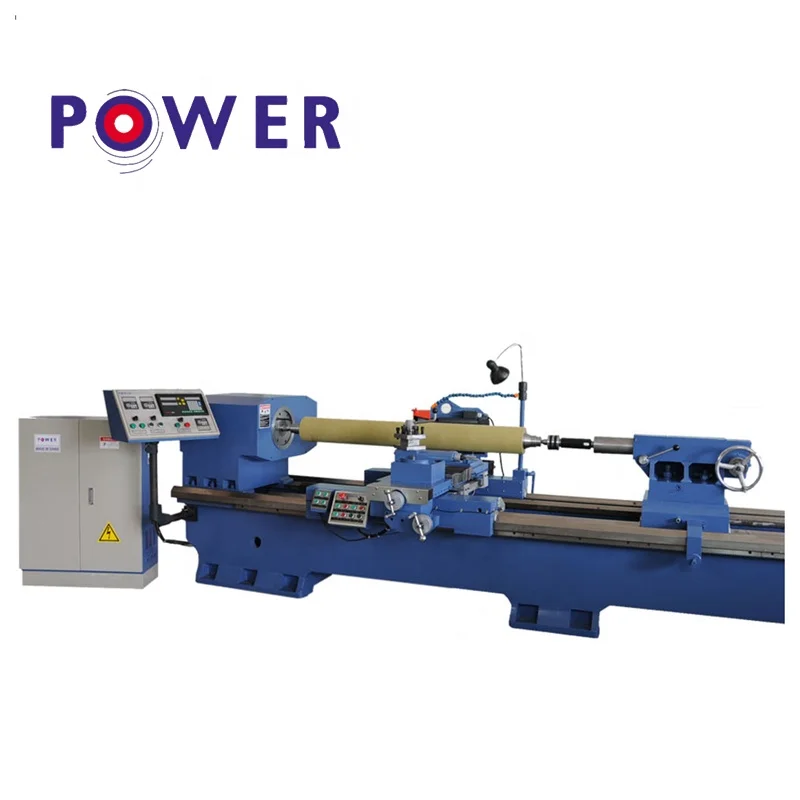

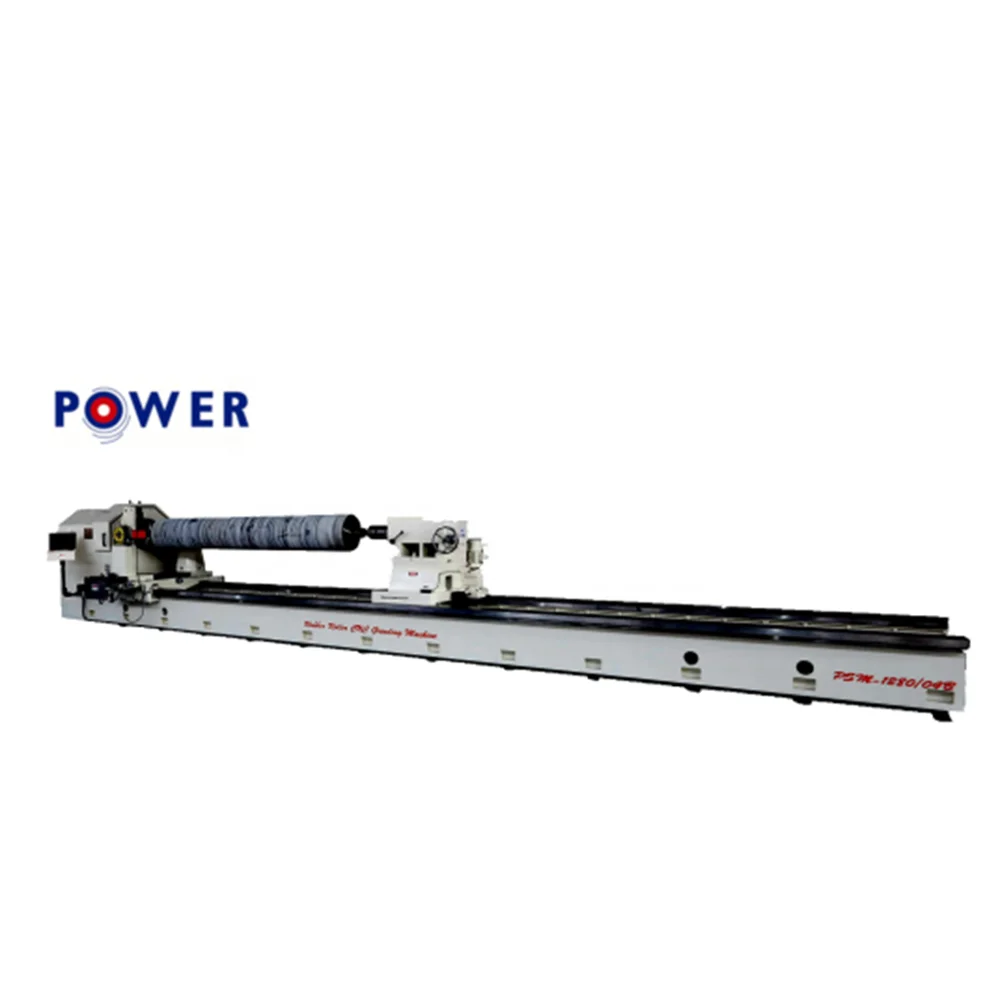

PSM 4020 Rubber Roller General Grinding Machine For Printing Rubber Roller
- Category: >>>
- Supplier: Jinan Power Roller Equipment Co. Ltd.
Share on (62042882414):
Product Overview
Description
Related Products
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t
1. Standard equipment of PSM series includes：
a. a full flood recirculating coolant system
b. motorized tailstock
c. variable speed traverse and spindle drives
d. front and rear independently operated carriage tables
e. a direct drive grinding head mounted on the rear
2. Specially designed to replace the tradtional roller grinding process method.
3. Two medium carriage tables assembled to ensure accurate performance and operating stability.
4. The max. linear speed of grinding head is over 90m/s. Production efficiency is highly increased and the geometric size is guaranteed.
5. Advanced measuring device assembled timely checks the processing datas and provides effective help to control the grinding size.
6. Capable of realizing expansion of processing of special-shaped rubber rollers.
MODEL | SPECIFICATION | MAX. DIAMETER | MAX. LENGTH | CUBAGE | POWER |
LIGHT SCALE | PSM-4020 | 16" 400mm | 80" 2000mm | 158"*55"*55" 4m*1.4m*1.4m | 10KW |
STANDARD | PSM-8040 | 32" 800mm | 158" 4000mm | 256"*63"*63" 6.5m*1.6m*1.6m | 15KW |
HEAVY DUTY | PSM-1260 | 47" 1200mm | 236" 6000mm | 315"*71"*71" 8.0m*1.8m*1.8m | 18KW |
LARGE SCALE | PSM-1680 | 63" 1600mm | 315" 8000mm | 433"*87"*71" 11m*2.2m*1.8m | 22KW |
PSM series rubber roller grinding machine is specially designed and manufactured to replace the past roller processing method by metallic manufacturing equipment.
Mounted grinding head on the standard metal processing lathe is one of the traditional methods to manufacture rubber roller, which leads the quality of roller is difficult to reach the higher requirement.
With the consideration of the rubber characteristics, safe production and higher efficiency, we designed the PSM series grinding machine with lower and wider lathe body to reduce vibration, and selected alloy grinding wheels for surface processing.
We also provide the CNC grinding machine with grooving functions for you to select.
\t\t\t\t\t\t\t\t\tOur Services \t\t\t\t\t\t\t
1.Installation service.
2.Maintenance service.
3.Technical support online service provided.
4.Technical files service provided.
5.On-site training service provided.
6.Spare parts replacement and repair service provided.
\t\t\t\t\t\t\t\t\tCertification \t\t\t\t\t\t\t
Our Company
About us
Jinan Power Rubber Roller Equipment Co., Ltd is a modern private enterprise embodying scientific research and production. It was set up in 1998, and now is the main base in our country for manufacturing rubber roller special machine.
Power Company is a professional producer engaged in rubber roller manufacturing equipment, with a large production scale and strong technical force. The products we provide are: Rubber Roller Builder, Rubber Roller Grinding Machine, External Cylindrical Grinder, Emery Belt Precision Machine, Fully Automatic Measuring Instrument, Grinding Head and Fitting of Equipment. More than eight products have been awarded National or Shandong Provincial level product prizes and three scientific-research achievement prizes. In 2000, our products passed the inspection by CCIB Quality Certification Center in accordance with ISO 9001 standards. By using our equipment, you will increase processing efficiency, and raise product quality. Also it can bring much economical benefit.
Power Company regards "customers first" as its principle and has been developing and producing satisfactory products for different types for customers. Janna Power Rubber Roller Equipment Co., Ltd sincerely welcomes friends at home and abroad to come here for business talks.
