Industrial 150L Fully Customizable Single Dual Jacketed Glass Reactor
- Category: >>>
- Supplier: Shanghai Hjlab Instruments Co. Ltd.
Share on (62042904591):
Product Overview
Description
Product Description
Fully Customizable Single
150L Jacketed Glass Reactor
HJLab series jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled
temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.
temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.

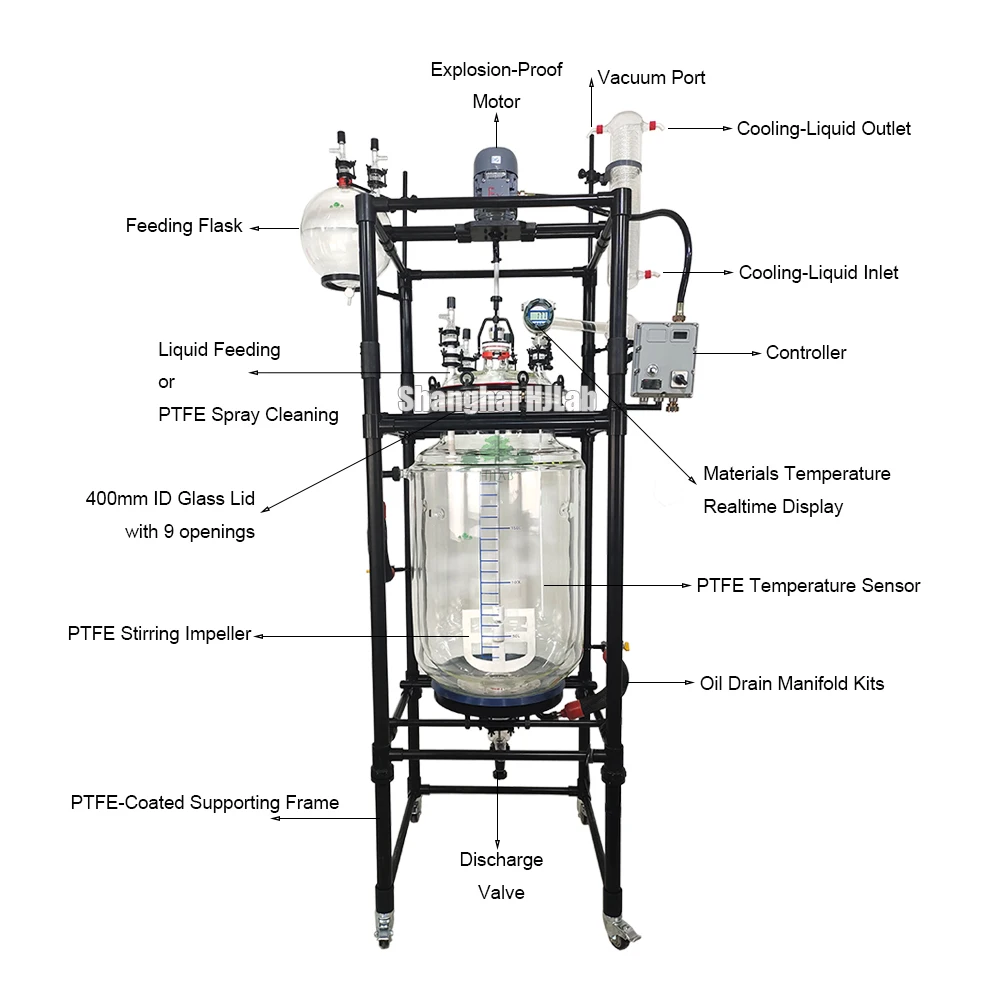

Features | ||||||||
Stirring Motor | DC Brushless Motor | AC Induction Motor with Gear Reducer | Explosion Proof 120W, 200W, 250W, 380W, 400W, 550W, 750W, 1500W | |||||||
Mixing Sealing Kits | Patented PTFE + Ceramic Bearing Sealing Kits | |||||||
PTFE Stirring Rod | Unibody SUS304 Coated by PTFE Stirring Rod and Impeller No Pollution for your materials | Multiple Selections for Impellers | |||||||
Controller | Variable Frequency Controller 300RPM | 600RPM | 1200 RPM | |||||||
Glass Lid | 7 Openings or more (Stirring | Feeding | Dropping | Condenser | Temperature Sensor | Cleaning | Gas-inlet | PH Measurement | Ultrasonic | More) | |||||||
Glass Reaction Vessel | Single/Dual/Triple Layers | Spherical | Cylinder | |||||||
Condenser | Condensation Area: 0.2 ~ 2 m² | |||||||
Feeding | Solid Materials Feeding | Dropping Funnel | Peristaltic Pump | More | |||||||
Insulation Connection Hose | Simple and Easy Draining of the Circulator Fluid | |||||||
Discharging Valve | Patented Design | Zero Dead Space for discharging and mixing | |||||||
Specifications | ||
Glass Materials | High Borosilicate Glass 3.3 Optional: Transparent-Color Optional: Brown-Color | |
Wetted Parts | Glass and PTFE | |
Reaction Vessel Capacity | 5L, 10L, 20L, 30L, 50L, 80L, 100L, 150L, 200L Optional: Vertical Baffles inside of the vessel Optional: Insulation Jacket Optional: Heating Insulation Jacket | |
Thermal Jacket | Ring Baffles within the Thermal Jacket (5L, 10L, 20L, 30L) Ring Baffles without the Thermal Jacket (5L ~ 200L) | |
Stirring Motor | DC Brushless Motor, 50W, 100W, 150W AC Motor with Gear Reducer: 120W ~ 1500W Explosion-Proof Motor: 180W, 250W, 370W, 550W, 750W, 1500W Stirring Range: 50 ~ 600 RPM Realtime Display: Mixing Speed, Materials Temperature | |
Mixing Sealing | PTFE + Mechanical | |
Condenser | Cooling Coil Condenser (0.2 ~ 2 m²) Condensation Receiving Flask: none or 2L ~ 100L or Multiple Flasks Totally Reflux to Reaction Vessel or Receiving Flask | |
Dropping Feeding Funnel | Dropping Feeding Funnel with Metering Valve and Equalizing Arm Optional: 2L, 5L, 10L, 20L Optional: Double Jacketed Feeding Funnel with Stirring Optional: Peristaltic Pump | |
Glass Lid | Diameter: DN215, DN280, DN400 for your selection 7 Openings: 1) Dropping Feeding Funnel 2) Solid Materials Feeding 3) Stirrer 4) Liquid-Feeding 5) Temperature Probe 6) Condenser Reflux 7) Reserved (By default: Pressure Release) 8) Spray Cleaning or PH measurement (Optional) | |
Stirring Impeller | PTFE Anchor Type PTFE Pitched Paddle Type PTFE Frame Type | |
Operating Temperature | -90℃ to +230℃ | |
ΔT - Thermal Shock Resistance | 90℃ (Double Wall) 60℃ (Double Wall) | |
Operating Pressure | Full Vacuum to Atmospheric Pressure | |
Operating Jacket Pressure | Up to +0.5 bar (0.05 MPa) | |
Power Supply | 100V ~ 240V, 50Hz/60Hz | |

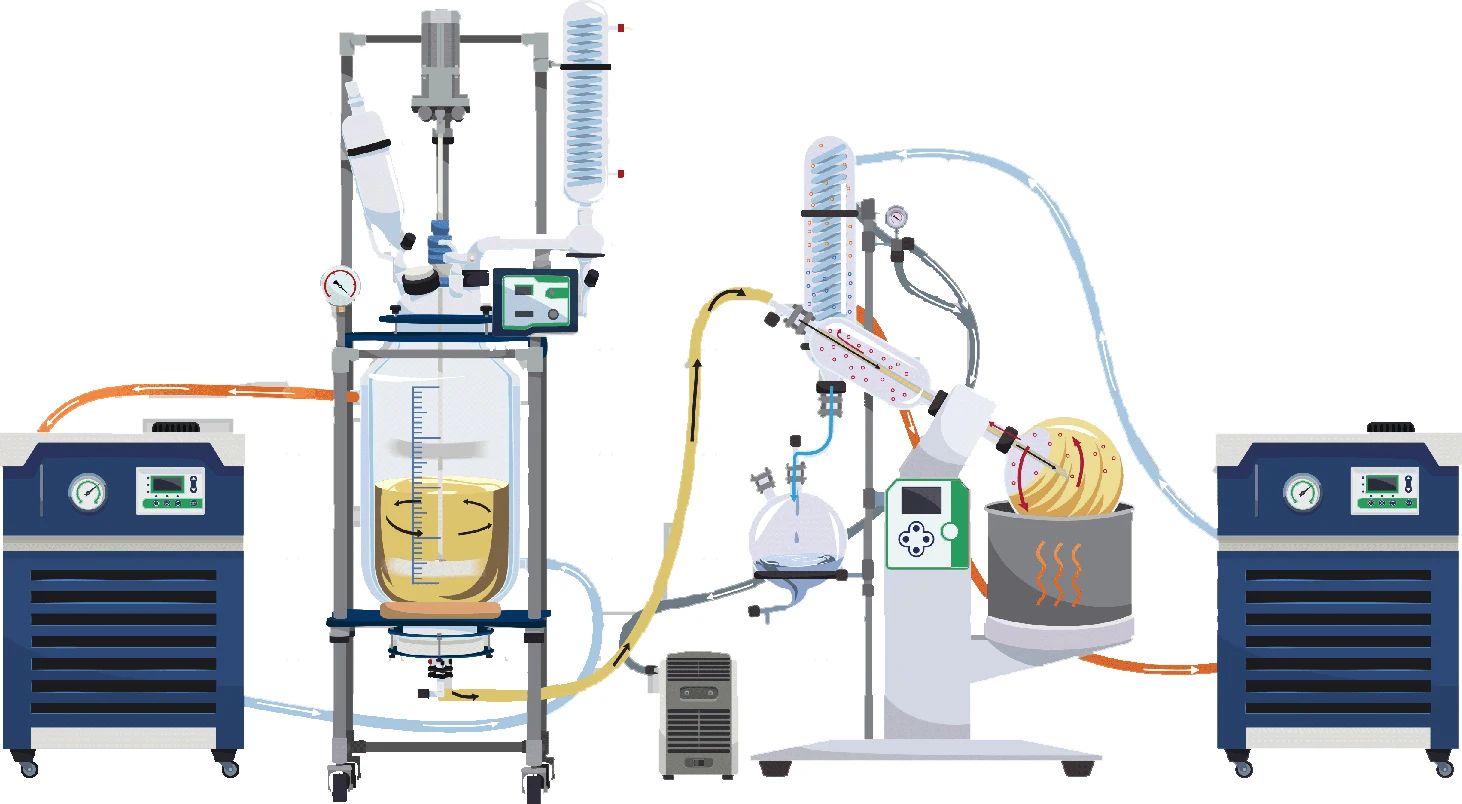

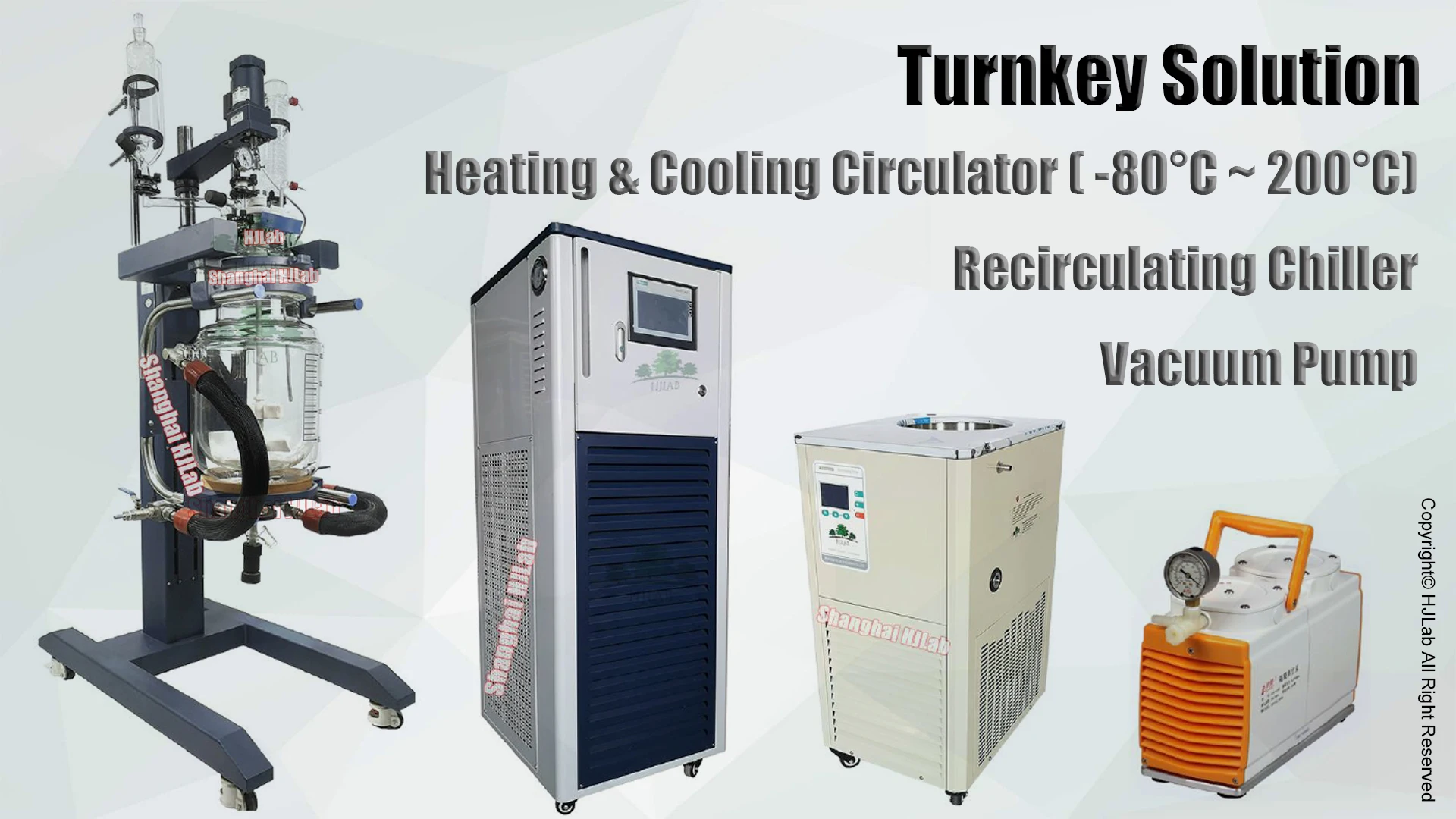

Turnkey Jacketed Glass Reactor with Chiller and Pump

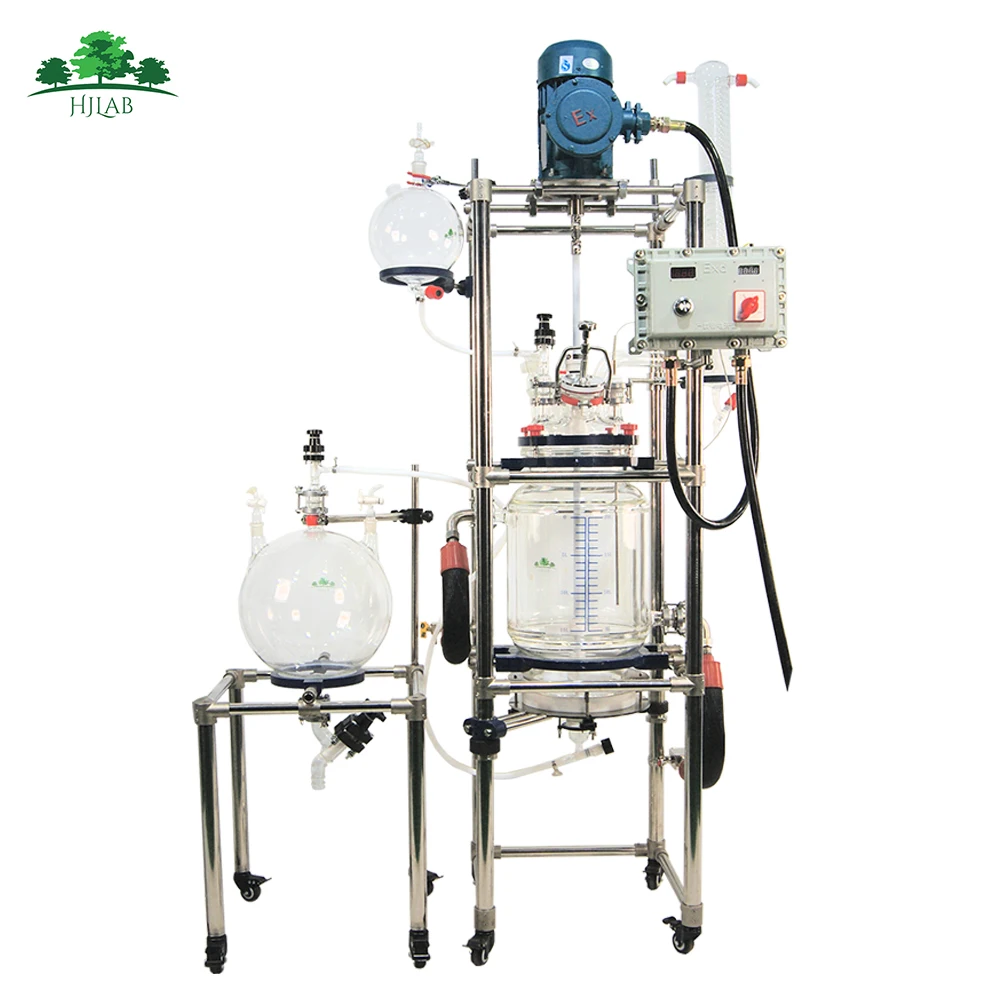

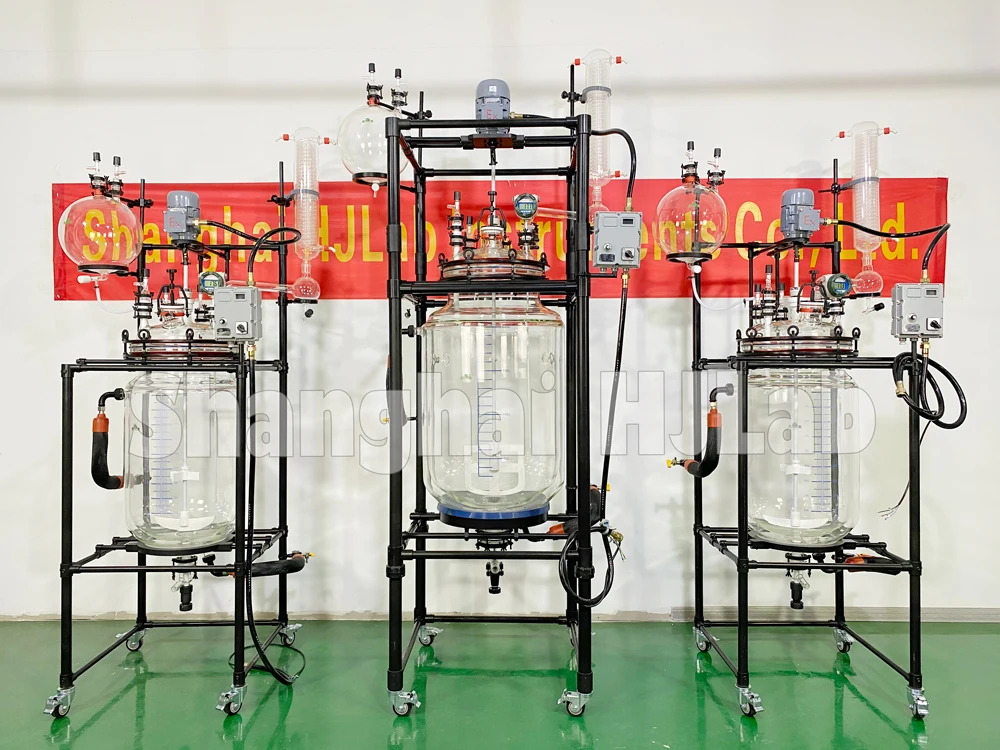

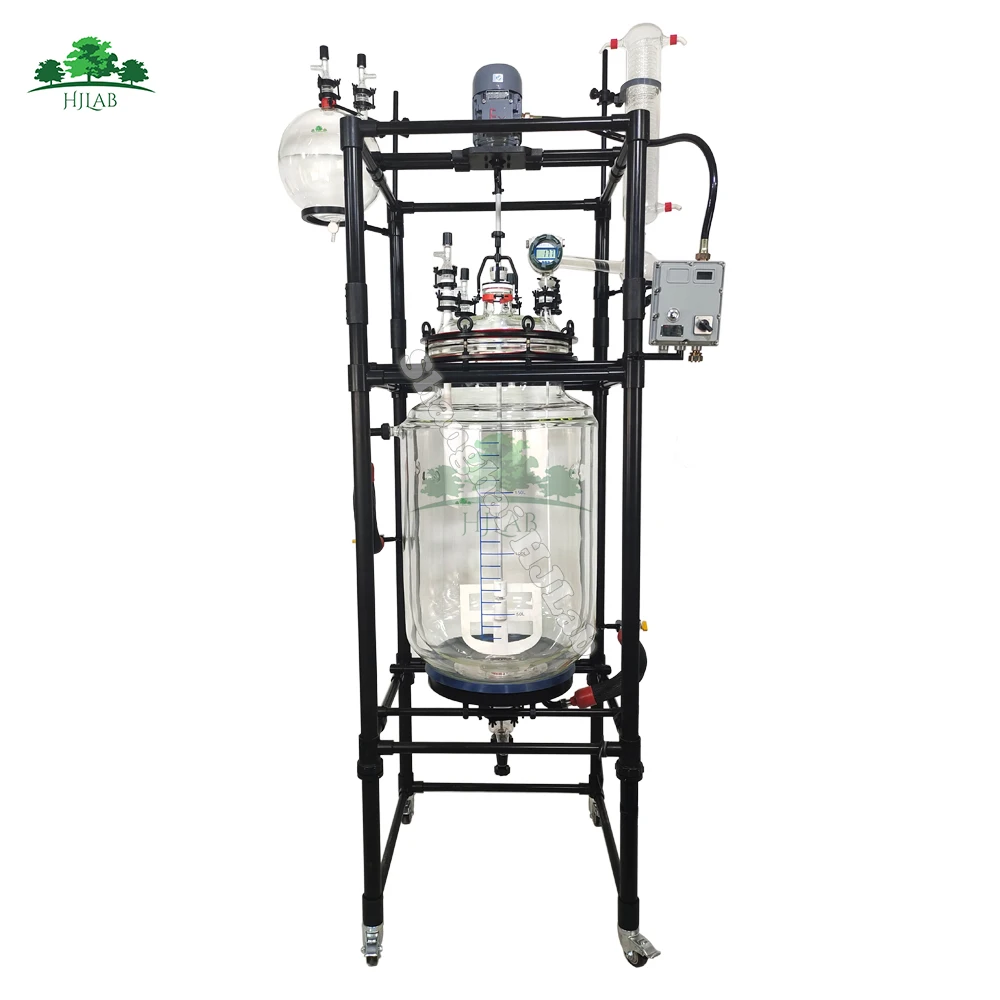

Product Showcase
Our Service
Pre-Sales Services
1) Online video meeting to visit our factory
2) Online video meeting to get every details about our products quickly
3) Online video meeting to confirm the working performance
4) Rapid answering the questions to support you to working with your End-User
2) Online video meeting to get every details about our products quickly
3) Online video meeting to confirm the working performance
4) Rapid answering the questions to support you to working with your End-User
Delivery Services
1) We can arrange the delivery to your specify location which saving your energy andexpensive time.
2) By Air and By Sea
3) Any broken during transportation will be FedEx to you For Free.
2) By Air and By Sea
3) Any broken during transportation will be FedEx to you For Free.
Inspection Service (Bureau Veritas)
1) Third-party for in-depth post-production product inspection
2) On-Site Check
3) Workman Check
4) Function Check
5) Contract Product Quality
6) Conformity Check
7) Quantity Verification
2) On-Site Check
3) Workman Check
4) Function Check
5) Contract Product Quality
6) Conformity Check
7) Quantity Verification
Payment Service
1) Visa, MasterCard, e-Checking
2) TradeAssurance (Covers all payment made during the ordering process up to 30 daysafter you receive the goods)
3) BuyNow and Pay Later
4) T/T(30% Advance payment and 70% Balance)
2) TradeAssurance (Covers all payment made during the ordering process up to 30 daysafter you receive the goods)
3) BuyNow and Pay Later
4) T/T(30% Advance payment and 70% Balance)
After-Sales Service
1) 1 Year Warranty
2) Free Spare Parts except the glasswares and sealings
3) On-Site Installation / Maintenance
2) Free Spare Parts except the glasswares and sealings
3) On-Site Installation / Maintenance
Our Company
Shanghai HJLab Instruments is one professional Chinese manufacturer of lab and pilot apparatus applied in biochemical, pharmaceutical, fine chemical and research field.
Main products are Rotary Evaporators, Glass Rectors and complementary Vacuum Pumps, Heating/Cooling Circulators, etc.
With nearly 10 years development, HJLab accumulated rich customer groups and huge amount of application experiences; Brand has won wide market recognition on reliable technology, low repair rate, sincere service and strong customization ability.
We work during out of our regular working hours (9AM to 6PM Beijing Time).
"Good quality, Reasonable price, Punctual delivery, Sincere service" is our company's commitment to you.
So Please feel free to give us a call or drop us a message, and you will be our next story of success.
