Product Overview

Description



Product Description





 .jpg





















































item

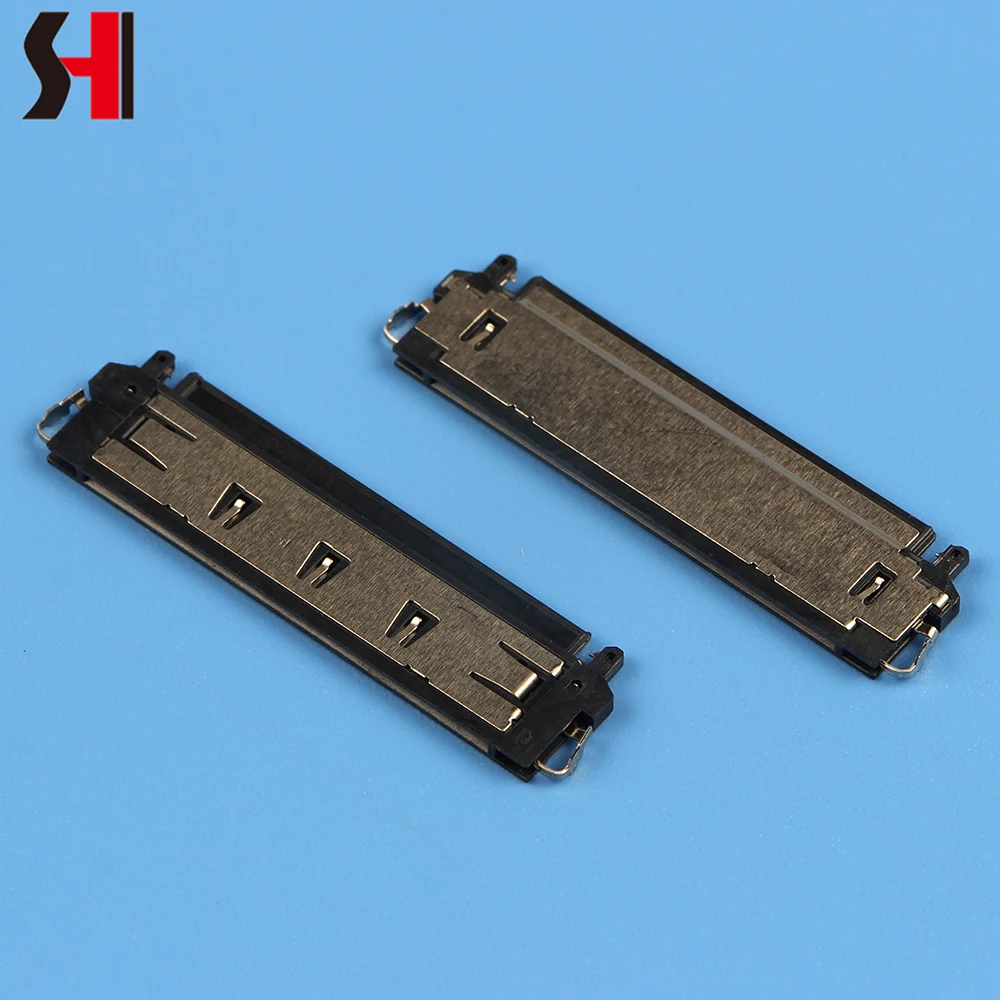

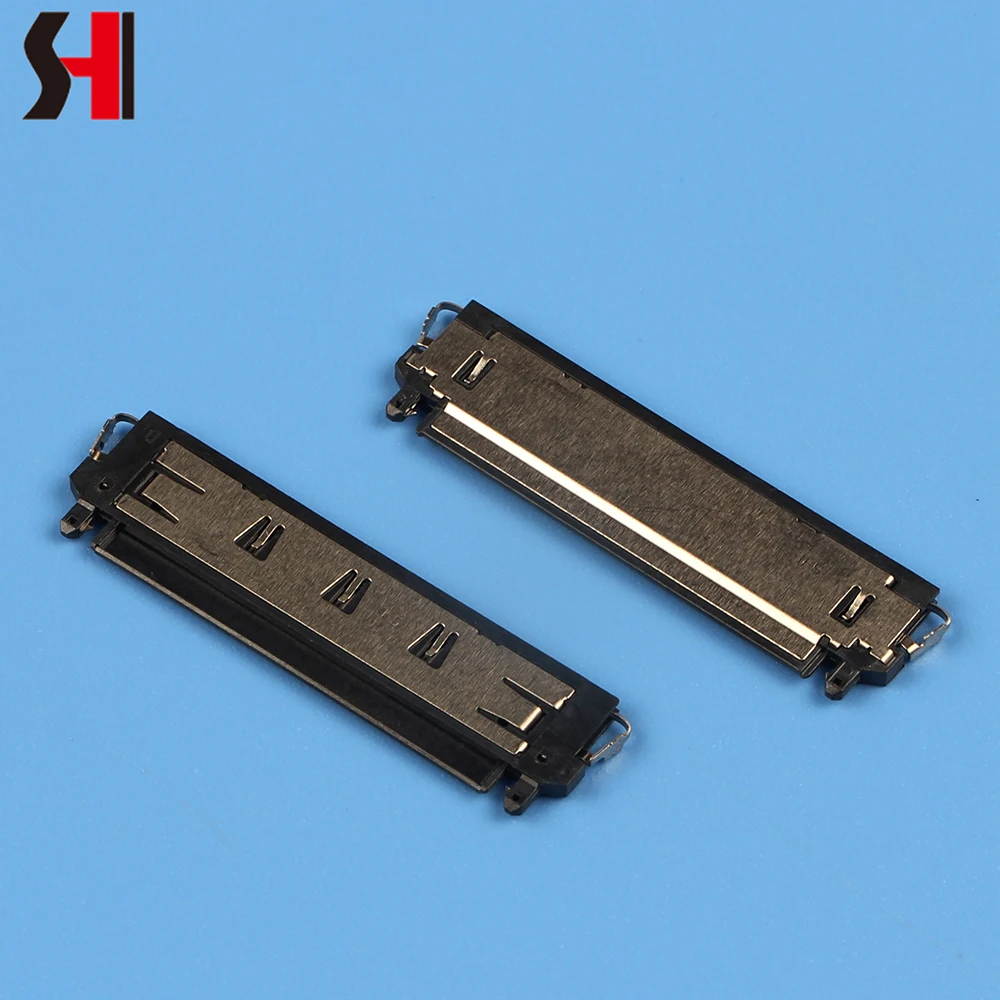

lvds 1MM pitch 30pin fpc/ffc led display connector

Poles


30


current rating


1.0A AC,DC


voltage Rating


500V/AC.DC


Temperature Range


-45℃ TO +85℃



Contact Resistance



≤30mΩ(Initial)


≤60mΩ(Final)


Insulation Resistance


≥100MΩ


Withstand Voltage


500V  AC/MINUTE


Applicable Wire


0.28-0.32mm


Housing Material


LCP UL94 V-0


Certificate


UL.ROHS.CQC.NQA.TUV

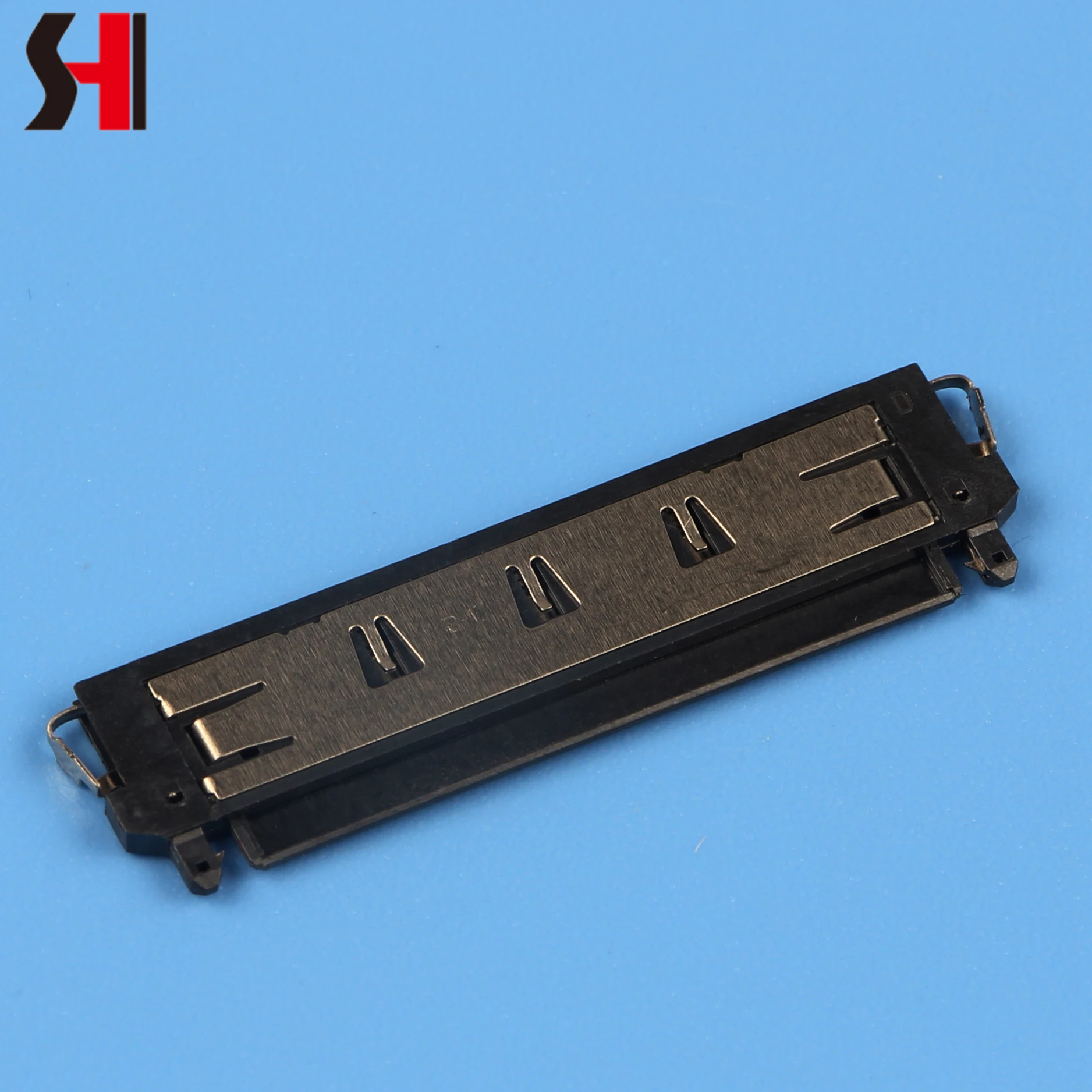

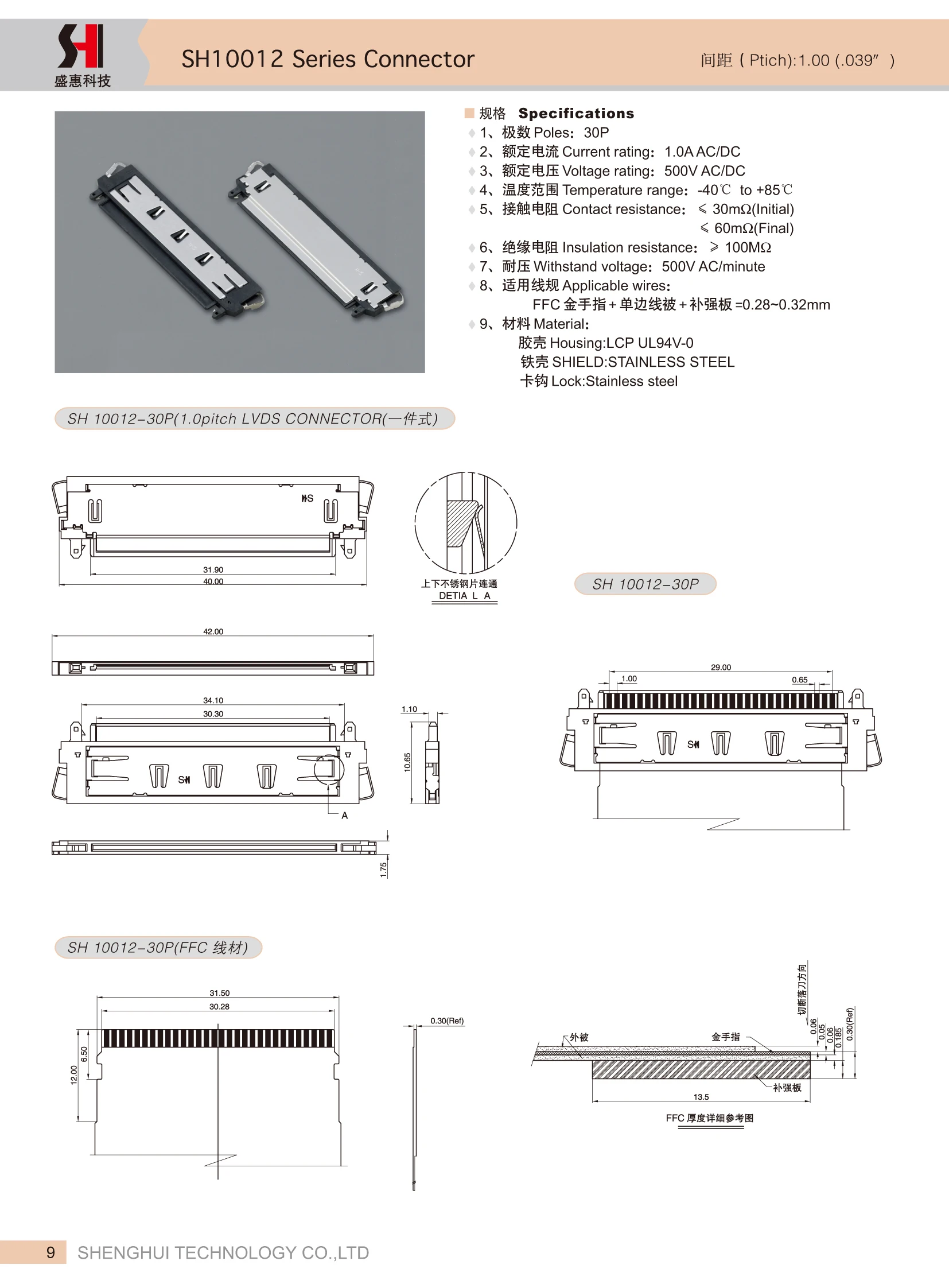

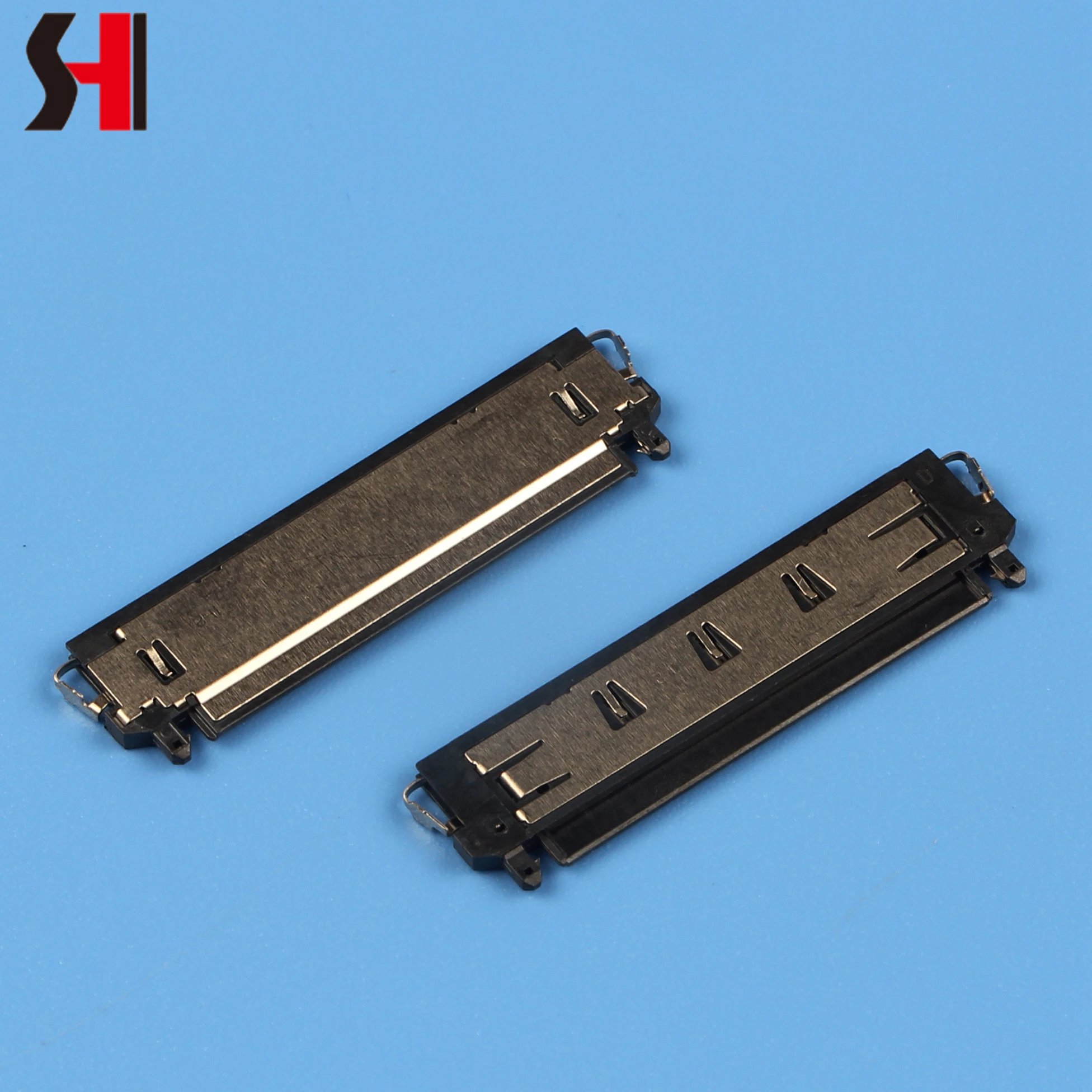

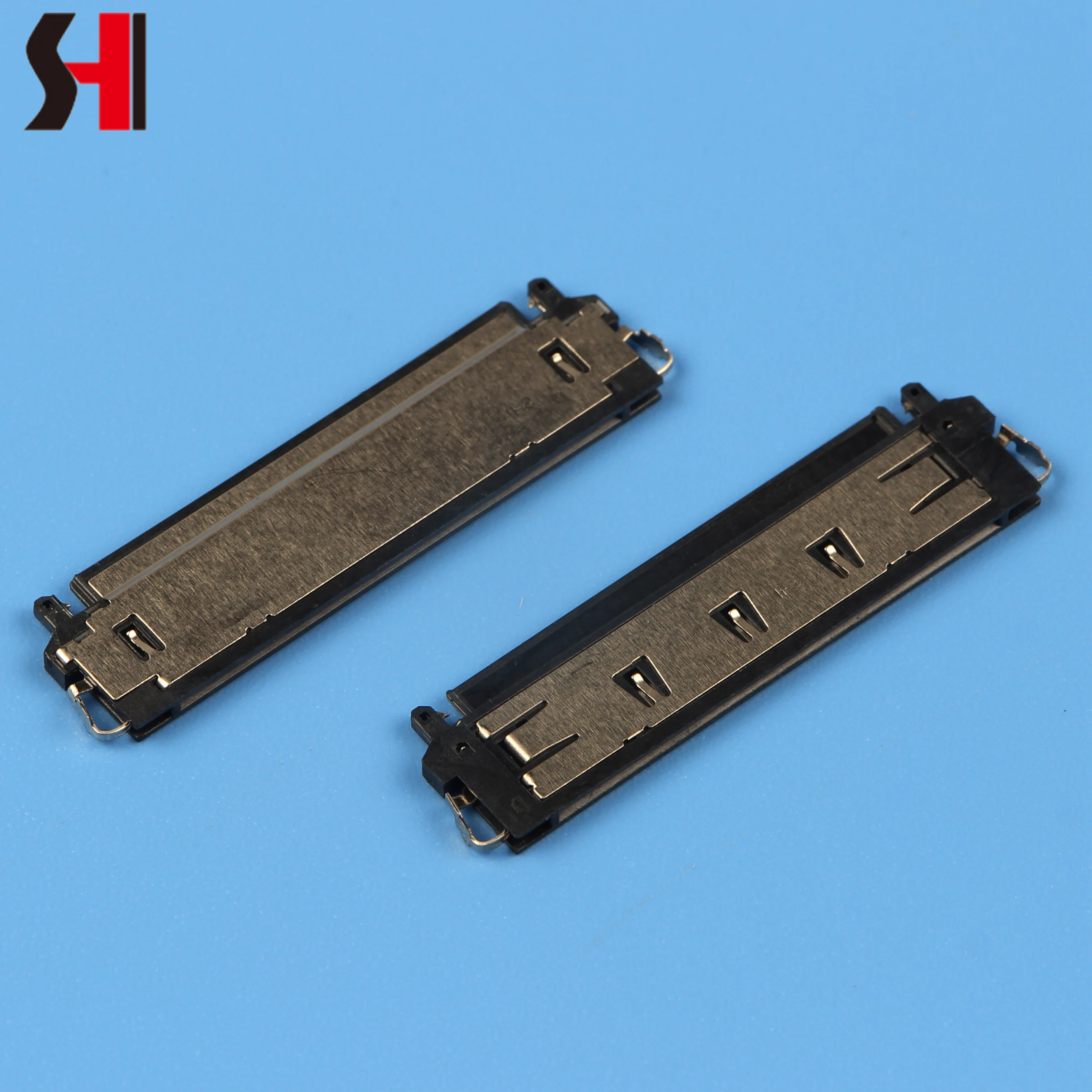

SH10012-2SH10012-4SH10012-6SH10012





Related Products

















Certifications



We  have UL.ROHS.TUV.CQC.NQA Certifications.





Company Information


ourcompany

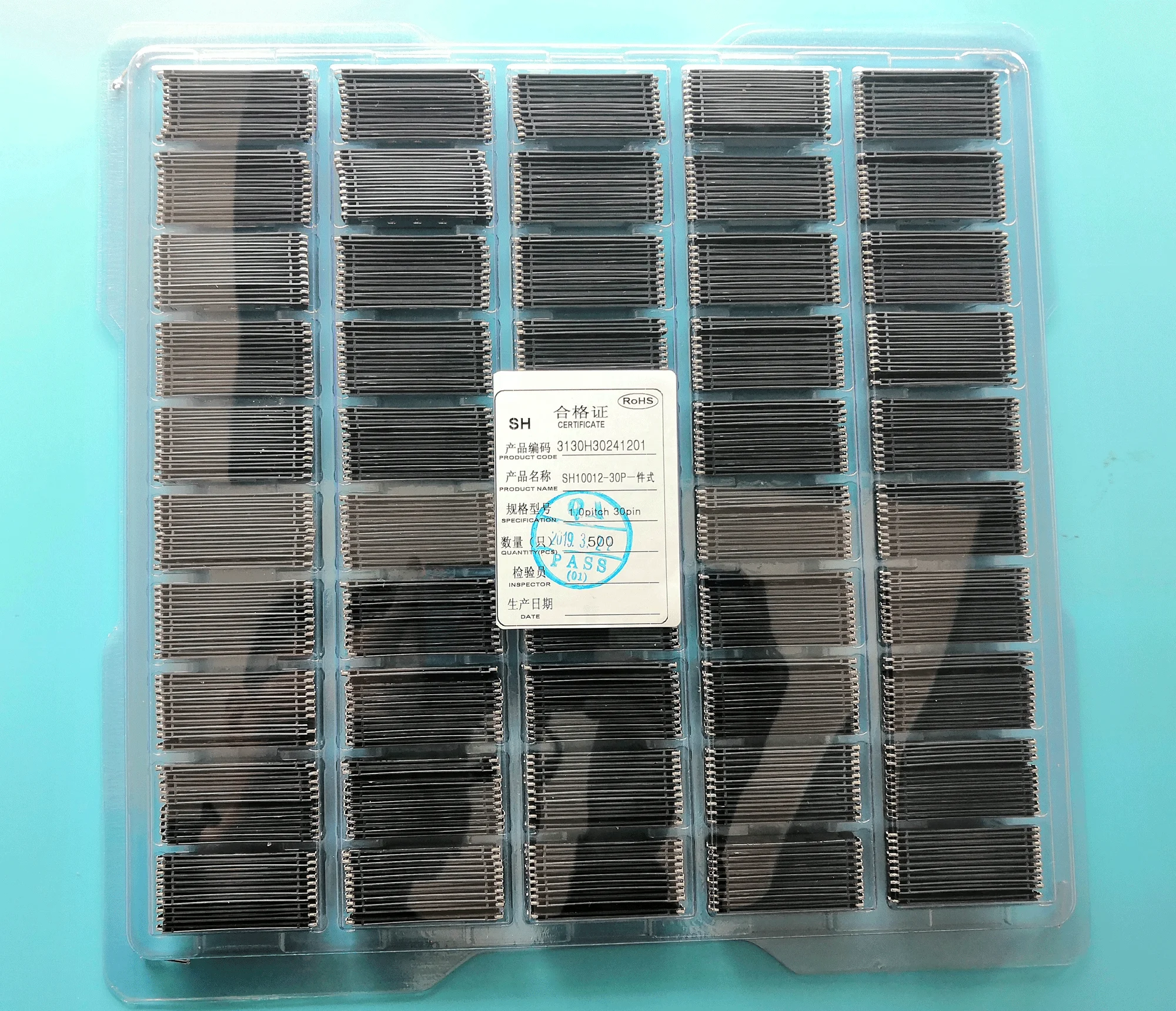

Packaging & Shipping
