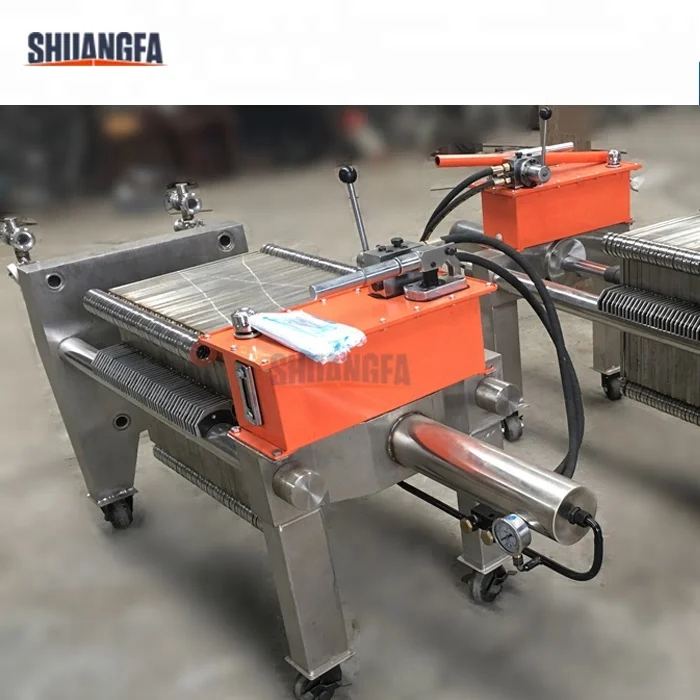

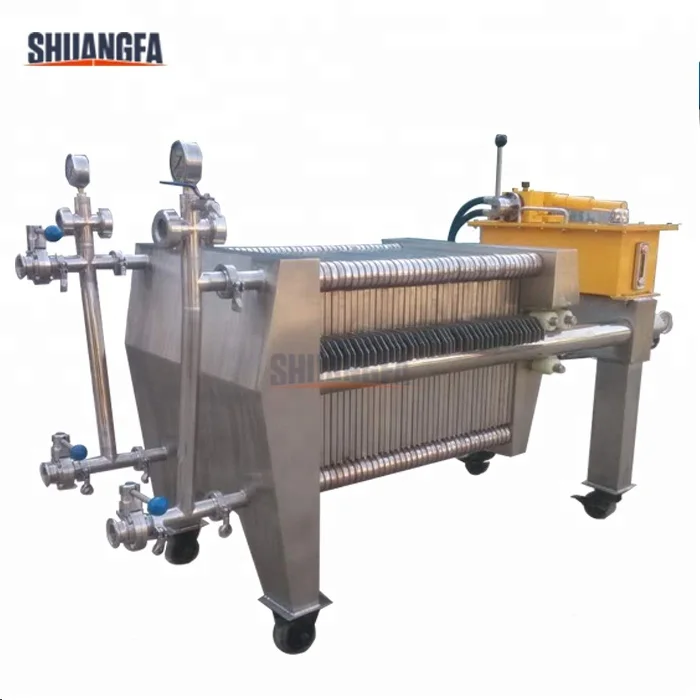

Grape Wine Plate Filter For Fine Filtration, Stainless Steel Beer Filter Machine With Filter Cardboard
- Category: >>>
- Supplier: Henan Shuangfa Chemical Industry Machinery Co. Ltd.
Share on (62043134570):
Product Overview
Description
Product Description
Stainless steel plate filter machine is currently the most reliable and most reliable clarification, sterilization equipment, together with different types of fine filter or sterilization cardboard, it can process a variety of wine, beverages, food, chemical and other industries liquid products for different precision Clarification or sterilization filtration.
Working principle of wine filter machine
The liquid products which need further filtration are conveyed to the import channel formed by filter plate, seal and end plate.
Then they flow into the end plate and each fine filter box. Because of the pressure difference before and after filtration, the liquid products flow into filter box through the fine filter plate, then under the closure, screening and adsorption of fine filter plate, the impurities such as solid particles and thallus are separated from the liquid products, finally, the clarified liquid products flow out from the outlet channel at the other side of the filter plate.
Then they flow into the end plate and each fine filter box. Because of the pressure difference before and after filtration, the liquid products flow into filter box through the fine filter plate, then under the closure, screening and adsorption of fine filter plate, the impurities such as solid particles and thallus are separated from the liquid products, finally, the clarified liquid products flow out from the outlet channel at the other side of the filter plate.
Features of Products
1, Plate filter machine can make the diameter of 0.2 ~ 0.5um bacteria and solid particles 100% retention, which can replace the old pasteurization process, better retention of the original liquid properties.
2, Widely application: wine filtration, beer filtration, tea beverage filtration, fruit juice filtration, gelatin filtration, blood products filtration, citric acid filtration industry precision, sterilization filtration process.
3, Simple structure, easy to use, flexible to move, easy to maintain.
4, It can reserve the character of the original liquid products, the quality of filtration is stable and reliable.
5, It can re-filter the liquid products when the intermediate of filter plate group is setted with special plates.
2, Widely application: wine filtration, beer filtration, tea beverage filtration, fruit juice filtration, gelatin filtration, blood products filtration, citric acid filtration industry precision, sterilization filtration process.
3, Simple structure, easy to use, flexible to move, easy to maintain.
4, It can reserve the character of the original liquid products, the quality of filtration is stable and reliable.
5, It can re-filter the liquid products when the intermediate of filter plate group is setted with special plates.

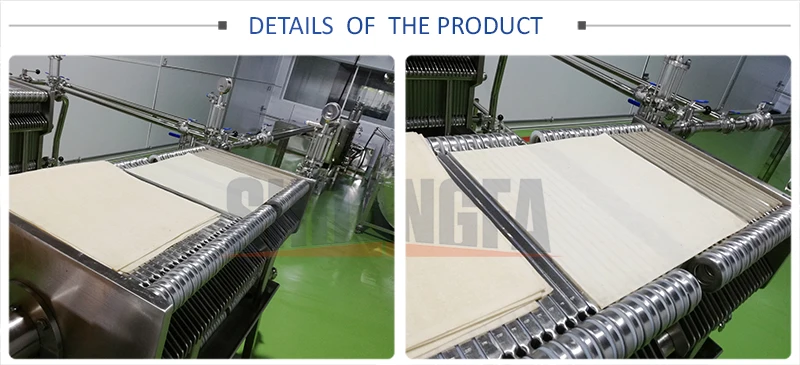

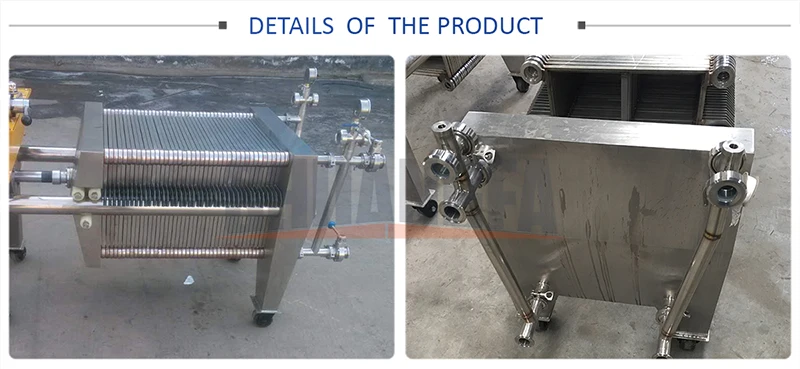

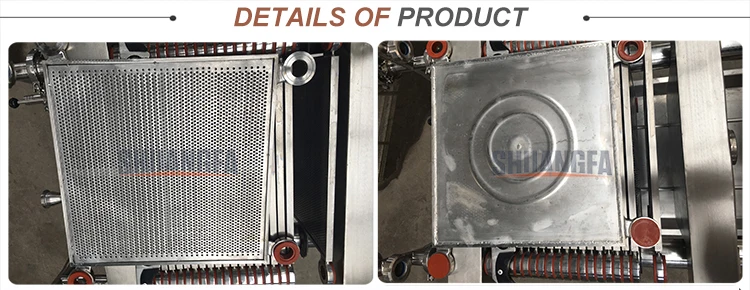

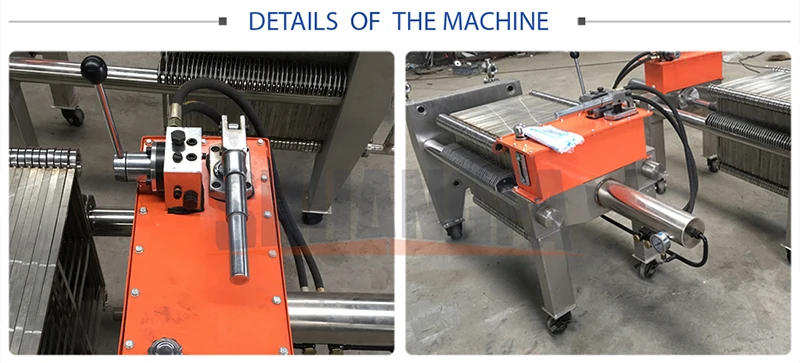

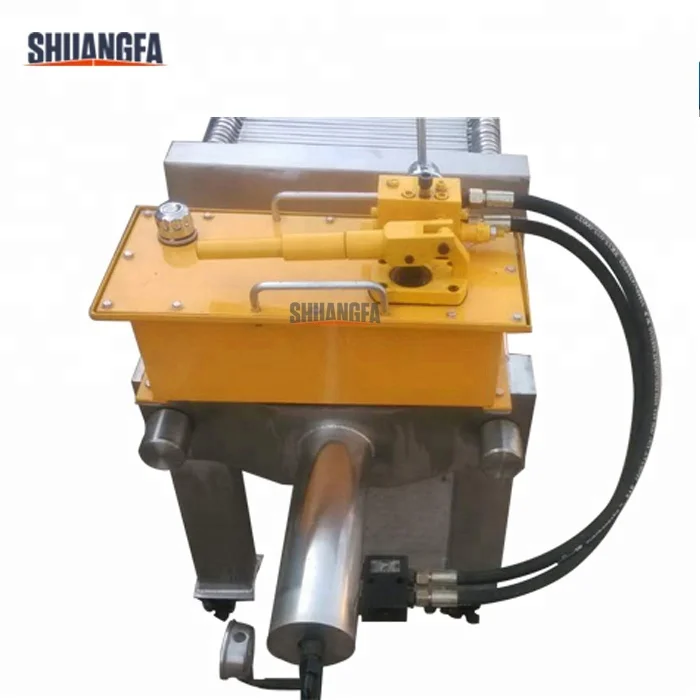

Detailed Images
Application of Products
Stainless steel plate filter machine is widely applied on wine filtration, beer filtration, tea beverage filtration, fruit juice filtration, gelatin filtration, citric acid filtration industry precision, sterilization filtration process etc.
Size Information
Model | Filter area(m2) | Flow of grape wine(t/h) | Max.working pressure(Mpa) | Dimension(L*W*H)(mm) | Weight(kg) |
PF400 | 5.7 | 3 | 0.4 | 2056*580*900 | 510 |
PF400 | 10 | 5 | 0.4 | 2250*580*900 | 700 |
PF400 | 14.3 | 7.5 | 0.4 | 3416*580*1050 | 1180 |
Related Products
Packing&Shipping

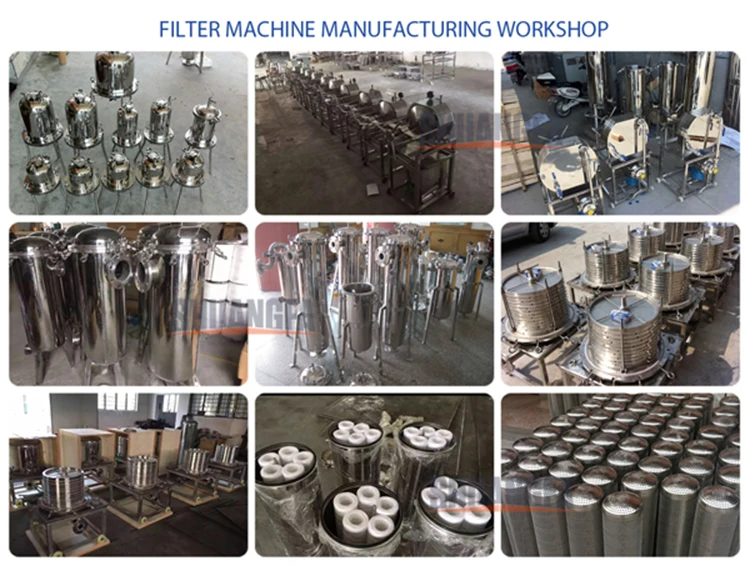

Company Introduction
