BLDC Gear Motor Planetary Brushless Motor Gearbox
- Category: >>>
- Supplier: Shenzhen Dingtuoda Electromechanics Co. Ltd.
Share on (62043139786):
Product Overview
Description
Product Description

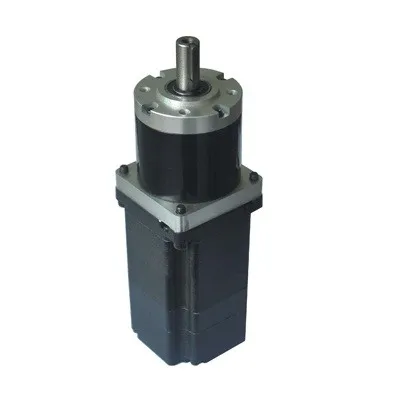

DINGTUO 60mm series Planetary Brushless Motor Gearbox
- Wide speed range, flat torque
- Excellent speed stability
- Compact size
- High efficiency and energy-saving
- Lou temperature rise, low noise
- Low vibration and long service life
- Low cogging torque
Technical Parameter
| Transmission Series | One-stage transmission | Two-stage transmission | Three-stage transmission |
| Transmission Efficiency | 96% | 94% | 90% |
| Maximum Radial Load | 245N | ||
| Maximum Axial Load | 200N | ||
| Instantaneous Emergency Stop Torque | Twice rated torque | ||
| Operating Temperature | -25℃~70℃ | ||
| Lubrication Method | Lifetime lubrication | ||
| Recommended Input Speed | 3000RPM(max) | ||
| Input and Output | Co-direction | ||
| Gearbox Length | 37mm | 46mm | 60mm |
| Same Path Spacing | 10 | ||
Motor Specifications
| Model | Rated Power (W) | Rated Voltage (VDC) | Rated Speed (RPM) | Rated Torque (N.m) | Gearbox shaft diameter (mm) | Length (mm) | No. of poles | Weight (Kg) |
| DT60BL80-230-XG | 100 | 24 | 3000 | 0.3 | 12 | 80 | 4 | 0.9 |
| DT60BL100-230-XG | 200 | 24 | 3000 | 0.6 | 12 | 100 | 4 | 1.25 |

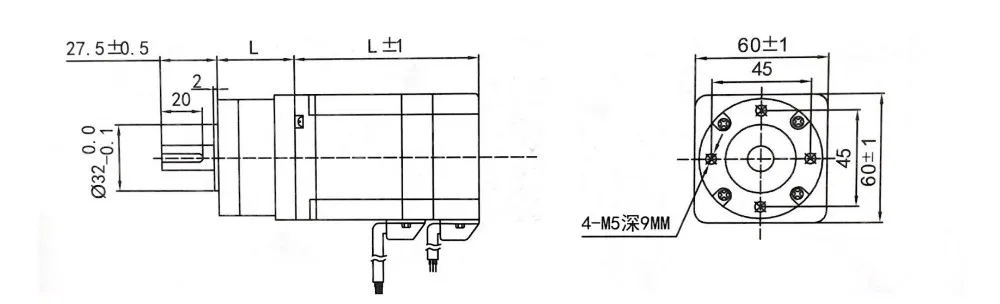

Dimensional Drawings

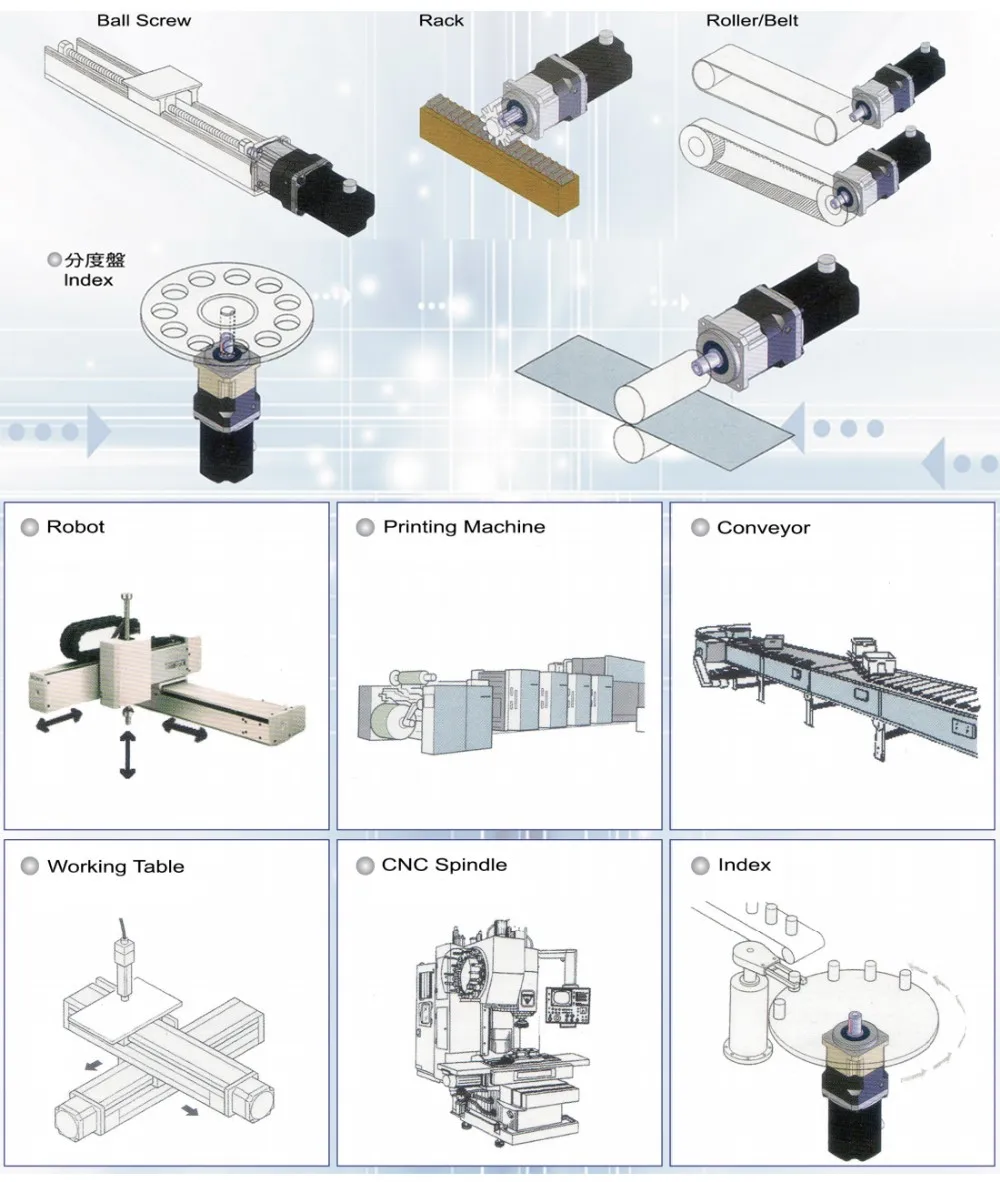

Application
Today, a growing number of applications rely on a brushless DC (BLDC) motor, ranging from automotive to industrial applications. Moreover, BLDC motors are used in medical equipment, home appliances, building controls and industrial automation. In each instance, a BLDC motor is chosen for the numerous advantages it offers, including:
▲Highest efficiency
▲Small motor size
▲Light weight
▲Longer lifetime
▲No maintenance
▲No sparking
▲Steady operation
▲Variable speed
Packing & Delivery
Certificates
As CE, ROHS, National Hi-tech Enterprise certified quality company, we strictly abide by Quality Control System, pursuing continuous improvement of products quality.
CE Declaration
DINGTUO' assures that our drives & motors meet the European Norm Standard.
RoHS Compliant
DINGTUO' is committed to offering products compliant with the EU RoHS directive.
National Hi-tech Enterprise
DINGTUO continues to carry out research and development and transformation of technological achievements in the "High-tech Fields Supported by the State", and forms core intellectual property rights of the enterprise, and conducts business activities based on this.
Computer Software Copyright Registration
DINGTUO obtained the computer software copyright registration certificate issued by the Copyright Bureau to realize the protection of computer software developed independently.
Customer Evaluation
Customer satisfaction is DINGTUO's primary aim, our drives and motors are designed to your exact specifications and we choose the right materials for client's samples.
Our Company
Who we are
Shenzhen Dingtuoda Electromechanics Co.,Ltd(DINGTUO TECHNOLOGY) was established in 2006. As a professional electric motor and driver manufacturer operating over 13 years, DINGTUO is first and foremost a reflection of its people.
Our company focus on professional R & D, production and sales of Servo/Stepper/BLDC motor system. We also committed to provide Customized OEM & ODM services to Global electrical distributors, industrial equipment manufacturers and automotive markets.
DINGTUO manufacturing center covering area around 2,500 M², and owning three production workshops, 9 production lines.
We are also continuously improving the performance and power efficiency of our products to help our customers enable new markets and applications.
Technology & Innovation
Manufacturing
Quality and delivery are the most important aspects of DINGTUO Motor Driver's manufacturing processes. DINGTUO prides itself on offering the highest quality products with the best possible delivery times. It all begins with DINGTUO's manufacturing process. DINGTUO manufactures all of its products under strict quality standards at plants within Guangdong China.
Quality is Built-In
DINGTUO operates in a Just-in-time and a Lean Manufacturing environment. Quality is built-in to the product throughout the entire manufacturing process. This is achieved by utilizing the One-Piece Flow System on our Flexible U-line work cells wherein all necessary equipment are positioned in the sequence in which it is used. In the simplest of terms, one-piece flow means that each motor is carefully built one-piece-at-a-time allowing it to be thoroughly inspected and tested, thus, quality defects are easily detected and contained.
Additionally, defect prevention is also the direct result of the continuous error proofing of our processes.
Product Testing
Every DINGTUO product undergoes reliability testing before they are released to the market. These test subject the product to the harshest of operating conditions and intentional misuse to discover the limits of their durability.
1 Year Warranty
DINGTUO stands behind every product with a 1 Year Warranty. Visit our warranty section for complete details.
Production Line
As the years of development, Now DINGTUO Technology has become the leader of motor control systems provider, It own production lines:
-Stepper Drives & Motors
-Servo Drives & Motors
-Brushless DC Drives & Motors
-Integrated Motors
-Linear Motion Systems
Advantage of DINGTUO TECHNOLOGY
-National High-tech enterprise certification
-Motor Drives Innovative &production team Over 13 years
-Electric Motor & Drives production workshop
-Strict quality management system
-Professional one stop supply & service
-OEM & ODM available
-Reliable and timely customer service
