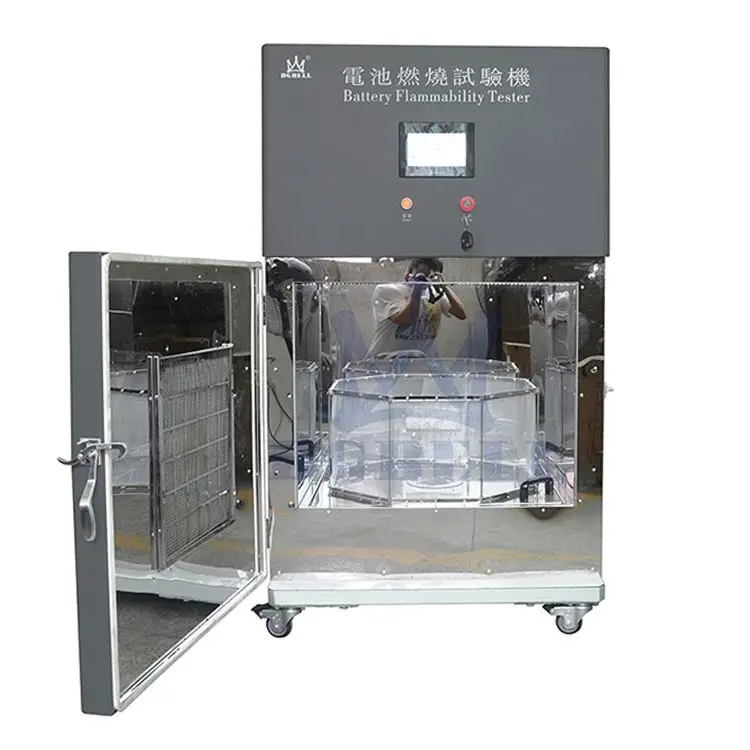

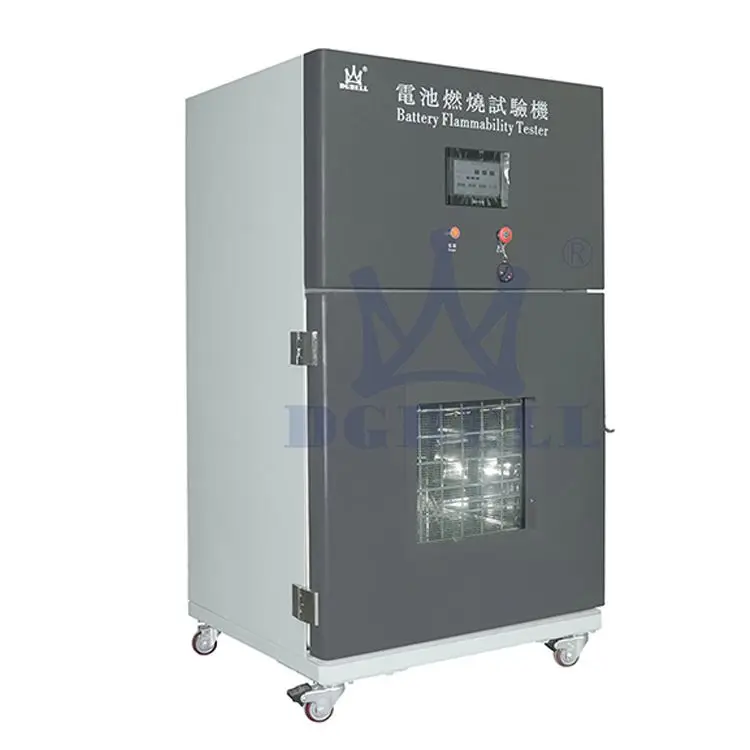

High Temperature Battery flammability Fire Burning Test Machine
Product Description
Appication:
This battery burning tester is necessary testing equipments for various battery manufacturer, quality inspection & control department to test battery burning resistance. With features of easy operation, safety reliable, high accuracy it becomes ideal testing machine for battery burning and ejection testing.
Testing Method:
1. Fix the mesh on top of the burner with 38.1mm distance, each 25.4mm mesh with 20 holes, steel wire diameter 0.43mm.
2. Ignition the burner, simultaneously observe the battery burning situation, till battery explode or burn out. And time the whole burning procedure.
Related Standard Test Requirements:
1. UL1642
2. GB31241-2014
Performance parameters:
Model | BE-8105 |
Structure | All-in-one structure, the door uses explosion-proof lock and explosion-proof chain |
Burner | Bunsen burner with inner diameter of 0.375 inch (9.5mm) and length approx. 100mm |
Flame Application Time | 99H 59M 59S |
Flame Height | *10~75±2mm(Adjustable) *Mesh should be placed approx. 38mm above the flame (GB31241-2014) |
Test Rod Diameter | 1/4inch(6.35mm)× 14inch(355.6mm) |
Octagon Shape Stainless Steel Mesh Enclosure | Distance between each parallel sides: 24 inches (610mm) Height: 14 inches (305mm), Angle iron : spec. 12.7mmX12.7mm |
Mesh Top Cover | Square shape with length approx. 650mm |
Test Aluminum Mesh Specification | 0.010inch (0.25mm) 16 grit x16 grit |
Test Round Hole Surface Diameter | 102mm |
Ignition Device | Automatic ignition |
Display Mode | PLC touch + Remote control |
Observation window | 390x360mm (20mm thick explosion-proof glass, install explosion-proof stainless steel mesh) |
Control Method | Remote control, automatic control through the entire test. |
Combustion Gas Requirements | High purity liquefied petroleum gas. (Prepared by user) |
Data Output | Test data can be output by USB flash disk directly . |

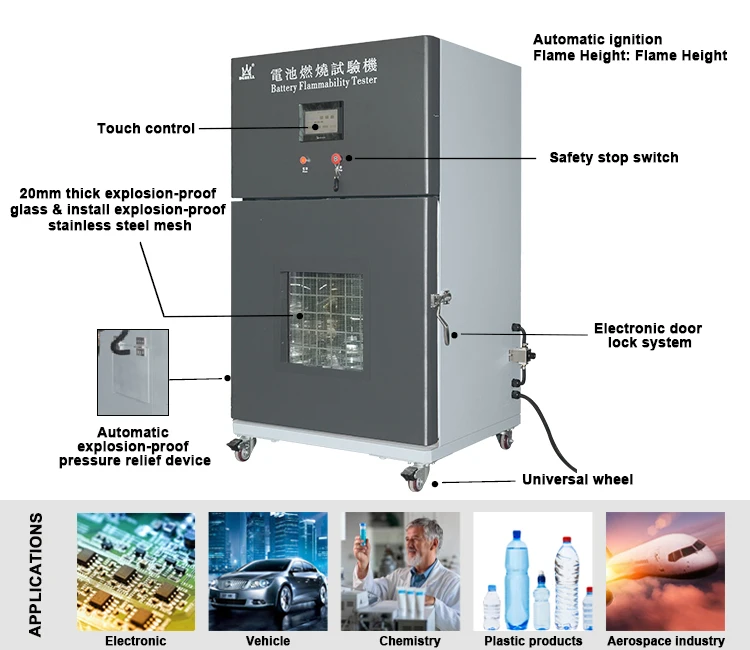

Safety Protection | Explosion-proof pressure relief device, smoke exhaust device, fire extinguishing system, electronic door lock system, safety stop switch |
Options | Temperature acquisition system, voltage acquisition system, video monitoring system |
Company Information
Guangdong Bell Experiment Equipment Co., Ltd is located in Dong Cheng District, Dong Guan City Guangdong Province, with register capital of RMB16.8 million. The factory covers an areas of 20,000 square meters with a building area of over 12,000 square meters. We are a high-tech enterprise specialized in manufacturing Battery Safety Test Equipment, Environmental Test Equipment and Mechanical Test Equipment, with more than 10 years’ experience of R&D.
Bell boost a team that consists of more than 120 employees and 60 of them with college educated background and 15 of them with senior engineer qualification. Enable us to provide excellent equipment and service to satisfy various customers, especially the customized non-standard equipment. Our experienced and well trained engineer team provides installation and after-sales service, making Bell to be the leading manufacturer of test equipment in China.
Packaging & Shipping
Packing:
1. Fully packed with PE film;
2. Wooden box;
3. Machine is fastened to the corners of the containers;
4. If export to European countries, the wooden box will be fumigated;
5. Customized package is available.
Certifications
FAQ:
1. Are a manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
-Yes, we are manufacturer of Battery flammability Tester. Every machine from our factory has a 12 months product warranty. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
-If there is no stock, normally, the delivery time is 15-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
-Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine
4. what about the products' quality?
-Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency.
5.what about the packing of equipment?
-We use Standard Export Plywood Case to Protect it from rust during the long time shipping with the plastic film and protect its corners with the foam.
