CVBS LCD Controller Board for 7inch 26Pin TTL interface LCD Screen 480x234 Resolution AT070TN07 HSD070I651 tft display

Share on:

Price:$20.00 - $25.00
Price in USD:Details


Product Overview


Products Show
Product Description

CVBS LCD Controller Board

Product Name:
CVBS LCD Controller Board
CVBS input LCD Controller Board Work For 26Pin TTL interface LCD Screen

Input Power Adapter:12Vdc More than 1A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: CVBS

OSD: Brightness Contrast Auto Language And So On

Language:English French German Spanish Italian And So On

Board Size:65mm x 40mm x 8mm

Compatible Work With:

7inch 480x234

HSD070I651 AT070TN07  HT70M02-HB070-AM171-12A

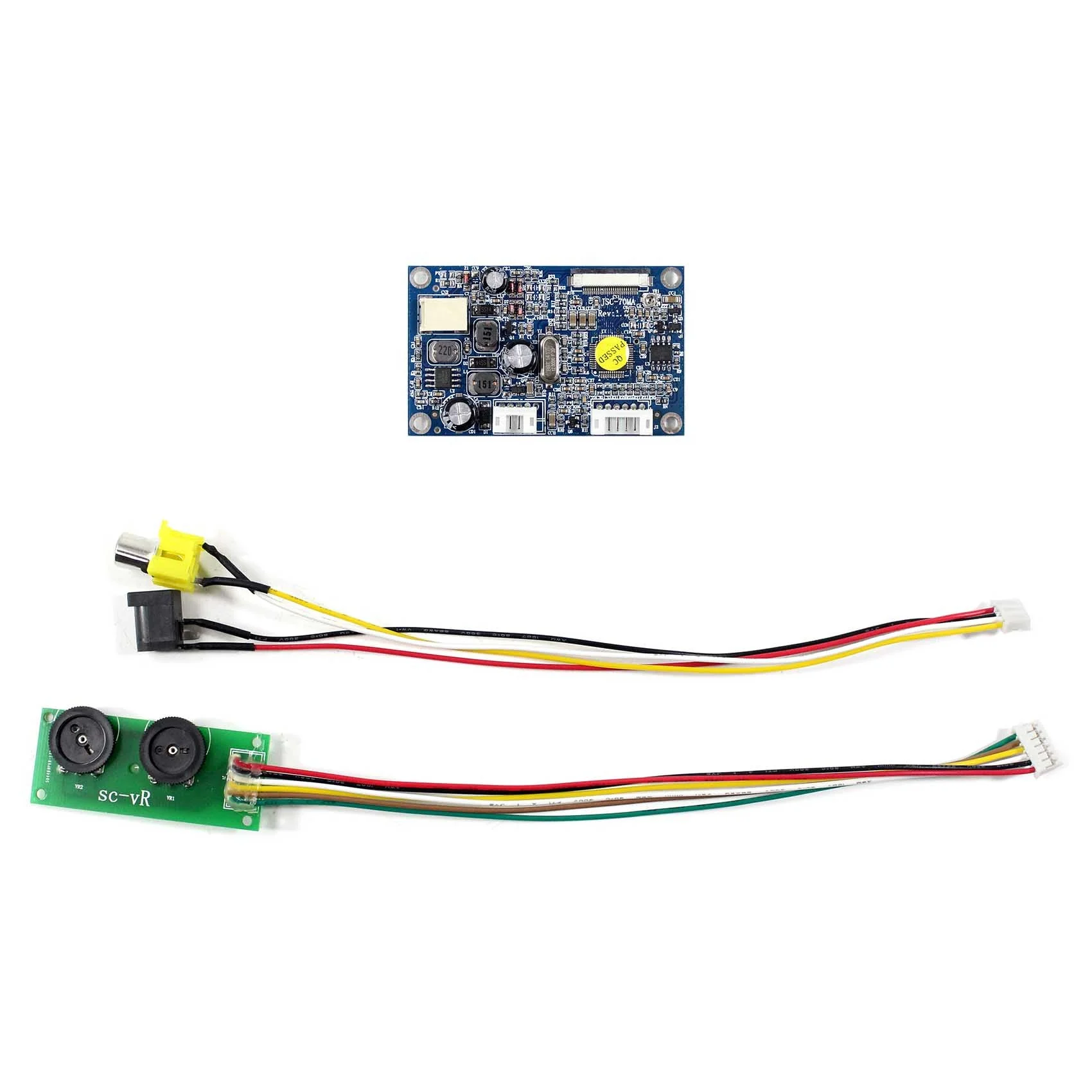

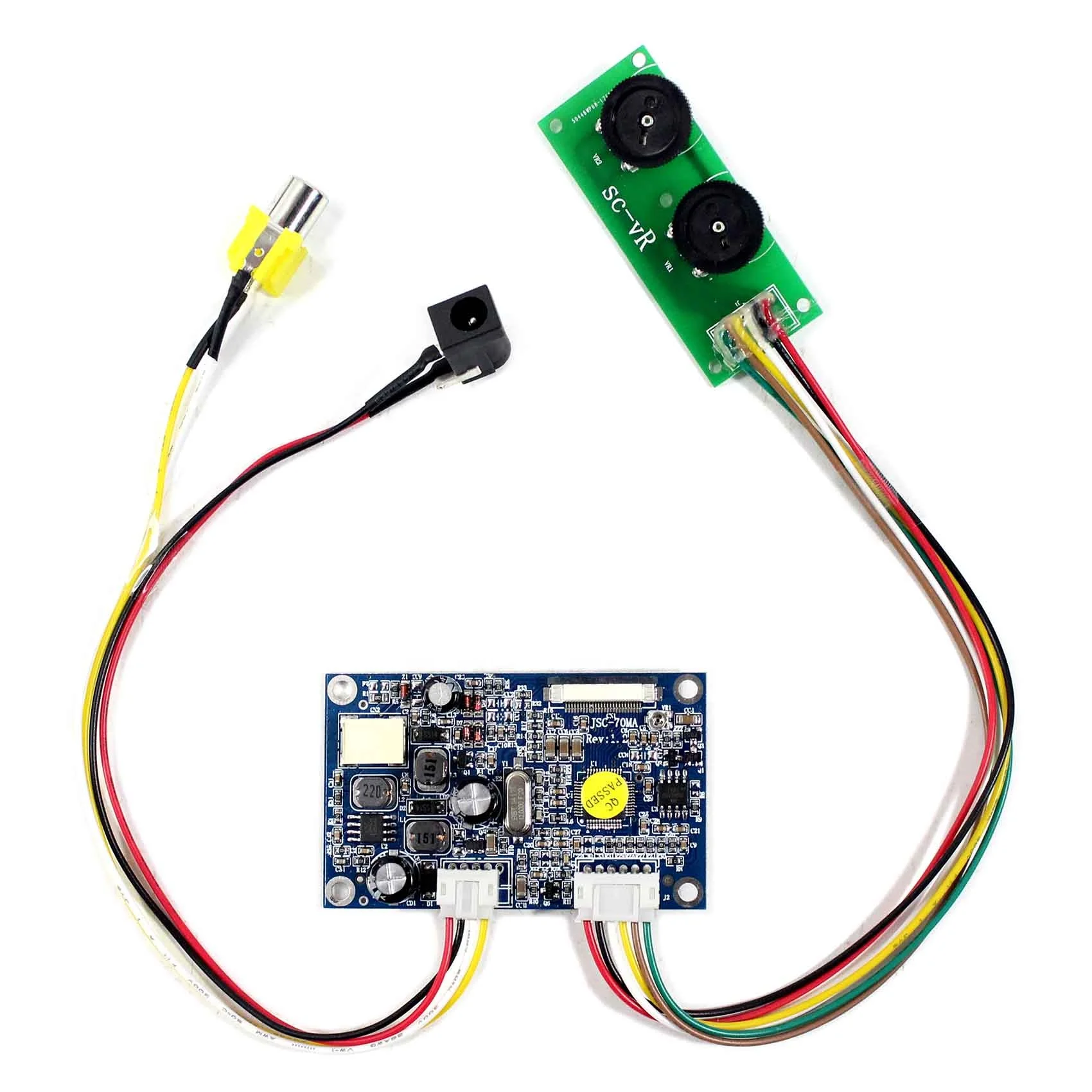

Packing list:
1× CVBS LCD Controller Board

1× Power&CVBS Cable

1×Keyboard With Cable
