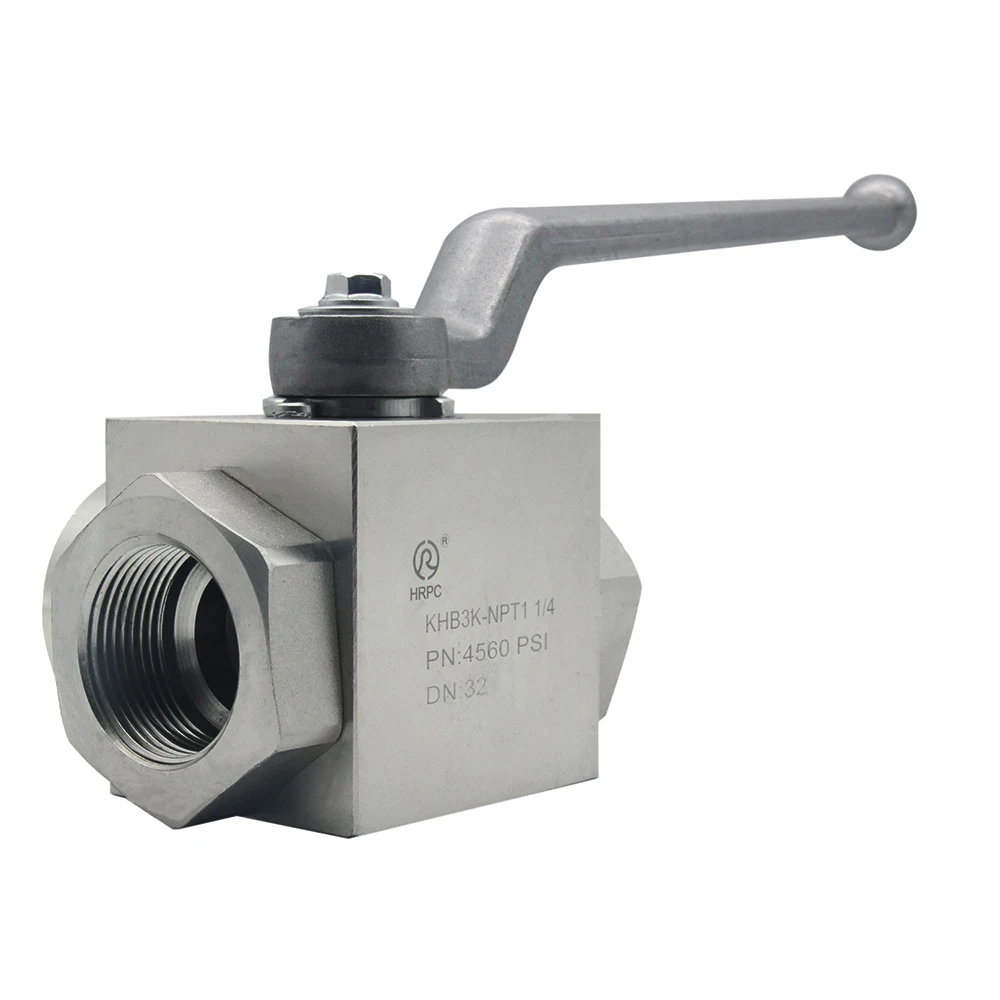

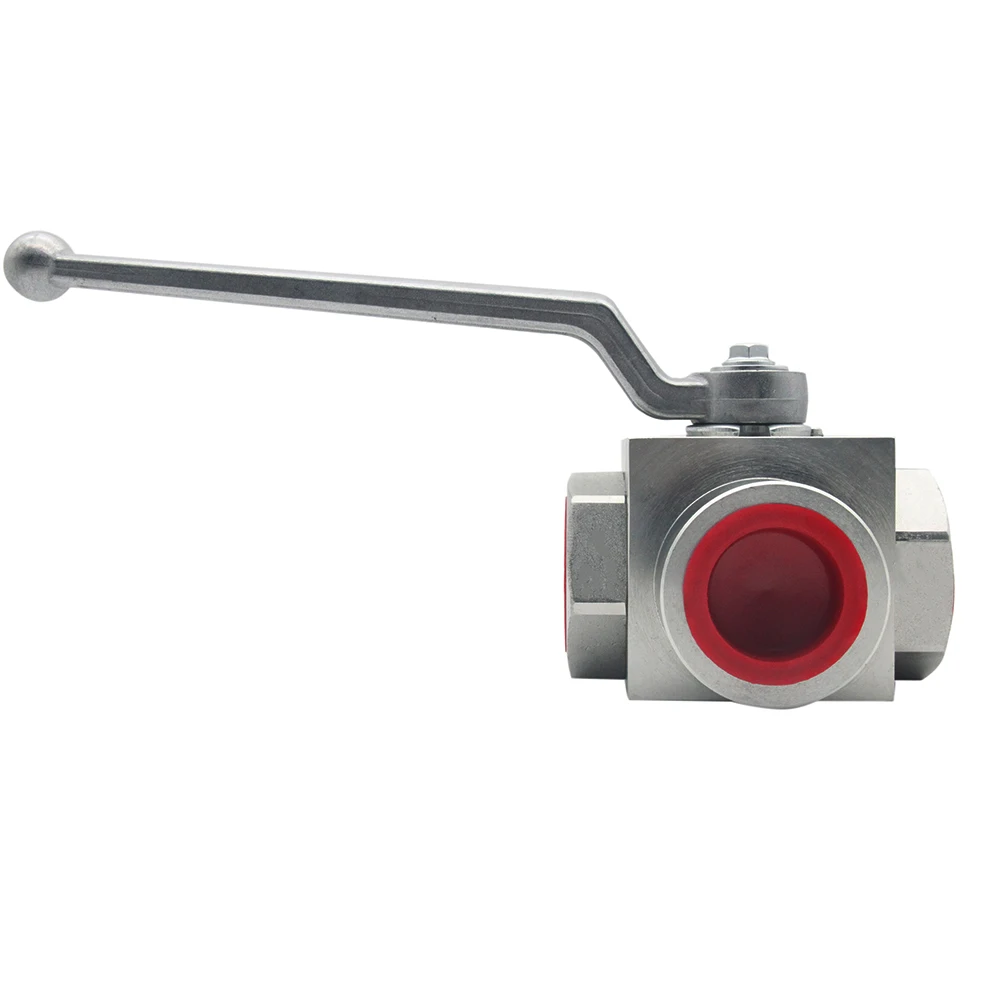

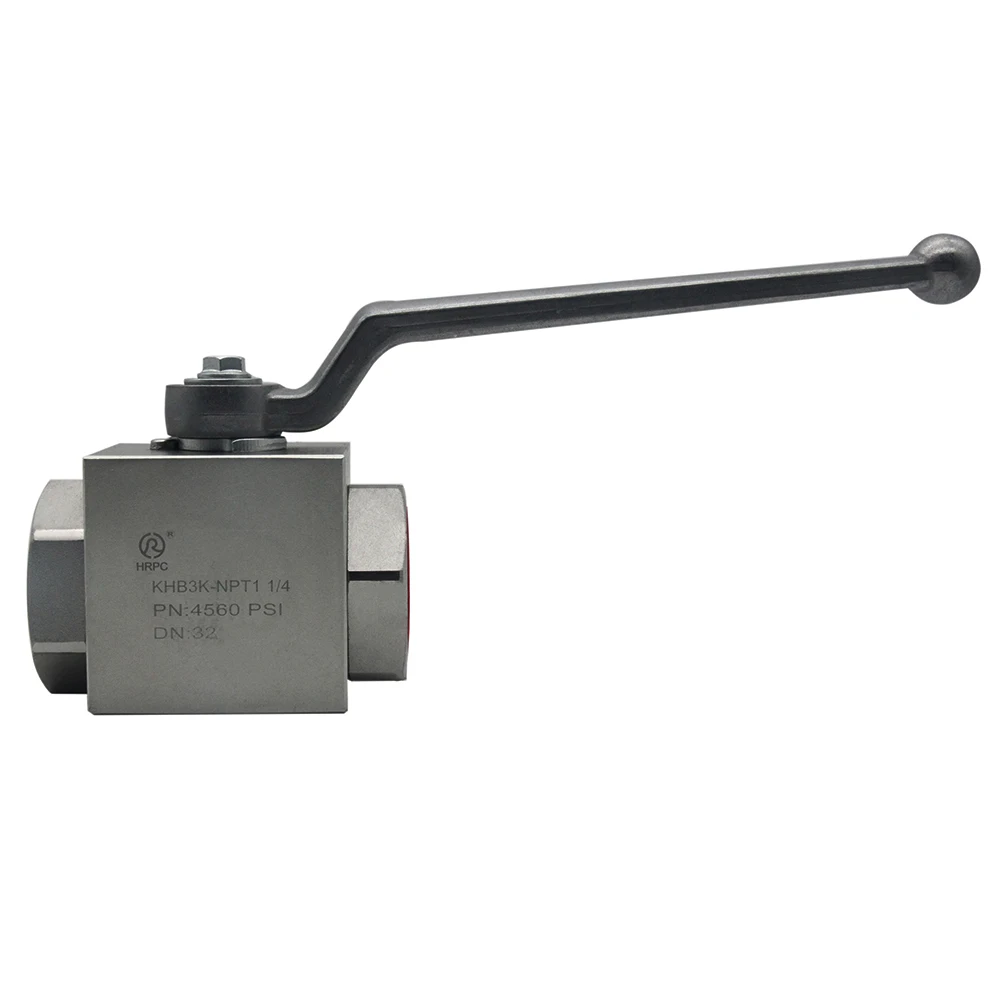

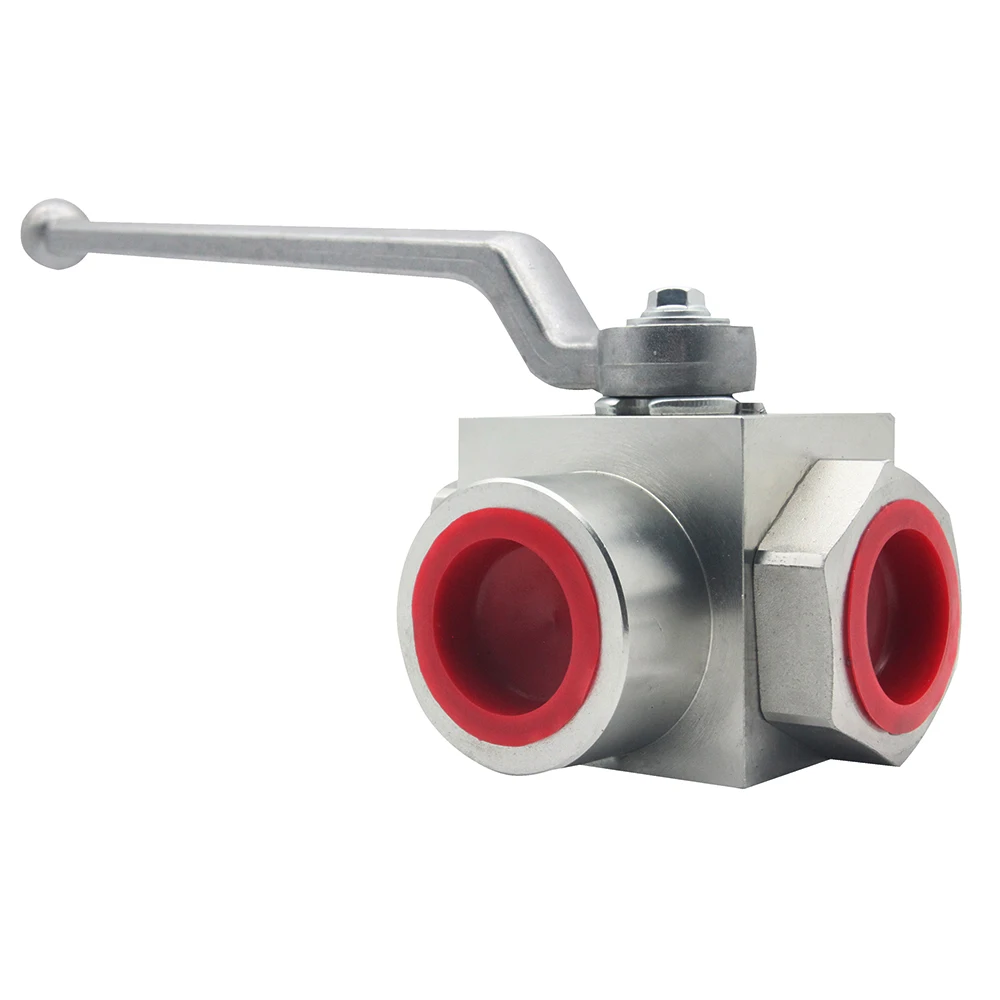

KHB3K 3 way high pressure hydraulic ball valveNPT1 1/4, 4568PSI 315Bar
- Category: >>>
- Supplier: Ningbo Huarui Automation Equipment Co. Ltd.
Share on (62043211210):
Product Overview
Description
PRODUCTS NAME: 1 1/4inch khb3k series high pressure 4568psi NPT female thread 3-way ball valves made in China
Ball valve drawing:
Overall Dimension:
PORT:
Specific dimension sheet:
| Model | PN(Bar) | DN | LW | RA | d1 | i | L | L1 | B | H | h1 | h2 | SW1 | SW2 | S |
| KHB3K-NPT1 1/4 | 315 | 32 | 32 | / | NPT1 1/4 | 22 | 110 | 75 | 66 | 92 | 33 | 75 | 14 | 55 | 62.5 |

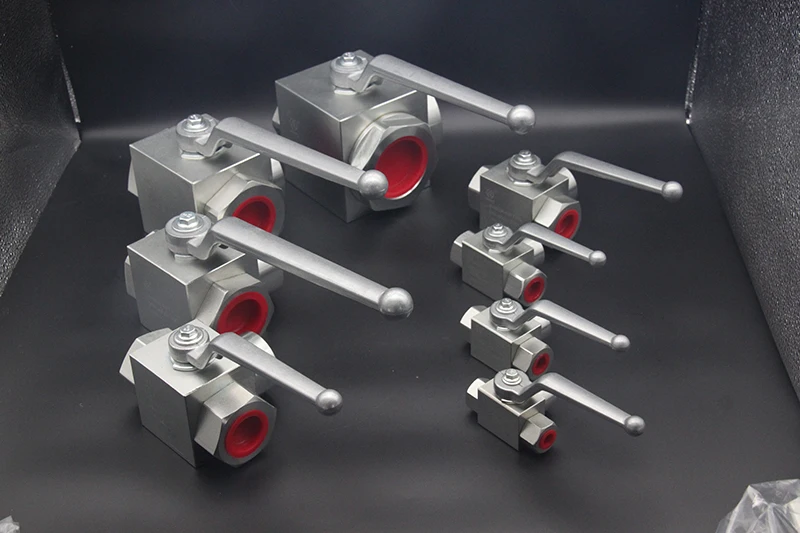

ALL SIZE OF KHB3K NPT SERIES PHOTOS:
Material sheet:
Dimension Sheet:
| KHB3K Series Ball Valve | ||
| Size | Diameter | Pressure |
| 1/8" | 4mm | 7250psi |
| 1/4" | 6mm | 7250psi |
| 3/8" | 10mm | 7250psi |
| 1/2" | 13mm | 7250psi |
| 1/2" | 16mm | 5800psi |
| 3/4" | 20mm | 5000psi |
| 1" | 25mm | 5000psi |
| 1.1/4" | 32mm | 5000psi |
| 1.1/2" | 40mm | 5000psi |
| 2" | 50mm | 5000psi |
Specifications:
1. Series Code: KHB3K(BK3) Series Two-Position Three-Way Ball Valve
2. Joint Code: G**, **LR, **SR, PT**, NPT**
3. Valve Body Material: 1-Steel
4. Ball Body Material: 1-Steel
6. Other Airproof: 2-NBR, 4-FPM
7. Handle Type: 02-Aluminium Crooked Handle, 04-Casting Zinc Crooked Handle, 06-Steel Crooked Handle, 09-Without Handle
8. Design Number: To Be Decided By The Manufacturer
9. Surface Disposal: Blank-Phosphoric Polish, G-Electroplated Yellow Zinc
More products for your to choose:
Company Information
HRPC mainly export to Northern Euroe, include Germany, Italy, Finland, UK, France, Spain, ect
Our products reputed of high quality and quick delivery time.
Strength of HRPC high pressure ball valves
1) 13 yesrs Experience
2) Steady production Capacity
3) Competitive Price
4) High standard quality
5) Strict inspections
6) good after-sale service
