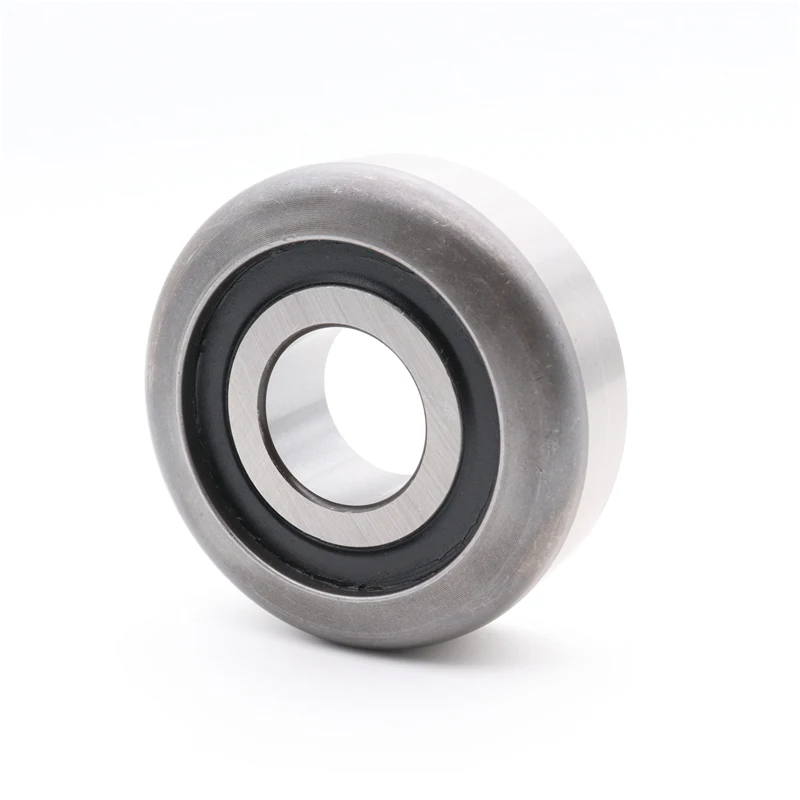

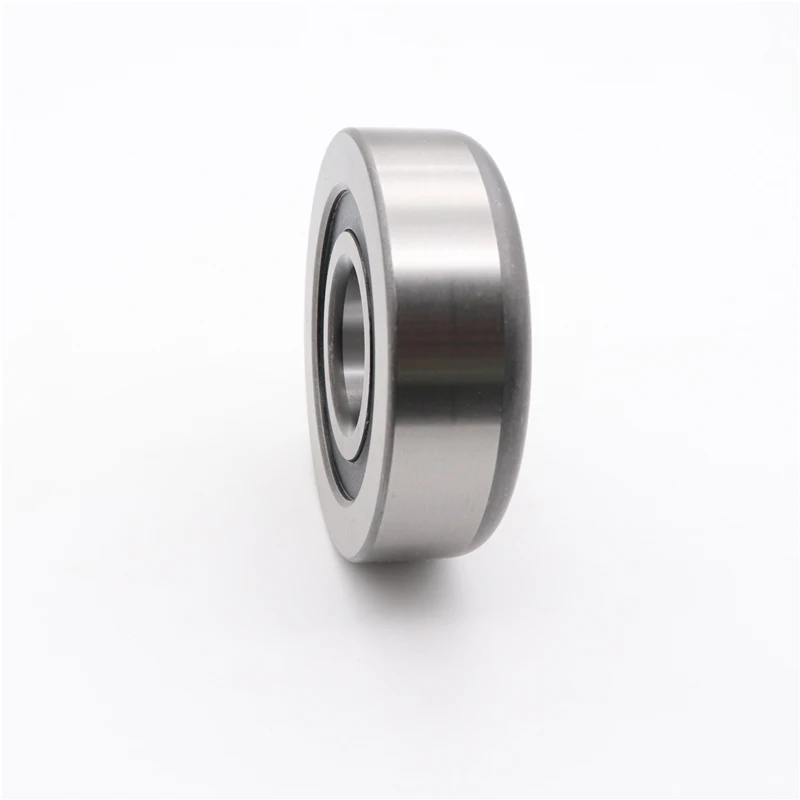

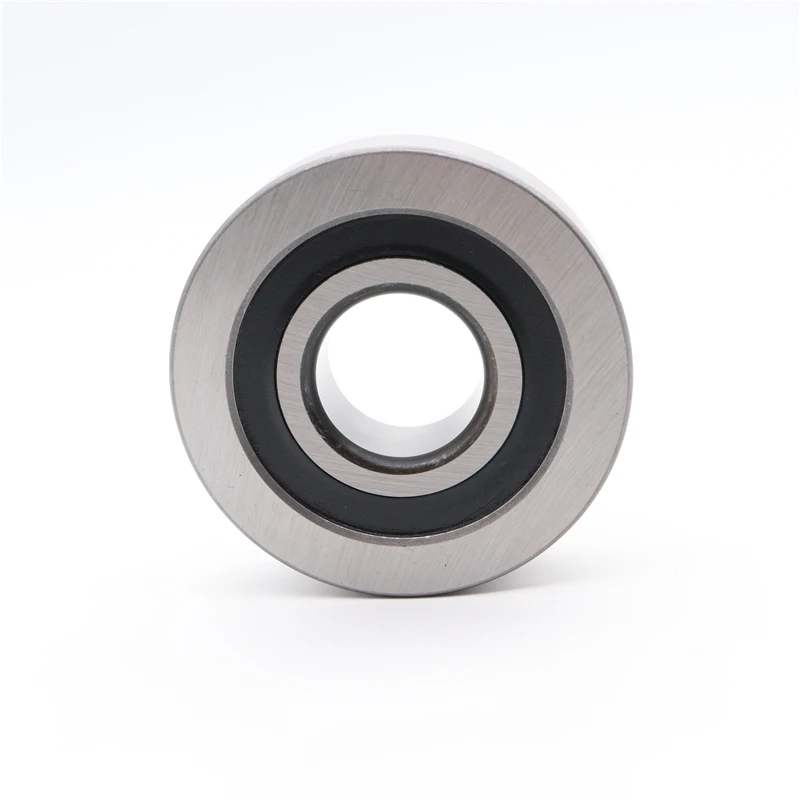

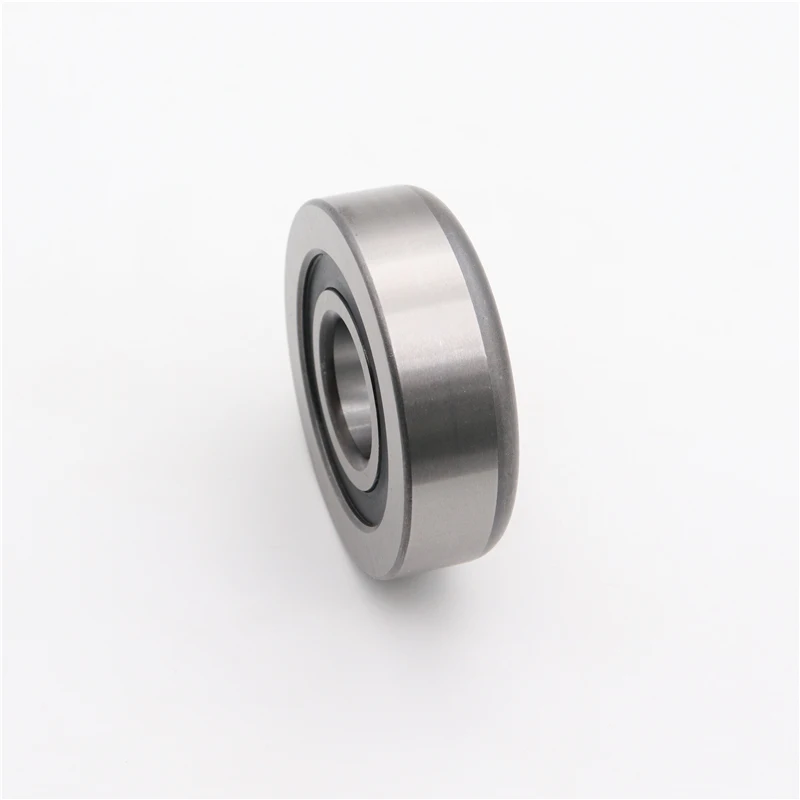

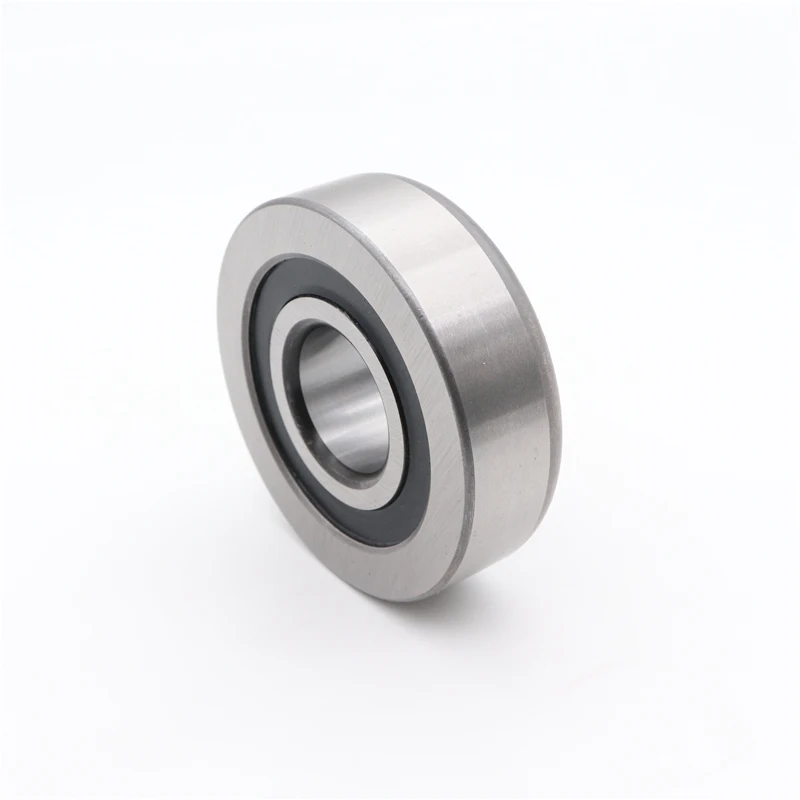

MG 205 FF Mast Guide bearing MG205FF Forklift bearings MG 205

Product Overview

Description

    YNR  Mast Guide bearings belongs to forklift ball bearing,which normally seem in agricultural machinery or truck forklift machines .It also belongs to axle ball bearing type with metric and inch sizes .Mast Guide bearings are used for high radial and occaisonal thrust loads. They typically have a thick cross section on the outer race which performs as a wheel or tire. Several profiles are available to suit the application. They are mounted on the fork carriage and provide smooth action as the forks are raised or lowered.

              MG 205 Mast Guide bearing  MG205  Forklift bearings MG 205 FF

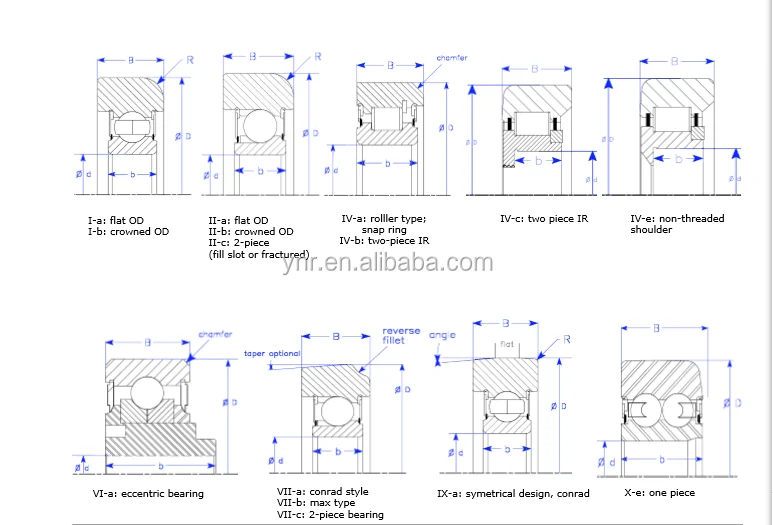

Part Number					Style							d					D				b					B					R			Cap. Cr.					Cap. Cor.				Weight
												mm					mm				mm						mm					mm			Dyn. (N)				Stat. (N)					lbs.
MG 205 1E				VI a								12.60					57.00				20.50						26.95					1.00			16100				11000					0.75
MG 205 2E				VI a								13.00					52.00				18.00						24.00					2.00			16100				11000					0.75
MG 305 7E				VI a								17.00					72.80				33.60						25.00					3.00			27000				18800					1.45
MG 305 DDTY				IV a								25.00					62.00				19.50						18.00					3.00			43690				45620					0.75
MG 205 FF				I a								25.00					65.00				15.00						21.00					6.00			14020				7880					0.75
MG 205 FFX				I a								25.00					67.00				15.00						26.00					4.50			14020				7880					0.85
MG 305 DDY				IX a								25.00					71.00				17.00						21.00					2.00			22390				11490					0.90
MG 305 DDH				IV a								25.00					72.00				28.00						28.00					2.00			61240				65950					1.45
MG 305 DD				I a								25.00					76.20				17.00						25.40					8.38			20510				11120					1.25
MG 305 DDB				I b								25.00					76.20				17.00						25.40					8.38			20510				11120					1.25
MG 305 DDE				I a								25.00					79.55				16.96						23.50					6.00			20510				11120					1.40
MG 305 DDX				I a								25.00					80.00				17.00						22.00					2.50			22390				11490					1.35
MG 305 DDZ				IX a								25.00					80.00				15.00						22.00					2.50			22390				11490					1.45
MG 305 DDR				IV a								25.40					63.50				31.75						31.75					2.00			61240				65950					1.15
MG 305 DDA				I a								25.40					74.60				17.00						25.40					8.38			20510				11120					1.25
MG 28mm 1				IV b								28.00					77.20				15.2/22.7						27.00					5.00			54970				62890					1.65
MG 306 DDCR				IV a								30.00					69.00				25.40						25.40					1.50			47620				62930					1.40
MG 306 DDL11				IV c								30.00					75.00				10.50						24.00					4.00			57110				67250					1.40
MG 306 DDL1				IV e								30.00					75.20				16.00						24.00					4.00			57110				67100					1.30
MG 306 DDL6				X e								30.00					75.30				23.50						24.00					6.00			21000				16000					1.25
MG 5206 AC 1				X e								30.00					75.50				23.81						28.50					2.00			30000				21200					3.95
MG 306 DDL7				X-­e								30.00					75.60				23.50						24.00					6.00			21000				16000					1.25
MG 306 DDL2				IVe								30.00					75.70				16.00						24.00					4.00			57110				67100					1.30
MG 306 DDL3				IVe								30.00					75.90				16.00						24.00					4.00			57110				67100					1.35
												mm					mm					mm				mm					mm				Dyn. (N)				Stat. (N)					lbs.
MG 306 DDL8				X e								30.00					75.90					23.50				24.00					6.00				21000				16000					1.30
MG 306 DDL12				IV c								30.00					76.00					10.50				24.00					4.00				57110				67250					1.45
MG 306 DDL4				IV b								30.00					76.20					16.00				24.00					4.00				57110				67100					1.35
MG 206 FFE				IX b								30.00					76.20					16.00				28.50					3.00				27360				18860					1.25
MG 306 TA 1				I a								30.00					77.60					19.00				28.00					4.50				28160				15840					1.40
MG 206 FFH				I a								30.00					79.50					16.59				28.50					7.00				19460				11310					1.50
MG 206 FFZ				II b								30.00					79.70					16.59				28.50					4.40				27360				18860					1.60
MG 206 FFZA				II b								30.00					80.49					16.58				28.50					4.83				27360				18860					1.65
MG 206 FFU				I a								30.00					81.00					16.59				29.00					8.50				19460				11310					1.70
MG 206 FFZB				II b								30.00					81.25					16.58				28.50					4.83				27360				18860					1.70
MG 206 FFA				VII a								30.00					81.28					19.58				25.40					chamfer				19460				11310					1.45
MG 206 FFM				VII b								30.00					81.28					19.58				25.40					chamfer				27360				18860					1.30
MG 206 FFUA				II b								30.00					81.63					16.58				28.50					6.00				27360				18860					1.50
MG 206 FFX				IX b								30.00					81.80					16.00				27.00					3.00				27360				18860					1.55
MG 206 FFAB				VII a								30.00					82.11					19.58				25.40					chamfer				19460				11310					1.45
MG 306 DDB				I-­a								30.00					82.55					19.00				26.97					9.00				19460				11310					1.45
MG 206 FFK				IIb								30.00					86.36					16.58				28.50					6.35				27360				18860					1.95
MG 206 FFW				II-­c								30.00					86.60					16.59				28.50					5.50				27360				18860					1.95
MG 206 FFP				I-­a								30.00					88.00					16.59				29.00					6.00				19460				11310					2.15
MG 206 FFPA				II-­a								30.00					88.50					16.50				29.00					5.50				27360				18860					2.20
MG 306 DD				I-­a								30.00					88.90					19.00				25.40					9.00				28250				15980					1.80
MG 206 FFPB				II-­a								30.00					89.00					16.50				29.00					5.50				27360				18860					2.20
MG 306 FFT				I a								30.00					91.60					19.00				25.00					5.00				28160				15840					1.95
MG 307/34 DDL17				IV­c								34.00					105.00					9.00				34.00					6.00				95640				115300					3.85
MG 307/34 DDL18				IVc								34.00					105.70					9.00				34.00					6.00				95640				115300					3.85
