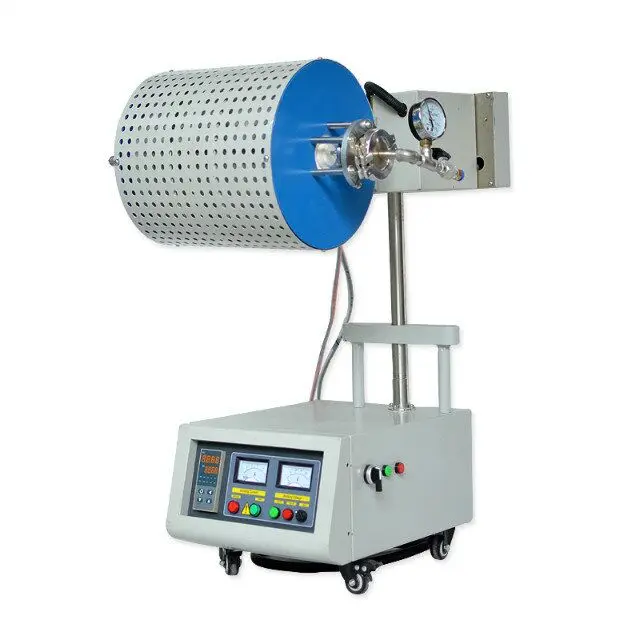

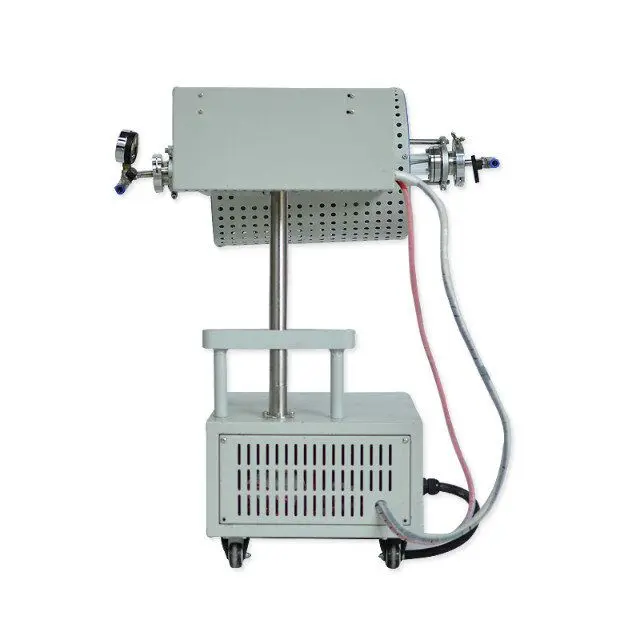

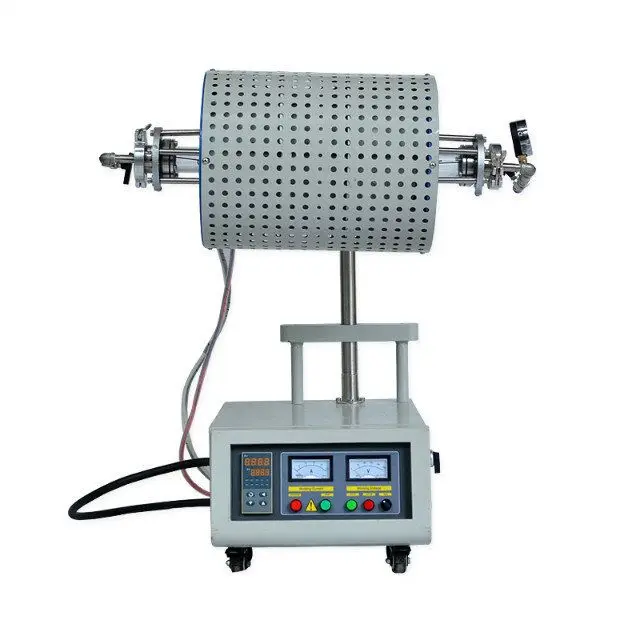

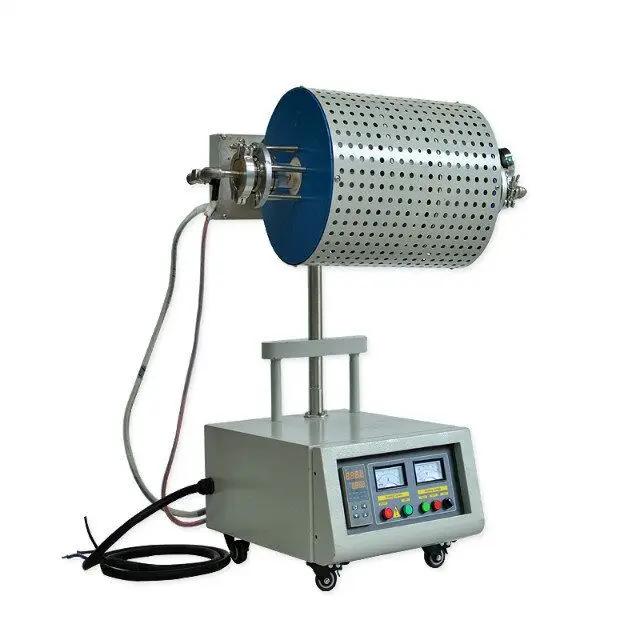

Laboratory High Temperature Multiple Position Horizontal Vertical Rotating Tube Furnace
Laboratory Electric Tube Furnace Application:
Tube furnace mainly used in chemical analysis, physical decomposition and synthesis,
super hard materials (such as ceramic), Rare and precious metal smelting and purification,
metal heat treatment of sintering process research and other scientific experiments.
Universities and colleges, scientific research institutes, medical and health, petroleum chemical
industry, mining enterprise, quality and technology supervision agencies,
and other units laboratory, laboratory are the use of such equipment.
1. Gravimetric analysis;
2. Sintering;
3. Quantitative analysis;
4. Heat treating;
5. Glass preparation;
Product Description
Electric Vacuum Tube furnace Application:
Tube furnace mainly used in chemical analysis, physical decomposition and synthesis, super hard
materials (such as ceramic), Rare and precious metal smelting and purification, metal heat treatment of sintering process research and other scientific experiments. Universities and colleges, scientific research institutes, medical and health, petroleum chemical industry, mining enterprise, quality and technology supervision agencies, and other units laboratory, laboratory are the use of such equipment.
1200 Degree Multiple Position Tube Furnace details specification :
PID automatic control and auto-tune function. 30 programmable segments for precise control. Built in protection for overheating and broken thermocouple. Large digital control panel for easy operation.
For precision gas control, you can choose digital mass flow Control system instaed of float-meter.
SCCM 0~5,10,20,30,50,100,200,500
SLM 0~1, 2, 3, 5, 10,15, 20, 30
Standard parts:
Crucible tongs 1pc,high temperature gloves 1 pair,one user manual.
Optional parts:
PLC touch screen controller, paperless recorder,Remote communication control system, 2-3 gas channels mixing system desktop.
Tube furnace Application Notes:
(1)Furnace tube pressure can not be higher than 0.02MPa (2)As the internal pressure of the cylinder is high, so the gas into the furnace tube, the cylinder must be installed on the valve, the proposed purchase of the company pressure valve, the company valve range of 0.01MPa-0.1MPa, Will be more accurate and safe (3)When the furnace temperature is higher than 1000 ℃, the furnace tube can not be in a vacuum state, the furnace pressure and atmospheric pressure equivalent to maintain the atmospheric pressure. (4)The gas flow into the furnace tube should be less than 200 SCCM to avoid the impact of cold airflow on the heated quartz tube.
Tube furnace Standard Sizes:
Type
heating zone
Working/Max.temperature
Delivery time
1200.C tube furnace
OD40-120mm, 100-1000mm L.
1100.C/1200.C
3-30 days
1200.C tube furnace
OD40-120mm, 100-1000mm L.
1100.C/1200.C
3-30 days
1200.C tube furnace
OD40-120mm, 100-1000mm L.
1100.C/1200.C
3-30 days
1200.C tube furnace
OD40-120mm, 100-1000mm L.
1100.C/1200.C
3-30 days
Warranty: One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
Packaging & Shipping
Shipping way : By Courier / By sea / By Air /By Train Optional, depend on clients' demad of time and cost.
Shipping terms: Support EXW /FOB/C&F /CIF/ CPT/CIP /DDU /DDP terms...
Even for some countires with high taxes and some Remote areas, we can ship goods to your Door address and including taxes.
