Refrigerated swing out rotor horizontal ultra large capacity laboratory centrifuge
- Category: >>>
- Supplier: Hunan Xiangxin Instrument And Meter Co. Ltd.
Share on (62043352802):
Product Overview
Description
XiangXin DL8M-12L Refrigerated swing out rotor horizontal ultra large capacity laboratory centrifuge
Product Description
Feature

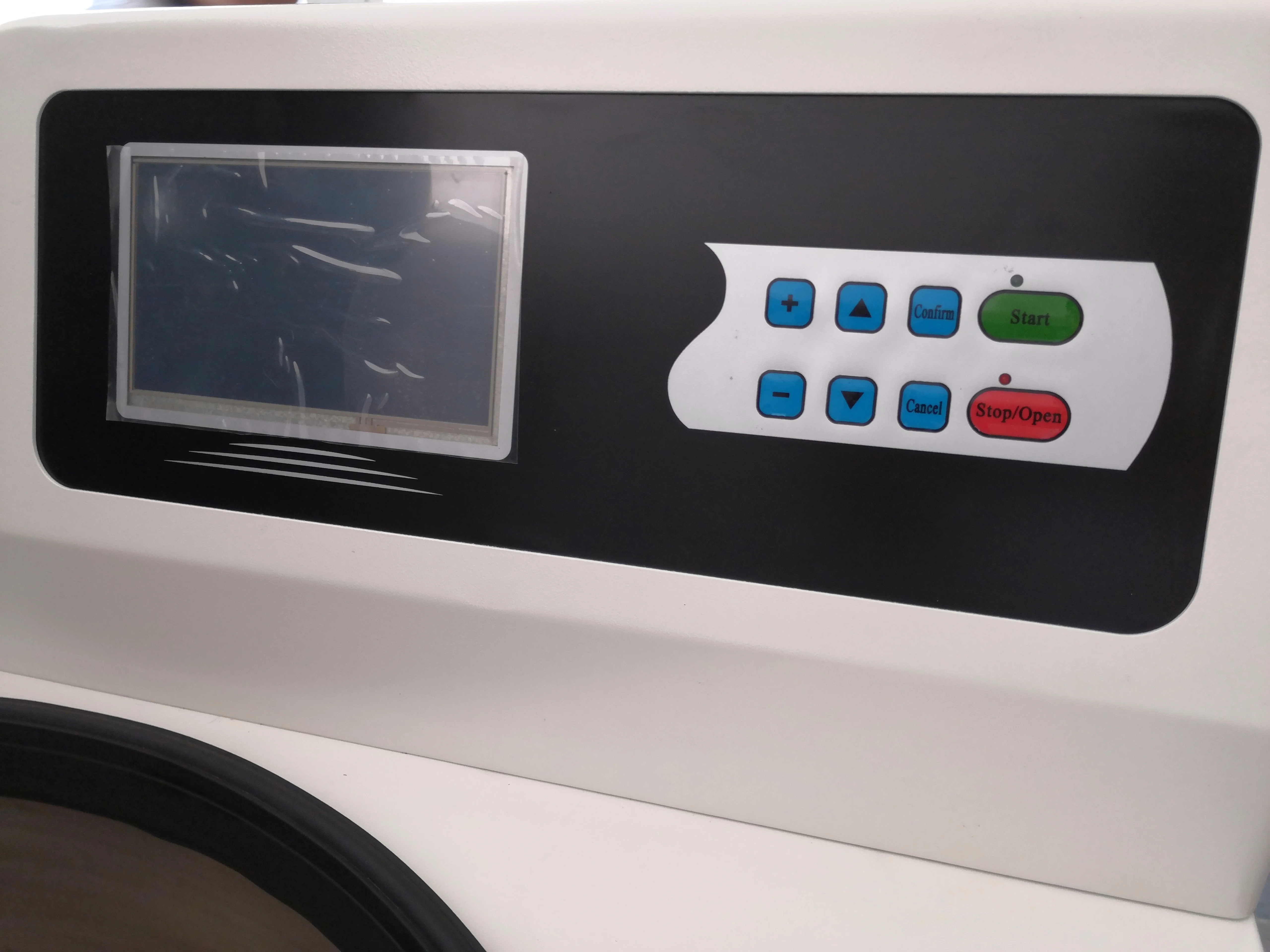

l Large color touch screen display, both shows the set parameters and operation parameters.
l All stainless steel internal and external structure, corrosion resistance and durable.
l Use the imported compressor from TAIKANG,FRENCH,with the accurate temperature control system.
l Max capacity:6×2400ml or processing 18 bags of 400ml whole blood at one time.
l An easy-going operator interface with a standard English operating software, user can operate freely.
l With 35 operational programs can be designed, saved and used. Users can set 9 programs for daily operation use
l With the self-diagnositc system and protection for imbalance, over-speed and over-temperature. Both automatic electronic lock and mechanical lock to ensure safety.
l Acc/Dec 10 rates from 0~9 grade; Display speed of rise and fall curve, integral curve and temperature curve.
l Equipped with standard interface can connect computer to operate centrifuge, and composition local computer management system.
l Widely used in the field of blood station,pharmaceutical factory,biochemistry,biological products and so on.
Technical Parameters
Model | DL8M-12L |
Max Speed | 8000r/min |
Max RCF | 15200*g |
Max Capacity | 6*2400ml,6*3*400ml (Blood bag) |
Speed Accuracy | ±10rpm |
Temperature Accuracy | ±2℃ |
Temperature control range | -20℃~40℃ |
Time Range | 1-99h 59min |
Lifting Rate | 0-9 gear position |
Control and drive system | Microcomputer control, No belt direct drive |
Common operating system program | 9 |
Program storage | 35 |
Cooling System | Imported French compressor unit, fluorine-free refrigeration |
Motor Power | 4KW |
Cooling Power | 2.5KW |
Noise | ≤60dB(A) |
Power Supply | AC220V&110V 50Hz 35A |
Weight (no rotor) | 800kg |
Dimensions | 960*860*1200mm(L*W*H) |

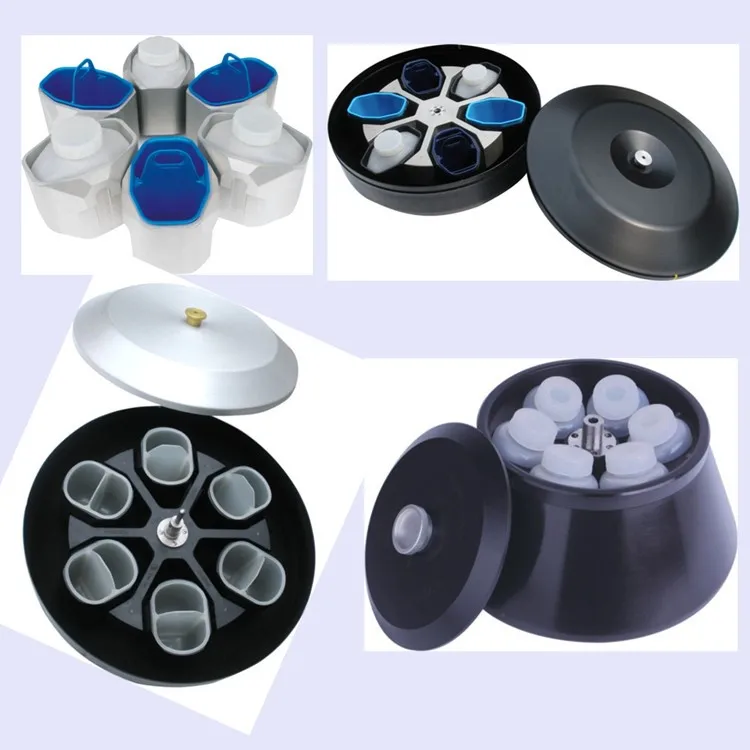

Fit Swing Rotor
Rotor | Max speed | Max RCF | Max Capacity |
No. 1 swing rotor | 4000r/min | 5800*g | 2*6*1000 ml |
No. 2 swing rotor | 4200r/min | 5900*g | 6*2400 ml |
No. 3 swing rotor | 4000r/min | 5900*g | 24*200ml Quadruple tube 12*400-500ml Blood bag |
No. 4 angular rotor | 8000r/min | 15200*g | 6*1000ml |
Detail
Packaging & Shipping
FAQ
Question 1. Which countries did you export to?
Answer: The company has got high praises by all of our clients and has got a very good reputation both at home and abroad. We have repeated-successfully win the bid of government’s purchases. Our products have been exported to USA, Mexico, UK, France, Italy, Germany,Turkey, South Africa, Korea, India, Russia, Indonesia, etc.
Question 2. What are your advantages over other business?
Answer :
(a) Series of products: With history of 46 years specialized in widely range of R&D, manufacturing, marketing and after-sales service of centrifuges, we have already developed 7 series with over 100 kinds of centrifuges, many of which have achieved national patents, and over 80% of which are exported overseas;
(b) Superb quality and first-hand prices, with XIANG XIN Brand and OEM is also welcomed;
(c) Stable source of supply as factory and manufacturer;
(d) Perfect and professional after-sales service: 24 hours of after-sales service, e-mail/phone calls/Skype/Wechat/etc.
Question 3. How about the delivery term?
Answer : By air or by shipment, according to the quantity ordered or customized.
Usually deliver within 3-7days after paid.
Question 4. How about the warranty time?
Answer : 12 months, parts of 18months.
Over the period, we still provide technical support.
Question 5: What about the payment term?
We accept Money Gram, West Union, T/T, Pay Pal, L/C, etc. Very flexible and convenient payment terms.
Question 6. What’s your company’s target?
“Quality and Reliability” is what the company mostly focuses on.
It is Xiangxin’s promise to maximize customer satisfaction by constantly providing the very best value.
