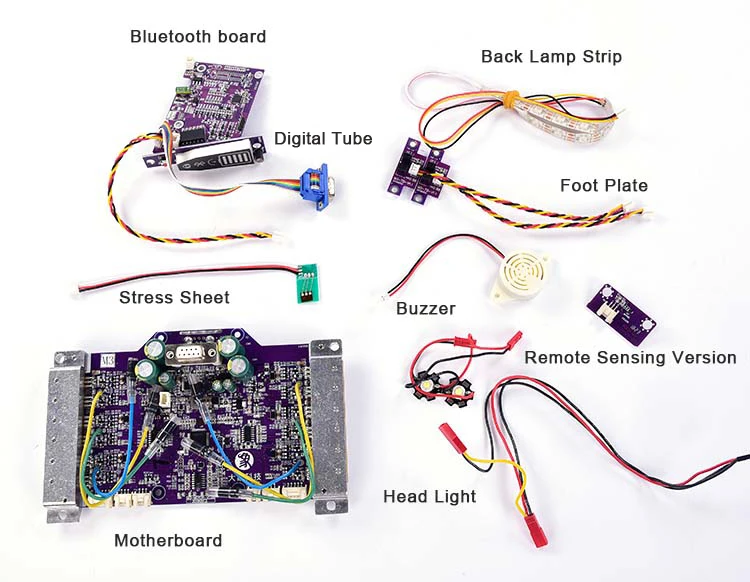

Mi nine bot 2 wheels self balancing electric scooter board cruise control spare parts

Product Overview

Description

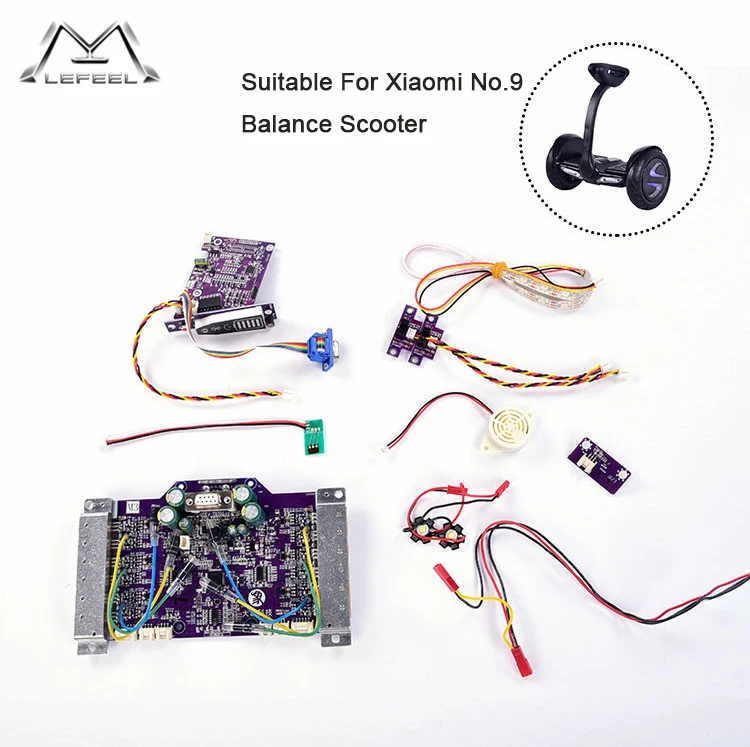

Mi nine 2 wheels self balancing electric scooter board cruise control  spare parts

Model No.	M3/No.9 Balance Scooter

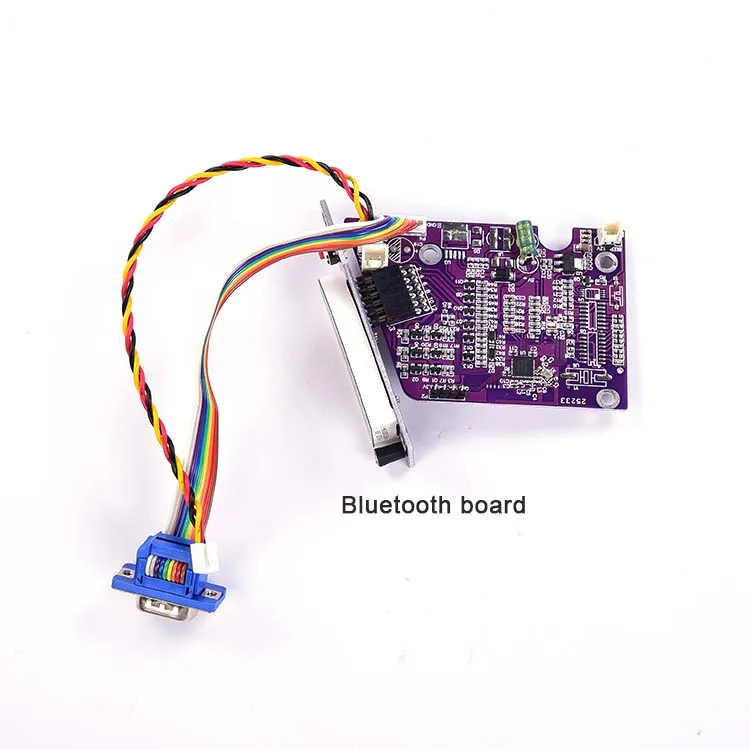

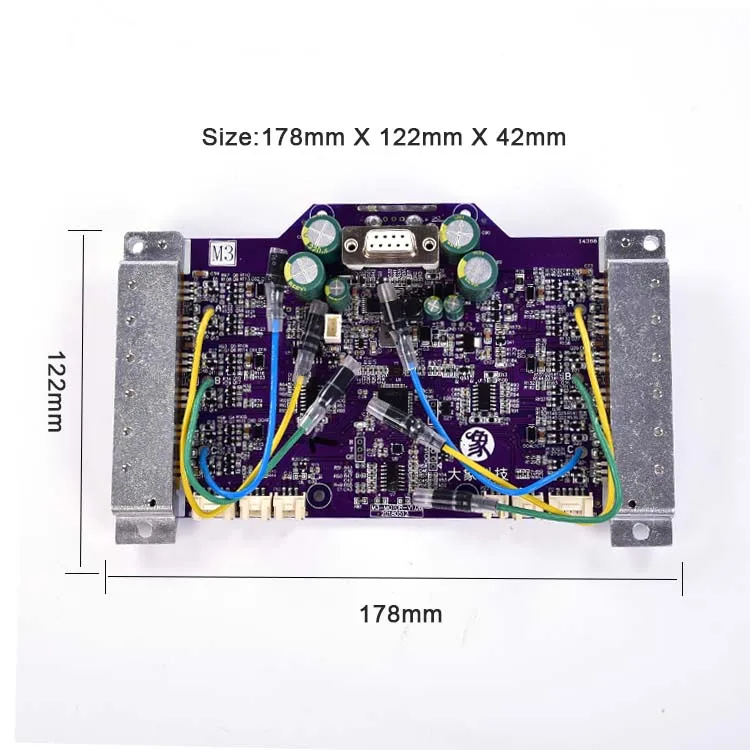

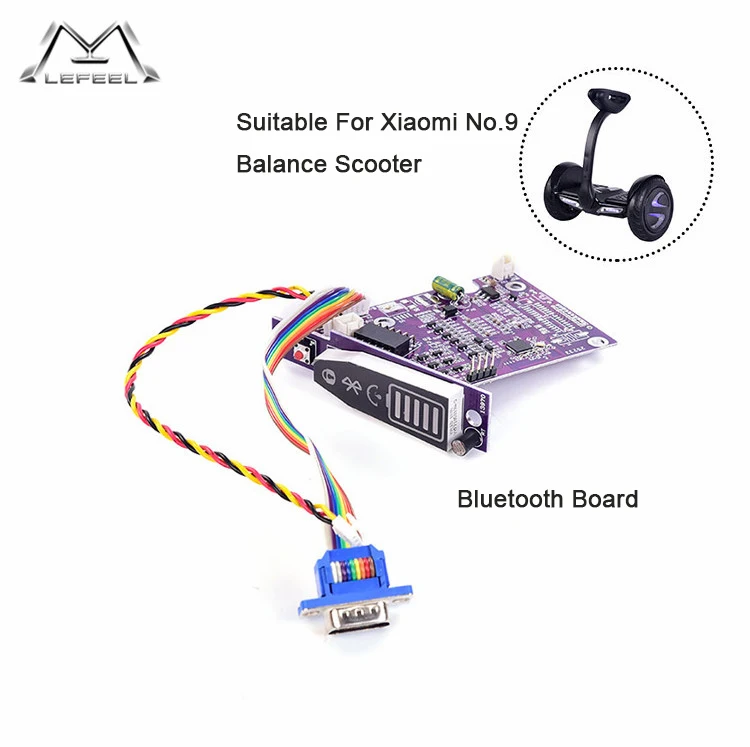

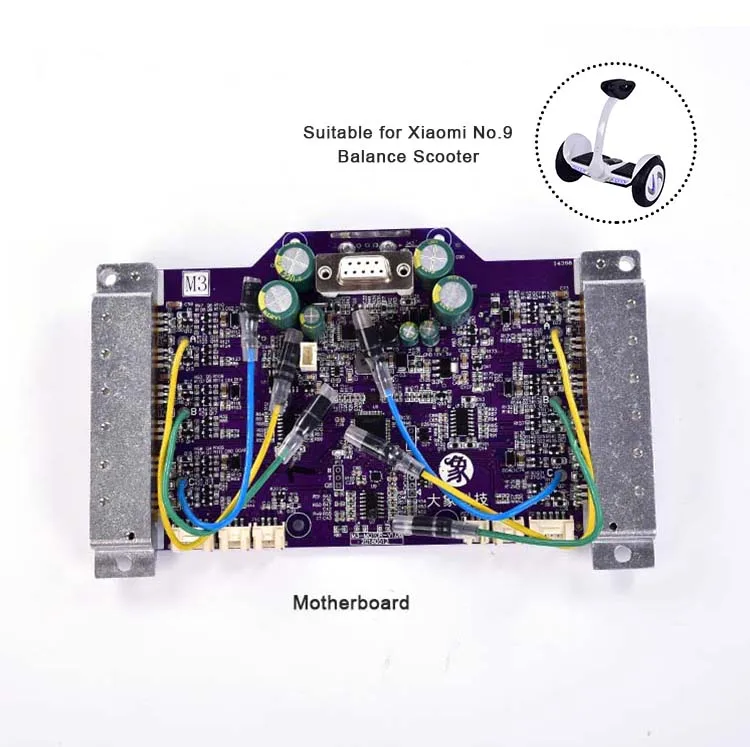

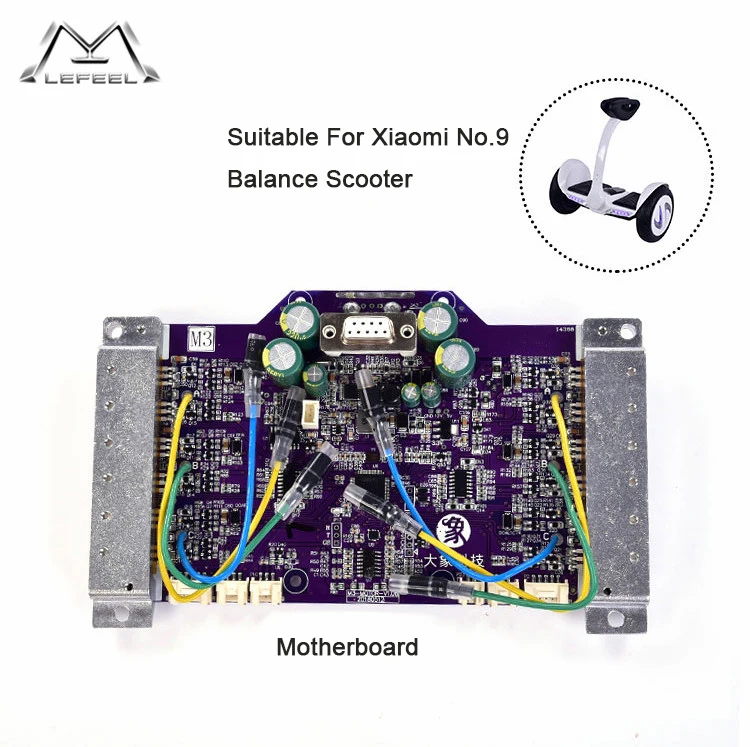

Product name	Controller and Bluetooth board
Mainline Current	40A±1A
Motor phase line current limit	80A
Working Voltage	54V(18650 Battery)
High voltage protection	68V
Low voltage protection	Prevent wrestling, do not protect this
High temperature alarm	59℃
Low temperature alarm	-9℃
Motor phase angle	120°

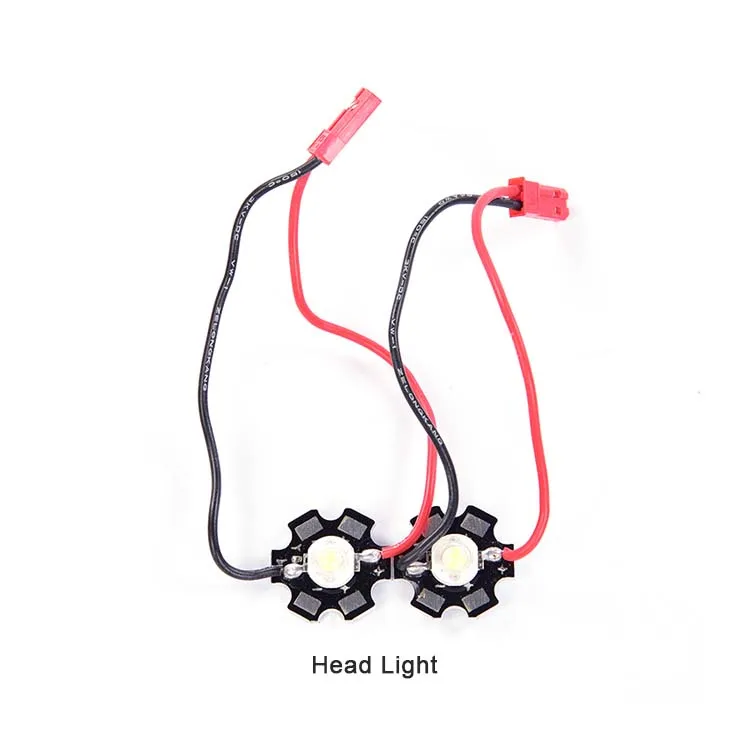

Headlight	3W
Taillight	RGB
Other	Stall protection, phase loss protection, phase line short  circuit protection

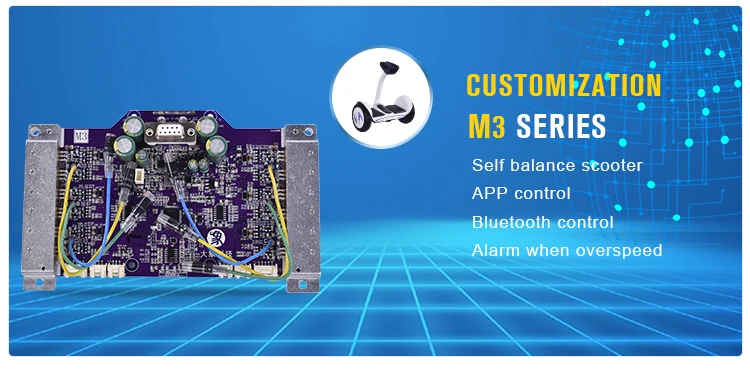

M3 Controller characteristics

1) 300 times per second high speed , dynamic balance to adjust scooter attitude;
2) power rating is 700W ,instantaneous power can reach 2000W, it can provide the scooter strong power;
3) It can pass the 20 angle without pressure , It can pass the small obstacles easily;
4) Buletooth remote control, you can control the scooter like remote control car;
5) Vetor sine wave control, The algorithm of current and speed closed-loop control, High efficiency , High capability;
6) Energy recovery during driving, energy saving and power saving;
7) Pick up and stop, Fall down and stop ,Overrun alarm, Error alarm, Black box ,Power on self test, Smart battery monitoring.
