Product Overview

Description

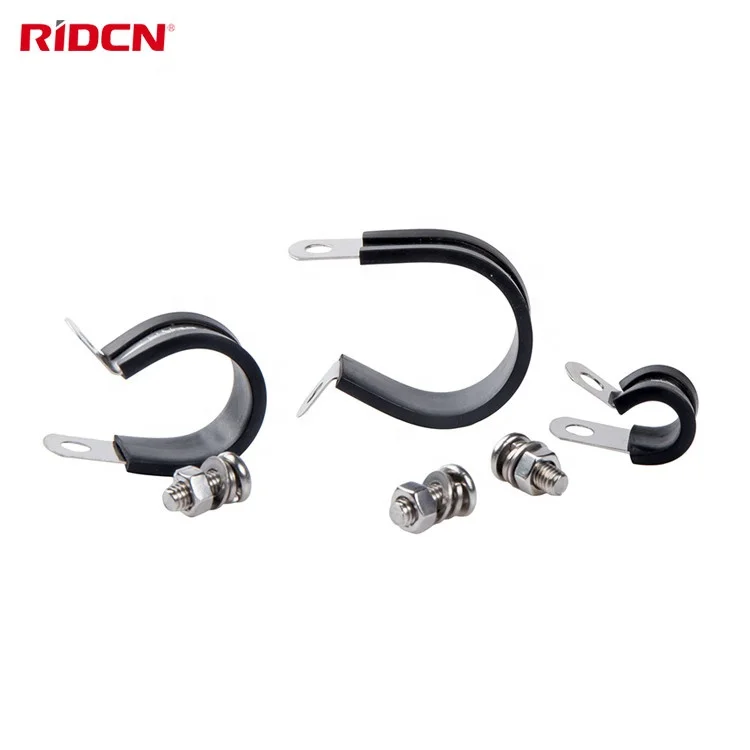

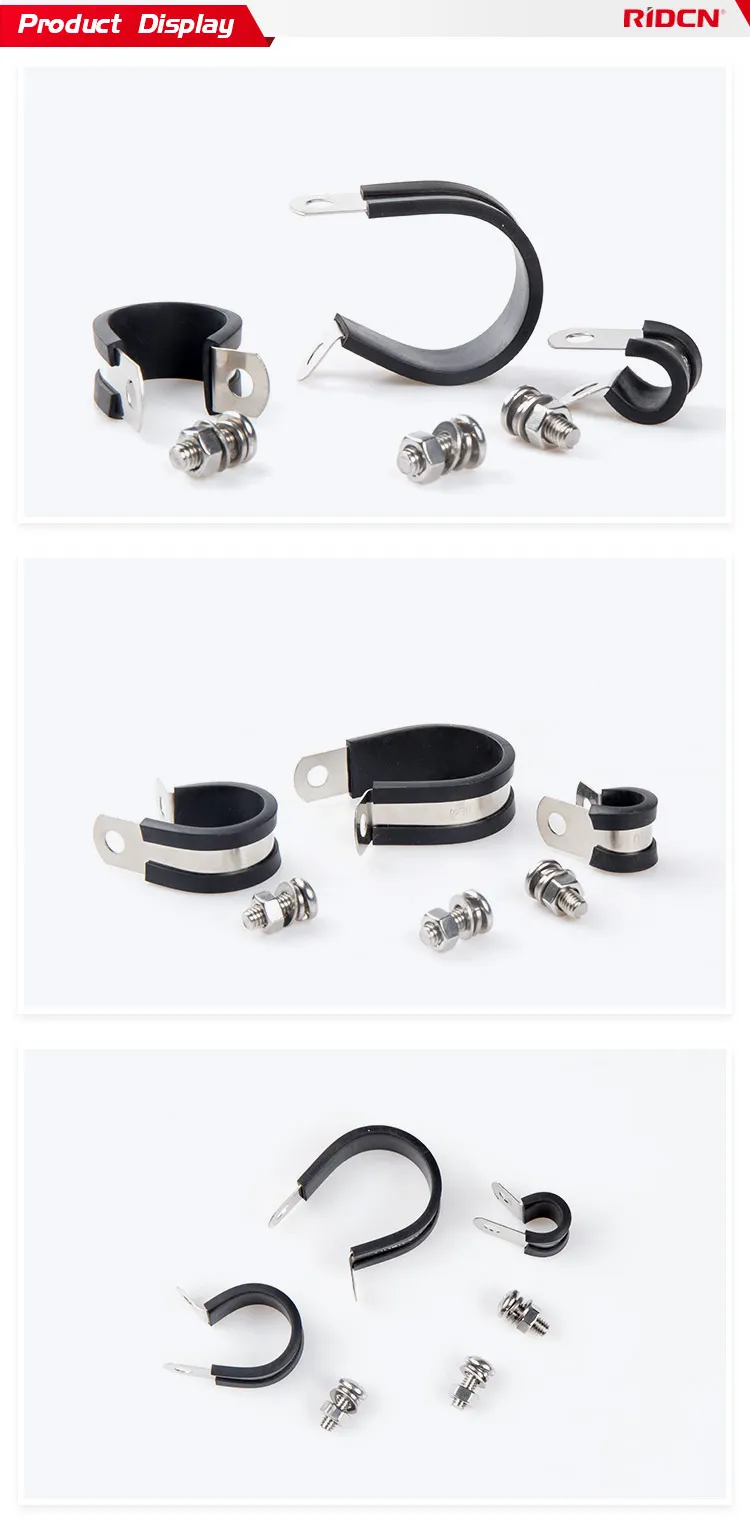

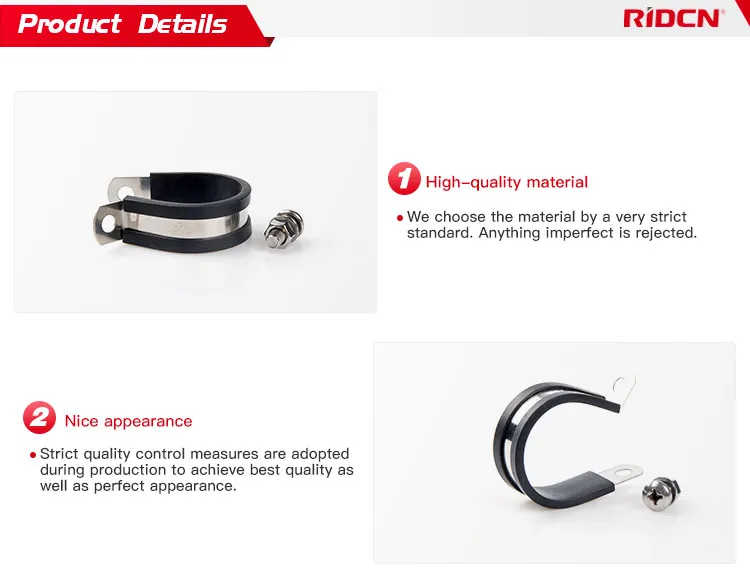

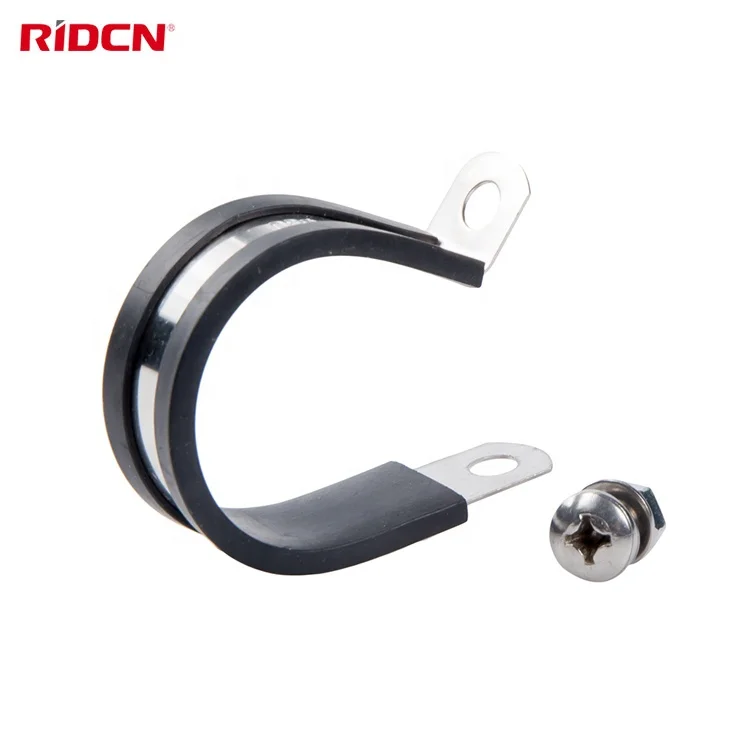

Rubber Coated Hose Clamps

Features:

-Rubber cushion absorbs vibration and protect the hold objects.

-The rubber profile is in EPDM material, insulated, used to fixing cables.

-Bands have reinforced bolt holes for extra strength.

Material:

304SS with EPDM rubber

Application:

Automotive industry , machines construction, hydraulic and pneumatic applications, process industries, shipbuilding and refrigeration.



Diameter	Band width (mm)	Band Thickness  without rubber (mm)	Band Thickness with rubber (mm)	Screw Hole Diameter (mm)
6mm	15	0.6	4	6.4
8mm	15	0.6	4	6.4
10mm	15	0.6	4	6.4
12mm	15	0.6	4	6.4
14mm	15	0.6	4	6.4
16mm	15	0.6	4	6.4
18mm	15	0.6	4	6.4
20mm	15	0.6	4	6.4
22mm	15	0.6	4	6.4
24mm	15	0.6	4	6.4
26mm	15	0.6	4	6.4
28mm	15	0.6	4	6.4
30mm	15	0.6	4	6.4
32mm	15	0.6	4	6.4
34mm	15	0.6	4	6.4
36mm	15	0.6	4	6.4
38mm	15	0.6	4	6.4
40mm	15	0.6	4	6.4
42mm	15	0.6	4	6.4
44mm	15	0.6	4	6.4
46mm	15	0.6	4	6.4
48mm	15	0.6	4	6.4



We customize clamps according to your special requirements.
