0-10V Dimmable LED PANEL LIGHT 36/40/50w AGT driver /LIFUD Driver
Product Description
Model No.
JL6060
Size
595x595 MM
600x600 MM
605x605MM
620X620MM
Height
8MM
9MM
10MM
Wattage
36W/40W
48W/50W
72W/80W
LED Source
SMD 2835
SMD4014
Input voltage
85-265V AC 50/60HZ
Luminous Efficiency
90lm/w
100lm/w
120lm/w+
Luminous Flux
4000lm+
CRI
70
80
90
Color Temperature
WW 3000-3500K
NW4000-4500K
CW 5700-6500K
Working Temperature
-22-55 Degree
LifeSpan
50000Hrs
Frame type
one step
one step and four lines
Body Material
6063 Aluminum (welded)
6063Aluminum (casted )
Light Guide Plate
PS2.5MM
PMMA 3.0MM
Diffuser
PP1.0
Ps1.2
Driver
Isolated or not
HighPF or not
Flicker free or not
Accessory
Clamps included
Installation
Recessed
Surface Mounted
Suspended
Package
Natural package
Color Package Customized Design
Application
Office/ShoppingMall
Meeting room / Residential lighting
Hospital

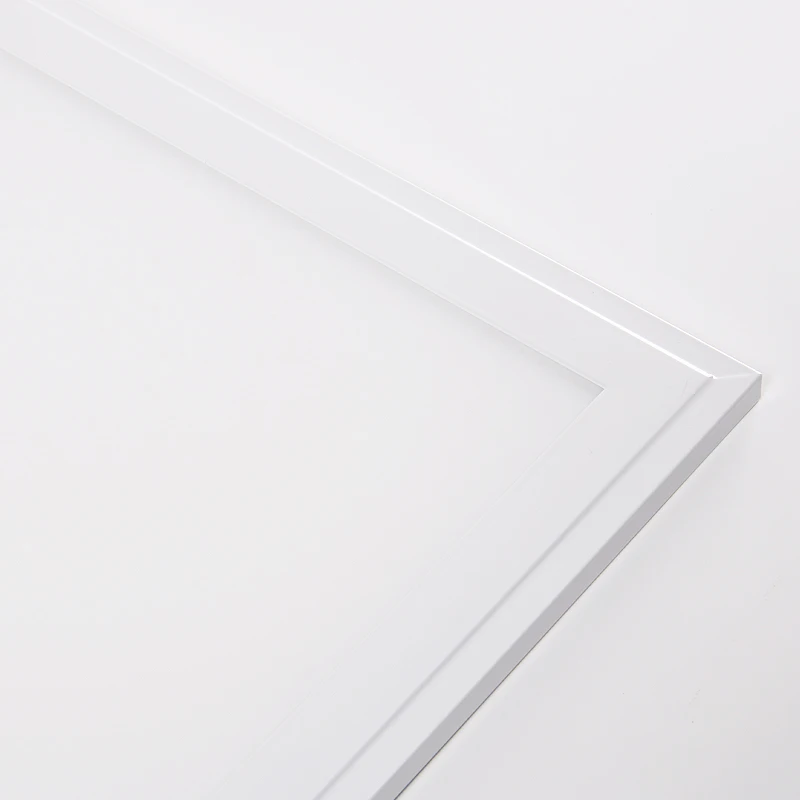

--Detailed Picture

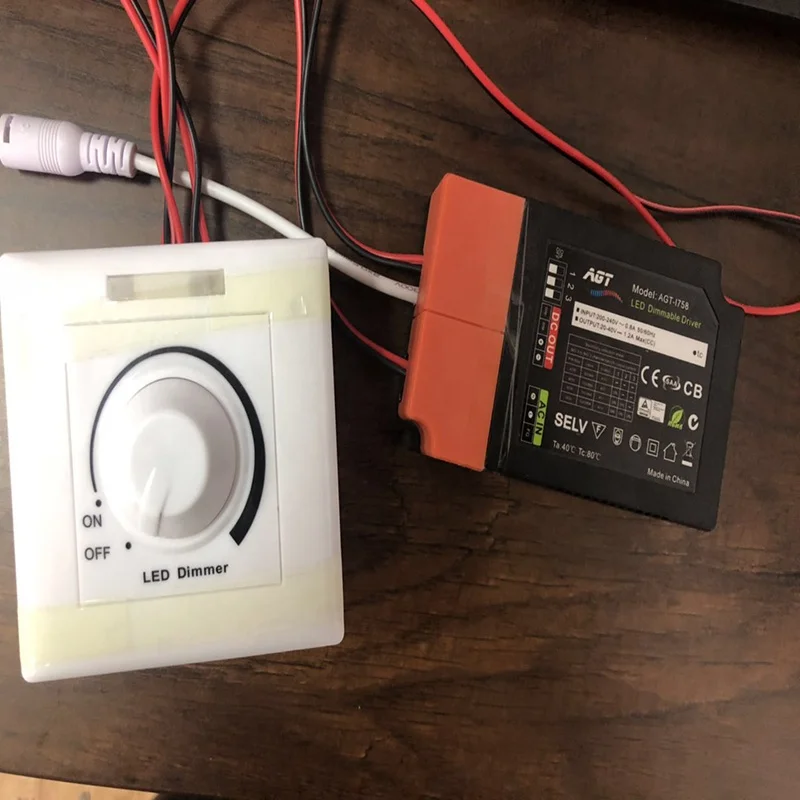

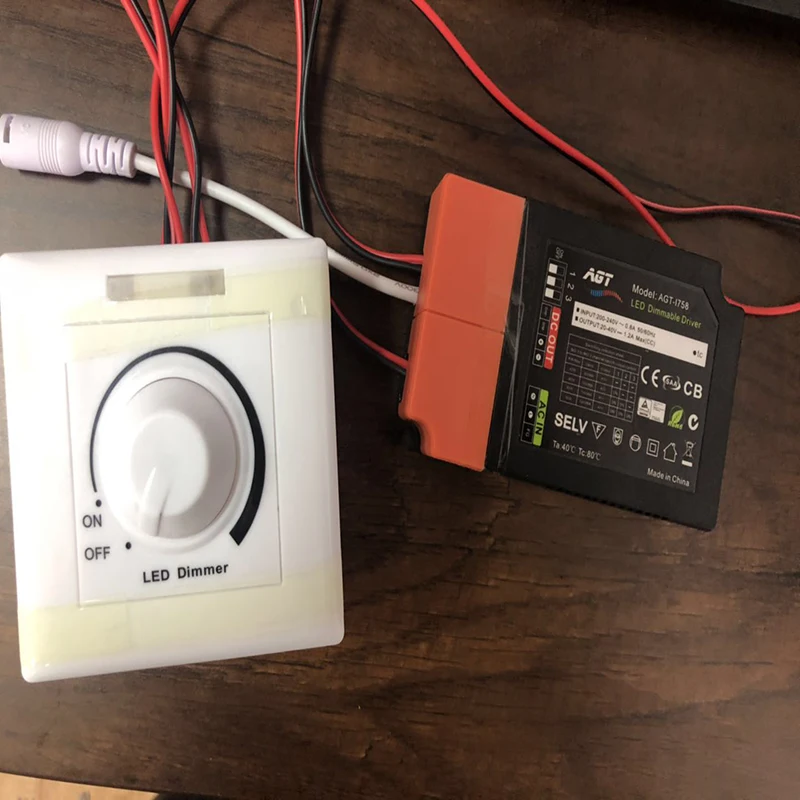

Dimmer Switch
Can control 1-10panels at same time

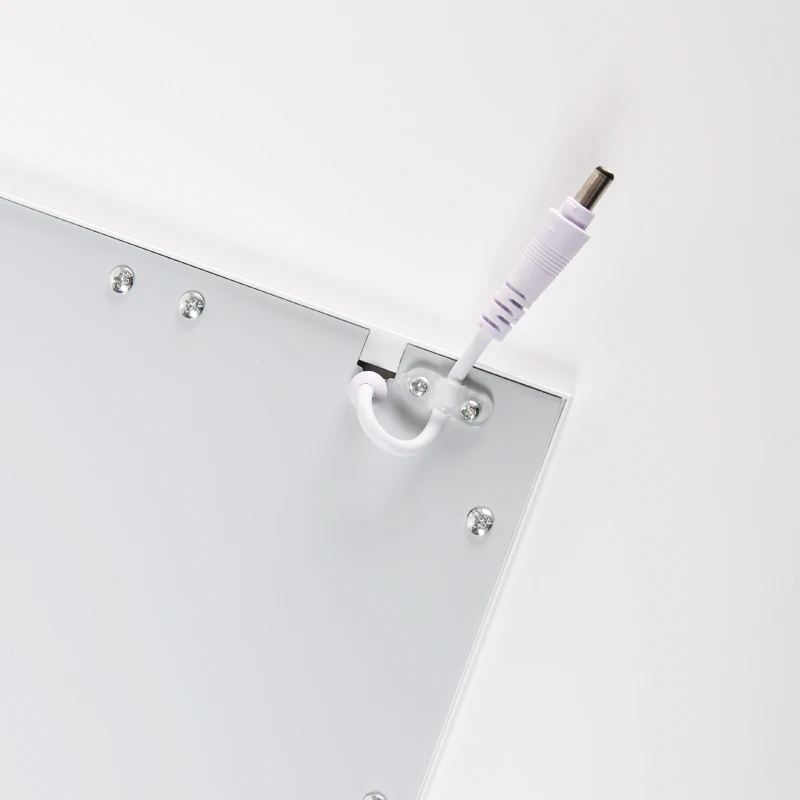

Accessories
Installation

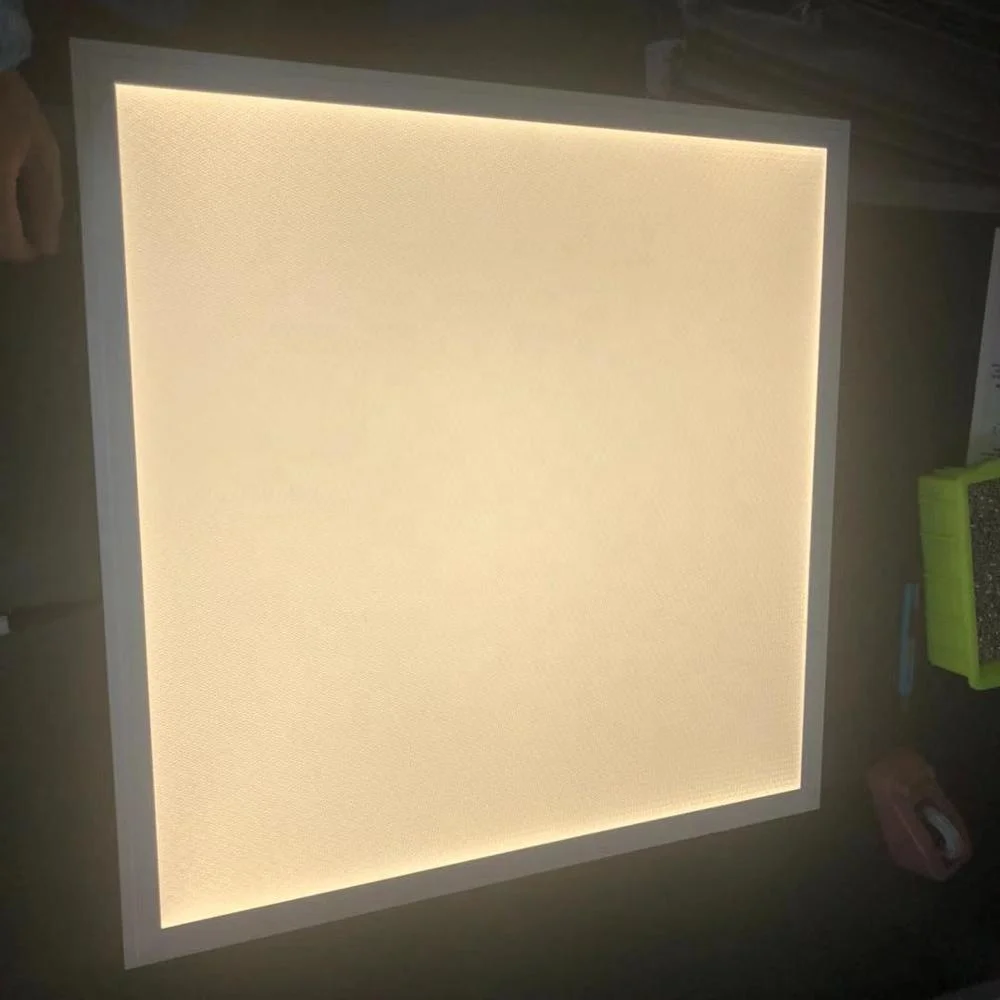

Aging test
Packaging & Shipping
Model No.
Master Carton size(MM)
Qty/CTN
JL-PL-595*595
660*240*680
6
JL-PL-600*600
JL-PL-605*605
JL-PL-620*620
JL-PL-295*1195
1260*240*380
6
JL-PL-300*1200
FAQ
Q1: Are you a factory or trading agent ?
A: We are a terminal making enterprise of LED PANEL LIGHT Located in Jiaxing ,Zhejiang Province ,Welcome to visit our factory .
Q2:How can i get the free sample?
Regular model is free supplying ,please contact Jeffy to get .
A: Before place the sample order , had better confirm below parameter:
Model Of JL:
Size :
Wattage :
Input Voltage
Luminous Efficiency and Luminous Flux:
Driver: High PF or not , Flicker or not .Pass EMC Or not
LGP and Diffuser :
Special requst please advise in advance
Bulk goods order is same as this step to identify
Q3:What about the payment methods?
1. Pay on Alibaba by credit card without other charge
2. Traditional payment way
TT 30% in advance ,clear the balance before delivery
Q4: what is the lead time ?
A:As the general model, delivery in 7days after all clauses confirmed .The othersare according the production condition , normally will be under control of 15days
Q5: what about the mini order quantity?
A:Trial order is available ,but without the personality design package .
