1000HP Quintuplex Plunger Pump Oilfield 1000L

Product Overview

Description

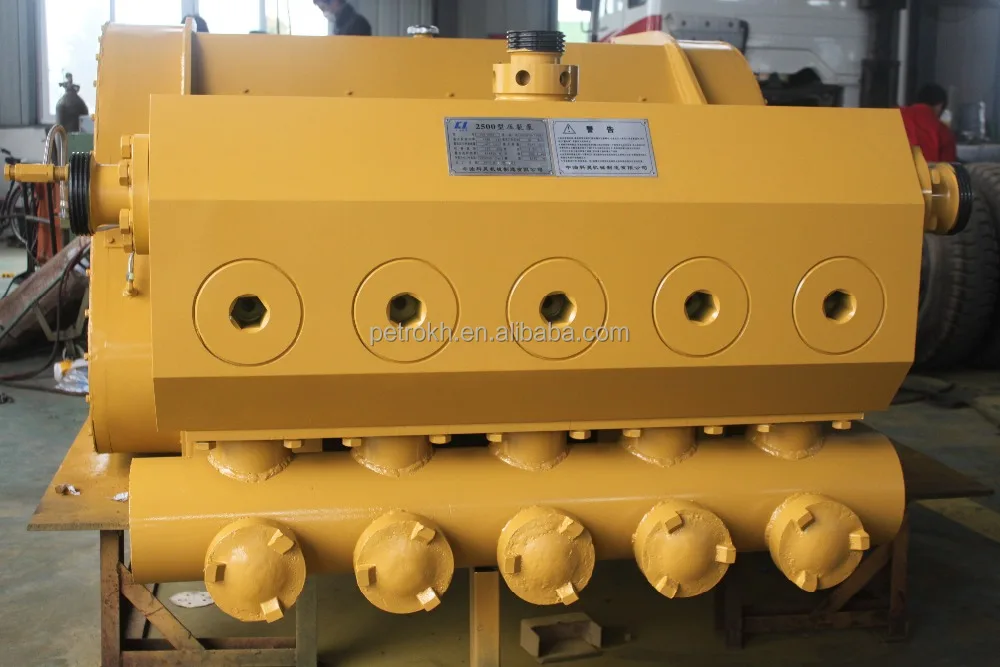

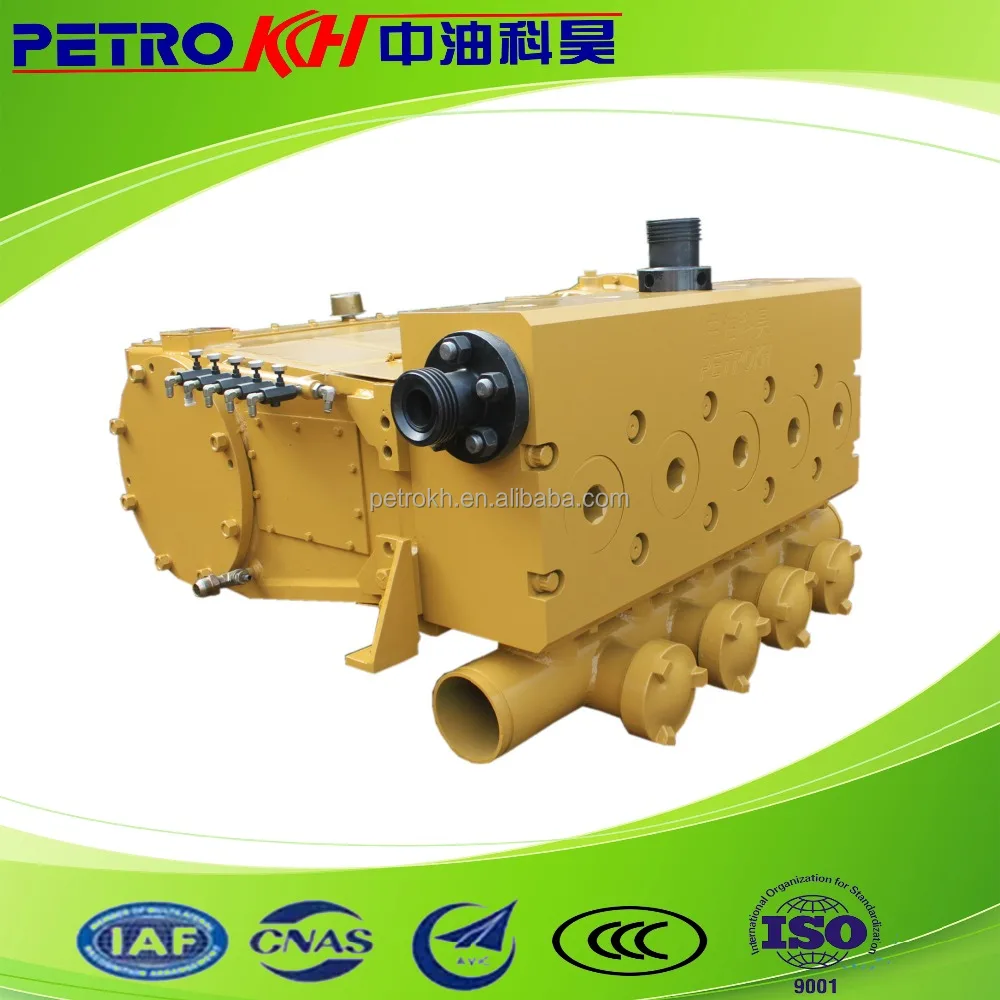

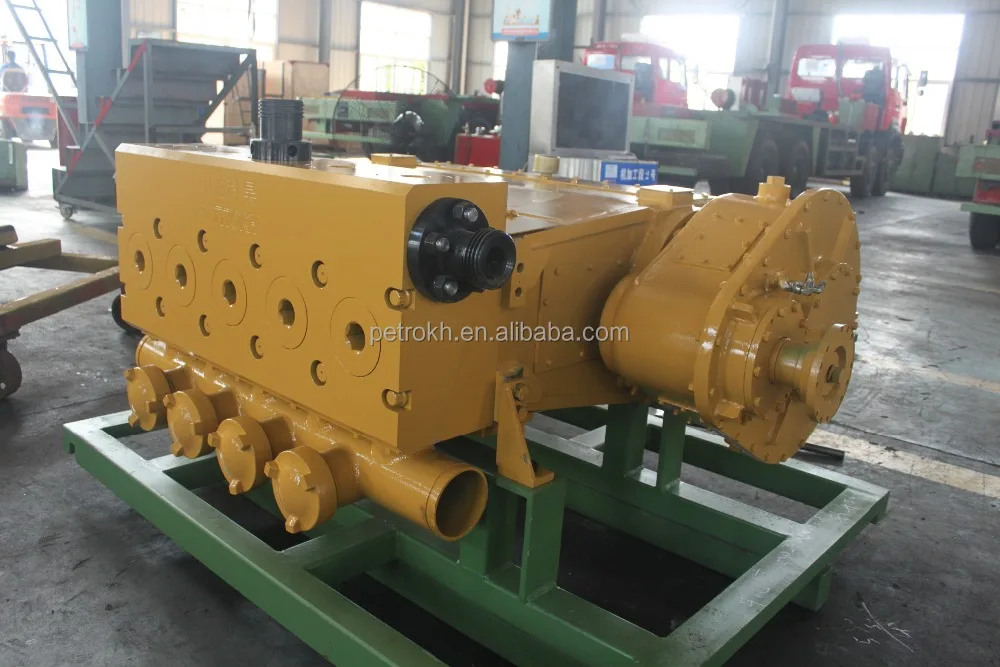

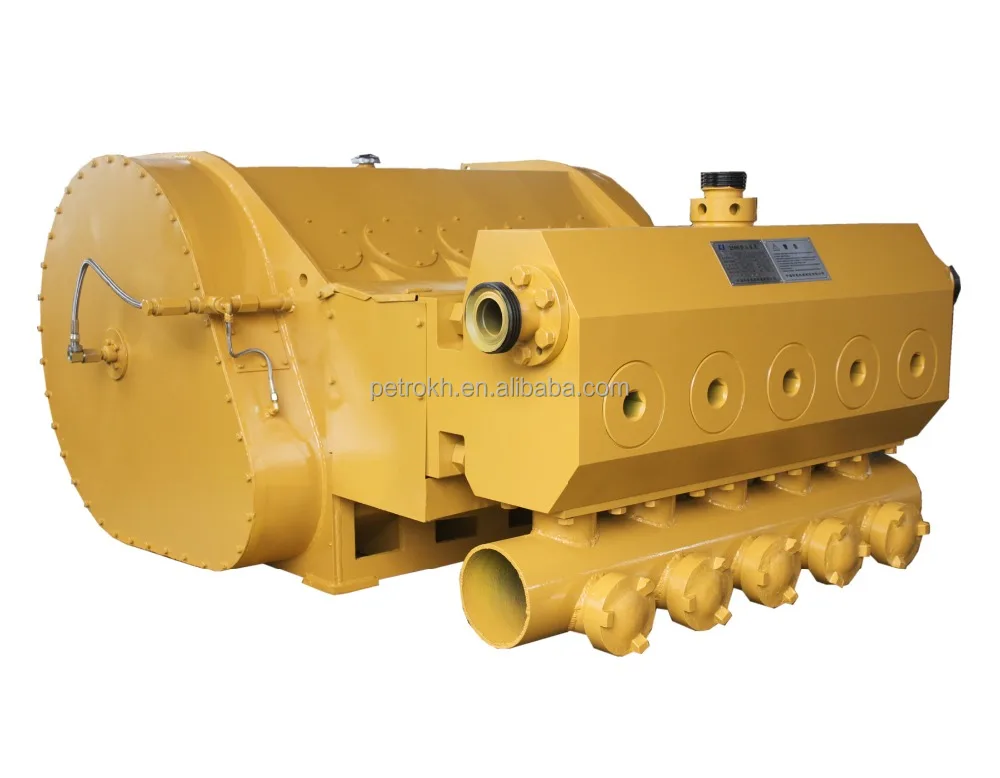

1000HP Quintuplex Plunger Pump



Model Type:5ZB-745



1000HP Quintuplex Plunger Pump is a kind of horizontal single function Quintuplex

Pump. It can be widely used in the intermittent workover operations, such as in acidification,cenmenting,fracturing and etc.



Specification



Pump model	1000HP
Max.input power	745kW
Max.connecting rod load	445000N
Stroke	152.4mm
Max.stroke time	450rpm
Gear ratio	4.61:1
Overall dimension	1290*1910*860mm
Weight	3856kg



1000 BHP Triplex Plunger Pump



This pump is a kind of horizontal triplex single function plunger pump.

The plunger's size 5'', 4 1/2'', 4'', 3 3/4'' can be selected by different cementing requirement.





Performance Parameter



Plunger Diameter	Displacement at Pump Strokes Per Minute
	90		150		200		250		300
Inches	gpm	psi	gpm	psi	gpm	psi	gpm	psi	gpm	psi
3 3/4	103	11,600	172	9,007	230	6,759	287	5,410	344	4,511
4	118	10,153	196	7,934	261	5,366	327	4,757	392	3,960
4 1/2	149	7,977	248	6,266	330	4,699	413	3,756	496	3,133
5	184	6,527	306	5,076	408	3,800	510	3,046	612	2,538





















High Pressure Triplex Plunger Pump(1000HP)



High Pressure Triplex Plunger Pump(1000HP) is a kind of horizontal triplex single function plunger pump.The plunger's size 5'', 4-1/2'', 4'', 3-3/4'' can be selected by different cementing requirement.



Specification



Pump model	1000HP
Max.input power HP(kW)	1000(750)
Max.connecting rod load lbf(kN)	133200(592)
Stroke	203.2mm(8″)
Max.stroke time	300rpm
Gear ratio	5.043:1
Overall dimension(mm)	79.21″×55.51″×40″ (2012*1410*1016)
Weight lbs(kg)	8500(3856)



2015 Cementing Plunger Pump(1000HP)



Pump Model	5ZB-745 1000HP
Max.input power	745KW
Max connecting rod load	445000N
Stroke	152.4mm
Max.stroke times	450RPM
Gear ratio	4.61:1
Overall dimention	1290x1910x860MM
weight	3180KG



2015 Cementing Plunger Pump(1000HP) is a kind of horizontal single function

Quintuplex Pump. It can be widely used in the intermittent workover operations,

such as in acidification,cenmenting,fracturing and etc. We can offer Plunger

pump (300hp-2800hp), including its parts and spare parts.

Fracturing Triplex Plunger Pump 1000HP

Fracturing Triplex Plunger Pump 1000HP is a kind of horizontal single function quintuplex pump. It can be widely used in the intermittent workover operations,

such as acidification,cenmenting,fracturing  and etc.

Specification



Pump modeL	1000HP
Max.input power	1866kW
Max.connecting rod load	592000N
Stroke	203.2mm
Max.stroke time	300rpm
Gear ratio	5.043:1
Overall dimension	2012*1410*1016mm
Weight	3856kg



Hubei PetroHK Machine Manufacturing Co., Ltd



With many years technology accumulation and constant innovation , petroKH has formed the production pump bas for series plunger pump series . We can provide a seies of triplex plunger pump from 300HP to 2800HP and quintuple plunger pump . It is widely used in well-cementing , acidification fracturing , high pressure operation in oil and gas field .





Quick Description :



Pump Model :3ZB-750

Max input power : 750KW /1000hp

Max connecting rod load : 592000N

Stroke :203.2mm

Max stroke times :300rpm

Gear ratio : 5.043:1

Overall demension : 2102*1410*1016mm

Weight : 3856KG

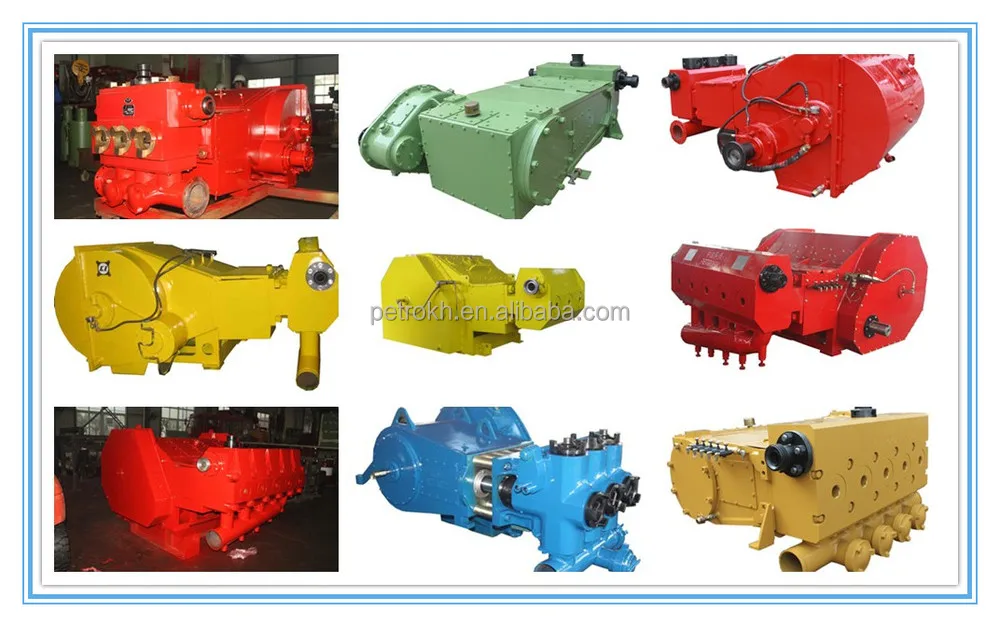

 Series of Plunger Pump

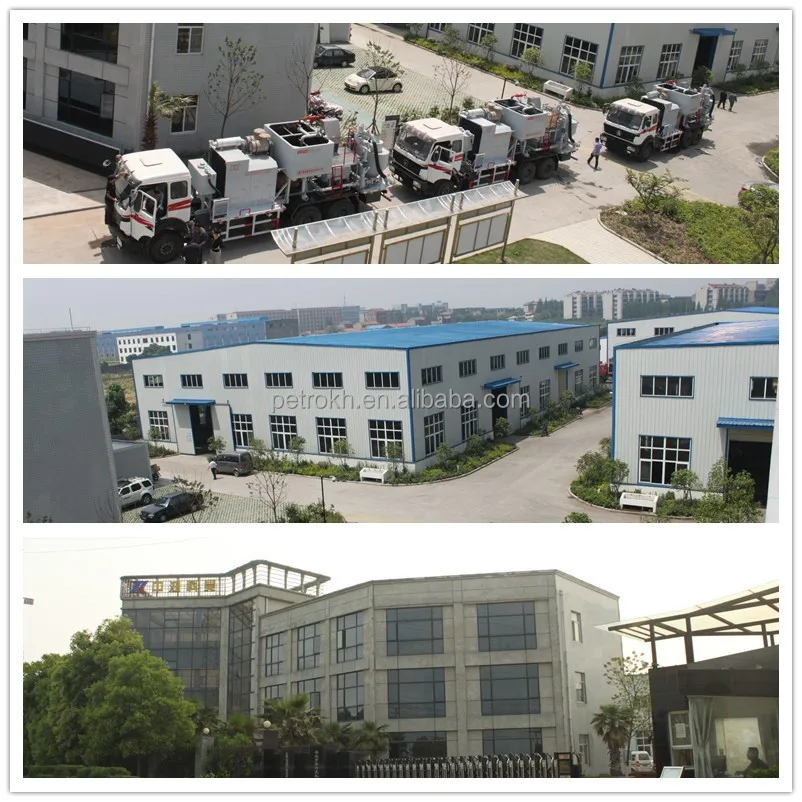

Factory

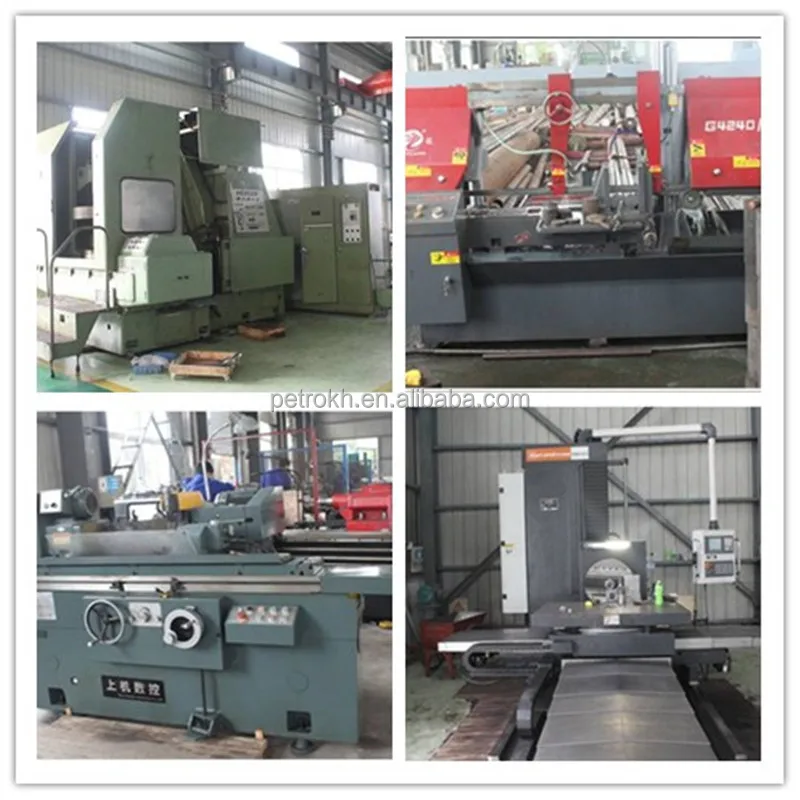

Workshop





Customer Visit





 CIPPE





ISO900l:2008
