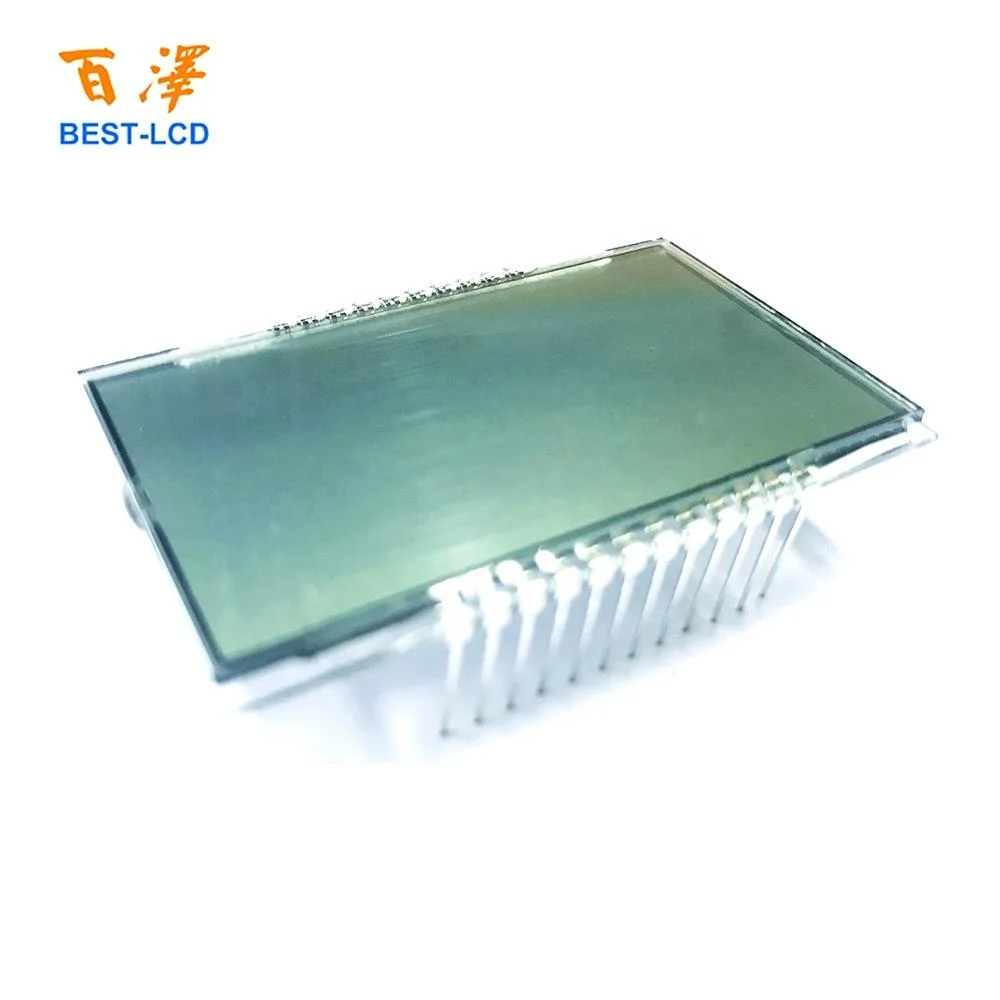

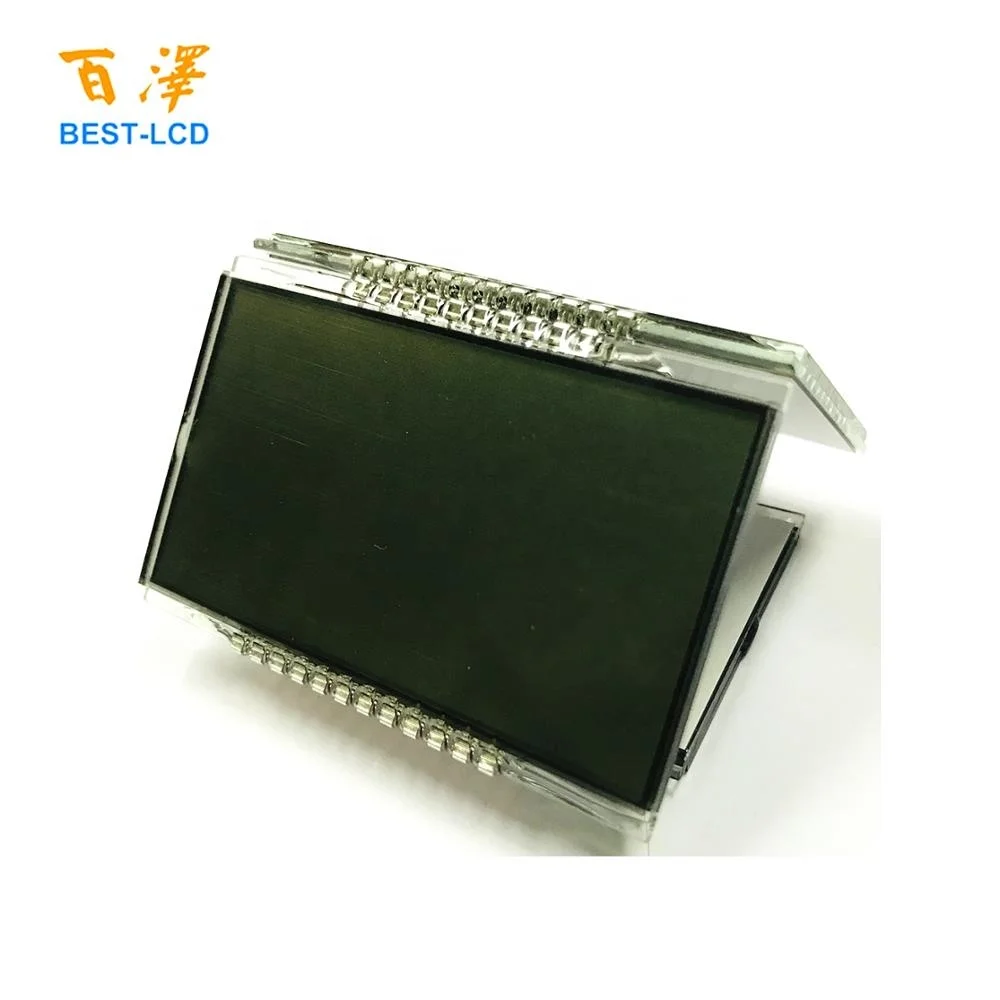

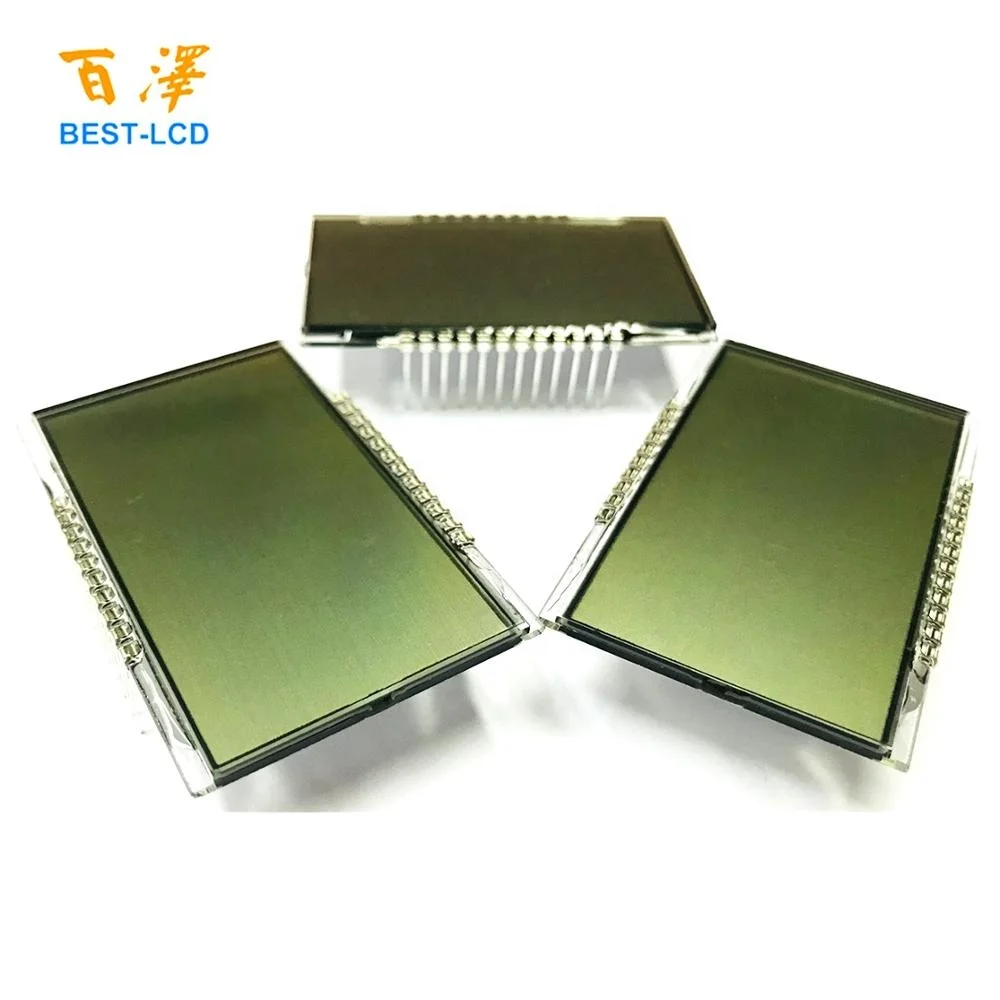

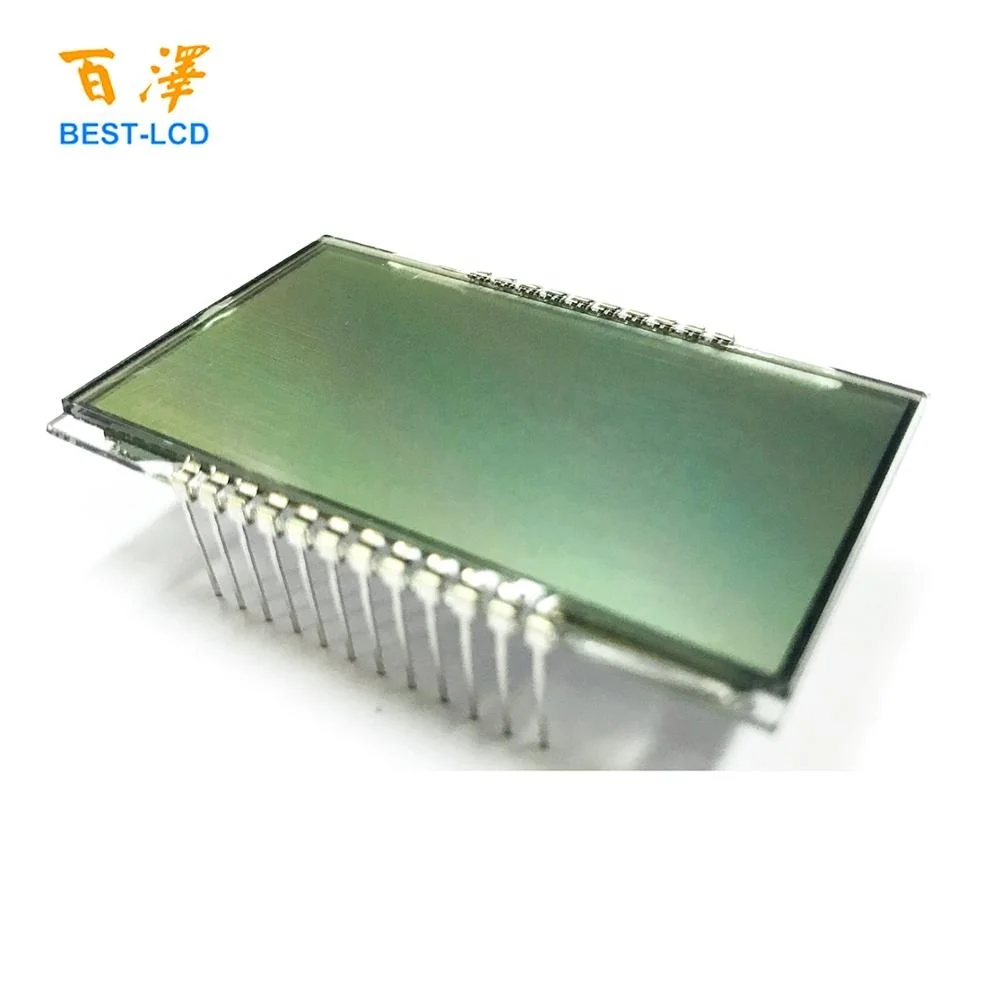

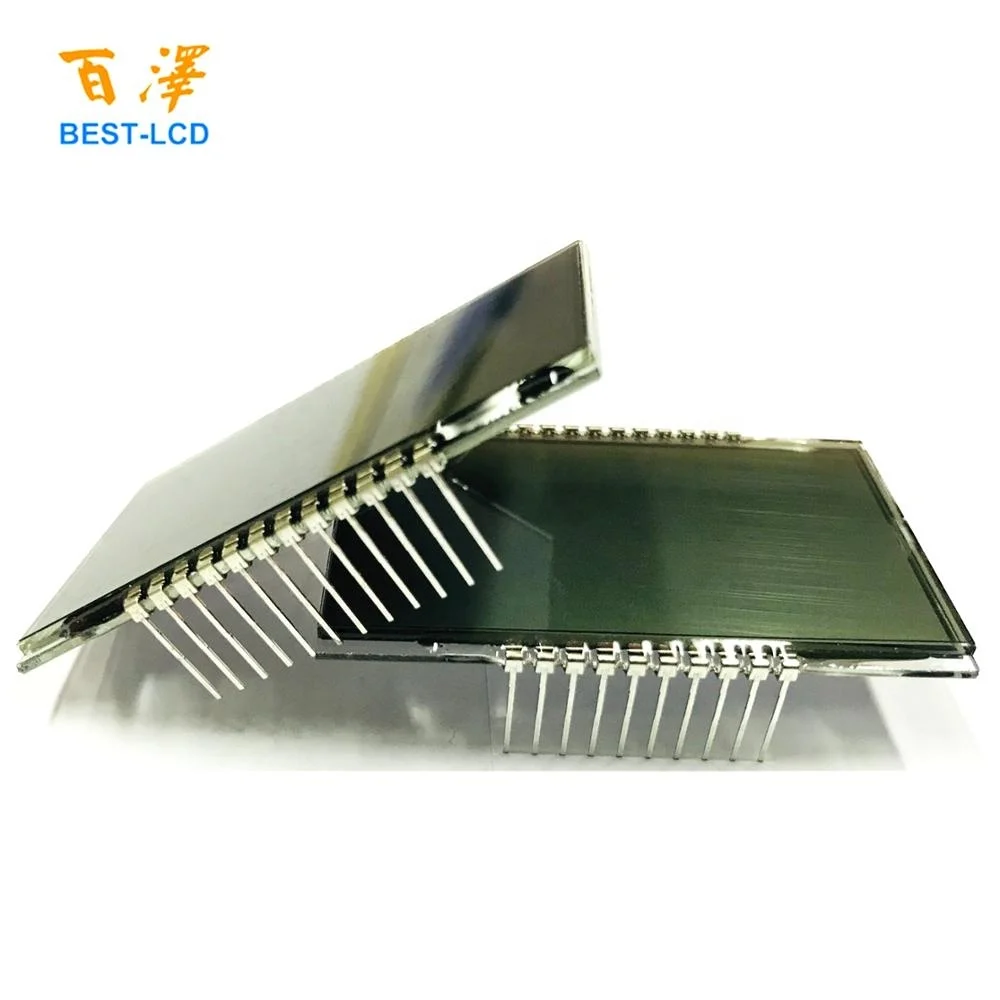

Newly Customized 22 pins Monochrome Segment HTN LCD Display For Industrial Meter / Multimeter/Hybrid Meter etc.

Product Overview

Description

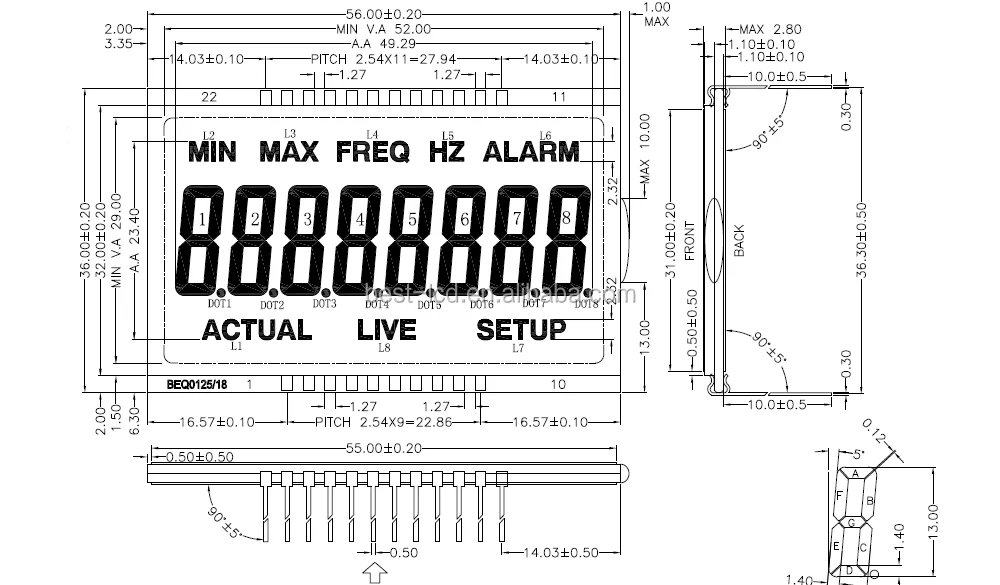

1. Professional Mechanical Drawings:











2. Precisely Technical&Mechanical Parameters FYI:

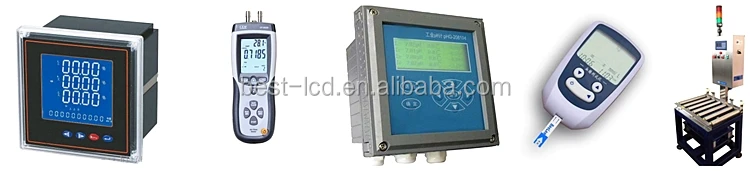

Application	For Industrial Meter / Multimeter / Hybrid Meter etc.
Display Mode	HTN/Positive/Reflective
LCD Size	56.0*32.0/36.0*1.1mm
Viewing Size	52.0x29.0mm
Viewing Direction	6  O’ clock
Driving Method	1/4Duty 1/3Bias
Pitch	2.54mm
Connector Type	Metal Pin
Operate Temp	-10~60degree
Storage Temp	-20~70degree
Operative Voltage	3.0V
Anti-UV, RoHS & REACH compliant product!













5. Trusted Shipping:









6. Outstanding Capabilities&Services:

Customizing & designing segment, character, graphic LCD Display and LCD Module(Including LED Backlight, IC) with different sizes, shapes, display icons for clients.



Product Type:

1. LCD Type:  TN, HTN, STN, FSTN, VA, COB, COG etc.....

2.  Any digitals, Icons, graphic can be customized and designed according to customers' requirements.

3. Polarizer type: Transmissive, Transflective, Reflective

4. Connector Type: Metal Pins, Zebra, Heat-seal, FPC...

5. ITO Glass thickness: 1.1mm, 0.7mm, 0.55mm

6. The range of operating Temperature: -40~90°C





Our products are widely and well accepted in North America such as USA,Canada; European countries such as UK, Germany, France, Netherlands, Greece, Russia, Sweden, Ireland, Swiss, Austria, Luxembourg, Belgium, Italy, Spain, etc. ; Asia countries such India, Singapore, Malaysia etc..







7. Workshop View:

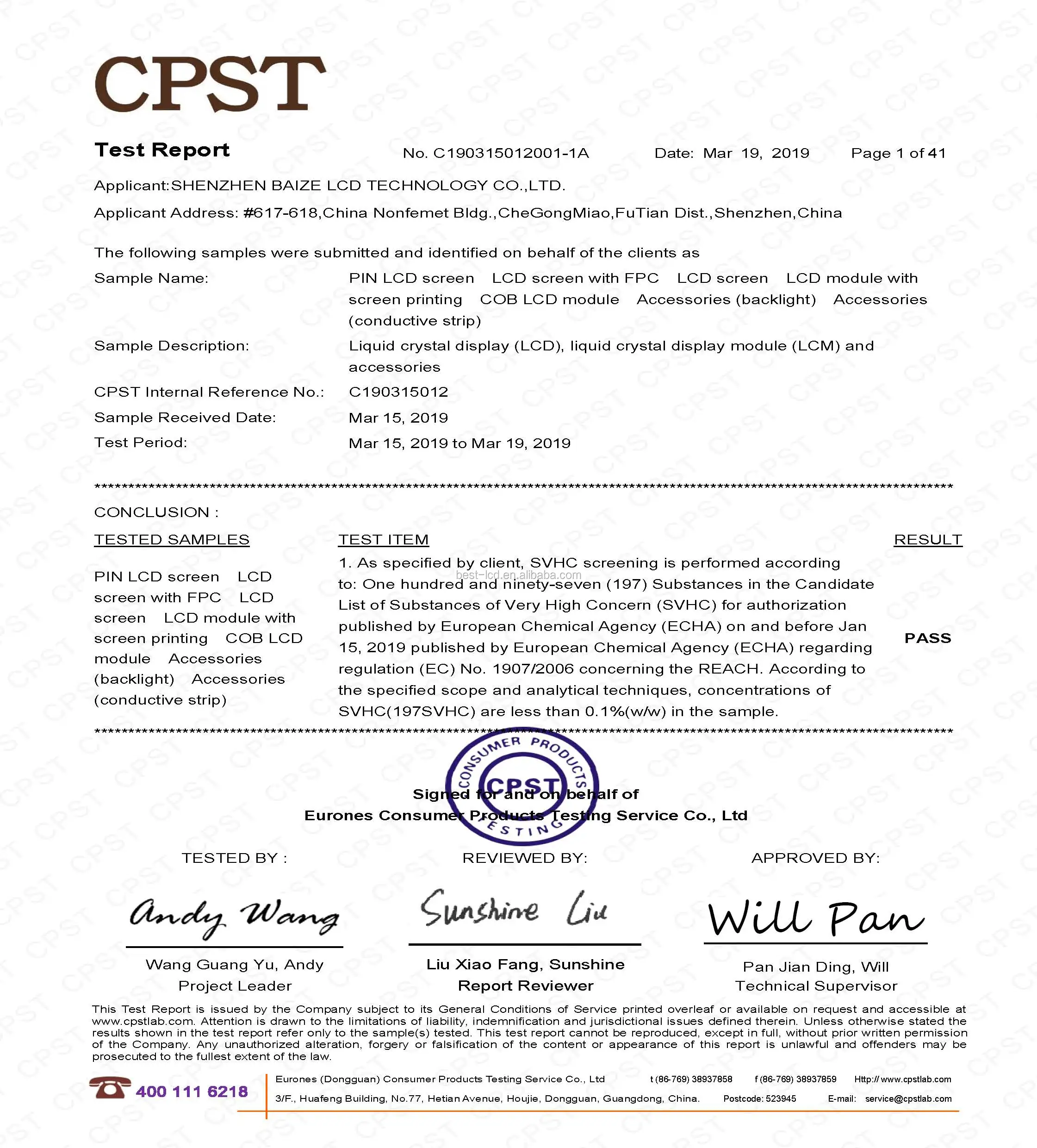

8. Certificated Reports:





8. Contact us:

If it arouses your interests or if you want to learn more details and get the latest updates, pls add my trademanager/Skype or send inquiry to me, I'll be glad to answer!
