500 kw automatic pump 3 phase 50hz 60hz motor soft starter

Product Overview

Description

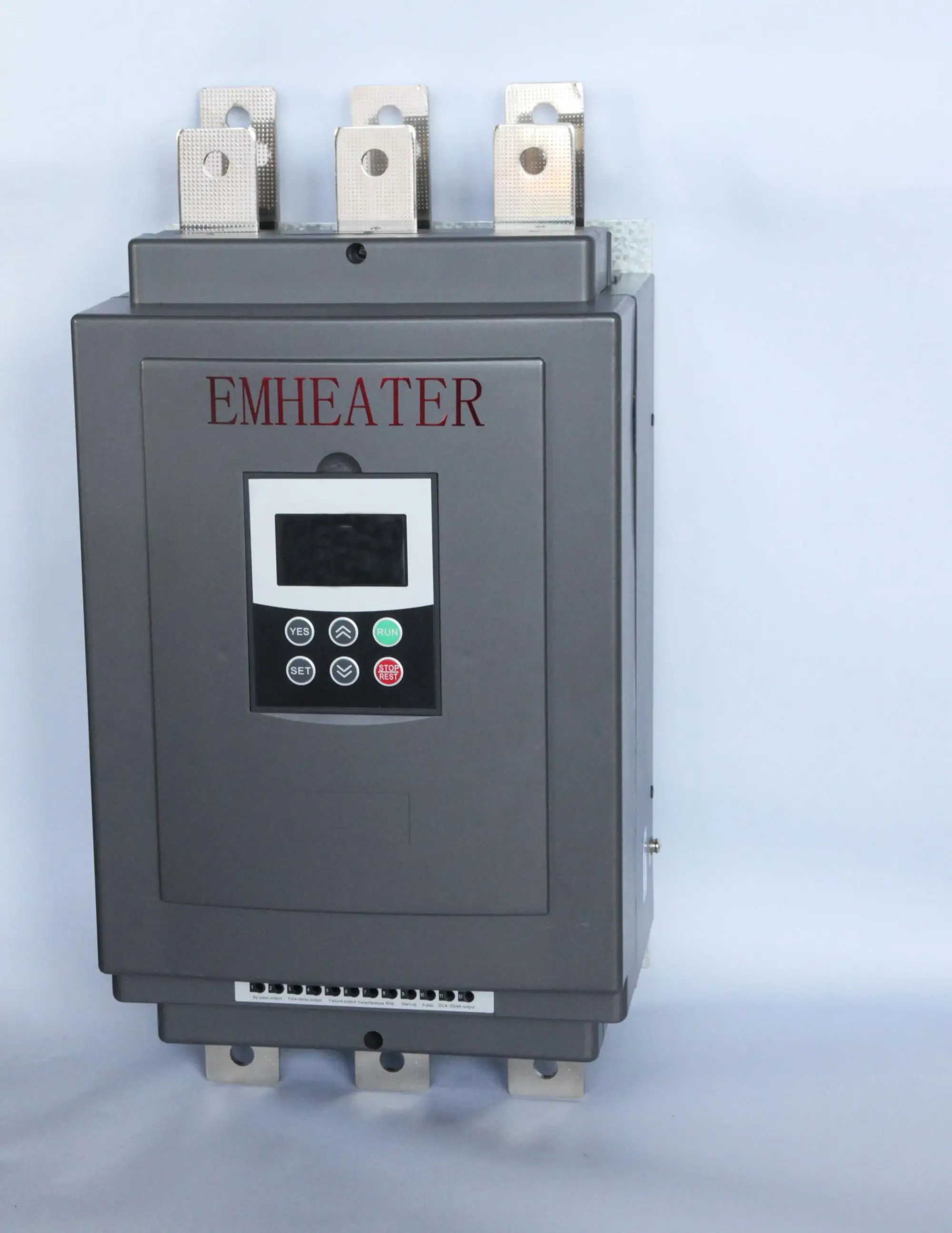

500 kw automatic pump 3-phase 50hz 60hz motor soft starter



EM-GS series soft starter is a new type start-up equipmentt which integrates electric force and clectronic techniques, computer techniqucrol theory. It is the new

generation product to replace the conventional Star-Delta Self-coupling voltage-drop starter and Magnetic control voltage-drop starter.



Feature



1. Reduce the starting current, reduce power supply peak current, reduce the cost of distribution equipment. Reduce the abrasionmotor, improve the service life of mechanical equipment.

2. Optional starting parameters are convenient in one soft starter starting different motors.

3. Soft starter inspects motor feedback voltage to realize closed loop control, ensure the motor start-up success in different conditions and different loads.

4. A variety of starting ways: voltage ramp starting way can get the maximum output torque; Current limiting can realize biggest limitations of the soft start starting current.

5. Reliable quality assurance: using computer simulation design; SMT production process; Excellent electromagnetic compatibility performance, High temperature aging, vibration test of the machine before delivery.



Product Description

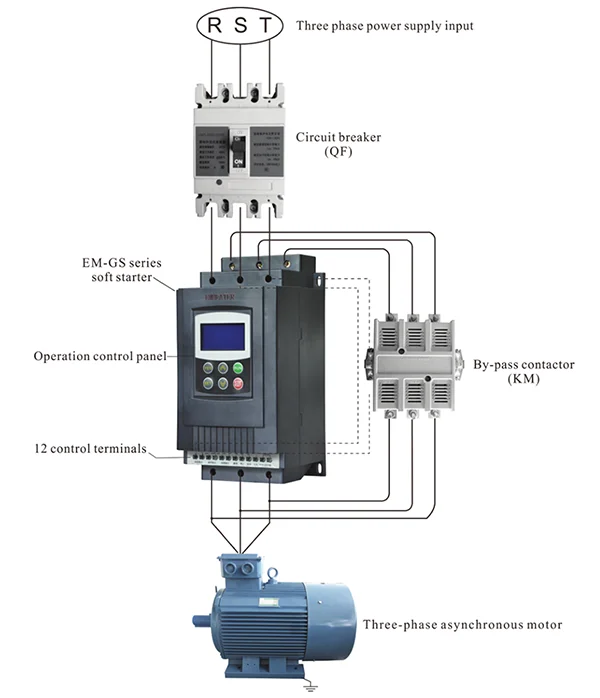

Connection show

















CHINA BEST QUALITY SOFT STARTER

EM-GS3 Series Soft starter 380~415V

Three phase input & output (LCD displaying)



Model No.	Voltage	Power	Current	G.W	Starter size	Installation dimension
	(V)	(KW)	(A)	(KG)	H/W/D(mm)	H/W/D(mm)
EM-GS3-5d5	400	5.5	11	5	270/146/160	247/131/6
EM-GS3-7d5	400	7.5	15	5	270/146/160	247/131/6
EM-GS3-011	400	11	22	5	270/146/160	247/131/6
EM-GS3-015	400	15	30	5	270/146/160	247/131/6
EM-GS3-018	400	18	37	5	270/146/160	247/131/6
EM-GS3-022	400	22	43	5	270/146/160	247/131/6
EM-GS3-030	400	30	60	5	270/146/160	247/131/6
EM-GS3-037	400	37	75	5	270/146/160	247/131/6
EM-GS3-045	400	45	90	5	270/146/160	247/131/6
EM-GS3-055	400	55	110	5	270/146/160	247/131/6
EM-GS3-075	400	75	150	5	270/146/160	247/131/6
EM-GS3-090	400	90	180	21	525/257/194	377/195/8
EM-GS3-115	400	115	230	21	525/257/194	377/195/8
EM-GS3-132	400	132	264	21	525/257/194	377/195/8
EM-GS3-160	400	160	320	21	525/257/194	377/195/8
EM-GS3-185	400	185	370	21	525/257/194	377/195/8
EM-GS3-200	400	200	400	21	525/257/194	377/195/8
EM-GS3-250	400	250	500	21	525/257/194	377/195/8
EM-GS3-280	400	280	560	21	525/257/194	377/195/8
EM-GS3-320	400	320	640	32	560/290/245	465/260/8
EM-GS3-355	400	355	710	32	560/290/245	465/260/8
EM-GS3-400	400	400	800	40	590/330/245	490/300/8
EM-GS3-450	400	450	900	40	590/330/245	490/300/8
EM-GS3-500	400	500	1000	55	750/450/300	575/400/10
EM-GS3-600	400	600	1200	55	750/450/300	575/400/10
